Index
Item Page
I. Product Description 3
II. Indication for Use 3
III. Warnings 4
IV. Cautions 5
V. Assembly Instructions 6
VI. Technical Specifications 8
VII. Cleaning Instructions 8
VIII. Instructions for Temporary Relief of Pain 9
IX. Frequently Asked Questions 11
X. Disclaimer 12
XI. Equipment Classification 12
XII. Warning Symbols 13
XIII. Warranty 13
XIV. Arbitration Agreement 14
2
11.3.08
Thank you for your purchase. We want you to be completely
satisfied with the quality and performance of this product. Our
goal is to discover new products for your health. We will give
great customer service that goes beyond your expectations.
II. The DPL™ Therapy System Indications for Use
3
The LED Technologies, LLC DPL™ Therapy System is intended
for the relaxation of muscles and relief of muscle spasms;
temporary relief of minor muscle and joint aches, pains and
stiffness; temporary relief of minor pain and stiffness associated
with arthritis; and to temporarily increase local blood circulation.
LED Technologies, LLC
I. Product Description
The DPL™ Therapy System is a compact infrared lamp for therapeutic
heating. It delivers infrared light to the skin resulting in a safe elevation
of the skin temperature for therapeutic effects. The lamps are contained
in two separate panels on a desk stand. The panels are detachable for
use individually or as a pair on the body. A Velcro strap is used to hold
the panels to the body. The product has an automatic 17-minute timed
cycle which may be repeated by activating the ON cycle. There are no
user settings or adjustments.
11.3.08
4
III. Warnings
1. The DPL™ Therapy System is an electrical device. To avoid
electrical shock:
a. Do not wash unit with water.
b. Do not touch the plug or device with wet hands.
c. Do not touch unit to wet skin.
d. Do not use if cord or plug appears to be damaged.
e. Do not use the unit if it has been dropped, damaged, left
outdoors, or dropped into water.
f. Do not pull, lift, or carry unit by the power cord.
g. Do not use the cord as a handle, close a door on the
cord, or pull the cord against sharp edges or corners.
h. Do not use near heated surfaces.
2. It is required to use the system in a fixed position, by using the
velcro strap.
3. Do not operate the unit in areas where flammable or combustible
products or vapors may be present. Explosion or fire may occur.
4. Do not allow children to use – this is not a toy. Do not leave
small children unattended close to unit.
5. Not to be used by disabled, sleeping or unconscious persons.
6. Do not use the unit on an open wound, as heat may increase
circulation and cause bleeding.
7. Do not use over thyroid gland (the neck area) if the user has
been diagnosed with or suspects thyroid problems. No clinical data
is available to support use for patients with thyroid gland problems.
8. Do not use with liniments, salves or ointments that contain heat-
producing ingredients as a skin burn could result.
9. There are no user-serviceable parts inside the unit. Any attempt
to open the unit will void the warranty and could lead to serious
damage to the unit and/or personal injury to the operator.
11.3.08
5
IV. Cautions
1. Consult your doctor prior to using, especially if you:
a. are pregnant,
b. are taking drugs known to cause
sensitivity of skin to light,
c. have any suspicious or cancerous lesions,
and/or
d. recently had a steroid injection or use topical
steroids.
2. Individuals using aspirin, ibuprofen and other similar drugs
for pain or individuals with skin conditions may experience a
mild “flare up” of their symptoms and should stop DPL™
therapy.
3. Read all instructions and safety precautions before using the
DPL™ Therapy System.
4. Do not use on infants.
5. If you experience discomfort or have a concern about its use,
stop use immediately and contact your doctor.
6. Use indoors only.
7. Use only the supplied power supply.
8. Turn off all controls before unplugging unit from the outlet.
Unplug from outlet when not in use to void tripping hazards.
9. Do not unplug by pulling the cord. Grasp the plug itself, not
the cord, when unplugging from an outlet.
11.3.08
6
V. ASSEMBLY INSTRUCTIONS
1. Unpack your DPL™ Therapy System.
Your box will include the following:

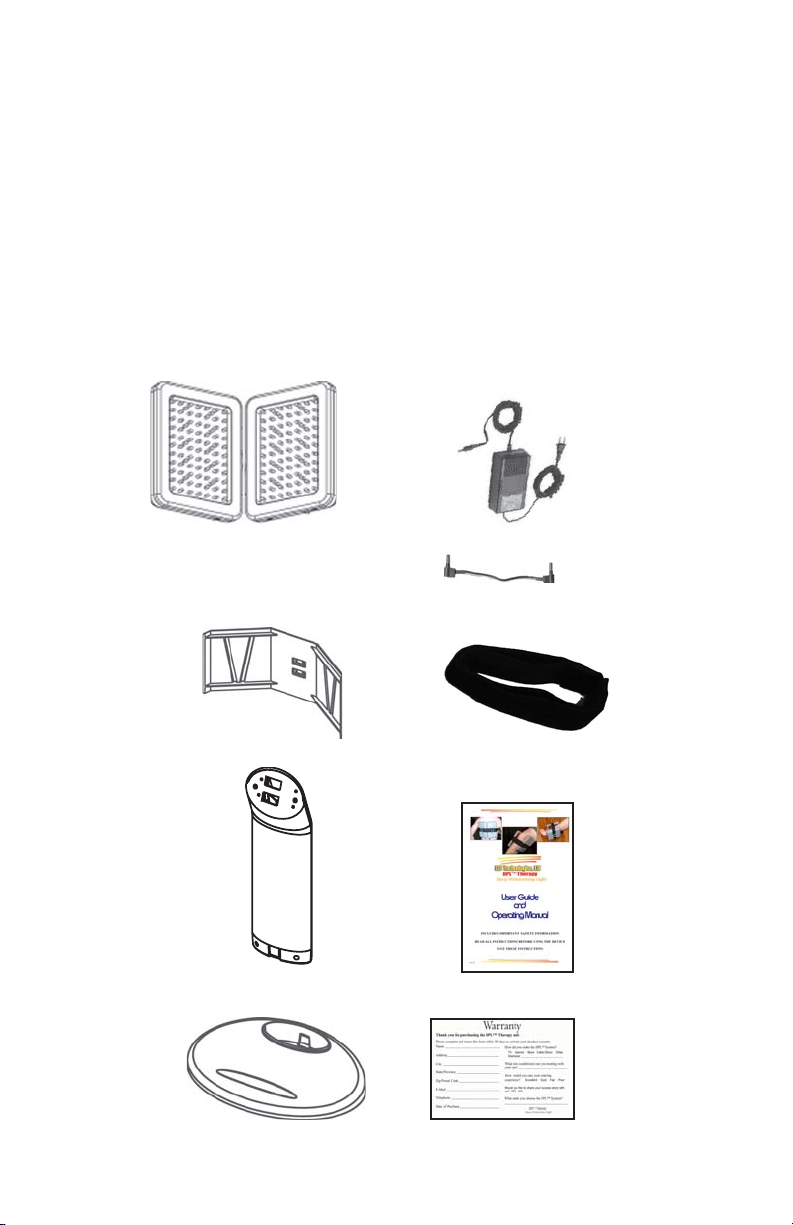

1. DPL™ System (2 panels) 5. Velcro Strap
2. DPL™ Stand (3 pieces) 6. User Guide and
3. Power Supply and Cords Operating Manual
4. Panel Connector Wire 7. Warranty Card
1. DPL™ System (2 panels)
2. DPL™ Stand (3 pieces)
Mounting Bracket
Column
Base
3. Power Supply
& Cords
4. Panel
Connector Wire
5. Velcro
Strap
6. User Guide
& Operating
Manual
7. Warranty
Card
11.3.08
7
V. ASSEMBLY INSTRUCTIONS
(Continued)

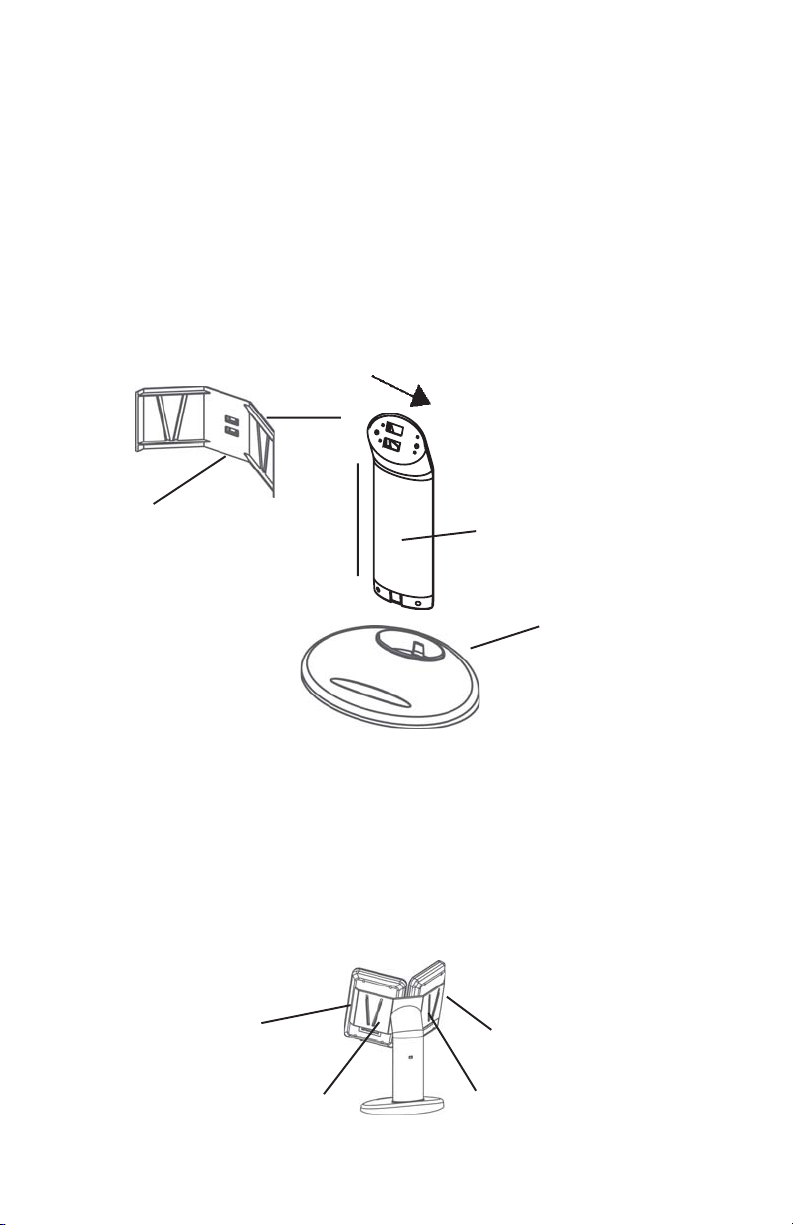

2. Assemble Stand (3 pieces).
Insert column (1) into base (2) and seat firmly.
Align Mounting Bracket (3) tabs with two rectangular holes on
column. Press firmly against column. Slide to right until tabs
engage.
Mounting Bracket (3) Column (1)
Base (2)
X
T
3. Attach DPL™ System panels to stand.
The panels are different. The “Master” panel (A) has 2
plugs and a switch along the bottom edge.
Align tabs and slide Master panel (A) onto right side of
Mounting Bracket. Align and slide Left panel (B) onto left side
of Mounting Bracket.
Right Panel
Master (A)
Mounting Bracket
Left Panel (B)
Mounting Bracket
11.3.08
8

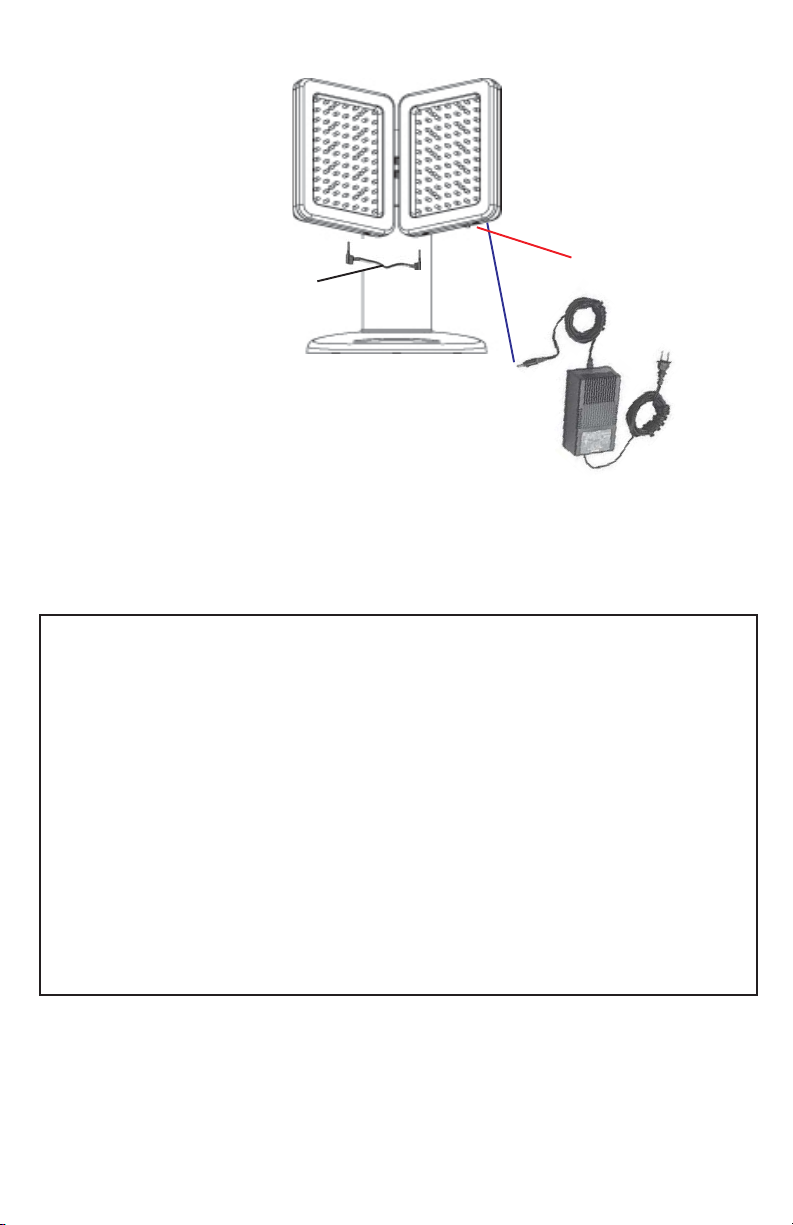

4. Attach Panel Connector Wire between Panels.
Power button
(On/Off)
5. Attach Power Supply to Panel.
6. Plug Power Supply into electrical outlet.
7. Push Power Button to start device.
8. Device will automatically turn off in 17 minutes.
9. To quit before treatment is over, push Power Button again.
• ONLY USE SUPPLIED AC Power Supply.
• Device includes only an on/off switch; all settings are set at the factory.
• Unplug system when not in use.
• Inspect power supply cords and all cables for fraying.
• Inspect LEDs to determine if any are broken.
• The DPL™ System is NOT user serviceable.
♦Operating Temperature: 0°C to +27°C (32°F - 80°F)
♦Relative Humidity: 85%
♦Storage Temperature Range: -30°C to +55°C (-22°F to +130°F)
♦Wavelengths: Infrared LED 880nm, RED LED 660nm ±30
♦ Power: 30 Watts, Range 8-55/mWcm² - maximum output 55/mWcm²
VI. Technical Specifications
Power Supply
Panel Connector Wire
• Clean the system monthly with rubbing alcohol and cotton cloth.
• Allow alcohol to dry before use.
VII. Cleaning Instructions
11.3.08 9
VIII. Instructions for Temporary Relief of Pain
Dual Panel Use With Strap

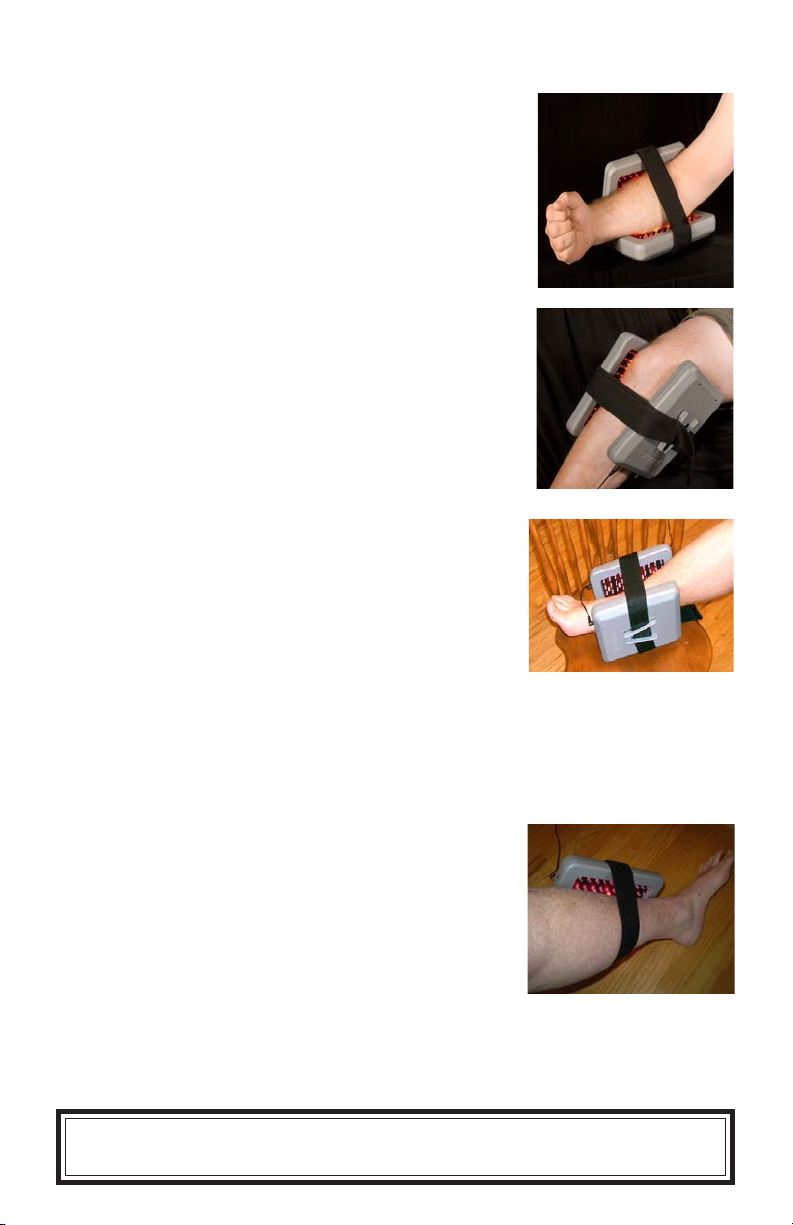

1. Remove both panels from stand and
place or wrap around desired area.
2. Slip velcro strap through openings on
back of panel and fasten around body.
3. Press Power button and release.
You will hear a beep and the lights will
come on.
You can only see the red LEDs; the
others are in the infrared spectrum and
can’t be seen with the human eye.
The unit will beep in one minute inter
vals for a total of seventeen minutes.
Single Panel Use With Strap
1. Unplug Panel Connector Wire from
Master panel.
2. Slip velcro strap through openings on
back of the Master panel and fasten on
desired area.
3. Press Power button and release.
4. The unit will automatically turn off at
the end of the 17 minute treatment
cycle. Device takes 8 minutes to reach
target temperature on skin. Total time
for treatment is 17 minutes.
5. To quit before treatment is over, push
Power Button again.
Recommended Usage: We recommend 2 (17 minutes
each) treatments per day.
4. The unit will automatically turn
off at the end of the 17 minute treat-
ment cycle. Device takes 8 minutes to
reach target temperature on skin. Total
time for treatment is 17 minutes.
5. To quit before treatment is over, push
Power Button again.
11.3.08
VIII. Instructions for Temporary Relief of Pain
Dual Panel Use With Stand

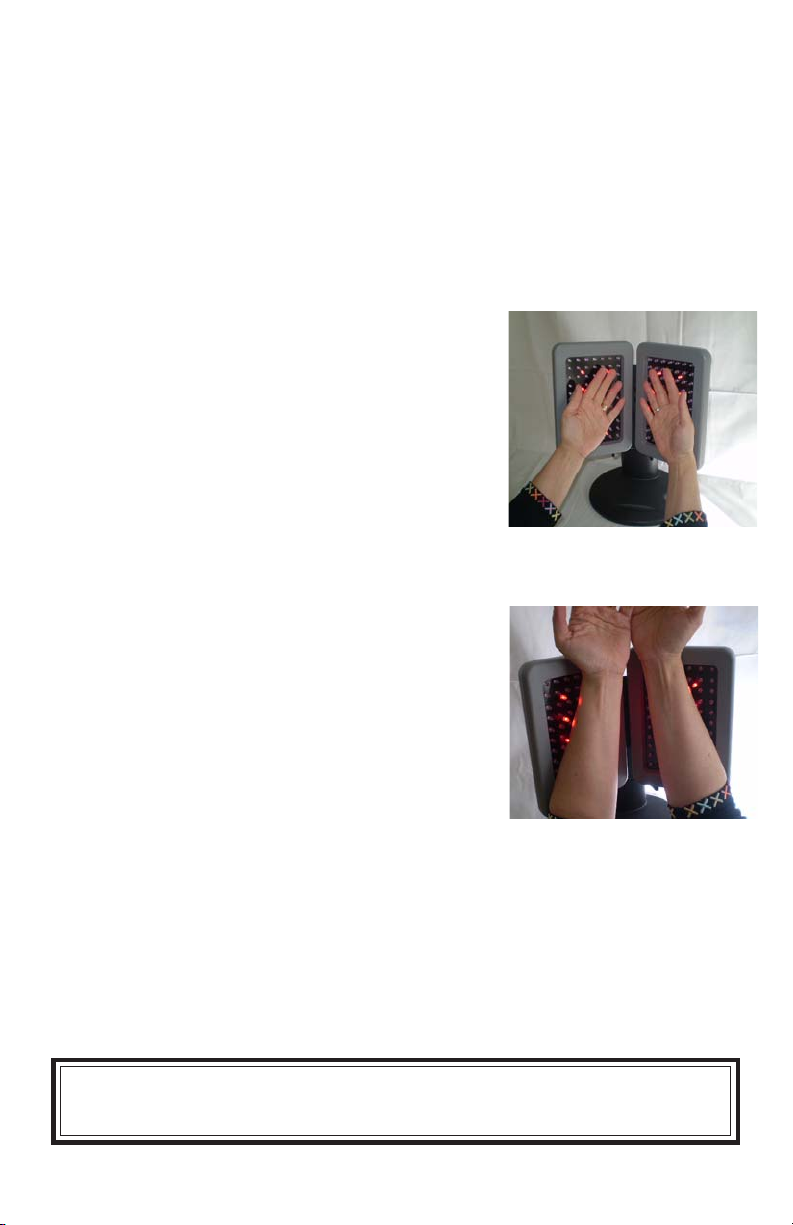

1. Place both panels on stand.
2. Attach Panel Connector Wire
betwen panels.
3. Attach Power Supply to Panel.
4. Plug Power Supply into electrical
outlet.
5. Press Power Button and release.
6. Place body part ( hands, arm
etc. ) no further than 1/2” from
LED panels.
You will hear a beep and the
lights will come on.
You can only see the red
LEDs; the others are in the
infrared spectrum and can’t be
seen with the human eye.
The unit will beep in one minute
intervals for a total of seventeen
minutes.
7. The unit will automatically turn off at
the end of the 17 minute treatment
cycle. Device takes 8 minutes to
reach target temperature on skin.
Total time for treatment is 17
minutes.
8. To quit before treatment is over,
push Power Button again.
Recommended Usage: We recommend 2 (17 minutes
each) treatments per day.
10
