LED Lighting FRT5 V2 Manuel utilisateur

FRT5 V2

INSTALLATION MANUAL

Class III

Installaon Requirements

• This xture must be supplied with SELV voltage that does not exceed 50VAC and is normally 24V. Follow the

PSU parameters for input power from the socket.

• Connect to an individual branch circuit.

• LLSA ensures a 2 kV surge protecon on our PSU, anything out of this range will void warranty provided.

• Improper installaon might cause an electric shock accident.

• Use an authorized electrical professionals to do the installaon, repair and maintenance of the light xture.

• Cut o the power before and during installaon, maintenance and repair of the light xture.

• Do not install the light xture on top of or near hot objects to avoid damage. (For example hot gas pipes, exhaust

funnels or stoves)

• Do not install the light xture in a damp area or where liquid leakage is potenal.

• Make sure no re regulaons are violated.

• Do not cover the lamp with a heat insulang material.

• Do not look directly at the light xture for a long period of me to avoid sight damage.

• The use of third party replacement parts is not recommended by the manufacturer for it will lead to warranty void.

• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a

similar qualied person.

Cleaning and Maintenance of Enclosure

• Do not use solvent-based cleaning agents, this will cause cracks to form in the plasc diuser covers.

• Clean with a damp cloth and silicone-based cleaning agent. (Such as Mr Min)

• The protecon against electric shock is based on the use of a safety extra low voltage power supply (SELV).

• No provision for earthing is provided.

Product Informaon

Bracket Opons

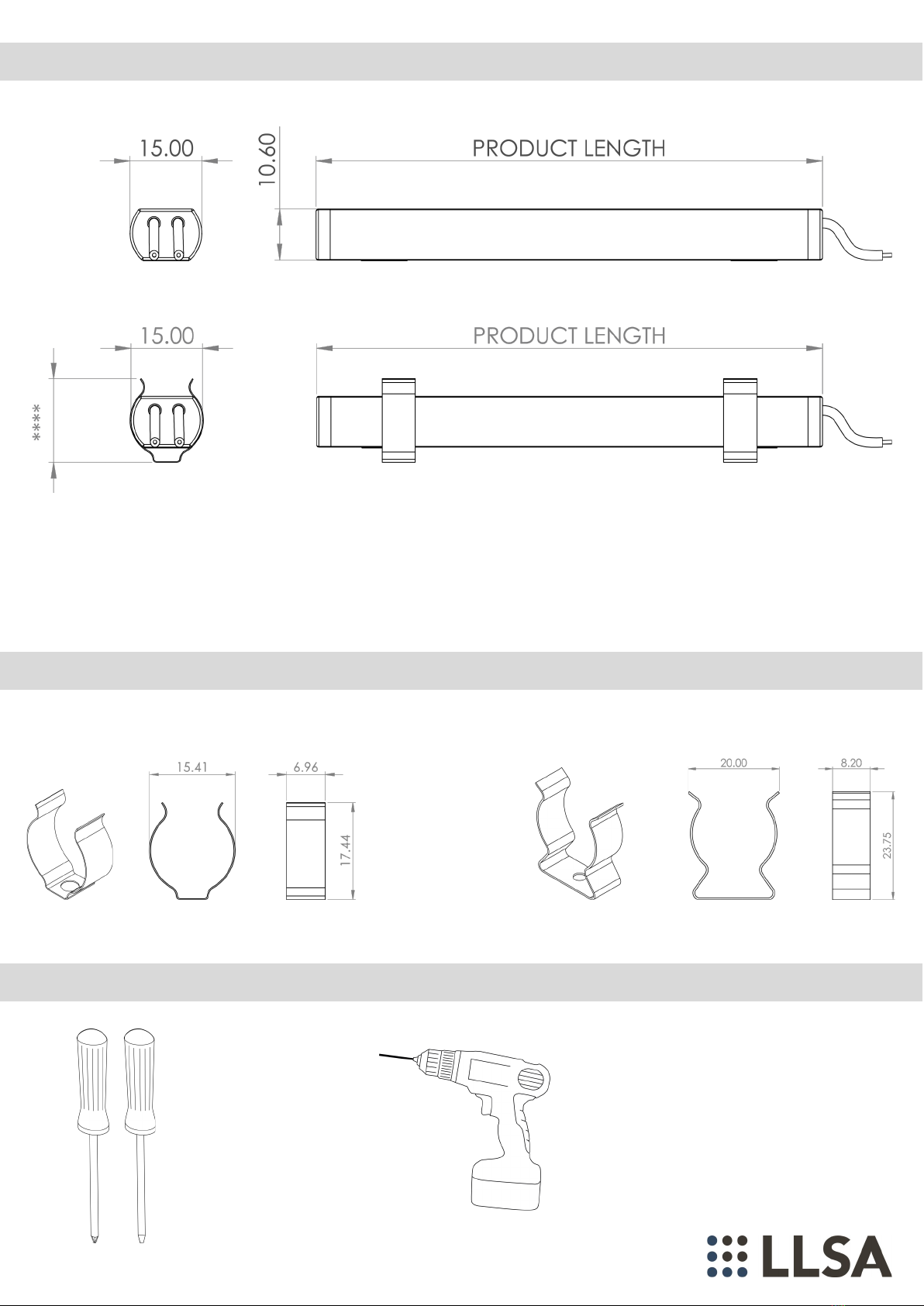

DIMENSIONS: **** dependant on bracket type PRODUCT WEIGHT: 0.9kg/m PACKAGED WEIGHT: 1.2kg/m

Stainless Steel Galvanized Steel

Installaon Tools

Electric drill and mounting material

appropriate drill bit

Screw type appropriate

screwdriver

Instrucons (steps to follow)

- Magnec mounng

Mounng Methods

Instrucons (steps to follow)

- Bracket mounng

Ensure neat and proper

cable management at all

times.

Failure to do so might

result in cable failure and /

or damage.

Connector types and use

- No-strip connector

Connecon to power

Connector types and use

- TE connector

Always ensure the power

has been disconnected

before installation and

connecting the fittings.

Wiring diagram

- Always check power supply / transformer parameters before connecon
