Lectron EVC27 Manuel utilisateur
USER MANUAL
48A AC Charging Station
(4G)
In the box
Page 1

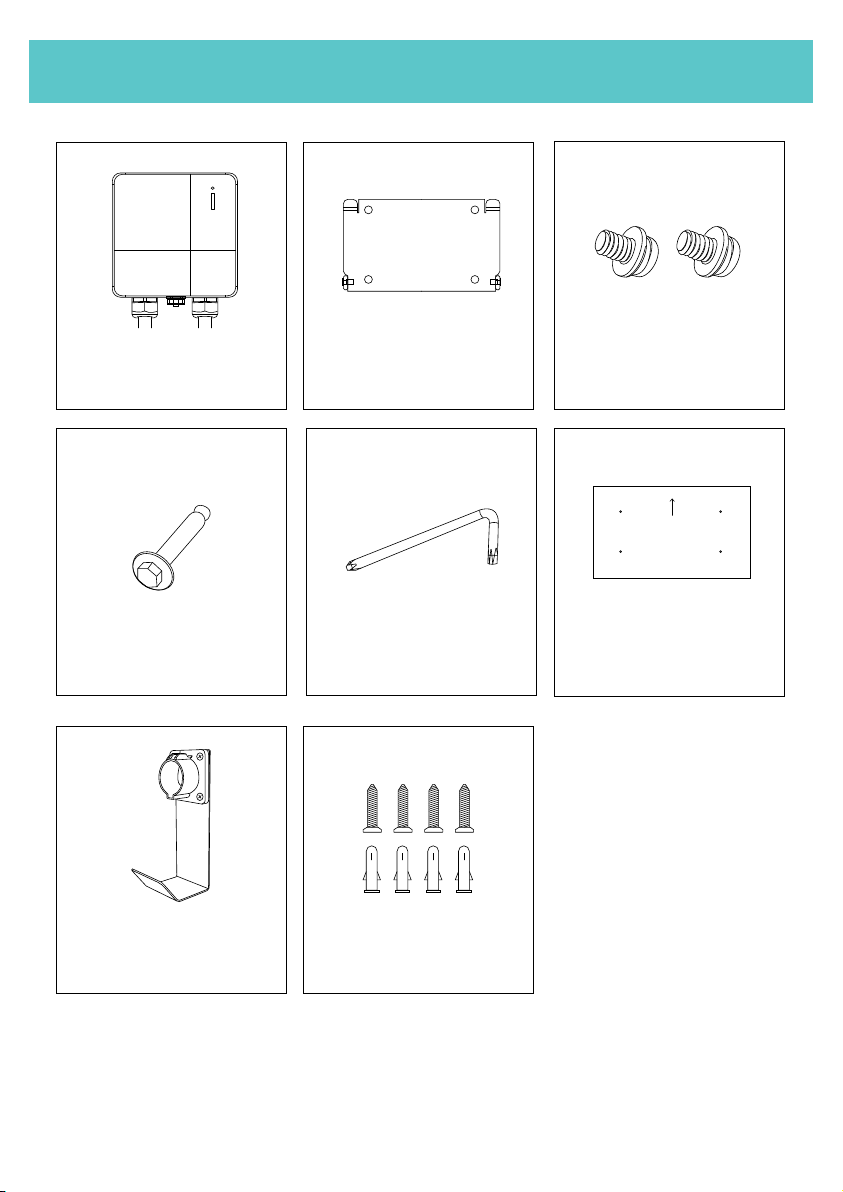

AC charging station Wall-mounted
bracket
2 x M5 anti-theft
round head screws
4 x M6 hexagonal
expansion screws
EV cable
organizer holster
Set screws +
anchors (holster)
Allen wrench Corrugated
mounting template
Warnings
Page 2
• To avoid fire, injury, or death, carefully read and follow the instructions
during installation, operation, and maintenance.
- DO NOT put your fingers into the electric vehicle connector.
- DO NOT use this product if the flexible power cord or EV cable is
frayed, has broken insulation, or displays any other signs of damage.
- DO NOT use this product if the enclosure or the EV connector is
broken, cracked, open, or shows any other indication of damage.
- DO NOT remove the cover or attempt to open the enclosure
resulting in the risk of electric shock.
• This device should be supervised when used around children.
• This device must be grounded.
• Do not use this device with an extension cord to avoid the risk of fire
or electric shock.
• The suitability of the use of flexible cord in accordance with CE
code, part I, rule 4-012, is to be determined by the local
inspection authority.
• To reduce the risk of fire, connect only to a circuit provided branch
circuit over-current protection in accordance with the CSA C22.1–15
Canadian Electrical Code, Part 1 (Canada) or NOM-001-SEDE
Electrical installations (utility) (Mexico) or ANSI / NFPA 70 National
Electrical Code (USA).
Circuit breaker options table
Output amperage (A) 16 A 32 A 40 A 48 A
20 A 40 A 50 A 60 ACircuit breaker options (B)
Page 3
Installation requirements
• Disconnect electrical power prior to installing the charging station.
• Be sure to preview the user manual and ensure local building and
electrical codes are reviewed before installing the AC charger.
• The AC charger should be installed by a qualified technician
according to the user manual and local safety regulations.
• Use appropriate protection when connecting to the main power
distribution cable.
• Type B, C or D breaker with the rating current for table should be
installed in the upstream AC distribution box.
• The device shall be mounted at height between 2 ft and 4 ft from
the ground.
• Please keep the charger in a clean area with low humidity. Not
recommended to be installed in coastal environments with high
humidity or high dust.
Daily maintenance
• Avoid moisture or water in the charger. If there is water or moisture
ingress in the charger, it is necessary to immediately power off to avoid
immediate mishap and notify the professionals to carry out maintenance
before the subsequent use.
• Please use the charger properly. Do not hit or press hard on the
enclosure. If it is damaged, please contact a professional technician.
• Avoid placing the charger near hot objects and at high-temperature
locations, and away from dangerous substances such as flammable
gases and corrosive materials.
• Do not put heavy objects on the charger to avoid any accident.
Page 4
Introduction to parts
CAUTION: Avoid placing the charger near hot objects and at
high-temperature locations and away from dangerous substances such as
flammable gases and corrosive materials.

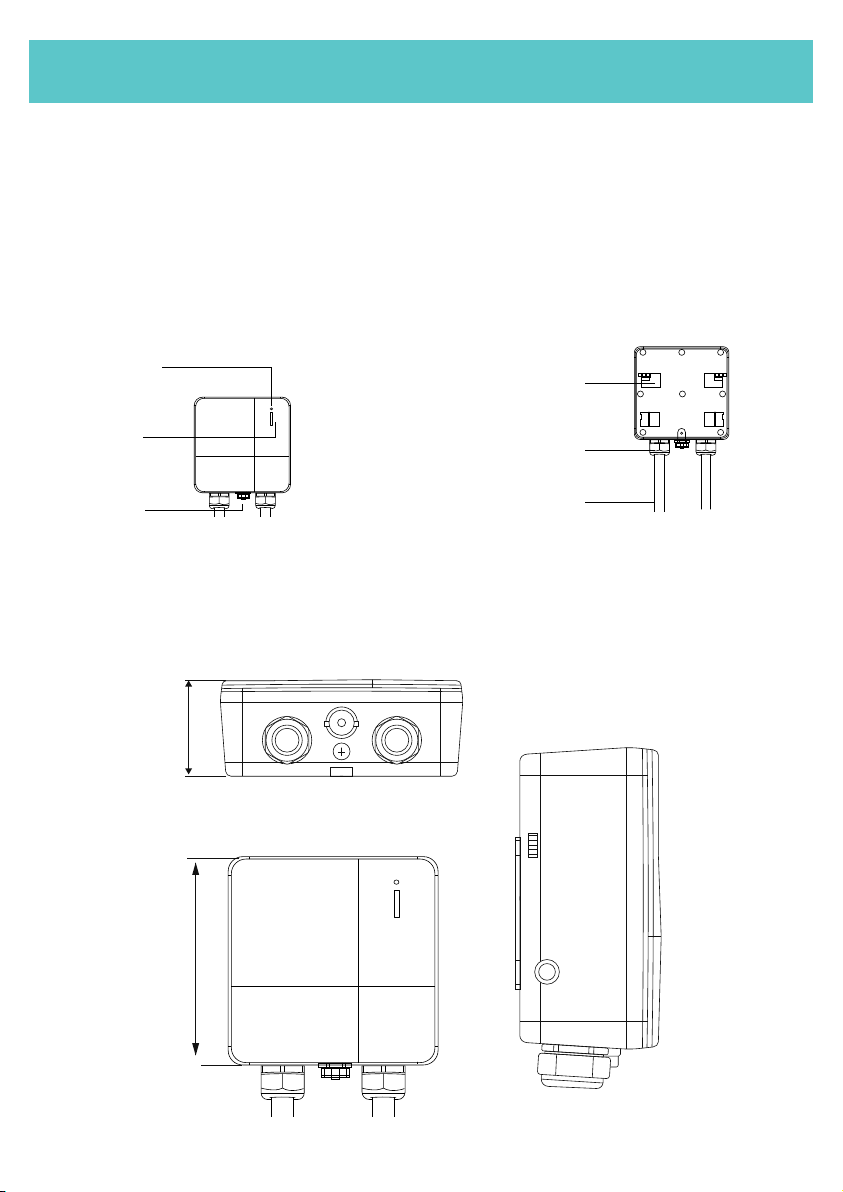

Basic Interface
Signal check
indicator
LED light
indication
LAN cable
inlet
Rear notch
Charging cable
AC power
cable
Basic Dimensions
3.7 in
8.7 in
Page 5
Dial position Current (A)
016 A
32 A
40 A
48A (Default, hardwire
installation needed）
1
2
3
Plan the mounting
WARNING: In areas with frequent thunderstorms, add surge
protection at the service panel for all circuits. Ensure all power and ground
connections, especially those at the breaker and bus bar, are clean and
tight.
CAUTION: Not recommended to be installed in coastal environments with
high humidity or high dust

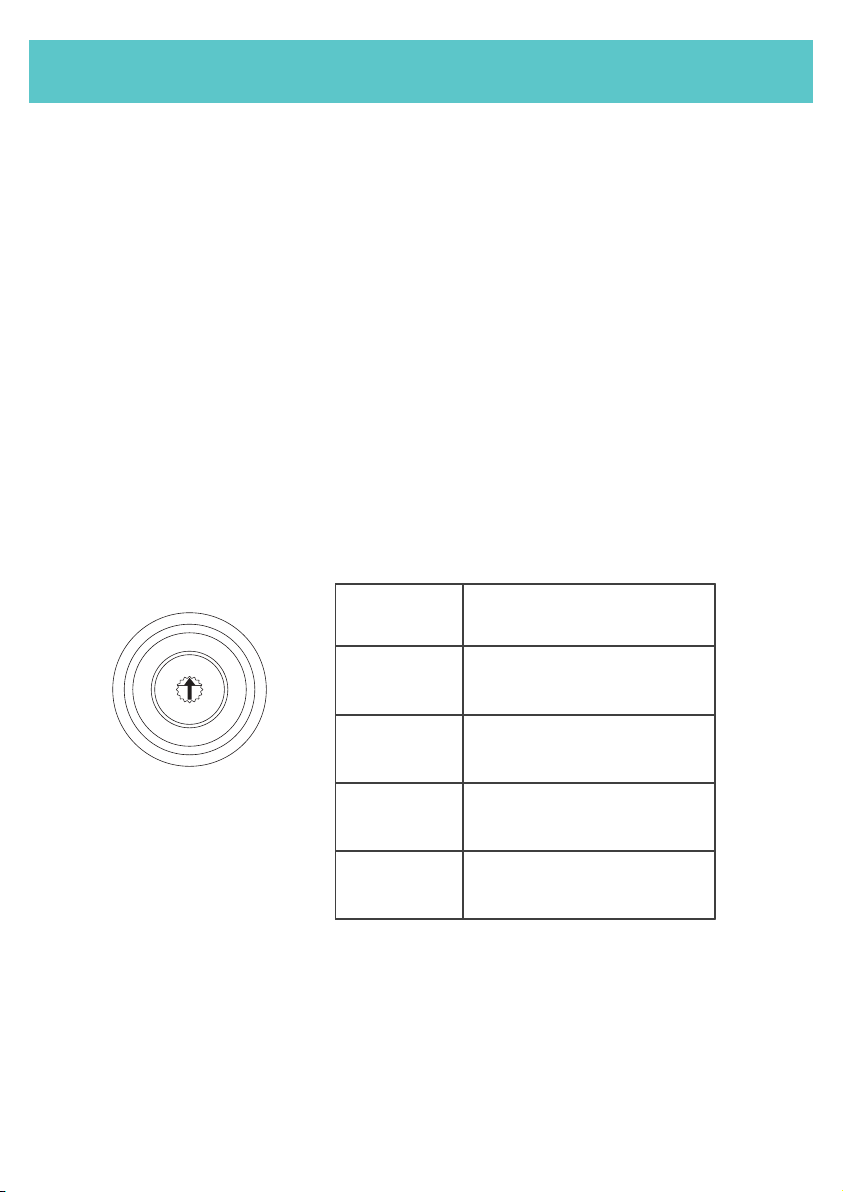

1. By default, the AC charger has been set to 3 (48A). To adjust the amps,
unscrew and remove the plastic cover from the back of the AC charger,
and turn the dial on the inside to your preferred setting. Note: 48A
requires hardwired installation.
0
1
2
3
Page 6

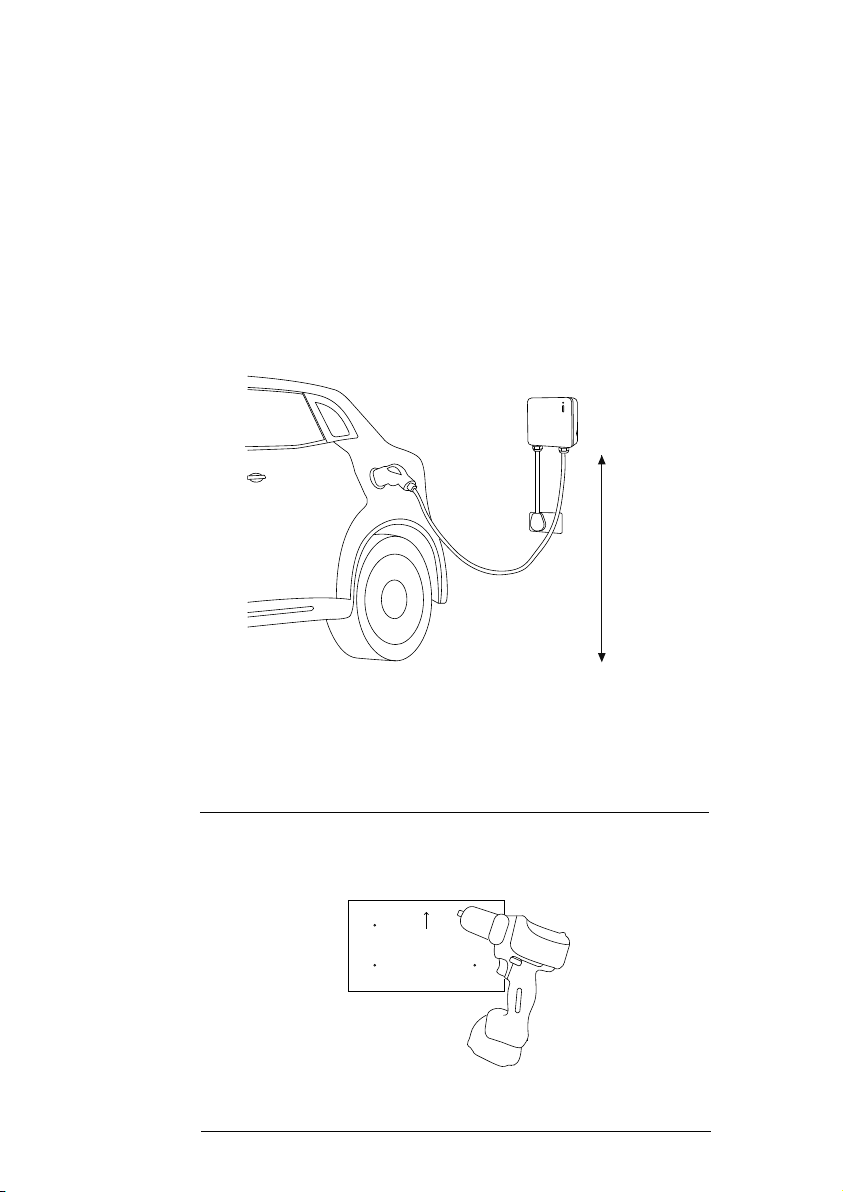

2. Select the appropriate mounting location with electrical capacity:
1. Ensure the owner has chosen a mounting location allowing the
charging cable to reach the car’s charging port while providing slack.
2. The device must be anchored into mounting such as 2 x 6 in stud or a
solid wall.
3. The device shall be mounted at height between 2 feet (600 mm) and
4 feet (1200 mm) from the ground.
3. Drill 4 screw holes with a diameter of 0.35 in and a depth of 2.05 in by
using mounting templates. Please drill screw holes in the direction of
the template arrow.
2-4 ft
Page 7
Mount the charging station

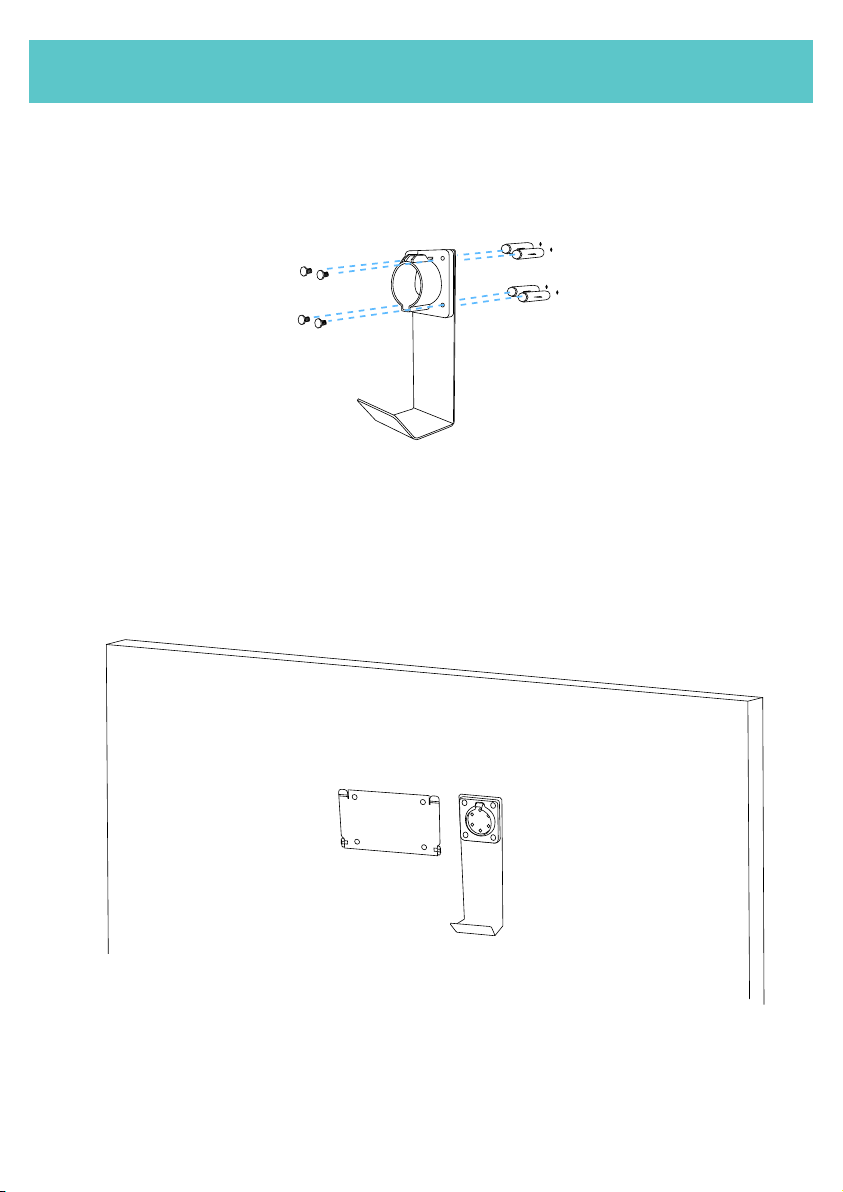

4. Fix the cable organizer holster to the wall, approximately 8 inches from
the far right end of the punched hole.
5. Use 1 set (4 pcs in total) of hexagonal expansion screws to secure the
wall-mounted bracket on the wall. Then level the brackets.
Page 8

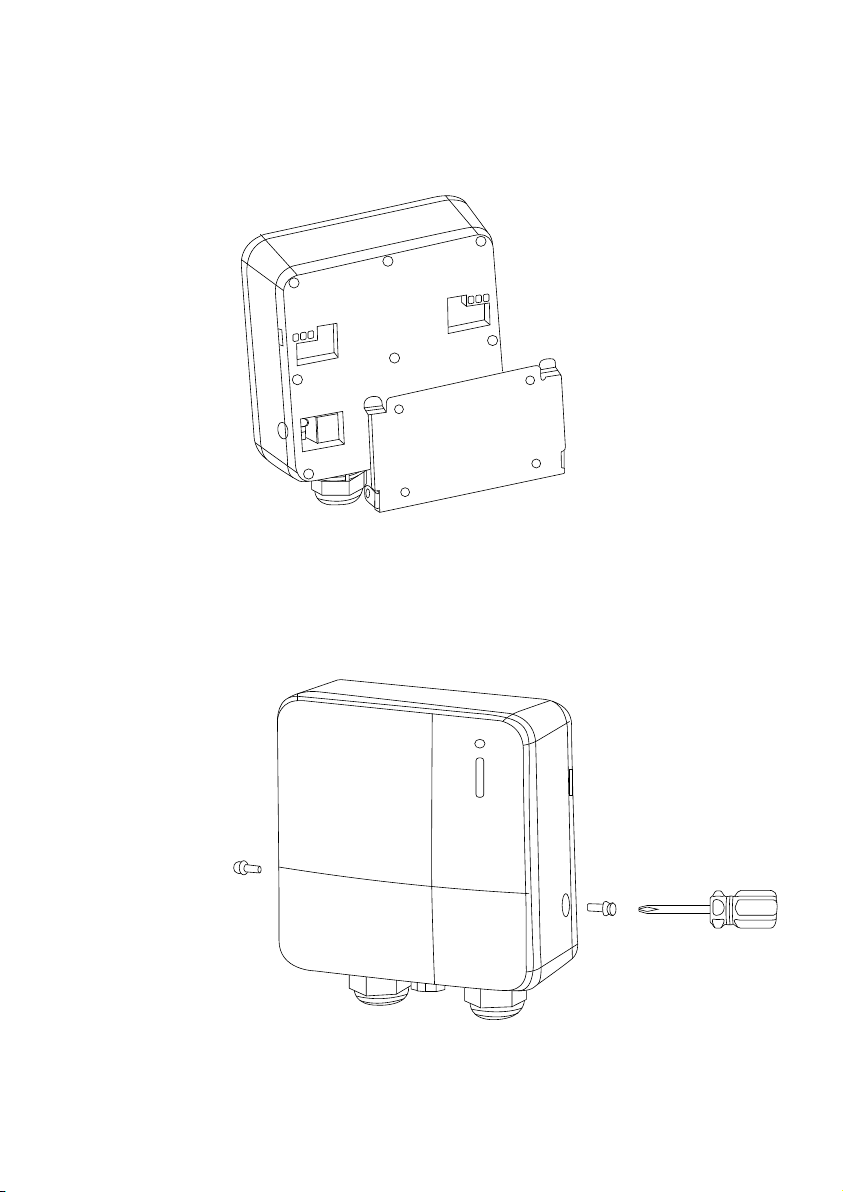

6. Attach the AC charging station to the mounting plate.
7. Insert the short screws at the sides of the AC charging station.
Page 9
Wiring the circuits
WARNING: This device must be grounded. Disconnect electrical power
before installing the charging station.
Improper connection of the equipment-grounding conductor would result
in a risk of electric shock. Check with a qualified electrician or serviceman if
you are not sure whether the product is properly grounded. Do not modify
the plug provided with the product – if it doesn’t fit the outlet, have a
proper outlet installed by a qualified electrician.
CAUTION: Use appropriate protection when connecting to the main power
distribution cable.

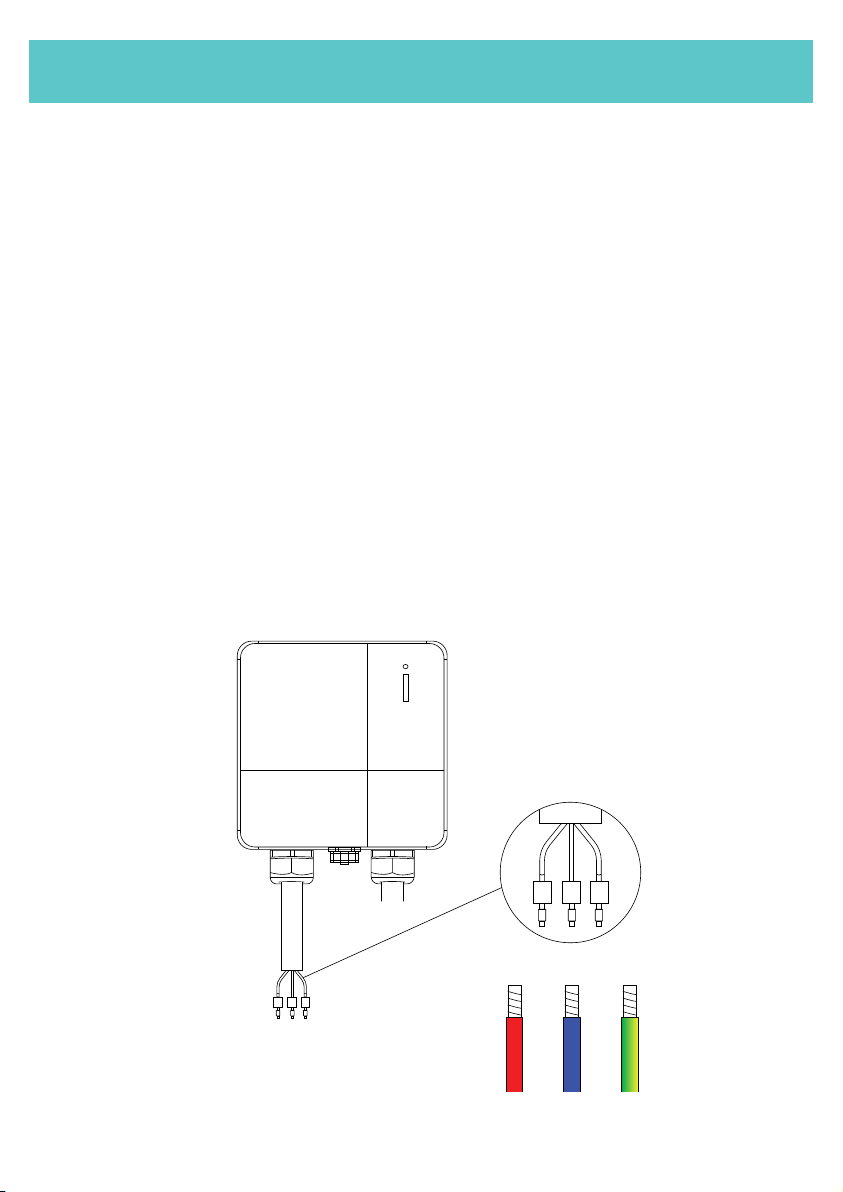

8. For safe use of electricity, please set circuit breaker protection in the
input part of the EV Charger. The wiring is not complicated; you just
need to follow the instructions below: Connect the L1 lead to the grid
L1, connect the L2 lead to the grid L2, connect the PE lead to
the grid PE.
L1 L2 PE
L1 L2 PE
