Leadtek S325 Manuel utilisateur
WinFast®3
3D
DS325
User’s Manual
Leadtek Research Inc.
WinFast 3D S325 User’s Manual
i
Table Of Contents
Getting Started...............................................................................................................I
Accessories .......................................................................................................................I
System Requirements........................................................................................................I
Connection Guide ............................................................................................................II
Chapter 1 Welcome to WinFast 3D S325...................................................................1
1.1 Introduction................................................................................................................1
1.2 Features......................................................................................................................2
Chapter 2 Hardware Installation ............................................................................... 3
2.1 Card Layout ...............................................................................................................3
2.2 Jumper Settings..........................................................................................................4
Chapter 3 Software Installation ................................................................................. 5
3.1 Windows 95/98 ..........................................................................................................5
Leadtek Research Inc.
ii
3.1.1 Installing WinFast 3D S325 Drivers and DirectX™ 6 for Windows 95/98...5
3.1.2 Explanations for the WinFast 3D S325 Display Properties............................7
3.2 Windows NT 4.0......................................................................................................19
3.2.1 Installation of Windows NT 4.0 with WinFast 3D S325 .............................19
3.2.2 Install WinFast 3D S325 Drivers for Windows NT4.0.................................19
3.3 Updating existing WinFast 3D S325 Drivers for Windows 95/98...........................22
3.4 BIOS Flash Utility ...................................................................................................23
Chapter 4 TV Output (Optional).............................................................................. 25
Chapter 5 Digital Flat Panel Output (Optional)..................................................... 27
Chapter 6 Display Modes Table................................................................................ 29
Limited Warranty................................................................................... 31
Calling for Technical Support................................................................32
Copyright, Trademark, Disclaimer Notes............................................. 33
WinFast 3D S325 User’s Manual
iii
Federal Communications Commission Requirements .......................34
WinFast 3D S325 User’s Manual
I
Getting Started
Accessories
•WinFast 3D S325 card
•User’s Manual
•WinFast software pack CD
( Including drivers for
Windows 95/98, Windows
NT 4.0, DirectX™ Run-time
Driver )
System Requirements
•Hardware : Pentium II (Pentium III recommended) or compatible system with AGP slot
•Operating system: Win 95/98 / Windows NT 4.0 with Service Pack 3 or later
Leadtek Research Inc.
II

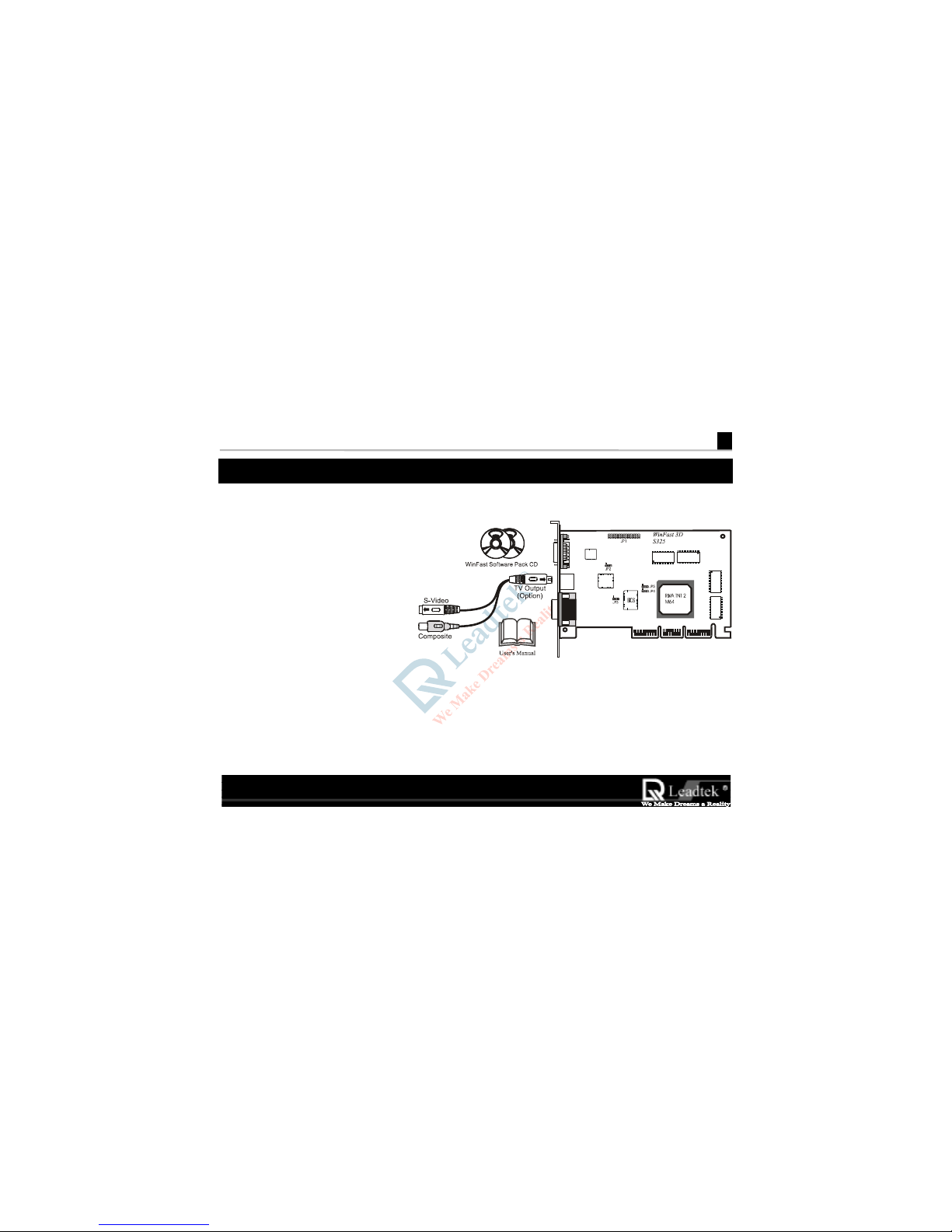

Connection Guide
Step 1 Insert the WinFast 3D S325 card into an empty AGP slot and fix it with screw on back panel.
Step 2 Plug the free end of the monitor cable into the video connector on the
WinFast 3D S325 card.
WinFast 3D S325 User’s Manual
1
1
Welcome to WinFast 3D S325
1.1 Introduction
Congratulations! You have chosen one of the most powerful high-end 3D accelerator cards. Leadtek’s
“WinFast 3D S325” uses the RIVA TNT2 M64 3D processor chip from nVIDIA.
The “WinFast 3D S325” introduces the most advanced Direct3D™/OpenGL™ acceleration solution and
also delivers leadership VGA, 2D and Video performance, enabling a range of applications from 3D games
through DVD and Multimedia applications.
Leadtek Research Inc.
2
1.2 Features
•Fast 32-bit VGA/ SVGA
•High performance 128-bit 2D / GUI / DirectDrawAcceleration
•128-bit wide frame buffer interface supporting up to 32 Mbyte SDRAM
•Video Acceleration for DirectShow, MPEG-1/2 and Indeo.
•Optimized for Direct3Dacceleration with complete support for DirectX™ 5.0 and 6.x
•TwiN Texel 32-bit graphics pipeline
•32-bitARGB rendering with destination alpha
•16-bit or 24-bit Z-buffer, 8-bit stencil buffer
•Anisotropic filtering (better than Tri-Linear MIP-mapping)
•100% hardware triangle setup engine
•300 MHz Palette-DAC supporting up to 1920 x 1200, True Color
•Video output for NTSC and PAL TV-output (Option)
•Digital Flat Panel output up to 1280 x 1024 (Option)
•Robust System Interface: AGP 4x/2x Interface (AGP 2.0 andAGP 1.0)
•Support “HOT-DOC” function (Option)
WinFast 3D S325 User’s Manual
3
2
Hardware Installation

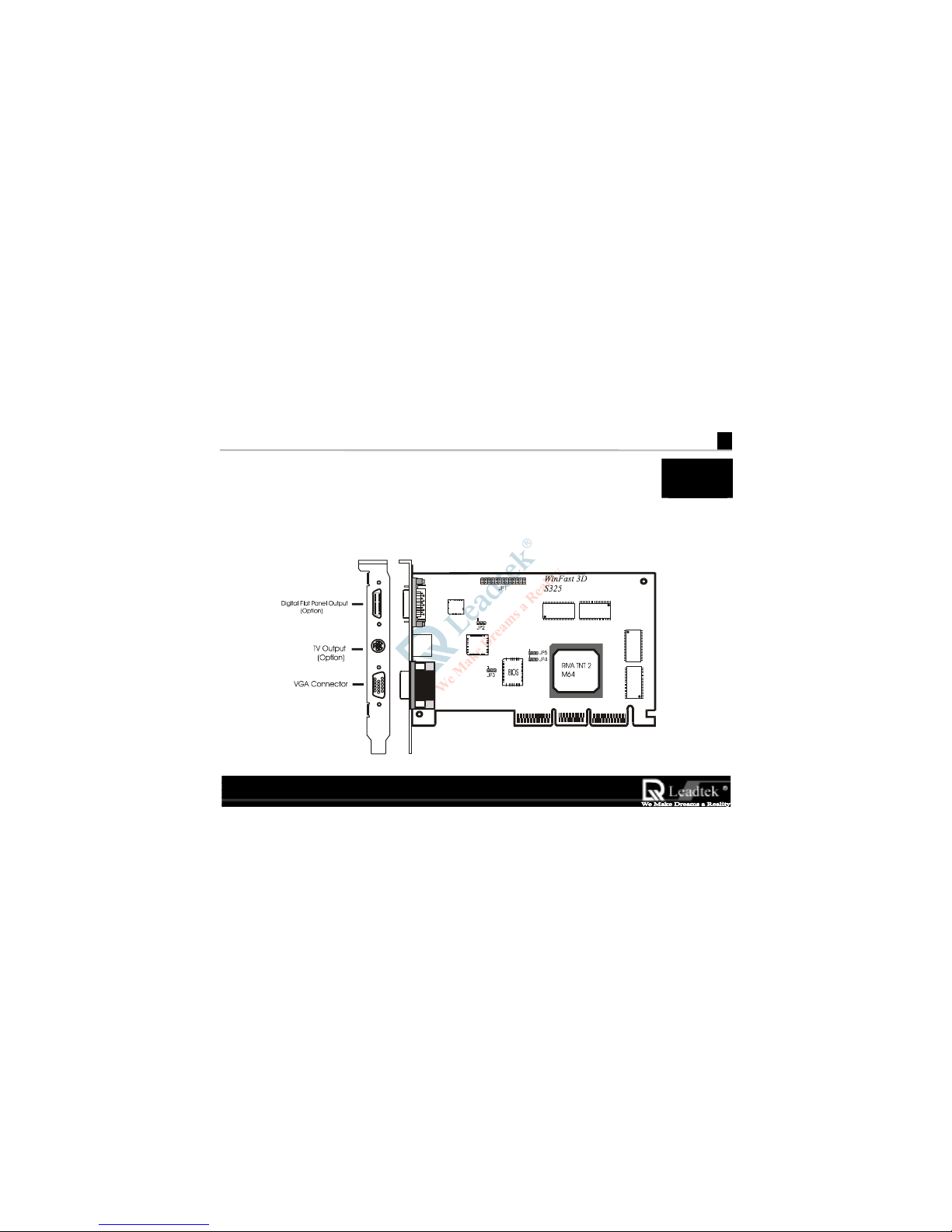

2.1 Card Layout
Leadtek Research Inc.
4
2.2 Jumper Settings
Jumpers JP2, JP3 and JP4 are for setting TV output format as below:
Jumper NTSC PAL DISABLE
JP2
123
123
Not Applicable
JP3
123 123 123
JP4
123 123 123
Jumper JP5 is for AGP Mode selection as below:
Jumper AGP mode
(Normal) AGP mode
(Turbo)
JP5
123 123
