Leadtek C351 Manuel utilisateur

C351 IP Camera

User’s Manual

(For IE Browser)

More Security, More Convenience

Statement

Thank you for using our IP camera products. The IP camera designed for network video surveillance, adopted

high performance and powerful single SOC chip media processor to integrate audio and video capture,

compression and transmission. Standard H.264 Main Profile coding algorithm ensures clearer and smoother

video transmission effect. Built-in Web Server allows users to easily perform real-time monitoring and remote

control over front-end cameras via IE browser.

The IP cameras are suitable for small and medium-sized enterprises, families, and other environments that

require remote network video transmission and monitoring. It is easy to be installed and operated.

Before installation, please check the product and all accessories. If anything is missing, please contact your

supplier in time.

Package Contents:

IP Camera

Power Adapter (refer to camera model)

Quick Guide

WIFI Antenna （for wireless model）

Bracket

Network Cable

NOTE:

Contents in this manual may be different from the edition that you are using. Should any unsolved problem

occur given that the product is used according to this manual, please contact our technical support

department or your product suppliers.

The content of this manual may be updated at irregular intervals without prior notice.

More Security, More Convenience

CONTENTS

1. INTRODUCTION..........................................................................................................................................4

1.1. General Description..............................................................................................................................4

1.2. Characteristic....................................................................................................................................... 4

1.3. Specification...............................................................................................................................................5

2. INSTALLATIONAND SETTINGS..................................................................................................................6

2.1. Network Connection .............................................................................................................................6

2.2. IE Browser Settings ..............................................................................................................................7

2.3. UPnP Service ...................................................................................................................................... 8

2.4. IPCam IPAddress Search Tool............................................................................................................................ 8

2.5. Install the OCX ActiveX.........................................................................................................................9

3. SOFTWARE OPERATION (IE BROWSER)................................................................................................10

3.1. Three main functions ..........................................................................................................................11

3.2. For Live Video.......................................................................................................................................... 11

4. PARAMS SETTINGS..................................................................................................................................16

4.1. Device Info......................................................................................................................................... 16

4.2. Video Info........................................................................................................................................... 16

4.3. Audio Settings ..........................................................................................................................................17

4.4. Motion Detection................................................................................................................................ 18

4.5. Alarm Settings..........................................................................................................................................20

4.6. Basic Network Settings.......................................................................................................................22

4.7. Wireless Lan Settings.........................................................................................................................26

4.8. UPNP Settings................................................................................................................................... 27

4.9. Users................................................................................................................................................. 29

4.10. Log..........................................................................................................................................................29

4.11. Date Time Settings.......................................................................................................................... 30

4.12. E-mail(smtp).....................................................................................................................................31

4.13. FTP...................................................................................................................................................32

4.14. SD Card............................................................................................................................................32

4.15. System..............................................................................................................................................34

5. FREQUENTLYASKED QUESTIONS.........................................................................................................35

6. OBTAINING TECHNICAL SUPPORT.............................................................................................................39

More Security, More Convenience

1. INTRODUCTION

1.1.

GeneralDescription

This is a minitype camera with elegant and beautiful shape, built-in Web server, open application interface

and industrial grade stable performance, makes the industrial network transmission safety, quickly, simple

operation, easy control. It integrates audio and image information, performing real-time monitoring

synchronously through the network, to achieve real-time monitoring audio and image via a standard Web

browser.

1.2.

Characteristic

Easy to Install

Just insert the network cable to the RJ45 interface of the camera, inputting the camera’s IP address through

Microsoft IE, Mozilla Firefox, Safari, Google Chrome or other standard browsers, then using it.

High Quality Image

The camera adopts H.264 video compression, with clear picture, the maximum speed up to 30 frames/second

via 10M/100M network real-time transfer.

Open Standard Environment

Support TCP/IP network, support HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP ARP/RARP NFS

RTSP RTP RTCP protocols and Dynamic IP(DDNS). Support up to 10 users online simultaneously.

Advanced Extended Function

Connect home appliances and panalarm via GPIO interface to achieve I/O alarm input and output functions.

Simple Management Mode

Using standard web browser, to configure and manage the camera, upgrade the software online directly.

SafetyPerformance Guarantee

Multi-level users management and passwords definition, the administrator can set different access permission

to different level visitors.

Extensive Range Application

Real-time video is transferred by internet, which can’t be compared by traditional video surveillance system.

Users can view and remote control the real time image at anytime, anywhere via network. The camera can be

widely used such as product demonstrations, real-time monitoring, real-time recording and taking. It can also

be at the scheduled time or event occurs, send pictures to the specified E-Mail, FTP server timely.

More Security, More Convenience

1.3.

Specification

Image Sensor

1/4" Color CMOS Sensor

Mini. Illumination

0.5Lux

Audio

Input

Built-in Microphone/1 channel audio input

Output

1 channel audio output

Audio Compression

ADPCM

Video

Image Compression

H.264, MJPEG

Image Frame Rate

30fps

Resolution

1280 x 720(30fps), 640 x 368(30fps), 320x208(30fps)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz, Outdoor

Video Parameters

Brightness, Saturation, Contrast, Hue

Communication

Ethernet Interface

Build in 10/100Mbps,Auto MDI/MDIX , RJ-45

Supported Protocol

TCP/IP HTTP DNS DHCP PPPoE SMTP FTP SSL TFTP NTP

ARP/RARP NFS RTSP RTP RTCP.

Compress rate level

128Kbps～16Mbps

Wireless Standard

IEEE 802.11b/g/n

Data Rate

802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.),

802.11n: 150Mbps (Max.),

Wireless Security

WEP & WPA WPA2 Encryption

Physical

TF Card storage

Up to 32GB

Alarm Input

2 Channel on/off Input

Alarm Output

1 Channel relay Output

Power

Power Supply

DC 12V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption

6-10 Watts (refer to specific product model)

Environment

Operate Temper.

0°~ 55°C (14°F ~ 131°F)

Operating Humidity

20% ~ 85% non-condensing

Storage Temper.

-10°C ~ 60°(14°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

PC System

Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista/7

Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

More Security, More Convenience

2. INSTALLATION AND SETTINGS

SystemRequirement:

Operating System: Windows 2000 / XP / Vista / 7

Network Protocol: TCP/IP

Network Structure: Applies to all network connections 10/100M LAN platform

Browser: Internet Explorer 6.0 or above.

2.1.

NetworkConnection

Intranet and Extranet Connection Reference:

Extranet means public IP, Intranet means private IP. If your IP belongs to the follow range, then it’s a private

IP :

Category A: 10.0.0.0 - 10.255.255.255

Category B: 172.16.0.0 - 172.31.255.255

Category C: 192.168.0.0 - 192.168.255.255

Intranet Connection: IP camera and user’s computer (device) should be under the same network

environment, and both of their IP should be under the same subnet, then means correct connection, picture

as below:

Figure1.0

Extranet Connection: there are 2 ways as below:

(1). IP camera connect to the Internet via router, here camera’s IP is a private IP, clients need to connect to IP

camera through a router, with forwarding rule to be connected correctly, as below:

Figure1.1

(2). IP camera connect to the Internet directly, if it’s a fixed IP which provided by ISP, just input it. If it’s a

floating IP, then input the account and password which provided by ISP to dial-up connection.

More Security, More Convenience

Figure1.2

2.2.

IE Browser Settings

OCX will be downloaded automatically when users login the IP Camera, so users have to set the IE browser

to enable the OCX be downloaded automatically after signing in. Steps as below:

1. Close the firewall of your computer.

2. Change the ActiveX settings, “IE”browser > “Tool”> “Internet Options”> “Security”> “Custom Level”>

“ActiveX control and Plug-ins”, all the ActiveX options set to be “Enable”:

Especially:

Enable: Download unsigned ActiveX controls

Enable: Initialize and script ActiveX controls not marked as safe

Enable: Run ActiveX controls and plu-ins

Figure1.3

More Security, More Convenience

Figure1.4

In addition: you can also click “Start”menu>“Internet Explorer”, choose “Internet attributes “to enter, or via

“Control Panel”>“Internet Explorer”, enter to Security setting.

2.3.

UPnP Service

UPnP could help you to find your camera’s IP faster. For Window XP, from “Control Panel”> “Add or

remove applications”> “Add or remove Windows component”> “Network service”> “Detailed data”>

“UPnP users interface”, enable it, factory settings is disable. Then it can allow your operating system to

support UPnP.

2.4.

IPCam IP Address Search Tool

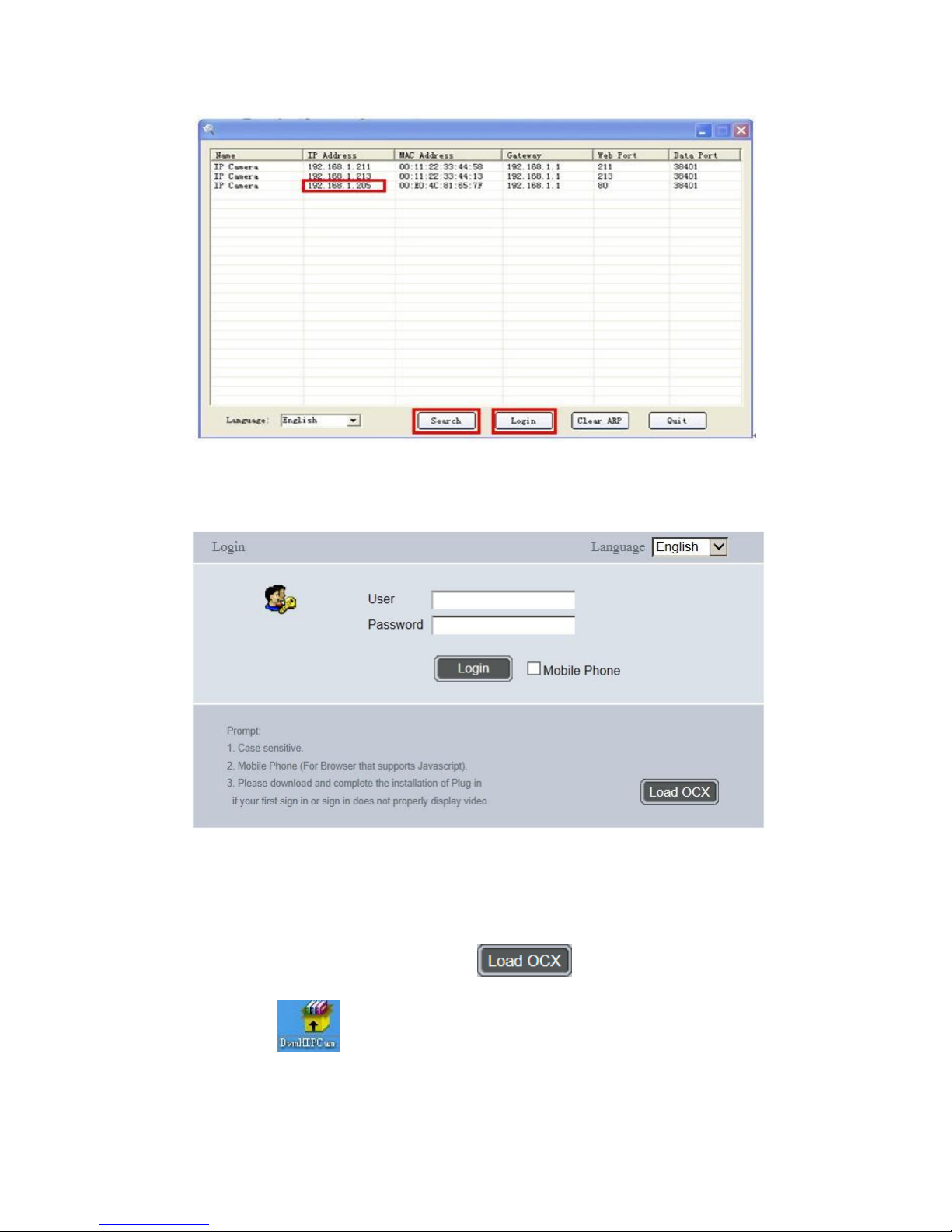

Step 1: Use tool “SearchIPCam.exe” to find IP address of LAN.

Figure1.5

Step 2: Double click “Search IPCam”, camera IP & MAC list will be displayed. If you want to re-search, click

More Security, More Convenience

“Search”again.

Figure1.6

Step 3: Choose the IP, click “Login” or double click the IP to enter IE login interface.

Figure1.7

2.5.

Install the OCX ActiveX

Install the OCX activeX for the first time login; click the icon on the right bottom,

Download the OCX file , After that, double click to install it automatically.

After OCX installed fully, then input the user name and password to login the camera.

More Security, More Convenience

3. SOFTWARE OPERATION (IE BROWSER)

Choose the suitable language, input correct user name and password, then click “Login”

the factory default settings as below:

IP Address:192.168.1.155

User name: admin Password: 0000

Figure1.8

：Choose languages here

：For mobile phone login

：For OCX installation

：Click to login the IE interface as below:

Figure1.9
