INTRODUCTION

A Leader Evaporator Springtech Reverse Osmosis system is designed to significantly improve the producer’s

productivity by generating higher sugar percentage sap. Through use of high pressure, the system removes water

from the sap resulting in a more concentrated sugar solution entering the evaporator. This in turn shortens the boil

time required and resulting in fuel and time savings. The Leader Evaporator MicRO is ideally suited for the small

producer seeking to gain the advantage of a large reverse osmosis system at an economical cost.

Some of the features of the Springtech MicRO are:

Easy accessibility to pumps and membranes

Stainless steel frame, membrane housings, pumps and pump housings

Flow meter for the permeate of the membrane and for the system concentrate

THEORY OF OPERATION

In reverse osmosis, through the use of special semi-permeable membranes and high pressure, water is forced, in a

pure form, through the membrane while the concentrated solution remains outside the membrane and is

concentrated. For the sugar maker this means water (permeate) is removed from the sap and a sap with a higher

sugar level (concentrate) is produced for the evaporation process.

Terms

Semi-permeable Membrane –Unit consisting of multi layers of spacers and membranes

Pre-Filter Unit –Designed to remove suspended solids from the sap incoming to the reverse osmosis

system

Feed Pump –The initial pump designed to supply the reverse osmosis unit with sap and maintain pressure

in the system

Pressure Pump –The pump designed to provide the pressure needed to force the sap through the reverse

osmosis membrane

Pressure Vessel –The containment unit for the semi-permeable membrane

Permeate –the water removed from the maple sap during the concentrate cycle

Concentrate –the maple sap having a higher percentage of sugar because water (permeate) has

been removed

Permeate Holding Tank –A tank designed to hold a minimum twice the hourly output of the system

Concentrate Cycle –Process during which water is removed from maple sap resulting in

Concentrate and Permeate

De-Sugaring Cycle - Process to reclaim sugars from the membrane during which Permeate is run

through the reverse osmosis unit using Concentrate cycle valve settings

Rinse Cycle –Cleaning process of passing stored Permeate through the Reverse Osmosis system and

out to drain

Chemical Wash Cycle –Process of chemical washing the membranes by recirculating a solution

through the reverse osmosis system. Dependent on requirement, chemical

maybe be alkali or acid.

Permeability Test –Test to determine the performance of the membranes against a benchmark

Sap Recirculation Loop –Process of recirculating output from the concentrate cycle to the raw sap

tank, increasing the concentration of the sap in the tank. NOTE: This loop

is not recommended for this system.

Leader Evaporator Springtech MicRO Reverse Osmosis System Manual YEAR: 2017 Page: 5

Description of Membrane

The drawing above represents the flow of liquid through a membrane in the system. The membrane is housed

in a pressure vessel (not shown).

Leader Evaporator Springtech MicRO Reverse Osmosis System Manual YEAR: 2017 Page: 6

EQUIPMENT DESCRIPTION

The LEADER EVAPORATOR Springtech Reverse Osmosis System is designed to offer maximum concentration to cost

performance. Through optimizing of pumps and membranes the reverse osmosis systems deliver greater flow

potential to the user. The LEADER EVAPORATOR Springtech Reverse Osmosis system is designed and built using the

same principles of superior quality applied to our evaporators.

The LEADER EVAPORATOR Springtech MicRO Reverse Osmosis System is covered by a manufacturer’s warranty – See

ATTACHMENT #3.

NOTES:

1. Pictures, sketches and drawings presented in this document are not to scale.

2. Directions (right and left) will be as facing the front of the system except where facing such parts as valves.

3. The pictures in this section are of a system with two membranes. A system with a single membrane is offered.

Front View

Leader Evaporator Springtech MicRO Reverse Osmosis System Manual YEAR: 2017 Page: 7

Rear View

Feed Pump

Provides liquid to the system and

is the first stage of pressurizing

the system

Leader Evaporator Springtech MicRO Reverse Osmosis System Manual YEAR: 2017 Page: 8

Pressure Pump

Second stage of pressurizing the

system required to process the

sap through the membranes

Prefilter Assembly

Prefilter assembly removes contaminants prior to

sap entering the membranes.

Prefilter assembly requires one 10” cartridge filter

Sap is pumped from the feed pump through the

prefilter then to the pressure pump.

Front Panel

The Pressure Switch activates or deactivates the functioning

of the low pressure shutoff control of the system.

The Concentrate Flow Meter indicates the liquid flow, in

gallons per minute, from the concentrate side of the

pressure vessel(s).

The Permeate Flow Meter indicates the permeate flow, in

gallons per minute, from the membrane(s).

Leader Evaporator Springtech MicRO Reverse Osmosis System Manual YEAR: 2017 Page: 9

The Leader Springtech Reverse Osmosis system consists of the following parts:

Included Equipment

ITEM

LEADER

ORDER #

DESCRIPTION / PHOTO

ITEM

LEADER

ORDER #

DESCRIPTION / PHOTO

Springtech

MicRO

One

Membrane

Two

Membrane

70010

70012

Springtech

MicRO Quick

Start Guide

Springtech

MicRO User

Manual

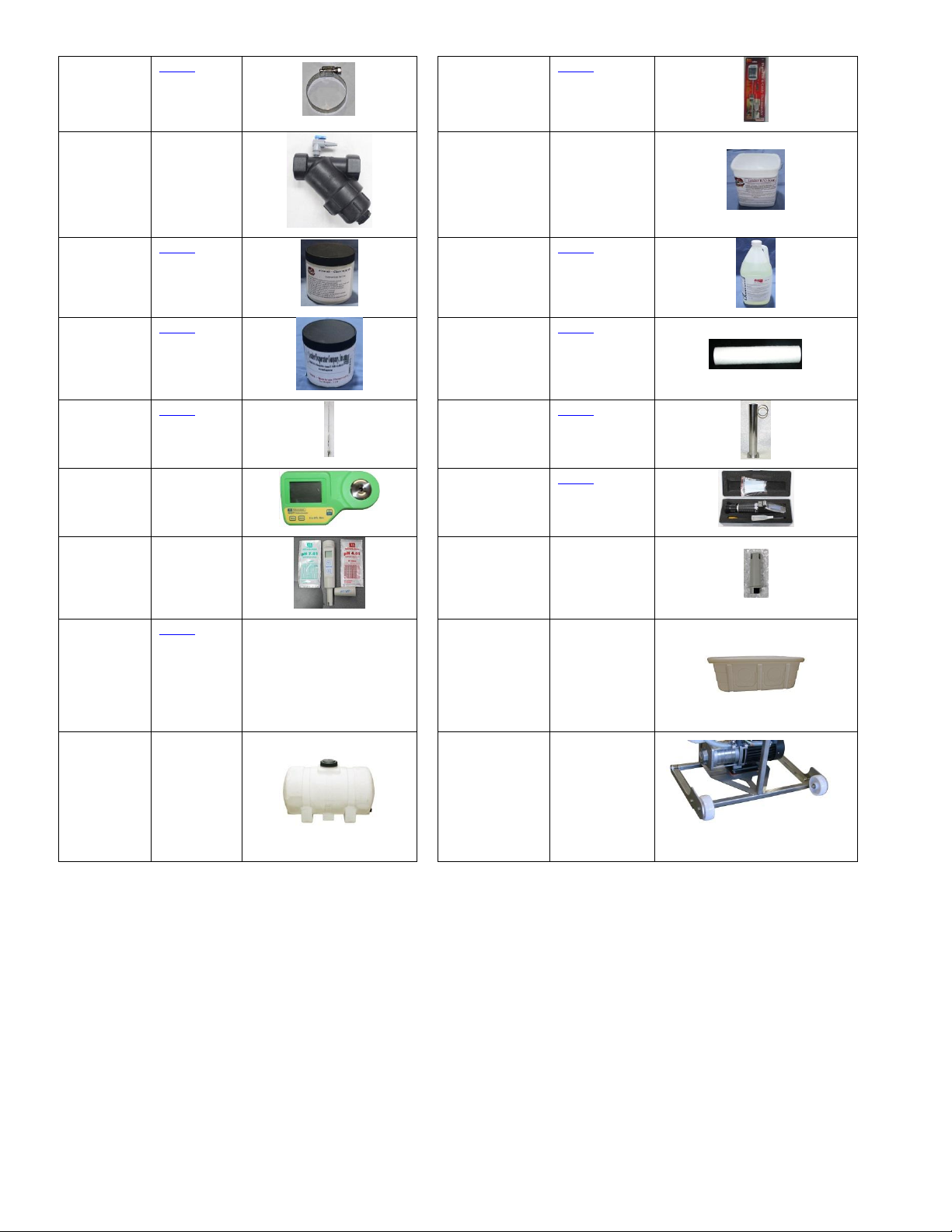

Optional Setup Equipment, Parts and Supplies

ITEM

LEADER

ORDER #

DESCRIPTION / PHOTO

ITEM

LEADER

ORDER #

DESCRIPTION / PHOTO

1” Quick

Coupler C

Qty: 2

47148

1” Quick

Coupler F

47151

1” Stainless

Steel Band

Clamp

60043

1” PVC Ball

Valve

60130

1” Braided

Hose (by the

foot)

70285

TEFLON Tape

66106

½” PVC

Plastic to

Iron Adapter

½” Braided Hose

70297

Membrane Pressure Gauge and

Control Valve

Membrane pressure is read after the last

membrane.

WARNING: DO NOT ALLOW THE PRESSURE

ON THE MEMBRANE(S) TO EXCEED 220 psi.

V2 controls the flow from the concentrate side of

the membranes. It is opened ½ way when starting

then adjusted to the desired concentration level.

Leader Evaporator Springtech MicRO Reverse Osmosis System Manual YEAR: 2017 Page: 10

½” Stainless

Steel Band

Clamp

60037

Digital

Thermometer

61005

Strainer Y

1” modified

with bleeder

valve

RO Soap 5 Lbs.

69992

Citric Acid, 1

lb.

70008

Glycol, 1 gal.

70009

Membrane

Preservative,

1 lb.

70001

10” Cartridge

Filter

70013

12” Sap

Hydrometer

61061

Long 2”

Diameter Test

Cup

59006

Digital

Refractomet

61058

Sap

Refractometer

61073

pH Meter

61060

pH Meter

Replacement

Probe

61060P

Food Grade

Grease

55095

Open Topped

Stock Tank –

150 Gallon –for

PERMEATE for

Single

Membrane RO

570150

Free

Standing Leg

Tank –325

gallon –for

Two

Membrane

570325

MicRO Wheel

Kit

700005

Table des matières

Autres manuels Leader Evaporator Équipement industriel

Leader Evaporator

Leader Evaporator PATRIOT MAX Manuel utilisateur

Leader Evaporator

Leader Evaporator WSE Manuel utilisateur

Manuels Équipement industriel populaires d'autres marques

ABB

ABB Unifix AD Manuel

Mark 7

Mark 7 Evolution Manuel utilisateur

Husky

Husky HyPET Manuel utilisateur

bora

bora PM-1800 Manuel utilisateur

Grizzly

Grizzly T32428 Manuel utilisateur

Siemens

Siemens 8MF1 Series Manuel utilisateur

ABB

ABB HT610965 Manuel utilisateur

ABB

ABB SafeLink Manuel utilisateur

Phoenix

Phoenix PHX-150 Manuel utilisateur

ABB

ABB A165-L32 Manuel utilisateur

ABB

ABB HT842936 Manuel utilisateur

Rioned

Rioned UrbanJet Manuel utilisateur

Hermetica

Hermetica 10 Series Manuel utilisateur

HORNER

HORNER OEE Solution Manuel utilisateur

Hammerhead

Hammerhead HG375 Manuel utilisateur

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instructions d'utilisation

ABB

ABB HT566657 Manuel utilisateur

Webasto

Webasto GSE CAN Manuel utilisateur
