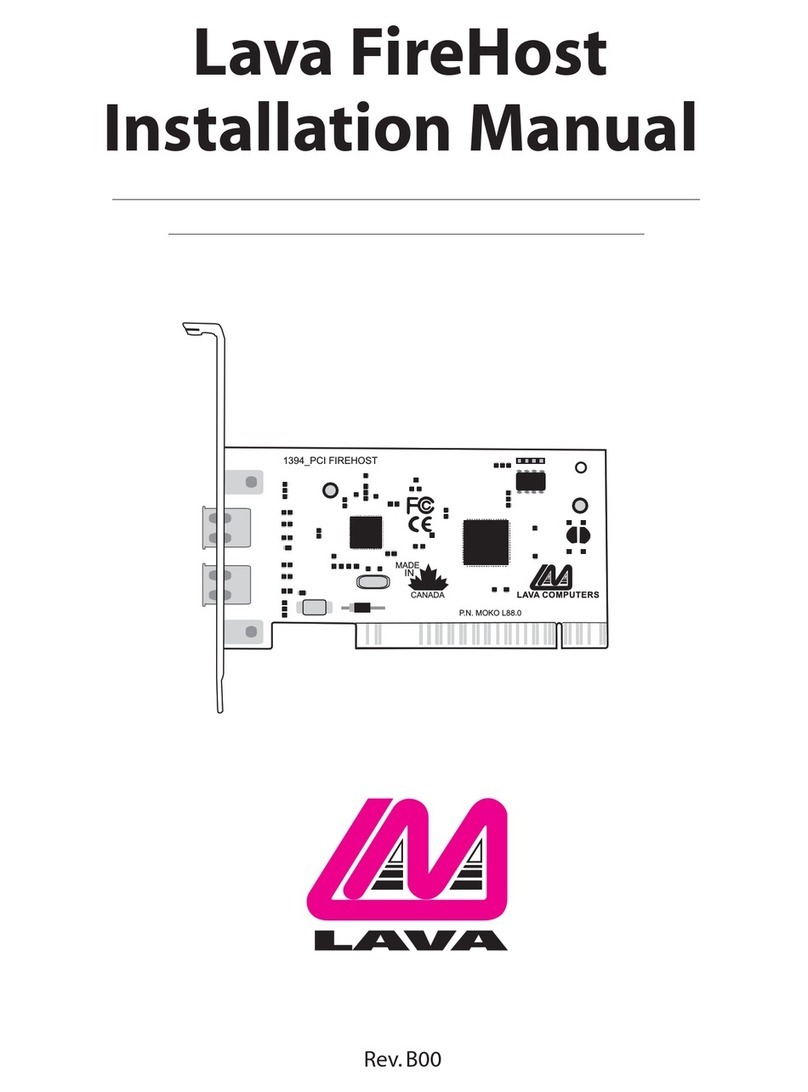

Lava FireHost Manuel utilisateur

Lava

Lava Lava Port 650 Manuel utilisateur

Lava

Lava DSerial-PCI Powered Manuel utilisateur

Lava

Lava SSerial-PCI/LP Manuel utilisateur

Lava

Lava Octopus-550 Manuel utilisateur

Lava

Lava LAVA SSerial-PCI/LP Manuel utilisateur

Lava

Lava QUATTRO-PCI 3.3V Manuel utilisateur

Lava

Lava Parallel-PCI/LP Card Manuel utilisateur

Lava

Lava Enhanced Parallel Port Board Manuel utilisateur

Lava

Lava SP-PCI Manuel utilisateur

Lava

Lava LAVA Dual Parallel-PCI Manuel utilisateur

Lava

Lava DSerial-PCI/LP Card Manuel utilisateur

Lava

Lava Lava SSerial-550 Manuel utilisateur

Lava

Lava LAVA SP-PCI Manuel utilisateur

Lava

Lava Quattro-PCI/LP Manuel utilisateur

Lava

Lava Lava Parallel LAVA SP-PCIe Manuel utilisateur

Lava

Lava LavaPort-Quad Manuel utilisateur

Lava

Lava LAVA SSerial-PCIe Manuel utilisateur

Lava

Lava Parallel-PCI DB-25 Manuel utilisateur

Lava

Lava Parallel-PCIe/LP Manuel utilisateur

Manuels Carte PCI populaires d'autres marques

ERMA

ERMA SSI 1417 Manuel utilisateur

SIIG

SIIG CyberSerial Dual PCI Instructions de montage

Moxa Technologies

Moxa Technologies CP-102E Manuel utilisateur

I-Bus

I-Bus IBC2602 Manuel utilisateur

Exsys

Exsys EX-60102 Manuel utilisateur

Chelsio Communications

Chelsio Communications T5 Series Manuel utilisateur

Conrad Electronic

Conrad Electronic 97 46 71 Manuel utilisateur

Micro Innovations

Micro Innovations USB650A Manuel utilisateur

KTI Networks

KTI Networks KF-310 Manuel utilisateur

Asus

Asus SpaceLink WL230 Manuel utilisateur

SIIG

SIIG SC2475 Manuel utilisateur

TRENDnet

TRENDnet TEW-703PI Manuel utilisateur

Belkin

Belkin F5D7000F Manuel utilisateur

Pericom

Pericom PI7C7100 Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3548 Manuel utilisateur

Digium

Digium TE200 Series Manuel utilisateur

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur

Western Digital

Western Digital FireWire PCI Adapter Manuel utilisateur

LAVA Parallel-PCIe

Quick Installation Guide

Rev. A00

LAVA COMPUTERS

PARALLEL-PCIe

P.N. MOKO L145.x

MADE

IN

CANADA

SEMICONDUCTOR

MCS9901CV-AA

INSL10200

4E42503 - 06 0743

RoHS

Pb

1Windows Hardware and

Driver Installation

1. Before opening the casing of your computer, make sure that all

power is off.

2. Locate an unused PCIe slot and insert the Parallel-PCIe card into it.

Ensure that the card is well seated.

3. Screw the metal bracket of the Parallel-PCIe card to your PC’s casing

and replace the machine’s cover.

4. Connect your parallel cable to the port on the Parallel-PCIe card and

turn the PC on.

5. When Windows starts, it will find a Parallel-PCIe Controller and will

ask you for a driver for this device.When prompted, insert the

installation CD into your computer. After copying the necessary files

from the CD,Windows may restart your PC in order to complete the

installation of the Parallel-PCIe card.Windows XP/Vista may display a

message to the effect that the drivers are not digitally signed.This

warning can be ignored.

6. The Parallel-PCIe card will appear in Control Panel|System|Device

Manager under Ports, as a listing similar to the one below. If

required, settings may be customized by clicking on the Parallel-

PCIe listing and then clicking Properties.

2

Release Notes:

A. Because the Parallel-PCIe card uses PCIe (not ISA) I/O address ranges,

it will never be seen by your BIOS at boot-up as a standard parallel

port (occupying 0278h or 0378h) even if the address has been

changed in Windows using the above procedure.This is normal, and

does not indicate a fault in your Parallel-PCIe card.

B. In standard installations of Windows 2000/XP/Vista, the I/O address

cannot be changed to a legacy address.

LAVA Computer MFG Inc.

LAVA

Technical Support

9:00 am to 5:30 pm Monday to Friday (Eastern Time)

Tel: +416 674-5942

Fax: + 416 674-8262

E-mail: tech@lavalink.com

Internet: www.lavalink.com

This device complies with part 15 of the FCC Rules. Operation is subject

to the following conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.
