LauraStar Magic Evolution 723 Manuel utilisateur

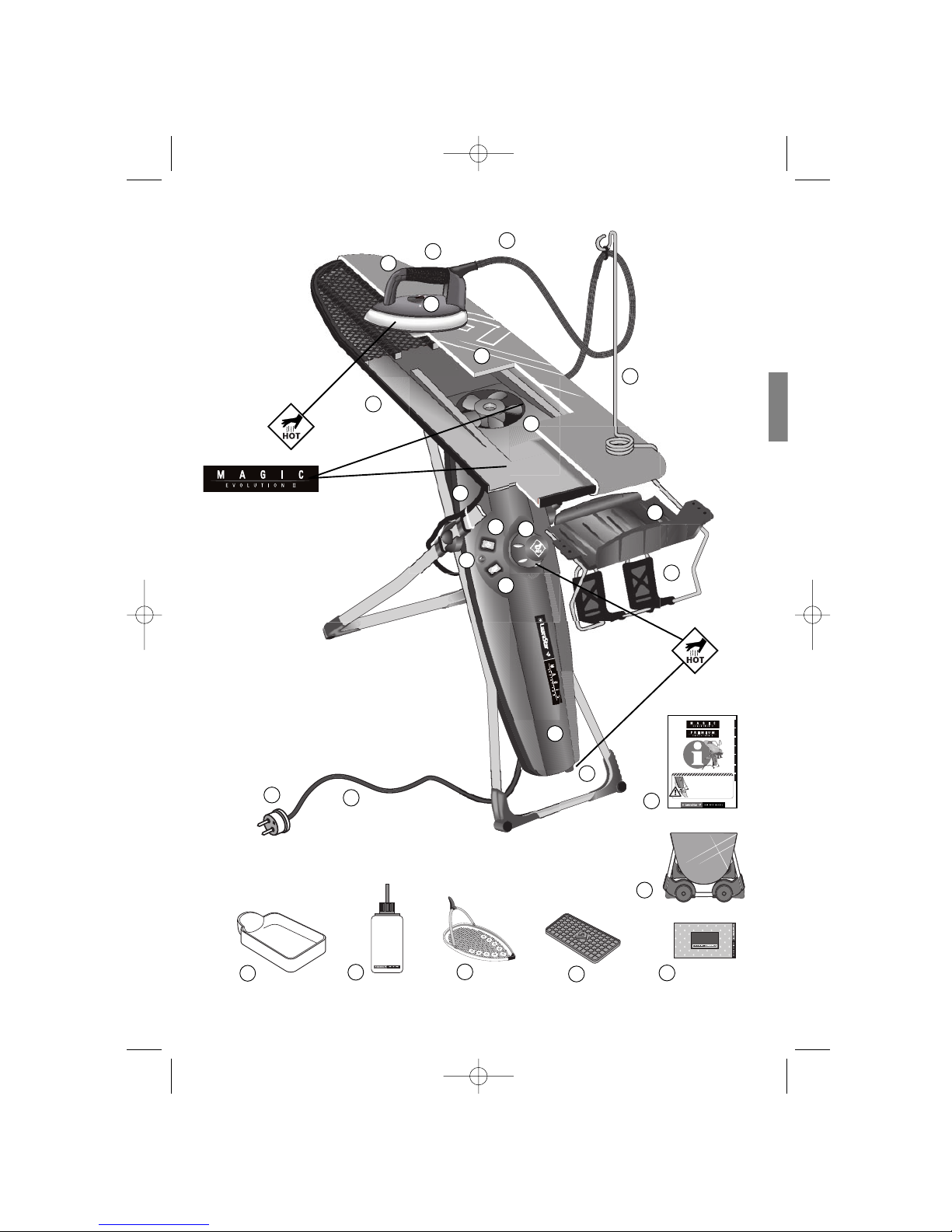

Table (1)

Iron (2)

Operating instructions (3)

Wheels (optional) (4)

Operating instructions video (5)

Special LauraStar cover (6)

Cord-holder (7)

Silicone mat (8)

Softpressing soleplate (9)

Bottle (10)

Drain receptacle (11)

Boiler (12)

Iron switch (13)

Boiler switch (14)

Green pilot lamp (15)

Drain cap (16)

Filling cap (17)

Plug (18)

Cable (19)

Iron basket (20)

Iron rest (21)

Thermostat (22)

Steam control button

right / left-handed (23)

Monotube (24)

Motor (25)

Motor cable (26)

Thank you for showing confidence in our company and congratula-

tions for choosing a LauraStar system.

However, it is important that you read this manual completely before

using your LauraStar TM system. This garment care system is for home

use only. The manual is valid for the following models:

-Magic Evolution (Model 723)

-Magic Evolution II (Model 728)

-Premium Evolution (Model 725)

-Premium Evolution II (Model 729)

This system uses steam and heat, so many parts of the system can

cause burns when in use.

These hot parts will be labeled in this manual with the following

symbol:

English

Index

• Safety measures 1

• Installation 2

• Using for the first time 3

• Getting started 3

• Ironing 4

• Refilling 6

• Maintenance 7

• Hints on usage 8

• Linen care guide 9

• Problems and solutions 10

• Customer service 11

• Technical features 11

• International guarantee 12

• Adresses 12

Dear customer

Thank you and congratulations

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 1

Deutsch

lish

ItalianoNederlands

añol Fran

ais

Norsk

VORSICHT!Verbrühungsgefahr! Lassen Sie das Bügelsystem mindestens 2 Stunden lang abk ühlen,

bevorSie den Entleerungsverschluss lösen!

ATTENTION!Danger de brûlures! Après avoir débranchél'appareil, laissez-le refroidir pendant 2

heuresau minimum avant de dévisser le bouchon de vidange!

WARNING!Risk of burns! After unplugging the appliance, allow it to cool for at least 2 hours before

unscrewingthe drain cap.

ATTENZIONE!Pericolo di scottature! Dopo aver scollegato l'apparecchio, lasciarlo raffreddare per

almenodue ore prima di svitare il tappo di scarico.

ATENCI ÓN:Riesgo de quemaduras graves. Una vez desenchufado el aparato, d éjelo enfriar durante

2horas como mínimo antes de desenroscar el tap ón de vaciado.

OPGELET!Gevaar voor brandwonden! Na het uittrekken van de stekker van het toestel, moet u

hetminstens 2 uur laten afkoelen alvorens de ledigingsdop los te schroeven!

ADVARSEL!Fare for brannskader! Etter åha frakoblet strykejernet, bør det avkjøles i minst 2 timer

førtømmepluggen åpnes!

18 19

11 10

English

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 2

10.

12.

11.

13.

English

Safety measures

Please read the following safety measures carefully and keep them along with the operating

instructions of your other appliances. Please repeat the safety measures to all new users of

your appliance.

1. Use your appliance only for ironing.

2. This appliance is an electrical appliance. Some of its parts get very hot during use.

Any contact with these parts can therefore cause serious burns.

3. This appliance contains pressurized steam. Under no circumstances should the

caps (16) and (17) be opened without first reading the operating instructions.

4. Never iron clothes while you are wearing them.

5. Keep children and infirm persons away from the appliance. The appliance must

be stored out of their reach when not in use. Under no circumstances should the

appliance be left unattended when still pluggedin.

6. Turn off the steam and iron switches before plugging in or unplugging the appli-

ance, when filling or emptying the boiler, as well as before any maintenance.

7. The appliance and both electric and steam supply cords must be used only when

in perfect condition.

8. To prevent any danger of electric shock, you must under no circumstances open

the appliance yourself or change the power cord. In case of damage or doubt, the

appliance should be immediately returned to the approved after-sales service.

9. This electrical appliance can cause serious electric shocks if brought into con-

tact with water or any other liquid.

10. Do not unplug your appliance by pulling the electric cord. Instead, firmly grip the

plug and pull it out of the socket.

11. The electric and steam supply cords must not come into contact with hot sur-

faces.

12.

Do not introduce objects into the ventilator cage. The protective grid of the ventila-

tor is built to withstand only normal use and does not protect against the voluntary

introduction of objects. Mind the children!

13. To avoid the accumulation of water in the board system, never iron when the

motor socket is switched off.

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 3

English

•Cord-holder: (7)

Slide on to the table like indicated in the drawing (p.II).

•Silicone mat: (8)

This mat is built to withstand a hot iron. Do not place the iron on any

other surface.

•Iron rest: (21)

Clip the iron rest on the iron basket as indicated in the drawing. It

is built to withstand a hot iron.

•Wheels: (4)

Optional.

The cover

Slide the cover from back to

front. Turn it down under the tip

of the board. The system is sup-

plied with a special cover. It has

a special lining which allows

vacuum and blowing to be uni-

form over the whole table. To

obtain a new cover, contact your

customer service agent. The

cover may be washed at 30°. No

spinning.

The accessories

The table

1. Place the board vertically on the ground. 2. Lift the table top and hold it in one hand. 3. With the other

hand slide the adjustment device (under the board) up to whichever of the three stop bars corresponds

to your height.

Pull the iron basket from beneath the table by sliding it outwards.

Installation



CAUTION: Do not use any other cover. A non-standardised cover would seriously reduce the effective-

ness of the vacuum and blowing functions.

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 4

Filling

Please refer to the last two pages of the manual.

Unscrew the appropriate cap (17) and fill the boiler with water. To fill

it up use the bottle (10) provided: it has an anti-overfill device which

stops the flow when the boiler is full (the capacity of the bottle is

greater than that of the boiler).

Squeeze the bottle briefly to start the filling of the boiler. Once full,

screw the filling cap back on again (17)as far as it will go.

English

Fix the board in the highest

position. Put the rinsing recep-

tacle beneath the boiler.

Unscrew the drain cap (16).

Unscrew the filling cap (17).

Pass the contents of a bottle

(10) of hot water through the

boiler to rinse it. Screw the

drain cap back on again (16).

Screw the filling cap back on

again (17).

CAUTION: Fill up the boiler

before every use.

Première utilisation

Using for the first time

System disconnected Rinsing the boiler

Always unplug the mains before

filling the boiler.

What sort of water to choose?

Getting started

Always fill the boiler with water before starting to iron as it could be damaged if heated up while empty.

CAUTION: Heating up without water invalidates your system’s guarantee.

Filling before using the system

Water hardness test included.

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 5

Switches

Setting of the iron temperature

2. Turn on both switches and

wait until the green light comes

on (approx. 7 to 8 minutes).

1. Insert the plug.

7-8 min8 min

Steam button

Vacuum / Blowing - choice of 2 speeds

A single steam control button situated on the iron allows you to both start the emission of steam and

switch from “blowing” mode to “vacuum” mode (or vice versa).

Changing from one mode to the other can be done only when the motor is off. The chosen mode stops

automatically at the end of a cycle (lasts 4 seconds). At that moment you may select the desired mode.

In addition to the vacuum and blowing functions, the steam control button enables the strength of the

flow of air from the ventilator to be regulated. When the iron is switched on, the ventilator is pre-set to

maximum capacity (100%). Changing from one mode to the other can be done only when the motor is off.

To change to reduced airflow (50%), press the steam control button twice very quickly. To go back to

maximum airflow, press the steam control button twice again.

Ironing

English

Position "A":

Normal temperature

Without Softpressing soleplate:

- cotton, linen.

With Softpressing soleplate:

- wool, silk, synthetics.

Position "B":

Low temperature

With Softpressing soleplate:

- for extremely delicate synthetics

eg: synthetic velours, Alcantara®

(synthetic suede), sport stretch

garments.

Check that the indicator light of the iron is also on before ironing.

ATTENTION: After a change of setting it takes about 2 mins for the new temperature to stabilize!

If the iron spurts water, slightly increase the temperature.

Before starting to iron or after lengthy ironing interruption, press the steam button 2 or 3 times to evacu-

ate any water which may have condensed in the steam tube.

Even if the shape of the iron in the video is different from your system's one, the functions remain the

same.

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 6

Blowing

A very short press (less than half a second) on the steam control button starts the “blowing” mode.

When blowing mode is chosen each press of the steam control button to give steam restarts the cycle

(lasts 4 seconds).

Vacuum

A long press (more than one second) on the steam control button starts the “vacuum” mode. Vacuum is

engaged at every emission of steam and stops 4 seconds after the end of the jet of steam to guarantee

optimum drying of the fabric.

When vacuum is being used each press on the steam control button to give steam restarts the cycle

(lasts 4 seconds).

English

Using the Softpressing soleplate.

The Softpressing soleplate must be used for dark materials that are likely to become shiny and synthetic

materials that might stick to the soleplate. Do not forget to remove the Softpressing soleplate after use.

To use the Softpressing soleplate:

1. Insert the tip of the iron into the front of the Softpressing soleplate while keeping the back of the iron

raised

2. Pull the tongue backwards as shown in the diagram. The tongue should not fall back.

Wait for about 2 minutes for the Softpressing soleplate to reach the same temperature as the iron.

CAUTION: Make sure the Softpressing soleplate does not touch mohair, cachemir, velvet and angora!

Iron these materials at a distance. Do not forget to remove the Softpressing soleplate after use.

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 7

Refilling

English

Low water indicator

A buzzer goes off when the water in the boiler drops to the minimum

level.

Please refer to the chapter below for refilling while ironing.

WARNING

Refilling while ironing

•The Iron Uses PRESSURIZED STEAM. DO NOT OPEN the Filling Cap Except as

Instructed below. Contact with the Pressurized Steam Can Cause Severe Scalding.

•TURN OFF and Then Unplug When Not in Use or When Filling / Emptying Steam

Generator.

6. Now unscrew the filling cap

completely and refill as shown

on page 3.

5. Unscrew the filling cap slowly

until you hear or see the steam

escaping -about 2 turns- and

wait until residual steam has

totally escaped. Use a cloth to

avoid direct contact with the

steam.

4.And unplug the device.

3. Turn off the iron switch (13).

2. Press the steam control but-

ton and hold it down until no

more steam is emitted. Direct

iron away from your body or

others.

1.Turn off the boiler switch (14).

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 8

Maintenance







Storage of the board

1. Turn the iron and boiler switches to the off position.

Unplug system.

2. Take the monotube out of cord-holder.

3. Remove cord-holder from ironing board.

4. Place iron in basket.

5. Slide basket under the board. You can store the

system even if the iron is still hot.

6. Lift ironing board by both ends, weight of generator

will automatically fold the system.

7. You can leave water in generator until next use.

Cleaning the iron

Rinsing the boiler - cold appliance!

Risk of burns! Make sure the appliance is cold before rinsing. After unplugging, allow the appliance to

cool for at least 2 hours before rinsing.

To prolong the efficiency of the steam generator and avoid calcium deposits you must rinse the steam gen-

erator regularly.

English

Use our Polyfer cleaning cloth which you can obtain from your supplier mak-

ing sure you follow the written instructions. Clean the soleplate more often if

you use starch when ironing (even if the starch deposit is not visible).

Please refer to the instructions below for rinsing.

1. Disconnect the power supply.

2. Allow the appliance to cool for at least 2 hours.

3. Fix the board in the highest position.

4. Place the drain receptacle under the boiler.

5. Unscrew the drain cap.

6. Unscrew the filling cap.

7. Pass the contents of a bottle of tap water through the boiler to

remove any scale.

8. Repeat this operation until the water coming out of the boiler is

free of residues.

9. Screw the drain cap back on.

10. Fill up with water.

11. Screw the filling cap back on.

N.B.: If no water comes out of the drain opening this should be

unblocked with a pointed instrument.

WARNING: Risk of splashes

Calcium content Number of hours use between 2 rinses

Weak, zero or with the LauraStar Aqua water-filter pot 20

Average 15

High 10

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 9

Why have blowing and vacuum?

Hints on usage

Angora / Wool

• Steam iron about 10 cm from the surface of the material, in order not to damage it.

• Shake the garment by hand so that it regains its normal shape.

Silk

Vertical removal of creases

Hang the garment on a coat

hanger or hold it up.

With a sweeping movement from

top to bottom lightly touch the

material while giving short bursts

of steam.

Note: It is easy to remove creas-

es from most materials, except

for cotton, linen and some silks.

If it is difficult to remove the

creases from a material, iron it as

normal on the ironing board.

Special materials

•Velvet

•Corduroy

•Jersey

If you are not using a

Softpressing soleplate, steam

iron 2-3 cm from the surface of

the material, then finish by hand.

Steam iron silk in the normal

way.

In the case of dark silk you are

advised to use a Softpressing

soleplate.

HOT

• • • • ••• • •

•• • • •

English

Perfect ironing requires steam to be injected into the fabric. This is a requirement for the complete

removal of creases. Do not continually inject steam into fabric: press the steam control button intermit-

tently. For this the LauraStar

™

Magic Evolution / II system uses the same methods as professional dry

cleaning: vacuum and blowing.

To improve the quality of ironing and increase the autonomy of your appliance, steam iron the material first

and then re-iron it without steam, in order to dry the material.

blowing

vacuum

Velvet

Back Buttons Welt Legs Inside Sleeves Bottons Top Pleats

and collar and creases and lining and collar

MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LauraStar Fer

LauraStar

LauraStar S4e Manuel utilisateur

LauraStar

LauraStar Magic Evolution Manuel utilisateur

LauraStar

LauraStar SMART Manuel utilisateur

LauraStar

LauraStar SMART Manuel utilisateur

LauraStar

LauraStar S4a Manuel utilisateur

LauraStar

LauraStar MAGIC i-S5 750 Manuel utilisateur

LauraStar

LauraStar PRO Manuel utilisateur

LauraStar

LauraStar GO Manuel utilisateur

LauraStar

LauraStar BORK i810 Manuel utilisateur

LauraStar

LauraStar Magic I-S5 Manuel utilisateur

LauraStar

LauraStar Magic Evolution Manuel utilisateur

LauraStar

LauraStar EVOLUTION G7 Manuel utilisateur

LauraStar

LauraStar Compact Manuel utilisateur

LauraStar

LauraStar STEAMUPi-G5 740 Manuel utilisateur

LauraStar

LauraStar First G1731 Manuel utilisateur

LauraStar

LauraStar S7 775 Manuel utilisateur

LauraStar

LauraStar LIFT Manuel utilisateur

LauraStar

LauraStar STEAMAX G2 735 Manuel utilisateur

LauraStar

LauraStar S4e Manuel utilisateur

LauraStar

LauraStar LIFT Manuel utilisateur

LauraStar

LauraStar EVOLUTION G4 Manuel utilisateur

LauraStar

LauraStar S7 Manuel utilisateur

LauraStar

LauraStar Magic I-S5 Manuel utilisateur

LauraStar

LauraStar SMART Manuel utilisateur

Manuels Fer populaires d'autres marques

Clatronic

Clatronic DB 3703 Manuel utilisateur

TEFAL

TEFAL FV4093Z0 Manuel utilisateur

Gorenje

Gorenje SIH 2200 BS Manuel utilisateur

Philips

Philips GC6012 Manuel utilisateur

Bosch

Bosch 2 Series Manuel utilisateur

Riffel

Riffel Catena KB-819 Manuel utilisateur

Texi

Texi Hestia Manuel utilisateur

Maxwell

Maxwell MW-3010 Manuel utilisateur

TREVIDEA

TREVIDEA Girmi ST60 Manuel utilisateur

Philips

Philips HI5914/30 Manuel utilisateur

Primula

Primula Vapormat Manuel utilisateur

Magio

Magio MG-541 Manuel utilisateur

Scarlett

Scarlett SC-1334S Manuel utilisateur

Bosch

Bosch Sensixx B22L Manuel utilisateur

Philips

Philips GC651 Manuel utilisateur

Vitek

Vitek VT-1247 VT Manuel utilisateur

Cleanmaxx

Cleanmaxx 3397 Manuel utilisateur

Philips

Philips GC800 Manuel utilisateur
