SX205100A

Dryer Controller

User Manual

Please read the man al caref lly before installation and operation！

Software version

X1.LC001A.X20.001-1 V100A4

Rights Reversed, Pirate P nished

【Safety Precautions】

Installatio

Please x the controller to avoid vibrate drops。

Please install the controller in the metal or not

inammable board.

Please guarantee electric cabinet temperature among

-10℃~+50℃ adding the ventilating fan when

necessary.

Do not expose in the sunlight strong airow and mist

Do not expose in corrosive and pollution gas such as

sulde gas salt mist.

Wiring

Please conrm the power supply is OFF.

Let the professional worker to wiring

Signal without source input please do not connect with

power supply

Please increase the system protection, avoids the

controller invalid and cause dangerous.

Please observe the strong and weak electricity

separation principle.

Please use the conforms to the technical standard wire

Please select the parallel method

Parameter According to the machine conguration set the related

parameter guarantees the machine running.

Run

After conrming the wiring correctly then power on.

Guarantee environmental condition and the power

supply voltage is in permit condition only in this way

can start the machine.

When running please do not inspect the signal.

When running please do not change the parameter

setting.

When running please do not approach the machine.

Maintenan

ce,

inspection

The user has any repair needs please contact with

manufacturer do not intend to repair it by yourself.

Please do not pull twist the power line and

communication line.

Please do not touch the controller device directly.

Others Please be careful when simulating and adjusting the

controller on the desk.Presence of high voltage could

cause electrical hazard and injury.

Symbol explanation

Please familiarize yourself with the following standard warning symbols. They are

used throughout this manual to alert you the possible hazards. Anyone installing

operating and servicing this controller must understand these symbols and follow all

the safety rules in this manual.

It ill cause the dangerous situation, possibly ill cause

the personal injury or death hen error using.

It ill cause the dangerous situation, possibly ill lead to

personal injury or death, property damage and economic

loss hen error using.

【Responsibility statement】

In case of any consequence which corrupts or bugs the

controller’s software PUNP reserves the right to repair the

bug but does not have the responsibility to undertake any

compensation.

In case of the controller’s hardware error PUNP has the right

to repair the aw but does not have the duty to undertake

any responsibility.

Because of improper use PUNP does not have the duty to

undertake any responsibility.

PUNP has the right to go to the end user’s service but does

not have the duty.

NOTE：This manual is subject to change ithout separate noti%cation.

Content

1. G N RAL..............................................................................................................................................5

2. INSTALLATION.....................................................................................................................................6

2.1. Dimension....................................................................................................................................6

2.2. lectric connection.......................................................................................................................7

3. FRAME CHART.....................................................................................................................................8

4. BUTTONS INTRODUCTION.................................................................................................................9

5. RUNNING.............................................................................................................................................10

5.1. Startup........................................................................................................................................10

5.2. Idle mode...................................................................................................................................10

5.3. Automatic running mode............................................................................................................10

5.3.1. Start automatic running...................................................................................................10

5.3.2. Change time,temperature................................................................................................10

5.3.3. nding automatic running................................................................................................10

6. PROGRAMMING.................................................................................................................................11

6.1. Select and enter.........................................................................................................................11

6.2. dit.............................................................................................................................................11

6.3. xit and save..............................................................................................................................11

7. PARAMETER.......................................................................................................................................12

7.1. Parameter initialization...............................................................................................................12

7.2. Machine parameter setup..........................................................................................................12

7.3. Modify password........................................................................................................................13

8. ALARM.................................................................................................................................................14

8.1. Alarm reset.................................................................................................................................14

8.2. Alarm information and obviation................................................................................................14

SX205100A Dryer Controller

1. GENERAL

This schematic photo is just for reference！

The controller is specially designed for the control of the automatic dryer. It features stability and

reliability in operation.

The controller has very convenient human-machine interaction interface with liquid crystal display

to show state of operation of the machine including temperatures at Led display and thus helps

monitoring effect.

5 different cycles can be programmed and upon a single touch of the [R n] key, the machine will

run automatically to the end of the selected cycle.

5/16

SX205100A Dryer Controller

2. Installation

2.1. Dimension

6/16

SX205100A Dryer Controller

2.2. Electric connection

220VAC/ 24VDC

COM1

220VAC/ 24VDC

COM2

Com1

Fwd

Rev

Heat 1

Heat 2

Fan

Cool

Al arm

Com2

Power input

Gnd

I nput

Emergency Stop

Overheat

Motor overload

Door Single

Gnd

Outdrum temperature

Indrum temperature(Optional)

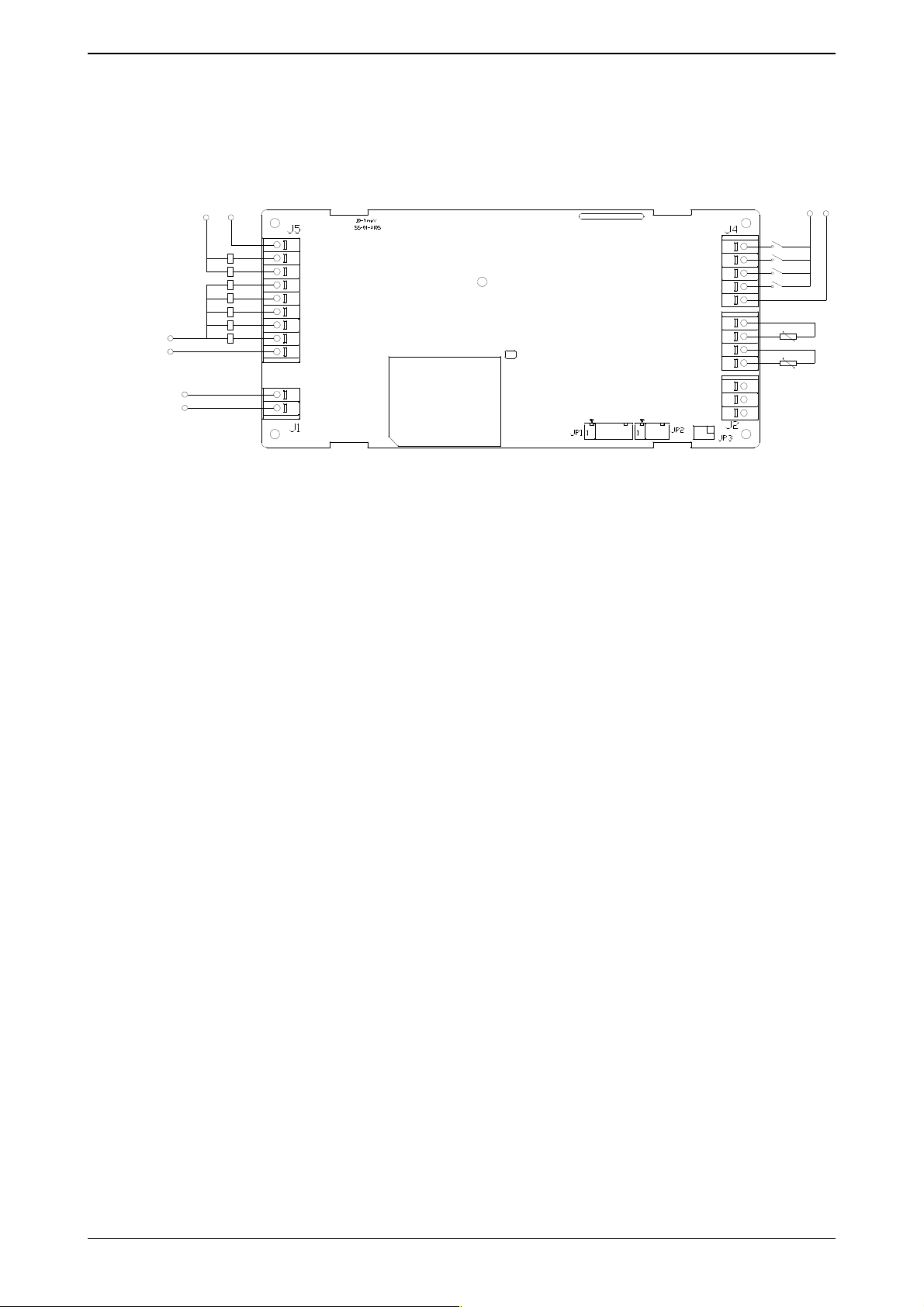

Wiring chart

123 4 567 8 912

123123 4 1 2345

NOTE：Thi drawing i only for reference.

Note:

（1）The diagram above is only for reference.

（2）Voltage outputs of the transformer is AC9.8V (loaded voltage), do not directly connect to AC

220V.

（3）The transformer should be configured by users if the input voltage range of the transformer is

out of the of : AC220V(±10%).

（4）Voltage connected with relay ≤ AC220V (DC 24V); Relay current < 5A

（5）Output to carry an electric voltage for connecting, the customer can connect into according to

own effective demand, needing not certainly AC220V.

（6）Do not use the port standby.

（7）Make sure the temperature around the controller and the connecting cable is lower than 60℃.

7/16

SX205100A Dryer Controller

3. Frame chart

Power on

Startup

Machine Check

Parameter Setup

Idle

Select Program Alarm

Run Program Edit Program

8/16

SX205100A Dryer Controller

4. B ttons introd ction

This schematic photo is j st for reference！

Icon Function

[Start] button

Under “Door Closed” and “Idle” status, press this button to start executing the selected

automatic formula.

[Stop] button

1.Under “auto” Mode, press this button to stop current running formula.

2.When there is an error appeared in the machine, the computer will signal an alarm

automatically with audible sound. Pressing this button will stop audible alarm sound. Press

this button again after troubleshooting. If the error has been resolved or can be ignored, the

computer will go back to “Idle” status. Or else the controller will alarm again.

[Set] button

1.In the count down status, press this button for 3 seconds, you can enter into user

parameter setup.

2.In the idle status, press this button, you can enter into user program edit.

[Up] button

1. When running, you can change motor direction mode, single direction or bi-direction.

2. Under setting status, press this button to choose your desired item.

[Down] button

1. When running, you can change motor direction mode, single direction or bi-direction.

2. Under setting status, press this button to choose your desired item.

9/16

SX205100A Dryer Controller

5. R nning

5.1. Start p

After power is on, the LCD shows the startup interface for 10 seconds. If press [Set] button for 3

seconds during the 10-second-display, you can enter into user parameter setup.

5.2. Idle mode

Not use temp. sensor of in drum Use temp. sensor of in drum

5.3. A tomatic r nning mode

5.3.1. Start a tomatic r nning

On Idle interface, choose your desired program by pressing [Down] or [Up] buttons under “Door

Closed” status, and then press [R n] button to start the program.

Drying Cooling

The left of 1st line, display the current running program number.

The left of 2nd line, display the current running action.

The right of 1st line and 2nd line, display the time.

3rd line and 4th line, display the temperature of in drum and out drum.

5.3.2. Change time,temperat re

Select the setting items by pressing [Set] button and set the value by pressing [Down] or [Up]

button.

5.3.3. Ending a tomatic r nning

After complete cool, the controller becomes ending status. The controller beeps on to clue user,

you can stop the buzzer by pressing [Stop] button during this beeping time.

Note: In the dry process, press [Stop] button to come into cool process. And in the cool process,

press [Stop] button to end the program.

10/16

Auto Dryer

X1LC001AX2000

1-1.V100A00
