Laserworld Evolution ES-800RGB Manuel utilisateur

Manual / Bedienungsanleitung

Evolution Series

ES-800RGB

Please read this manual carefully prior to product operation!

Bitte lesen Sie diese Bedienungsanleitung vor Inbetriebnahme des Produkts!

rev. 06/2012 vs

English

Deutsch

Manual: Evolution Series ES- 800RGB

page 2 / 17

Rechtlicher Hinweis:

Die Firma Laserworld AG behält sich das

Recht vor, Änderungen an ihren Produkten

vorzunehmen, die der technischen Weiter-

entwicklung dienen. Diese Änderungen wer-

den nicht notwendigerweise in jedem Einzel-

fall dokumentiert.

Diese Betriebsanleitung und die darin ent-

haltenen Informationen wurden mit der ge-

botenen Sorgfalt zusammengestellt. Die Fir-

ma Laserworld AG übernimmt jedoch keine

Gewähr für Druckfehler, andere Fehler oder

daraus entstehende Schäden.

Die in dieser Bedienungsanleitung genann-

ten Marken und Produktnamen sind Waren-

zeichen oder eingetrageneWarenzeichen der

jeweiligen Titelhalter.

Legal notice:

Laserworld AG reserves the right to make

modications to its products, attending to

further technical developments. These modi-

cations do not necessarily have to be recor-

ded in each case.

This manual and its information have been

made with due care. Laserworld AG cannot,

however, take any responsibility for errata,

bugs, or the resulting damages.

The brands and product names mentioned

in this manual are trade marks or registered

trade marks of their respective owners.

Manual: Evolution Series ES-800RGB

page 3 / 17

Content:

1. Scope of delivery & details

2. Preliminary warning notices

3. Steps for setup, safety instructions

4. Safety instructions for work on the device

5. Service notes

6. Warnings and other notices on the device

7. Device connections

8. Operation

Final statement

Technical data sheet

Laser specications

Manual: Evolution Series ES- 800RGB

page 4 / 17

1. Scope of delivery & details

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x DMX adapter

1 x power cable

1 x manual

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permissib-

le exposure (MPE) is not exceeded in are-

as accessible to the public.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible inter-

lock connector or circuit breaker

to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

10. If the device has been exposed to great

temperature changes, do not switch

it on immediately. Condensation water

may damage device.

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. Never look directly into the light source of a laser projector. Danger of blindness!

4. Do not operate the device at high humidity, in the rain or in dusty environments.

5. Protect device against dripping or splashing water. Do not place any liquid lled

containers at the device.

Warranty claim expires with removal of warranty label.

Manual: Evolution Series ES-800RGB

page 5 / 17

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

4. Working on the device

1. Be sure that the mains plug is not connected to the power sup-

ply while installing or opening the device (e.g. for cleaning).

2. Take o all reecting things like rings, watches etc. before

starting to work with or at the projector.

3. Only use non-reecting tools to work on device.

4. Wear protective clothing (like goggles, gloves etc.) accor-

ding to laser power and wavelength of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of device can re-

duce durability of the laser diode drama-

tically.

• Avoid concussions during transport.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperature.

-Keep the device dry. Protect it from

moisture, rain and damp.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear o even if there is no visible la-

ser output.

• Open the device at regular intervals and

remove any dust, particularly around fans

and laser. Otherwise the risk of overhe-

ating is imminent and will void the war-

ranty.

• If there are traces of fog uid in the pro-

jector, clean it and change the position of

the fog machine.

• The devices of Ecoline, Evolution and

Club-Series are not meant for professio-

nal applications. After approx. one hour

Manual: Evolution Series ES- 800RGB

page 6 / 17

• operation, the device should cool down

for about 15 minutes.

• As for troubleshooting, please check the

FAQ on our website www.laserworld.com

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

6. Warnings and other notices on the device

Laser radiation!

Avoid exposure

to beam.

Laser class

Caution of

radiation if cover

is removed power supply

& consumption

model type

wavelength

Output power

production

year

Please read manual before operation

Use in enclosed spaces only!

7. Device connections

connection for power

supply

DMX address

DMX outDMX in

LED signalInterlock

Power switch

fan

Manual: Evolution Series ES-800RGB

page 7 / 17

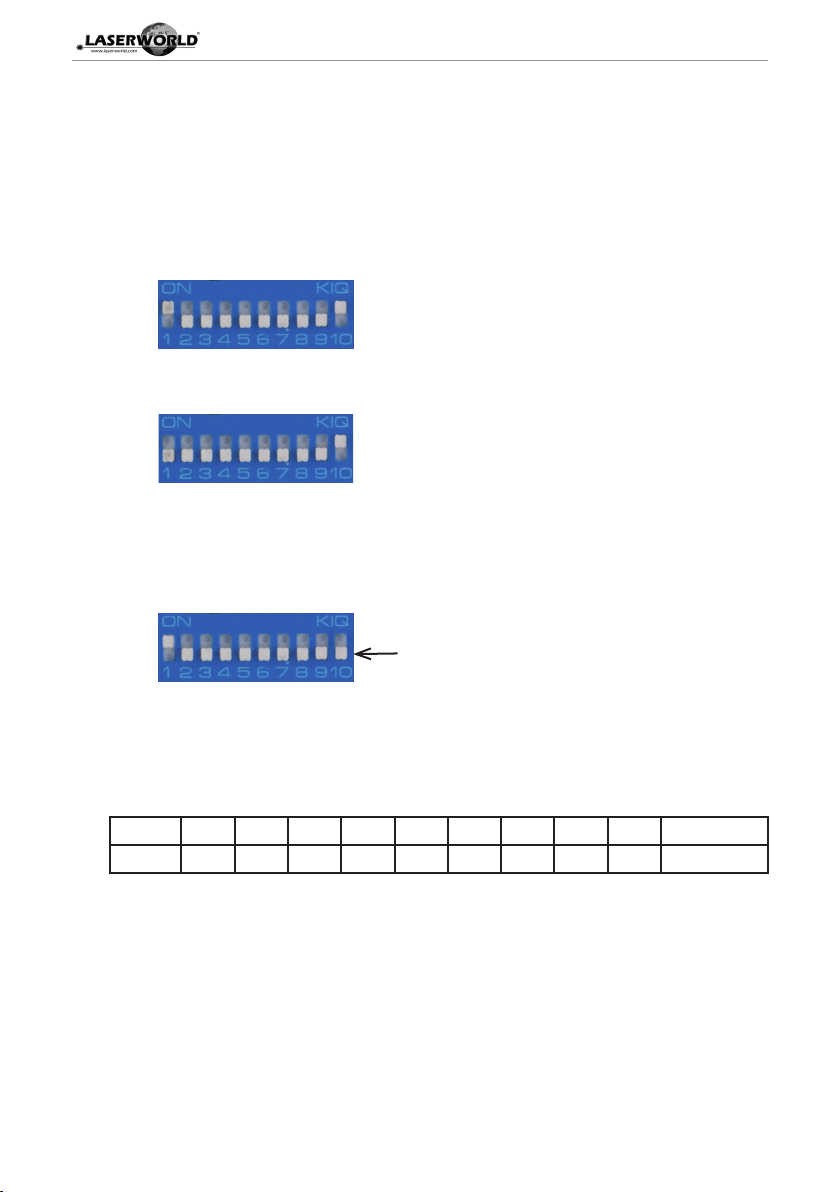

8. Operation

1. Connect the power cable to the device and then to the mains

2. Press‚ON‘ to switch on your device

3. Your device runs in auto mode:

4. Your device runs in music mode:

5. Control the music-sensitivity by the trim pot at the front side of the device. The LED is

ashing when the device is triggered.

6. Your device runs in DMX mode if ‘10‘ is switched o:

7. Connect a DMX controller to operate the laser.

8. Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a num-

ber. To dene a number use the preceding number and multipy it by 2:

The laser uses 12 DMX channels, so make sure that the next device uses an address that doesn’t

overlap with this range.

Switch 12345678910

Number 1 2 4 8 16 32 64 128 256 Mode Switch

Manual: Evolution Series ES- 800RGB

page 8 / 17

Channel Value Function

1 0 - 69 Laser o

70 - 139 Sound mode

140 - 209 Automatic mode

210 - 255 DMX mode

2 0 - 255 Patterns

3 0 - 255 Strobe (with increasing speed)

4 0 - 255 Pointspeed

5 0 - 255 horizontal movement (not for all patterns)

6 0 - 255 vertical movement (not for all patterns)

7 11 - 255 Zoom / size (not for all patterns)

0 - 10 -

11 - 92 increasing size

93 - 146 see above; small to large, automatically

147 - 200 see above; large to small, automatically

201 - 255 see above; small to large to small, automatically

8 0 - 255 Color settings

9 > 200 Reset (shortly over 200)

10 0 - 255 Rotation X (width)

0 - 150 static rotation

151 - 255 automatic rotation

11 0 - 255 Rotation Y (height): analogue to channel 10

12 0 - 255 Rotation Z

0 - 180 see above; static rotation

181 - 217 see above; automatic rotation clockwise

218 - 255 see above; automatic rotation counter clockwise

9. Please note that not each pattern can be combined with each eect.

10. To turn o the device, press the power switch („OFF“) and disconnect the power cable

from the mains.

Manual: Evolution Series ES-800RGB

page 9 / 17

Final statement

Product and package leaving warehouse without faults. Users have to follow the local safety

regulations and warnings of this manual. Damages through inappropriate use do not unterlie

the sphere of inuence of manufacturer or dealer. Therefore no liability or warranty will be

taken over. We cannot inform you in case of changes of this manual. If you have any questions,

please contact your dealer.

For service please contact your dealer or Laserworld. Please use only spare parts of Laserworld.

Subject to change without notice. Because of the vast amount of data we cannot guarantee

any correctness of given information.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil-Oberhofen

SWITZERLAND

Authorized person:

Supervisory board Mr Martin Werner

place of business: 8574 Lengwil-Oberhofen / SWITZERLAND

company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

www.laserworld.com

[email protected]

representative according to EMVG:

Cleantech Europe GmbH

Managing Director: Thomas Schulze

Fürkhofstr. 5

81927 München / GERMANY

Manual: Evolution Series ES- 800RGB

page 10 / 17

Inhaltverzeichnis:

1. Lieferumfang & Hinweise

2. Einleitende Warnhinweise

3. Schritte zur Inbetriebnahme, Sicherheitshinweise

4. Sicherheitshinweise für Arbeiten am Gerät

5. Pege- und Wartungshinweise

6. Warnhinweise und Spezikationen am Gerät

7. Geräteanschlüsse

8. Bedienung

Abschließende Erklärung

Technische Daten

Laserleistungsdaten

Table des matières

Langues :

Autres manuels Laserworld Équipement d'éclairage

Laserworld

Laserworld GREEN-600 Manuel utilisateur

Laserworld

Laserworld RS 400 G US Manuel utilisateur

Laserworld

Laserworld BLUE-400-445 Manuel utilisateur

Laserworld

Laserworld ES-400 RGY Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld PL-36000RGB Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Laserworld

Laserworld PL-1200G MH Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld Garden Series Manuel utilisateur

Laserworld

Laserworld PRO-500G MH Manuel utilisateur

Laserworld

Laserworld LW-80k Manuel utilisateur

Laserworld

Laserworld GREEN-4000 Manuel utilisateur

Laserworld

Laserworld EL-200S DMX Manuel utilisateur

Laserworld

Laserworld BLUE-4500-445 Manuel utilisateur

Laserworld

Laserworld CS-2000RGB Manuel utilisateur

Laserworld

Laserworld GREEN-75 Manuel utilisateur

Laserworld

Laserworld Ecoline Series Manuel utilisateur

Laserworld

Laserworld CS-150G Manuel utilisateur

Laserworld

Laserworld GREEN-300E Manuel utilisateur

Laserworld

Laserworld GREEN-100 Manuel utilisateur

Laserworld

Laserworld Club Series Manuel utilisateur

Laserworld

Laserworld Pro-300B-473 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur

Silvair

Silvair MESH-CEDRP Manuel utilisateur
