Explosion Proof 15 Watt Fluorescent Drop Light

Class I, Div. I - 50' SOOW Cord w/ Exp. Proof Plug

Instruction Manual

Thank you for your purchase of the Larson Electronics EPL-FL1524-50-1523.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE EPL-FL1524-50-1523 MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL

CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY ALICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING

TO AVOIDTHE RISKOF FIRE,EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,

INSPECTEDAND MAINTAINEDBY A QUALIFIED ELECTRICIANONLY, IN ACCORDANCEWITHALL

APPLICABLEELECTRICAL CODES.

TO AVOIDELECTRIC SHOCK:

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•PRODUCT MUST BE CONNECTED TO A WIRING SYSTEM WITH AN EQUIPMENT-GROUNDING

CONDUCTOR.

TO AVOID EXPLOSION:

•MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.

•ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS

ATMOSPHERE.

•DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT

NAMEPLATE.

•DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR

DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.

•ALL FASTENERS SHOULD BE PROPERLY SEATED.

EPL-FL1524-50-1523

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 4

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. WHEN EXTENSION

CORD IS CONNECTED TO A POWER SOURCE IN HAZARDOUS AREA, PLUG AND MATCHING RECEPTACLE

MUST BE SUITABLE FOR HAZARDOUS LOCATION INVOLVED. IMPROPER USE OF THIS DEVICE, ASSOCIATED

PLUG, RECEPTACLE, AND CORD CAN LEAD TO SERIOUS INJURIES OR DEATH TO PERSONNEL.

PERIODIC INSPECTION OF THE RECEPTACLE AND CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY

ARE FOUND, THE CORD MUST BE REPLACED BEFORE RESUMING USE OF THE UNIT.

ELECTRICAL POWER SUPPLY MUST BE “OFF” BEFORE AND DURING INSTALLATION AND MAINTENANCE.

INSTALLATION AND MAINTENANCE PROCEDURE MUST BE PERFORMED BY A TRAINED AND COMPETENT

ELECTRICIAN.

IF ANY PARTS OF THE RECEPTACLE OR PLUG APPEAR TO BE MISSING, BROKEN, OR SHOW SIGNS OR

DAMAGE, DISCONTINUE USE IMMEDIATELY. REPLACE WITH THE PROPER REPLACEMENT PART(S) BEFORE

CONTINUING SERVICE.

Position device near work area for operation. Run cable to nearby power

source. Insert and twist-lock explosion-proof plug into a compatible receptacle

within the hazardous environment. See plug operation below.

PLUG OPERATION

Electrical connection between plug and compatible receptacle is accomplished

after plug fully inserts into receptacle and rotated clockwise.

1. Lift receptacle door and locate polarization on mating plug pin and receptacle face. Insert plug straight

all the way into receptacle until it cannot go further.

2. Rotate plug clockwise limit (37º), this closes internal contacts and completes circuit. This also

mechanically locks plug into receptacle so it cannot be pulled out.

3. To remove plug, push plug inward and turn to counterclockwise, pull plug straight out.

The Larson Electronics EPL-FL1524-50-1523 Hazardous Area Fluorescent Work light is F.M. approved Class 1 Division1 Groups C and D

and Class II Division 1 groups E, F and G. With a 2 foot long 15 watt fluorescent lamp, this hazardous location light provides a very wide

flood beam which can be suitable for paint spray booth inspection or general portable lighting in confined spaces like fuel tanks or grain

storage areas.

WIRING

Warning: Check product label for correct input voltage!

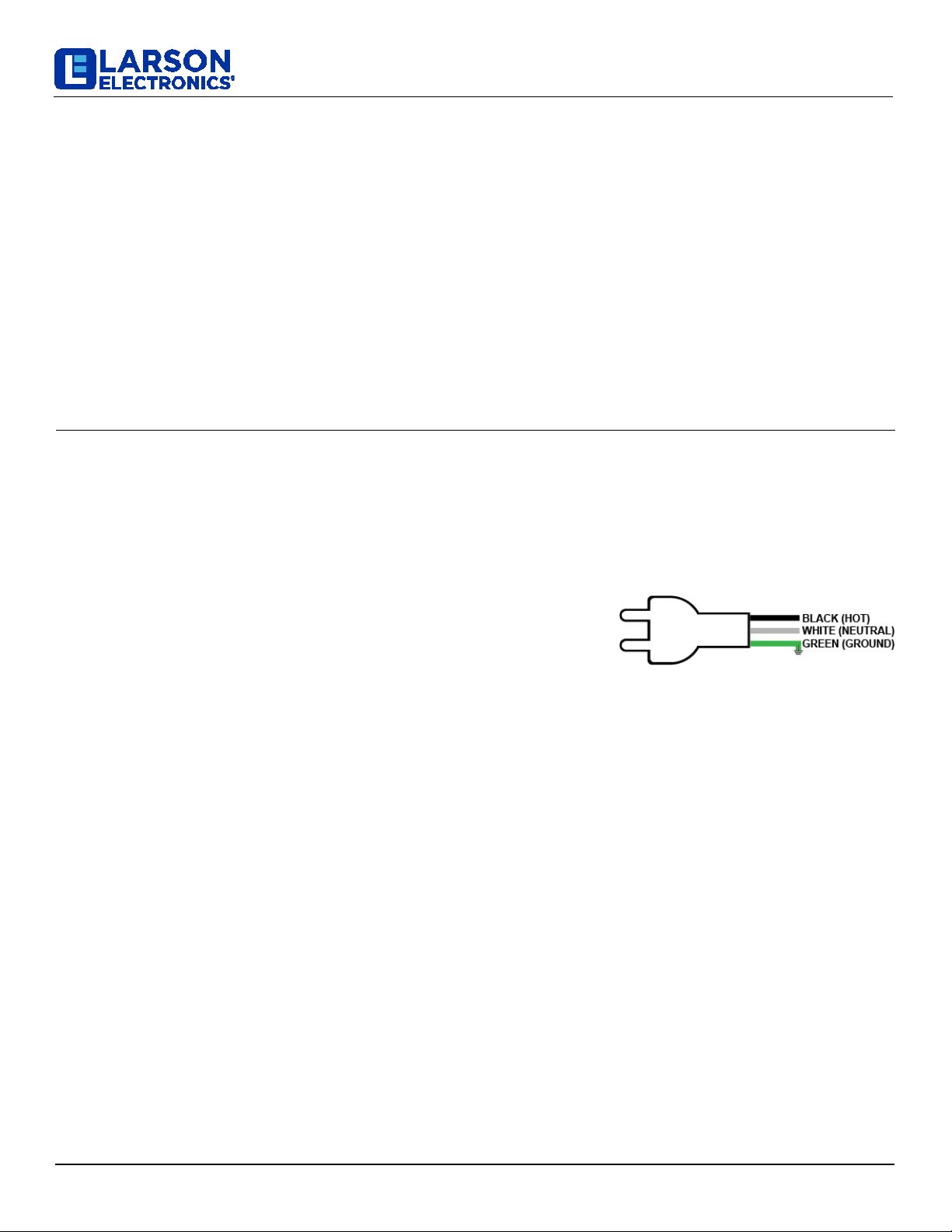

Exp Cord Cap

MAINTENANCE

Caution: To avoidpersonal injury, disconnect power to the light and allow the unit to cool downbeforeperforming maintenance.

Warning:No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens will voidthe warranty.

1. Perform visual,mechanical and electrical inspections on a regular basis.We recommend routine checks to be made on a

yearly basis. Frequency of use and environment shoulddetermine this. It is recommendedto follow an Electrical Preventive

Maintenance Program as described in NFPA 70B: Recommendedpractice for Electrical Equipment.

2. The lens should be cleaned periodically as neededto ensure continued photometric performance. Clean the lens with a

damp, non-abrasive,lint-free cloth. If not sufficient, use mild soapor a liquid cleaner.

3. Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or contamination (i.e.excessive

dust build-up). Clean with a non-abrasive clothif needed.

4. Do not operate if the lens is cracked or damaged. All fasteners shouldbe properly seated.

EPL-FL1524-50-1523

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 4

INTRODUCTION

This document covers the operation, maintenance, and

re-lamping procedures for an EPL-FL1524-50-1523

series hazardous location work light.

This light issuitable for the following hazardous locations

only:

Class I,Divisions 1,Groups C, D

Class II, Divisions 1,Groups E,F,and G

Class III, Divisions 1

Refer to the National Electric Code (NEC) NFPA 70 for

more information on hazardous locations.

The EPL-FL1524-50-1523 work light runs on the voltage

specified on product label. Check that the light being

used matches this criteria for operation. Be sure that the

line has appropriate termination and is grounded properly.

WARNING: Non-Explosion proof cord caps MUST

ONLY be used OUTSIDE HAZARDOUS AREA!

Run cable and non-explosion proof cord cap outside

hazardous area for powering the light. With standard

non-explosion proof cord caps, only the Drop Light is

rated for use in HAZARDOUS areas.

MAINTENANCE:

WARNING: It isvery important that only qualified

personnel perform maintenance and repair operations in

a NON-HAZARDOUS area. The integrity of the

component assembly and flame-path must be

maintained in order to provide adequate protection for

personnel using this light. Comply with all NEC Rules

and Regulations when performing maintenance

operations. Failure to comply with these could result in

an explosion, electrical shock, or personal injury.

CLEANING:

WARNING: DO NOT use any solvent or cleanser that

contains alcohol, hydrocarbons, or has potential to

cause an explosion. Using this type of cleanser could

cause an explosion or serious personal injury.

CAUTION: Clean external parts of work light only;

internal parts do not require cleaning. Applying solvent

could result in damage to the electrical equipment.

The EPL-FL1524-50-1523 can be cleaned by applying

Simple Green® or an equivalent cleanser and wiping

anydust or grease off with a rag. After cleaning process

is performed, allow adequate time for light to completely

dry before placing in operation.

WARNING: When performing maintenance operations

disconnect power. Failure to do so could result in

electrical shock.

USAGE INSPECTION: Prior to each use make a

thorough visual inspection of the work light for any chips,

cracks, or burns within the glass, aluminum handle, and

cage. Check the entire length of the cord for any frays or

visible wires that could affect the performance of the

light. Check that all the rubber bumpers are integral with

the aluminum. If there are any frays in the cord, cracks in

the glass or disturbances in the aluminum outside of

normal wear, remove the light from service immediately

and contact Larson Electronics.

TO REPLACE A LAMP OR STARTER:

WARNING: When re-lamping work light, disconnect

power. Failure to do so could result in electrical shock.

1. Remove four bolts on handle with Allen Head

Wrench

2. Pull cap gently and evenly outward

3. Wiring, starter, and tube should slide out

4. Replace necessary parts

5. Check “O” Ring - must be in good condition

6. Slide assembly back into handle and tube

7. Fasten securely with 4 bolts.

8. Test in non-hazardous location before using in

hazardous location to ensure proper operation of

light.

EPL-FL1524-50-1523

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

4of 4

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPL-FL1524-50-1523 is designed to provide years of reliable performance. Should the need for replacement parts

arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
