Lanzar VIBEX2 Manuel utilisateur

www.lanzar.com

INTRODUCTION

FEATURES:

FUNCTIONS

1. SIGNAL INPUTS

To be connected to the output of the source unit.

2. LOW PASS SUBWOOFER OUTPUT TERMINALS

To be connected to the subwoofer channel amplifier left/right inputs.

3. HIGH PASS CHANNEL OUTPUT TERMINALS

To be connected to the channel amplifier left/right inputs.

4. FUSE

This crossover uses a 1-amp,blade-type fuses for protection from power surges or

a short circuit.

5. POWER INPUT TERMINAL (12V)

To be connected to the positive terminal of your vehicle battery or other constant

+12V source.

6. REMOTE TURN-ON INPUT TERMINAL (REMOTE)

To be connected to the remote control wire or antenna lead of the source unit for

remote ON/OFF.

7. GROUND INPUT TERMINAL

To be wired to the vehicle's chassis ground.

8. POWER INDICATOR

This indicator lights up when the internal switching power supply is activated and

the unit is operational.

9. HIGH PASS GAIN CONTROL

For adjusting the channel output signal level.

10. SUBWOOFER STEREO/MONO SWITCH

For selection of stereo or mono mode subwoofer output.

11. HIGH-PASS FREQUENCY SELECTOR

For selection of high-pass crossover frequency between 80 Hz and 2.5KHz

12. PHASE INVERTER

Position the switch to the "180" position shifts the subwoofer output signals 180

degrees out-of-phase relative to the front and rear output signals.

13. BASS-BOOST LEVEL CONTROL (45Hz)

For increasing the Bass boost level up to +12dB.

14. LOW PASS SUBWOOFER FREQUENCY SELECTOR

For selection of the low-pass crossover frequency for the subwoofer channel

between 35 Hz and 400 Hz.

15. SUBWOOFER OUTPUT LEVEL REMOTE CONTROL TERMINAL.

To be connected to the remote control for exclusive maneuver of the subwoofer

output level, and the subwoofer output level control on the unit ("16" below) is by-

passed.

16. LOW PASS SUBWOOFER OUTPUT GAIN CONTROL

For adjusting the subwoofer channel output signal level.

FUNCTIONS

ELECTRICAL & AUDIO CONNECTIONS

Precautions

1. To prevent short circuits, be sure to disconnect the negative battery ground lead

before wiring the system up.

2. When you finish the installation, be sure to make one more check to be sure

everything is done correctly.

3. Reinstate all car parts that were removed.

4. Reconnect the negative battery ground lead.

Primary Wiring Descriptions

ELECTRICAL

12V

PRIME CONNECTION

BATTERY + Connect to the positive battery terminal

(constant + 12V source)

GROUND GROUND - Connect to the vehicle's chassis ground

(check for good ground)

REMOTE REMOTE B+(12V) Connect to the remote control wire(or the

electrical antenna) of the car radio/cassette

deck

HIGH PASS

OUTPUT

CROSSOVER MODULE

TO ANY AMPLIFIER

Connect from "high-pass output" of

CROSSOVER module to any amplifier input.

LOW PASS

OUTPUT

CROSSOVER MODULE

TO SUB-WOOFER

AMPLIFIER

Connect from low-pass sub-woofer output of

CROSSOVER to sub-woofer amplifier input.

INPUT RADIO/TAPE

PLAYER TO

CROSSOVER MODULE

Connect from pre-amp output of radio/tape

player (or CD) into

DESCRIPTION

NOISE CHECK & SYSTEM ADJUSTMENT

TROUBLE SHOOTING GUIDE

INSTALLATION

SPECIFICATIONS

Power source: 14.4 volts DC negative ground

Input current 0.5 amp max

Distortion: 0.01% THD at 1 V output level

Frequency response: 10Hz-30KHz ±3 dB

S/N ratio (A weighted): >95dB

Separation: 60 dB

Crossover frequencies (continuously variable):

Low-pass: 35-400 Hz

High-pass: 80-2.5KHz

Crossover slope rate: 12 dB per octave 2nd Order Butter worth

Subwoofer boost: Single octave + 12dB at 45 Hz

Input impedance : > 10K Ohms

Output impedance <1K Ohms

Output voltage level: 5 volts max

Dimensions: 160mm (W) x 130mm (D) x 37mm (H)

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE AND / OR IMPROVEMENT

WITHOUT NOTICE.

Table des matières

Autres manuels Lanzar Amplificateur de voiture

Lanzar

Lanzar 1000.1D Manuel utilisateur

Lanzar

Lanzar HTG138 Manuel utilisateur

Lanzar

Lanzar OPTI 200X4 Manuel utilisateur

Lanzar

Lanzar VIBE226 Manuel utilisateur

Lanzar

Lanzar OPTISCION OPTS150.2 Manuel utilisateur

Lanzar

Lanzar RDA7530 Manuel utilisateur

Lanzar

Lanzar OPTI 250x2 Manuel utilisateur

Lanzar

Lanzar OPTI 250x2 Manuel utilisateur

Lanzar

Lanzar OPTID-100 Manuel utilisateur

Lanzar

Lanzar VIBE300D Manuel utilisateur

Lanzar

Lanzar VIBE218 Manuel utilisateur

Lanzar

Lanzar HERITAGE HTG 214 Manuel utilisateur

Lanzar

Lanzar HERITAGE HTG 2600D Manuel utilisateur

Lanzar

Lanzar VIBE PRO Manuel utilisateur

Lanzar

Lanzar VIBE VIBE232 Manuel utilisateur

Lanzar

Lanzar Optidrive OPTS140.1D Manuel utilisateur

Lanzar

Lanzar VECTOR VCT-2010 Manuel utilisateur

Lanzar

Lanzar Mini Max MNX3000D Manuel utilisateur

Lanzar

Lanzar Vector VCT-2110 Manuel utilisateur

Lanzar

Lanzar VIBE211 Manuel utilisateur

Lanzar

Lanzar HERITAGE HTG 2600D Manuel utilisateur

Lanzar

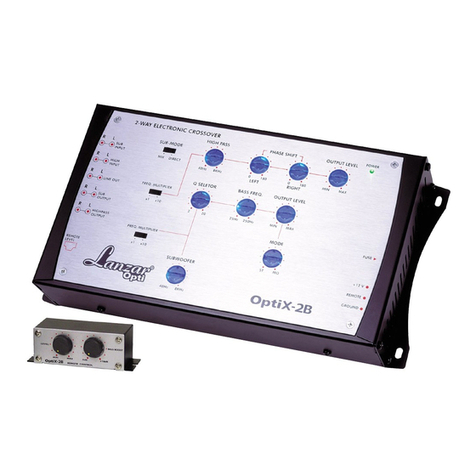

Lanzar OPTIX-2B Manuel utilisateur
