XPress-DR+ Quick Start Guide

XPress-DR+ Industrial Device Server

XPRESS-DR+

QUICK START CONTENTS

What’s In the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

Quick Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

Assigning IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

DeviceInstaller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-12

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

XPress-DR+ Industrial Device Server

Quick Start Guide

XPress-DR+

PINOUTS

The XPress-DR+ supports RS-232 via RJ45 connectors.It also supports RS-422/485

via screw terminals (Serial Port 2 only).

Note: SerialPort2supportsRS232,RS422,andRS485,butonlyonemode at atime.

Thismeansyoucanuse either theRJ45connectoror the terminalblock,notboth.

The serial RJ45 serial connectors support RS232,up to 230,400 bits per second.

The supplied Lantronix P/N:500-103 serial cable can be used to connect port 1

of XPress-DR+ to a PC’s com port for configuration using a terminal emulation

application.Refer to the XPress-DR+ Users Guide for information on configuring

the XPress-DR+ thought the serial interface.

2WWW.LANTRONIX.COM 3

WHAT’S INTHE BOX

Verify and inspect the contents of the package using the enclosed packing slip

or the list below.If any item is missing or damaged,contact your place of

purchase immediately.

•XPress-DR+

•CD (with protocols,utilities,and User Guide)

•Quick Start Guide

•P/N:500-103 RJ45-DB9F serial cable

•Accessory Din-rail wall mount bracket

•3 terminal screw connector for power input

•5 terminal screw connector for serial port

The user must supply a 9-30VDC or 9-24VAC power source and a CAT 5

Ethernet cable.

OVERVIEW

The XPress-DR+ industrial automation device server provides a quick and easy

method to network-enable multiple industrial automation devices and

equipment.The embedded Ethernet switch and multiple serial ports enable

real-time access for remote configuring,programming,monitoring,and control

of PLCs,motor drives,process controls,power monitoring equipment,barcode

scanners,or virtually any RS232,RS422,or RS485 factory floor device.

RJ45 Serial Connector Pinouts

4WWW.LANTRONIX.COM

Quick Start Guide

XPress-DR+

PINOUTS CONTINUED… PINOUTS CONTINUED

Note:Terminationresistors(R=120Ohm)areused to matchimpedanceofanode to

theimpedanceofthetransmission(TX) line.Terminationresistorsshould be placedonly

atthe extremeends of theTXdatalines,and no morethantwoterminationsshouldbe

placedinanysinglesegmentofanRS-485 network.Theterminatorresistors maynotbe

neededfor yourapplication.

9-Pin RS-232 to Serial RJ45

The included Lantronix P/N (500-103) RJ45-DB9F serial cable assumes you are

connecting a typical PC Com port to the XPress-DR+ serial port.This cable is

pinned to provide full serial line control to an RS232 DTE device.Lantronix offers

a comprehensive list of cables and adapters to simplify device connectivity to

the XPress-DR+.See the User Guide for a full listing.

ScrewTerminal Serial Connectors

Serial ScrewTerminal Pinout for RS422 (4-Wire)

Serial ScrewTerminal Pinout for RS485 (2-Wire)

9-Pin RS-232 to Serial RJ45 Pinout Table

6WWW.LANTRONIX.COM

Quick Start Guide

XPress-DR+

QUICK CONNECT CONTINUED

Typical Installation

QUICK CONNECT

Warning: Connectingadeviceto an activeEthernetnetwork can disrupt

communicationson the network.Makesure thedeviceisconfiguredfor your

applicationbefore connectingitto an activenetwork.

1. Connect a serial device to your XPress-DR+.

2. Connect an Ethernet cable to the Ethernet port.

3. Supply power to your XPress-DR+ using a 9-30VDC or 9-24 VAC (2.3W

maximum) source.

4. Supply power to the serial device.

5. Verify that the green Link LED is lit.

Quick Start Guide

XPress-DR+

WWW.LANTRONIX.COM 9

ASSIGNING AN IP ADDRESS CONTINUED

Fixed IP Address

In most installations,a fixed IP address is desirable.The systems administrator

generally provides the IP address,subnet mask,and gateway.

The IP address must be within a valid range,unique to your network,and in the

same subnet as your PC.You will need the following information before you set

up the unit as described in DeviceInstaller,below.

IP Address: _______ _______ _______ _______

Subnet Mask: _______ _______ _______ _______

Gateway: _______ _______ _______ _______

You have several options for assigning an IP to your XPress-DR+.We recommend

that you connect the unit to the network and assign the IP address using

DeviceInstaller software,which is on the product CD.For information on other

methods,see the XPress-DR+ User Guide.

ASSIGNING AN IP ADDRESS

Your unit must have a unique IP address on your network.Two ways to assign an

IP address are described below.Additional methods of assigning an IP Address

and configuring the XPress-DR+ are described in the Users Guide.

DHCP

Many networks use an automatic method of assigning an IP address called DHCP.

If you are unsure whether your network uses DHCP,check with your systems

administrator.

The XPress-DR+ looks for a DHCP server when it first powers up.The unit has

acquired an IP address if the red LED stops flashing and the green Status LED is

on continuously.You can use the DeviceInstaller software (see below) to search

the network for the IP your unit has been assigned by the DHCP server and add

the unit to the list of Lantronix devices on the network.

If the unit does not acquire an IP address,or you do not use DHCP,you must

assign a fixed IP address.

Note:The unit’s IP addressisset to 0.0.0.0atthe factory.Theunitis DHCP– enabledas

thedefault.

Quick Start Guide

XPress-DR+

WWW.LANTRONIX.COM 11

DEVICEINSTALLER CONTINUED…

5. Enter the IP address.The Subnet mask displays automatically based on the IP

address;if desired,you may change it.On a local network,you can leave the

Default gateway blank (all zeros).Click Next.

6. Click the Assign button and wait several seconds until a confirmation message

displays.Click Finish.

7. Select the device from the main window list and select Ping from the Tools

menu.The Ping Device dialog box shows the IP address of the selected unit.

8. Click the Ping button.The results display in the Status window.Click the Clear

Status button to clear the window so you can ping the device again.

Note: Ifyoudo notreceive"Reply"messages,makesure the unitisproperly

attachedtothe networkandthat the IPaddressassigned is validfor theparticular

networksegment you are workingwith.Ifyouare not sure,checkwith your

systemsadministrator.

9.Click the Close button to close the dialog box and return to the main window.

DEVICEINSTALLER

Step 1:Install DeviceInstaller

To use the DeviceInstaller utility,first install it from the product CD.

1. Insert the product CD into your CD-ROM drive.

2. If the CD does not launch automatically:

a.Click the Start button on the Task Bar and select Run.

b.Enter your CD drive letter,colon,backslash,Launch.exe (e.g.,D:\Launch.exe).

3. Click the DeviceInstaller button.

4. Respond to the installation wizard prompts.(When prompted to select an

installation type,select Typical.)

Note: For more information about DeviceInstaller,see the DeviceInstaller online Help.

Step 2:Configure Network Settings

To assign an IP address manually:

1. Click Start ➜ Programs ➜Lantronix ➜ DeviceInstaller ➜ DeviceInstaller.

If your PC has more than one network adapter,a message displays.Select an

adapter and click OK.

Note: Iftheunit already has anIP address (e.g.,DHCPhasassigned an IPaddress),

clicktheSearch icon andselect theunitfrom the listofLantronix device servers

onthelocalnetwork.

2. Click the Assign IP icon .

3. If prompted,enter the hardware address (on the product label) and click Next.

4. Select Assign a specific IP address and click Next.

LEDS

CONTACT

For questions and technical support,please check our online knowledge base

at www.lantronix.com/support

Lantronix

15353 Barranca Parkway,Irvine,CA 92618,USA

Phone:(949) 453-3990 or Fax: (949) 453-3995

www.lantronix.com

WWW.LANTRONIX.COM 13

Quick Start Guide

XPress-DR+

DEVICEINSTALLER CONTINUED

Step 3:Add the Unit to the Device List

Now add the unit to the list of similar Lantronix devices on the network so that

you can manage and configure it.To perform this step,click the Search icon .

DeviceInstaller locates the unit and adds it to the list.

Step 4:Complete the Configuration

Once the unit is in the device list,you can complete the configuration.

•To use a web interface (Web Manager),double-click the unit in the list and

click the Web Configuration tab.

•To use Setup Mode (a command line interface),double-click the unit in the

list and click the Telnet Configuration tab.

Note: Pleaseseethe XPress-DR+ User Guidefordetailed instructions

onconfiguration.

Upgrade the Firmware

To upgrade firmware or install other protocols such as ModBus refer to the

XPress-DR+ Users Guide or the DeviceInstaller online help.

Table des matières

Autres manuels Lantronix Serveur

Lantronix

Lantronix WiPort Guide de configuration rapide

Lantronix

Lantronix EDS3000PR Manuel utilisateur

Lantronix

Lantronix SLC48 Manuel utilisateur

Lantronix

Lantronix SDSTX3110-124-LRT-B Manuel utilisateur

Lantronix

Lantronix xPico XPW100A003-01-B Guide de configuration rapide

Lantronix

Lantronix Com Port Redirector Manuel utilisateur

Lantronix

Lantronix XPico 900-691-R Manuel utilisateur

Lantronix

Lantronix SLC 8000 Manuel utilisateur

Lantronix

Lantronix MSS1-T Manuel utilisateur

Lantronix

Lantronix SLM Manuel utilisateur

Lantronix

Lantronix WiBox2100E Manuel utilisateur

Lantronix

Lantronix EDS2100 Manuel utilisateur

Lantronix

Lantronix SecureBox SDS2100 Manuel utilisateur

Lantronix

Lantronix MSS1-T Manuel utilisateur

Lantronix

Lantronix UDS1100 Manuel utilisateur

Lantronix

Lantronix EDS8PS Manuel utilisateur

Lantronix

Lantronix XPort Manuel utilisateur

Lantronix

Lantronix UDS1100 Manuel utilisateur

Lantronix

Lantronix xPort Pro XPP1004000-02R Guide de configuration rapide

Lantronix

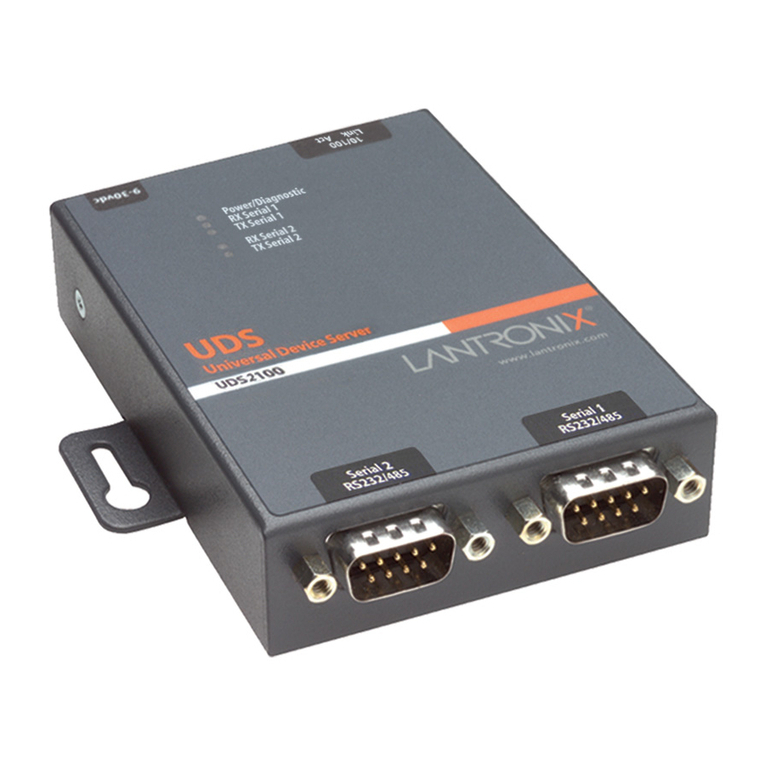

Lantronix UDS2100 Manuel utilisateur
