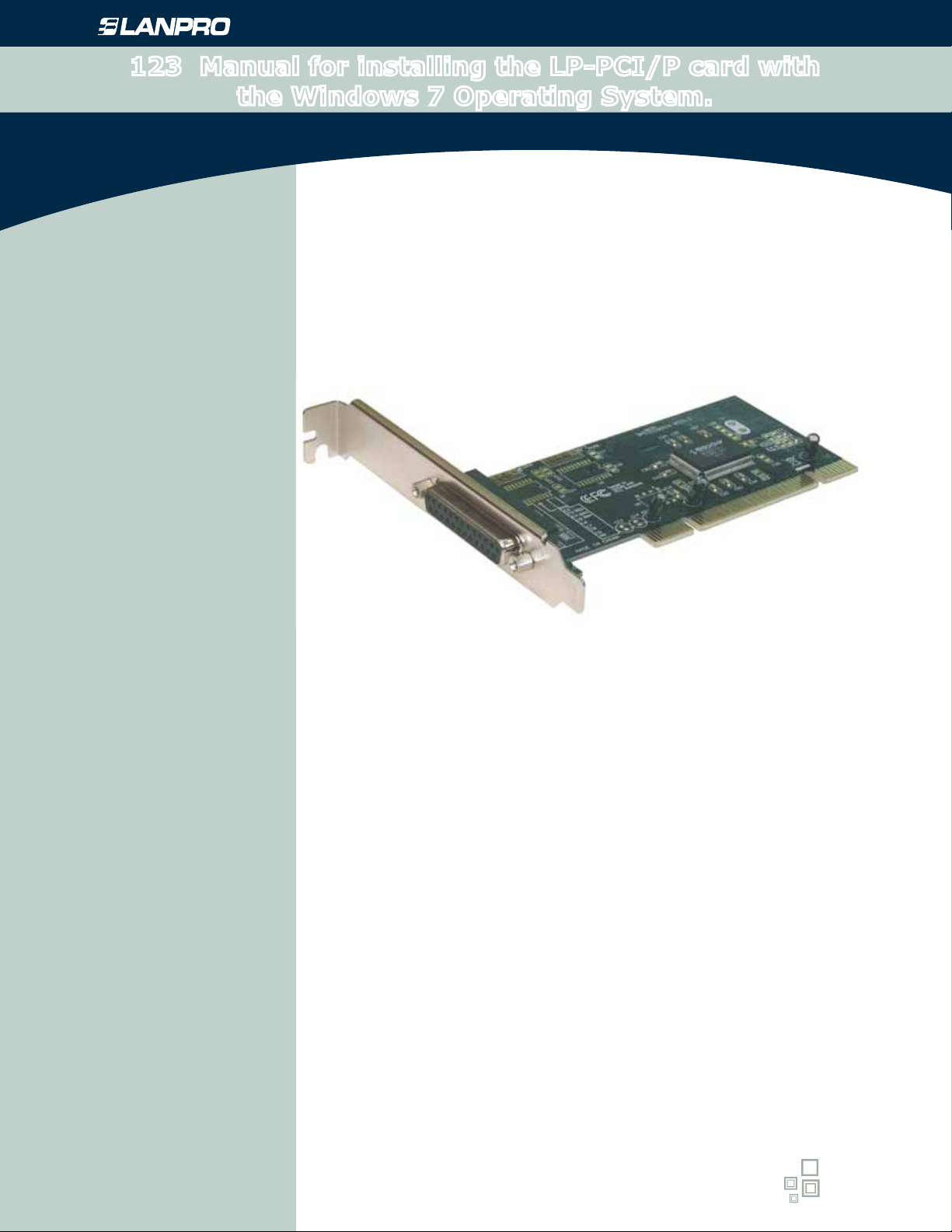

123 Manual for installing the LP-PCI/P card with
the Windows 7 Operating System.
LPPCIP_M123_ENB01W
123 Manual for installing the
LP-PCI/P card with the
Windows 7 Operating System.
www.lanpro.com
Active Products - Communication Cards - 123 Manual for installing the LP-PCI/P
Following these instructions will install the card-LP-PCI/P, for system Windows 7.
2
First, please download the corresponding driver set from www.lanpro.com and decompress them accordingly:
http://www.lanpro.com/products/active/products/download.asp?id=823
1
Figure 1
We now remind you the common precautions you should take when installing hardware inside a personal computer:
(Anti-static protection, power disconnection, etc.), then proceed to open your PC and insert the PC Board in an
available slot, as shown in gure 1.
Proceed now to turn your equipment on, it will indicate you if it found a new device that could not be installed, then
proceed to select: Start and Control Panel, as shown in gure 2.
2
3
Figure 2
www.lanpro.com
Active Products - Communication Cards - 123 Manual for installing the LP-PCI/P
3
Proceed to enter in: System and Security, System,
then open : Device Manager as shown in gure 3.
Proceed to look for the corresponding device list as
shown in gure 4.
By clicking the right button of the mouse and then
selecting with the left button: Properties, then:
Update Driver, as shown in gure 5.
4
5
6
Figure 4
Figure 3
Figure 5
www.lanpro.com
Active Products - Communication Cards - 123 Manual for installing the LP-PCI/P
4
Figure 9
A new window will pop-up in which you should select
option: Browse, as shown in gure 7.
8
Figure 7
Locate the corresponding folder, as shown in gure
8, please remember that this depends on the le
location where you decompressed and saved the
les, then select: OK.
Now select: Next. As shown in gure 9.
9 10
Figure 8
A new window will pop-up asking for how to search the
driver, left-click on: Browse my computer for driver
software, as shown in gure 6.
7
Figure 6
www.lanpro.com
Active Products - Communication Cards - 123 Manual for installing the LP-PCI/P
5
Figure 10
Figure 11
Figure 12
Once the installation has
finished, please select: Close ,
as shown in figure 11.
Watch your PC installing the corresponding
driver as shown in gure 10.
Now you can verify that the device was properly installed as shown
in gure 12, nally close the Device Administrator.
12
11
13
