Laney LA 10 Manuel utilisateur

WELCOME

INTRODUCTION

The LA10 offers great acoustic tones from a compact and portable amplifier.

The 10-Watt LA10 is capable of producing some bold, natural uncoloured acoustic guitar tones.

Housing a big sounding 5” driver and 2 band EQ the LA10 produces a acoustically pure tone capable of

reproducing the natural timbre of your instrument. Engaging the on board SHAPE switch allows you to

kick in a little extra high mid boost when a brighter more

extended top end is called for.

Plugging in some headphones means you can play

whenever you like, whatever time of the day or night and

if you connect an external device to the AUX IN socket

you can jam along with your favourite players!

Finished in a range of natural browns and creams, the

LA10 is a great addition to the LA range.

All the features & controls are covered over the next few

pages, please take the time to read this manual fully as it

will allow you to get the very best from your amplifier,

read on, play and enjoy…

Input: This socket should be used for connecting your instrument to the amplifier. Only use a good

quality screened cable.

Volume: Sets the overall listening level of the amplifier.

Shape: Engages an EQ circuit to give a brighter more extended top end.

EQ Controls: Traditional Bass & Treble passive tone controls. Passive controls have the advantage of

always sounding musical at any of their settings, due to their unique interactive nature.This gives the player

a more natural set of tools to shape their ideal sound. Set these midway at (0) as a good starting point.

Aux In: A 3.5mm Stereo line input for connection of a CD or MP3 player as a backing track. Control the

level of the input using the volume control on your CD/MP3 player.

Phones: 3.5mm stereo jack socket for connecting headphones and when connected, the internal

loudspeaker is automatically switched off.

Power LED: This will illuminate when the power switch is operated, indicating the presence of mains

power within the amplifier.

Power Switch: Mains power switch for the unit.

FRONT PANEL CONTROLS

(ALWAYS SWITCH OFF AND DISCONNECT THE POWER CORD WHEN NOT IN USE)

L Z B 1 2 3 4

REAR PANEL

Information area relating to the

amplifier: Supply Voltage, Model,

Serial Number, etc.

A built in mains lead is provided

to connect to your power

source. Make sure the specified

voltage is correct for your

country!

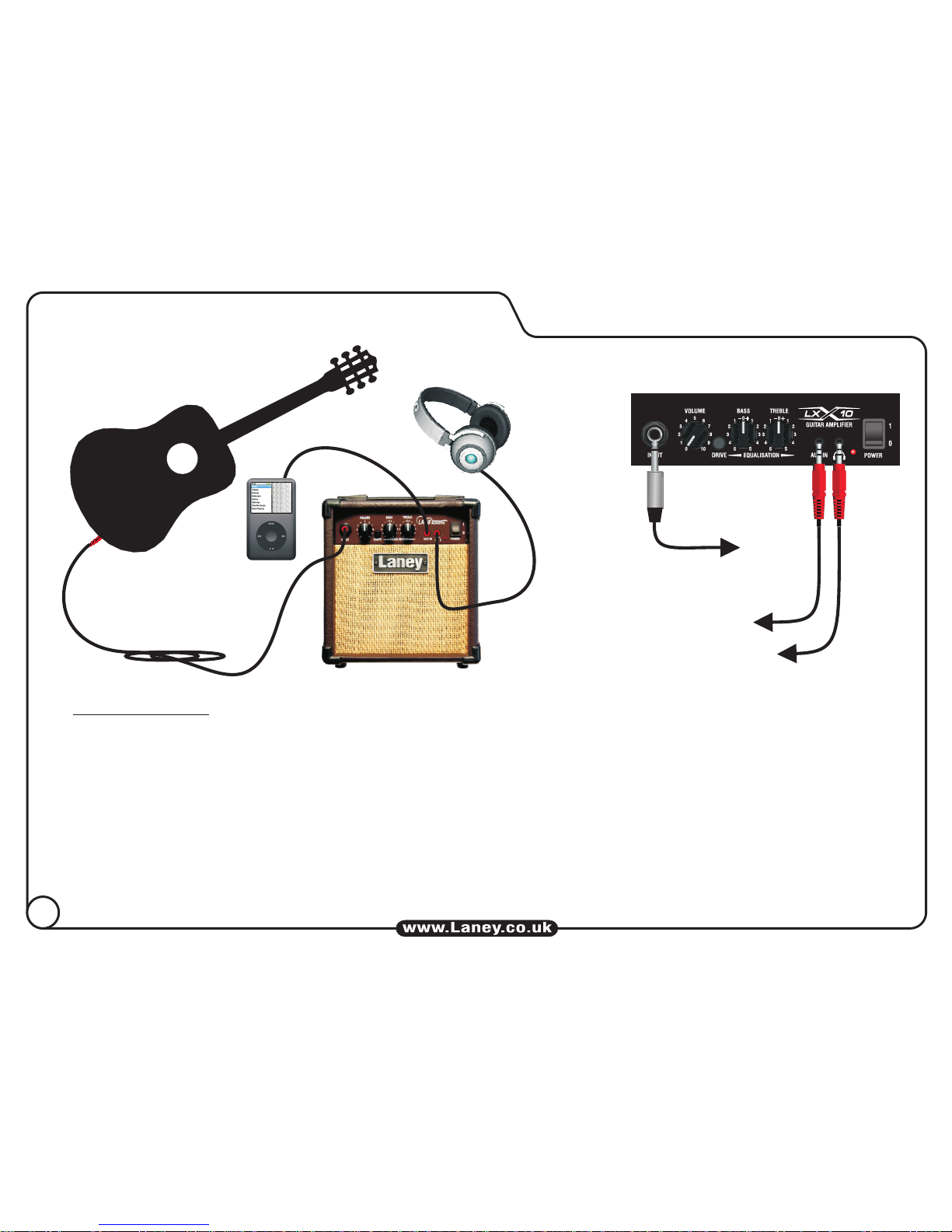

CD/MP3

Headphones

Guitar

Options

General Notes

Amplifier connection: In order to avoid damage, it is advisable to establish and follow a pattern

for turning on and off your equipment. With all system parts connected, turn on source equipment,

MP3/CD players, etc. BEFORE turning on your guitar amplifier. Similarly when turning off your

system always turn down the Volume controls on your guitar amplifier and then turn off its power

before turning off other equipment.

Cables:

Servicing: The user should not attempt to service these products. Refer all servicing to qualified

service personnel.

Only use a good quality screened cable to connect your instrument to the amplifier.

CONNECTIONS

Supply Voltage (Factory Preset) ~100V, ~120V, (~220V, > ~240V) 50/60Hz

Power Consumption 15W

Output Power Rating 10W

Loudspeaker 5” Custom Designed Driver

Features Input Skt (6.3 Jack)

Shape EQ Circuit

Bass

Treble

Aux In (3.5 Stereo Jack)

Headphone Skt (3.5 Stereo Jack)

Master Volume

Size 245*216*146 (H*W*D)

Unit Weight 2.6Kg

Packing Weight 3.2Kg

SPECIFICATIONS

BLOCK DIAGRAM

This product conforms to the requirements of the

following European Regulations, Directives & Rules:

CE Mark (93/68/EEC),

Low Voltage (72/23/EEC),

EMC (2004/108/EEC),

RoHS (2011/65/EU),

WEEE (EU2002/96/EC).

In order to reduce environmental damage, at the

end of its useful life, this product must not be

disposed off along with normal household waste to

landfill sites. It mist be taken to an

approved recycling centre according

to the recommendations of the

WEEE (Waste Electrical And

Electronic Equipment) Directive

applicable in your country.

HEADPHONES

INTERNAL

LOUDSPEAKER

SHAPE EQ

SECTION

GUITAR INPUT

AUX IN

ON/OFF

BASS

TREBLE

MASTER VOLUME

In the interest of continued development, Laney

reserves the right to amend product specification

without prior notification.
