Landmann Brookfield 21940 Guide de configuration rapide

VER.1, 5/21/2019

Assembly and Use

Instructions for Model:

21940

21945

PLEASE READ ALL RULES FOR SAFE OPERATION

AND HELPFUL HINTS BEFORE USING.

!WARNING: FUELS USED IN WOOD OR CHARCOAL BURNING

APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS,

CAN EXPOSE YOU TO CHEMICALS INCLUDING CARBON BLACK,

WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE

CANCER, AND CARBON MONOXIDE, WHICH IS KNOWN TO THE

STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM.

For more information go to: www.P65Warnings.ca.gov

• THIS FIRE PIT IS FOR OUTDOOR USE ONLY!

• USE ONLY ON BRICK, CONCRETE, STONE OR OTHER MASONRY

SURFACES!

• DO NOT USE ON LAWNS, WOODEN DECKS, COMPOSITE

DECKS, ASPHALT OR ANY COMBUSTIBLE SURFACE.

• KEEP THE FIRE PIT A MINIMUM OF 10 FT. AWAY FROM

BUILDINGS, STRUCTURES, ANY FLAMMABLE ITEMS AND

VEHICLES.

• NEVER USE UNDER LOW HANGING TREE BRANCHES, TRELLIS,

OVERHANGS OF ANY KIND INCLUDING COVERED PORCHES.

• WARNING! NEVER USE GASOLINE, ALCOHOL OR VOLATILE

FLUIDS TO START OR RESTART FIRES.

• DO NOT USE THE OUTDOOR FIRE PIT WHILE IMPAIRED BY

ALCOHOL OR ANY OTHER SUBSTANCE.

• FOR LONGER PRODUCT LIFE, KEEP FIRES TO A RESPECTABLE

SIZE, DO NOT OVERLOAD.

• DO NOT THROW FIREWOOD INTO THE FIRE PIT, ADD

FIREWOOD BY CAREFULLY PLACING INTO THE FIREBOWL.

• THE OUTDOOR FIRE PIT IS FOR ADULT USE ONLY.

• ADULTS NEED TO KEEP WATCH AND SUPERVISE CHILDREN

AND PETS WHEN AROUND THE FIRE PIT DURING USE.

• AVOID BEHAVIOR THAT COULD CAUSE THE FIRE PIT TO TIP

OVER.

• KEEP LOOSE CLOTHING AWAY.

• DO NOT LEAVE UNATTENDED AT ANY TIME WHILE IN USE.

• DO NOT MOVE THE FIRE PIT DURING USE.

• DO NOT USE IN WINDY CONDITIONS!

• DO NOT OVERLOAD OR USE FOR BURNING GARBAGE.

• USE CAUTION WHEN TENDING THE FIRE, AS SURFACES WILL

BECOME VERY HOT WHILE IN USE.

• ALWAYS USE THE SPARK GUARD DURING USE.

• USE MITTENS OR GLOVES WITH THE POKER TO REMOVE THE

SPARK GUARD, THE SPARK GUARD WILL BECOME VERY HOT!

• USE CAUTION WHEN REMOVING THE SPARK GUARD, AS

HOT STEAM OR A FLARE UP COULD CAUSE BURNS.

• BEFORE EACH USE MAKE SURE THE FIRE PIT IS IN GOOD

WORKING CONDITION.

• USE CAUTION AFTER THE FIRE HAS BEEN EXTINGUISHED,

SURFACES WILL REMAIN HOT FOR SOME TIME.

• THE FIRE PIT MUST BE COMPLETELY COOLED OFF AND

ALL EMBERS MUST BE EXTINGUISHED BEFORE ANY COVER

CAN BE USED.

• CHECK LOCAL LAWS AND CODES BEFORE USING.

CARBON MONOXIDE HAZARD!

BURNING WOOD OR CHARCOAL

PRODUCES CARBON MONOXIDE, WHICH

HAS NO ODOR AND CAN CAUSE DEATH IF

BURNED IN ENCLOSED AREAS. NEVER

BURN WOOD OR CHARCOAL INSIDE

HOMES, VEHICLES, TENTS OR ANY OTHER

ENCLOSED AREAS.

WARNING!

PAGE 2

READ FIRST! RULES FOR THE

BROOKFIELD OUTDOOR FIRE PIT

SAFE OPERATION.

PAGE 3

When unpacking the Brookﬁeld from the carton, make sure you ﬁnd and become familiar with all the parts

listed below. Use caution as some parts may have sharp edges.

PARTS LIST

HARDWARE LIST

Assembly time: 10 minutes

A Phillips or plain screwdriver and

an adjustable wrench are needed

for assembly.

TOOLS REQUIRED

(1) POKER

(18) M6 x 12MM

BOLT

x 18

(18) M6 FLANGE

HEXNUT

x 18

(1) FIREBOWL

(1) SPARK GUARD

(4) LEGS

(1) SPARK GUARD HANDLE

BROOKFIELD ASSEMBLY INSTRUCTIONS

PAGE 4

STEP

DO NOT RETURN PRODUCT TO THE

STORE. IF YOU HAVE QUESTIONS

OR HAVE TROUBLE WITH

ASSEMBLY, PLEASE CALL

1-800-321-3473 FOR ASSISTANCE.

ASSEMBLE THE SPARK

GUARD HANDLE

Assemble the spark guard

handle [ W ] to the spark guard

[B ] using (2) bolts [ AA ] and (2)

hexnuts [ BB ]. Tighten bolts

securely.

STEP

PLACE THE SPARK GUARD

Place the assembled spark guard

[B ] on the tabs.

STEP

ASSEMBLE THE LEGS

Take each of the (4) legs [ E ]

and assemble them to the

ﬁrebowl [ A ] as shown using (4)

bolts [ AA ] and (4) hexnuts

[ BB ] per leg.

The top of the leg wraps around

the top of the ﬁrebowl and the

top of the leg assembles to the

inside of the ﬁrebowl. See 1A.

Tighten bolts securely.

TAB

STEP

BROOKFIELD USE INSTRUCTIONS

PAGE 5

ADD SAND

Before using, add a 1-1.5 in.

layer of sand or about 5 lbs.

(size wise, its the same amount

as a 5 lb. bag of sugar) to the

bottom of the ﬁrebowl. This

will help neutralize the

corrosive nature of the ashes

and help radiate the heat

upwards.

STEP

ADD FUEL

Add up to 5 lbs. of kindling and

ﬁrewood to the ﬁrebowl. Use

paper or ﬁrestarter under the

kindling and light with a match.

Add more ﬁrewood as needed.

The capacity of the ﬁre pit is 5

lbs. of fuel.

STEP

SAND

KINDLING

FIREWOOD

ALL SURFACES BECOME

HOT DURING USE!

PAGE 6

NEVER USE GASOLINE,

ALCOHOL OR VOLATILE

FLUIDS TO START OR

RESTART FIRES.

WARNING!

HOT SURFACES DURING

USE! USE MITTENS, POKER

OR GLOVES ON THESE

PARTS.

WARNING!

HOT!

• KEEP THE FIRE PIT OUT OF THE WEATHER AND

ELEMENTS.

• STORE THE FIRE PIT IN A DRY LOCATION

OUT OF THE WEATHER.

• DO NOT DUMP ASHES WHERE A FIRE CAN BE

STARTED.

• DISPOSE OF ASHES IN PROPER RECEPTACLE ONLY

AFTER ASHES HAVE COOLED.

• USE ANY COVER ONLY AFTER THE FIRE PIT IS

COMPLETELY COOL TO THE TOUCH.

• STORE THE FIRE PIT IN AN AREA SO THAT IT

WON'T BE PRONE TO TIPPING OVER AND BEING

A HAZARD.

HELPFUL HINTS:

Congratulations on your purchase of the

Brookﬁeld Fire Pit! At Landmann USA, we strive

to provide you with an easy to use, easy to

assemble product. However, in the unlikely event

your package should have a missing or defective

part, please contact us at:

customerservice@landmann-usa.com

-OR-

1-800-321-3473 M-F 8-5 ET.

Proof of purchase may be required. Thank you!

For best results, the ﬁre pit should be cleaned

after every use. Make sure ﬁre pit is cool and all

embers are extinguished before cleaning.

If any remaining ﬁrewood needs to be removed,

use poker or shovel to remove. Any sand can be

reused.

Dispose of ashes in proper receptacle only after

ashes have cooled. Do not dump ashes where a

ﬁre can be started.

If the ﬁre pit needs to be cleaned, use a mild

soap and water with a soft rag. Dry thoroughly

to prevent rust.

Occasionally, the ﬁre pit ﬁnish will need to be

reﬁnished. Use a high quality, high heat paint to

renew the ﬁnish.

CLEANING

AVAILABLE

ACCESSORIES

Please visit our website at:

www.landmann.com/us

-OR-

Call customer service toll free at:

1-800-321-3473

These custom made accessories are made just

for the Brookﬁeld Fire Pit.

Landmann® Limited

Distributed by Landmann® USA

Fairburn, GA 30213

www.landmann.com/us

Made in China

Landmann® and the Landmann Firebird are

registered trademarks of Landmann USA.

Brookﬁeld™

COVER

MODEL 29495

37 IN.

MULTI-PURPOSE

POKER

MODEL 29240

COOKING GRATE

MODEL 29200

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Landmann Cheminée extérieure

Landmann

Landmann Hartford 25805 Guide de configuration rapide

Landmann

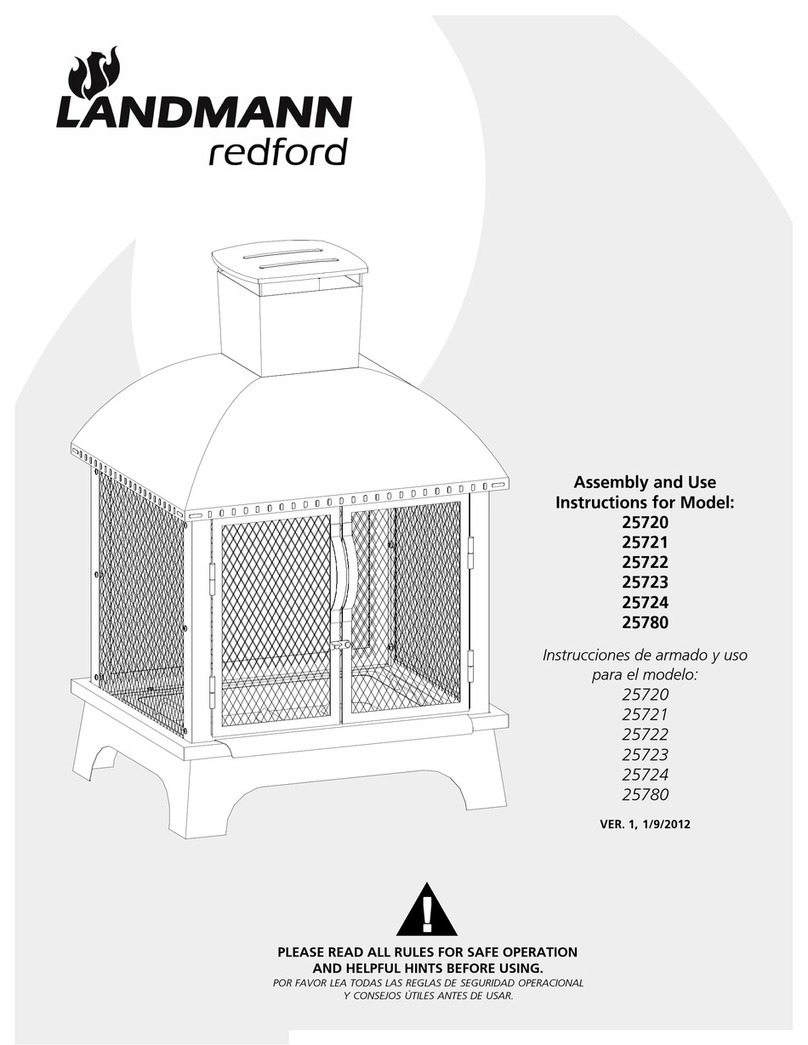

Landmann 25722 Guide de configuration rapide
