MODELS: 43106, 43107, 43108 & 43109
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at: 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only,
Ardor Built in Dual & Single Gas Side Burner
ASSEMBLY, CARE AND USE INSTRUCTIONS
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
This appliance is for
Household use only.
This is not a
commercial appliance.
PROFESSIONAL
2
Important Safety Information ................................... 2
Product & Cutout Dimensions................................... 5
Troubleshooting........................................................ 21
Replacement Parts .................................................. 22
Warranty .................................................................. 24
Assembler/Installer
This instruction manual contains important information necessary for the proper assembly and safe use of this
appliance. Read and follow all warnings and instructions before assembling and using this appliance.
Leave these instructions with the consumer.
Consumer/User
Follow all warnings and instructions when using this appliance.
Keep these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
5. Failure to follow these instructions could
result in explosion, or burn hazard which
could cause property damage, personal
injury or death.
1. DO NOT store or use gasoline or other
flammable liquids or vapors in the vicinity of this
or any other appliance.
2. An LP (liquid propane) cylinder not
connected for use should not be stored in the
vicinity of this or any other appliance.
3. This grill is FOR OUTDOOR USE only and
shall not be used in a building, garage, under
overhangs or any other enclosed area.
4. DO NOT leave a lit grill unattended. Keep
children and pets away from the grill at all times.
5. This appliance is for Household use only.
This is not a commercial appliance.
Table of Contents
Important Safety Information
Warnings and Cautions contained
in this instruction manual may result
in serious bodily injury or death,
or may result in a fire or explosion
causing damage to property.
• Make sure to follow all assembly instructions
carefully. Improper assembly of this grill may be
dangerous.
• NEVER use charcoal, lighter fluid, gasoline,
kerosene or alcohol to ignite this grill.
• When igniting the grill or cooking, DO NOT lean
over the open grill.
• Always open the grill lid slowly and carefully as heat
trapped inside the grill can cause severe burns.
• DO NOT place hands or fingers at edge of the
firebox when the lid is open or the grill is hot.
• Keep children and pets away from the grill when in
use. Accessible parts may be very hot.
• DO NOT attempt to disconnect the gas regulator
and hose assembly or any gas fitting while your
grill is operating.
Gas Connection.........................................................9
General Safety Requirements...................................4
Gas Conversion........................................................17
Package Contents & Assembly Instructions ............ 7
Checking for Gas Leaks..........................................12
Side burner Lighting Instructions...............................14
Maintenance & Cleaning...........................................15
3
•This grill SHOULD NOT be located under any
overhead unprotected combustible construction.
Always allow at least 36" from the top, bottom,
back and 36" from the sides of the grill .
• This grill is an outside appliance and SHOULD
NOT be operated in a building, garage, or any
other enclosed area.
• DO NOT obstruct the flow of combustion and
ventilation air. Keep the ventilation openings of the
cylinder enclosure free and clear of debris.
• Should the burners go out while the grill is in
operation, turn all gas valves off. Open the lid and
wait five minutes before attempting to relight the
grill, using the igniting instructions.
• Keep this grill clear and free from combustible
material, gasoline and other flammable vapors and
liquids.
•NEVER store an extra or disconnected liquid
propane cylinder under or near this grill.
• Always use heat-resistant barbecue mitts or gloves
when operating the grill.
• DO NOT leave a hot grill unattended or move it
during operation.
• This grill is not intended to be used in or installed
on recreational vehicles, boats, portable trailers, or
in any moving location.
• DO NOT put a grill cover or anything flammable on
the grill while the grill is in operation or is hot.
• Storage of an outdoor cooking gas appliance
indoors is permissible only if the cylinder is
disconnected and removed from the outdoor
cooking gas appliance.
•When the grill is not in use, make sure the gas is
turned OFF at the gas supply.
• Cylinders must be stored outdoors and out of the
reach of children. Cylinder must not be stored in a
building, garage or other enclosed areas.
• Always inspect the gas supply hose before every
use. If the hose shows any signs of abrasions or
cuts, DO NOT use the grill. The hose must be
replaced before using again.
• Always check the burners and venturi tubes for
insects and insect nests. A clogged tube can lead
to a fire beneath the grill.
•Always check the connections for leaks each time
you connect and disconnect the gas supply.
The pressure regulator supplied
with this grill must be used. Any
requirements for a replacement
regulator must be made through
the manufacturer, LANDMANN-
USA.
• Gas cylinders must include a collar to protect the
cylinder valve.
•Dented or rusty LP gas cylinders may be
hazardous and need to be checked by your LP
gas supplier.
• DO NOT use LP gas cylinders with a damaged
valve.
• DO NOT enlarge the valve orifices or burner ports
when cleaning the valves or burners.
• If you see, smell or hear hissing of gas escaping
from the LP gas cylinder, move away from the
LP gas cylinder. DO NOT attempt to correct the
problem yourself and call the fire department.
• DO NOT alter this grill in any manner. Any
alteration automatically voids the warranty.
• DO NOT use the grill in high wind situations.
Important Safety Information
The LP gas supply cylinder to be used must be
constructed and marked in accordance with the
Specification for LP Gas Cylinders of the U.S.
Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-b339 (Cylinders,
Spheres, and Tubes for transportation of Dangerous
Goods).
The LP gas cylinder must be:
– provided witha listed overfilling prevention device
– provided witha cylinder connection device
compatible with the connection for outdoor
cooking gas appliances.
A fire causingdeath or serious
injury may occur if the following
is not followed exactly:
NEVER store or use gasoline or
other volatile substances in the
vicinity of this grill. NEVER store
a spare propane cylinder in the
vicinity of this grill, or in the vicinity
of another potential heat source.
NEVER fill the propane cylinder
beyond 80% full.
DO NOT store spare gas
cylinder in or near grill.
Place dust cap on cylinder valve
outlet whenever the cylinder is not
in use. Install only the type of dust
cap on cylinder valve outlet that is
provided with the cylinder valve.
Other types of caps or plugs may
result in leakage of propane.
•If a grease fire occurs, turn OFF all burners and
leave the lid closed until the fire is out.
4
GENERAL SAFETY REQUIREMENTS
4
1. The installation of this appliance must
conform with local codes or, in the absence of
local codes; either the National Fuel Gas
Code, ANZI Z223.1/NFPA 54, or the CAN/
CGA-B149.1, Natural Gas Installation Code
or CAN/CGA-B149.2, Propane Installation
Code.
2. This outdoor cooking gas appliance is not
intended to be installed in or on recreational
vehicles and /or boats.
3. This outdoor cooking gas appliance is
intended for use outdoors and shall not be
used in a building, garage or any other
enclosed area.
4. Minimum clearance of 36 inches from
the back and sides of the grill to adjacent
combustible construction must be
maintained. This outdoor cooking gas
appliance shall not be located under
overhead-unprotected combustible
construction.
5. The utilization of an external electrical
source requires that when installed, this
outdoor cooking gas appliance must be
electrically grounded in accordance with the
local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA
70, or the Canadian Electrical Code, CSA
C22.1. Keep any electrical supply cord, or the
rotisserie motor cord and the fuel supply hose
away from any heated surfaces.
6. Keep your grill in an area clear and free
from combustible materials, gasoline and
other flammable vapors and liquids.
7. DO NOT obstruct the flow of combustion
and ventilation air to this appliance. Keep the
ventilation openings of the cylinder enclosure
free and clear from debris.
8. Check all gas connections for leaks with
soapy water solution and brush. Never use
an open flame.
9. Check flexible hoses for cuts and wear that
may affect the safety before each use.
10. Never use charcoal in the grill.
11. Never use the grill in a windy area.
12. Never use the grill without the drip pan
installed and pushed all the way to the
back of the grill.
Without the drip pan, hot grease and debris
could leak downward and produce a fire
hazard.
13. The pressure regulator and hose
assembly supplied with the Landmann Gas
Grill must be used.
Replacement pressure regulators and hose
assemblies must be those specified by
Landmann.
14. CALIFORNIA PROPOSITION 65-
WARNING: The burning of gas cooking fuel
generates some by-products which are on the
list of substances known by the State of
California to cause cancer or reproductive
harm. California law requires businesses to
warn customers of potential exposure to such
substances. To minimize exposure to these
substances always operate this unit according
to the use and care manual, ensuring you
provide good ventilation when cooking with
gas.
CHECK TO ENSURE THAT THE
GAS SUPPLY HOSE DOES NOT
COME IN CONTACT WITH ANY
HOT SURFACE OF THE GRILL.
Product & Cutout Dimensions
5
Ardor Built in Single Gas Side Burner
Ardor Built in Dual Gas Side Burner
Model # : 43106 /43107
6-1/2"
31-3/16 "
34" 12-5/8"
Model # : 43108 /43109
Dual Gas side Burner Dimensions
Single side Burner Dimensions
6
Product & Cutout Dimensions
24-3/16 "
23-15/16" 12-5/8"
6-1/2 "
Side Burner Cutout Dimensions
Vertical Door or Drawers
Horizontal Door or
Door/Drawer Combo
Side burner
Grill
Refrigerator
Required additional grill & side burner details
IMPORTANT
IMPORTANT
Always have all Grill and Accessories on hand
when constructing and island to make sure of
proper fit.
9/16” for
Grills & Side Burners
Dim "B" From above
Notch depth equals
countertop overhang
CountertopNotch Detail
Allow minimum of 5.75"clearance
from the grill's rear edge
(7.5" from cutout ) to the
backsplash to allow hood to
fully open.
*ADD 7.5 TO ALLOW
FOR HOOD OPENING
Package Contents & Assembly Instructions
1.Parts needed - U 2.Parts needed - U, T
U
7
Package Contents
U T
Assembly Instructions
Part Quantity
U
1
T
4
A1
Description
AE 1
JDrip tray 1
U
T
A
J
AE
Side burner Lid handle
Rubber Bumper
Cooking grate
Side burner assembly
NOTE
Ardor Built in Dual and Single Gas Side
Burners have the same package contents.
3.Parts needed - A
Package Contents & Assembly Instructions
4.Parts needed - J
Ardor Built in Dual and Single Gas Side Burners have the same assembly procedures.
Note:
5.
A
J
8
NEVER CONNECT AN UNREGULATED GAS LINE DIRECTLY TO THE APPLIANCE. A PRESSURE
REGULATOR MUST BE INSTALLED ON ALL GAS EQUIPMENT. THIS IS REQUIRED BY ALL
LOCAL CODES AND THE CORRECT REGULATOR IS SUPPLIED WITH YOUR APPLIANCE.
The appliance is factory set to use either
propane (LP) or natural gas (NAT). It is critical
that the gas you use matches that which the
appliance was set up for. You can verify that by
checking the rating plate.
Ensure that the gas supplied meets with the
minimum pressure requirements. Do not operate
the appliance on any gas other than that for
which the appliance has been set.
Fuel WC Max Inlet WC Min Under
Full Load
Nat Gas 7 in 4 in
LP 14 in 11 in
Water Column Requirements
Canadian installations must conform to CGA-
B149.1/.2 natural gas/propane installation
code. (Canada)
LANDMANN recommends that only qualified
professionals perform the required plumbing on
this product.
To ensure satisfactory performance, the gas
supply line must be sized to accommodate the
total BTU requirements of all the gas-fired
equipment that will be connected to that line.
In no case should pipe less than 3/4” inside
diameter or 1” outside diameter ever be used to
connect this product.
•Calculate the total BTU output of all equipment.
Failure to meet these minimum requirements
may reduce performance of the grill and any
other appliances running on that supply line.
Gas Connections
WARNING
Both the regulator and the manifold orifices
have been tuned for the type of gas specified on
the rating plate.
Converting to a different gas type requires the
use of the conversion kit included with this
appliance which must be installed by a qualified
technician
All installation and all installation parts must
conform to local codes with the National Electrical
Code, ANSI Z223.1/NFPA 70 latest edition and
the National Fuel Gas Code, ANSI Z223.1/NFPA
54 in the U.S. and CGA-B149.1/.2 in Canada.
INSTALLATION:
We do recommend the use of professional help during the installation of your unit as improper
installation may affect your warranty.
9
The Rating plate lists serial numbers, model
numbers and gas type, it is located underneath
the control panel

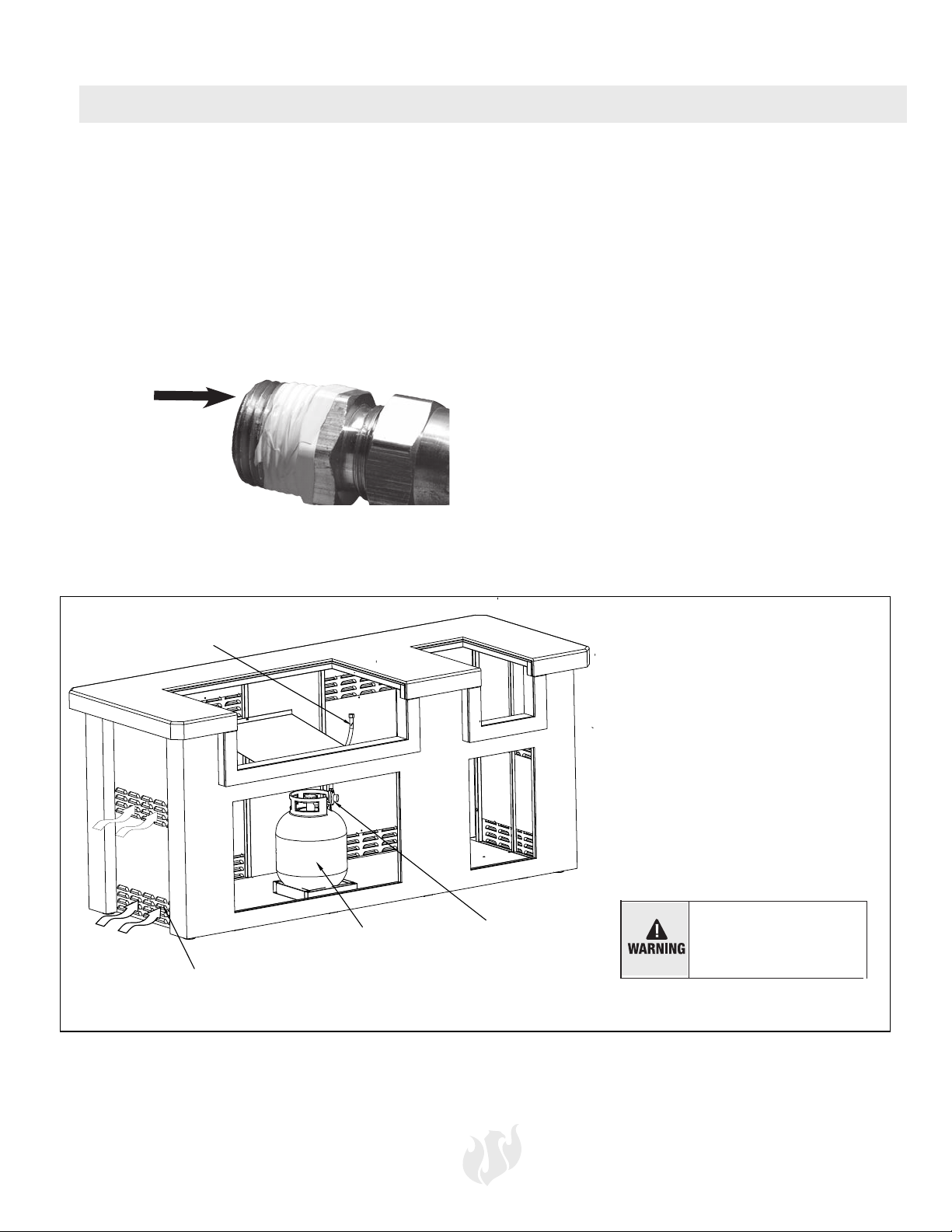

•Keep threading compound off of the first two
pipe threads to avoid having any small pieces of
compound break loose and clog a burner valve
or orifice. Do not use threading compound on
any flare fittings.
For built-in installations, it is recommended that
any flexible pipe used be kept as short as
possible.
Keep last two
threads clean
Gas Connections
•A gas shut-off valve must be installed in an
easily accessible location by a qualified plumber.
•Always keep supply line runs as short as
possible.
10
QQC-1/
OPD
TANK
Vents for adequate
ventilation
CSA Approved
Propane Regulator
Connected to
appliance
Do not store any
spare LP Tanks
within the enclosure
Ce manuel convient aux modèles suivants
3
Table des matières
