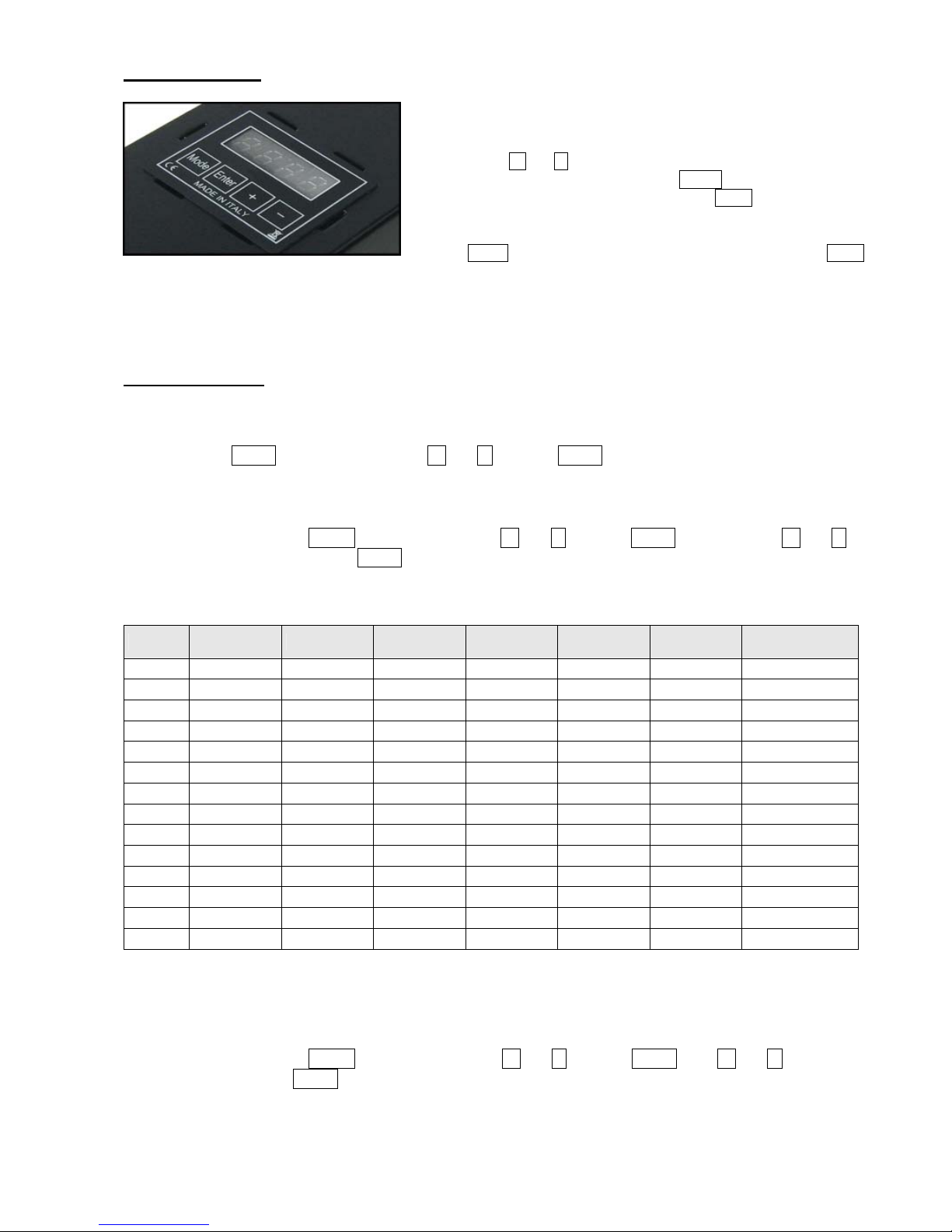

9
- DM.ST: (leds state when DMX signal isn’t received). When the board is switched on and DMX signal is
missing, the board can do this functions: black-out, leds on at 15% or led on at 100%.
Default value 15.ON

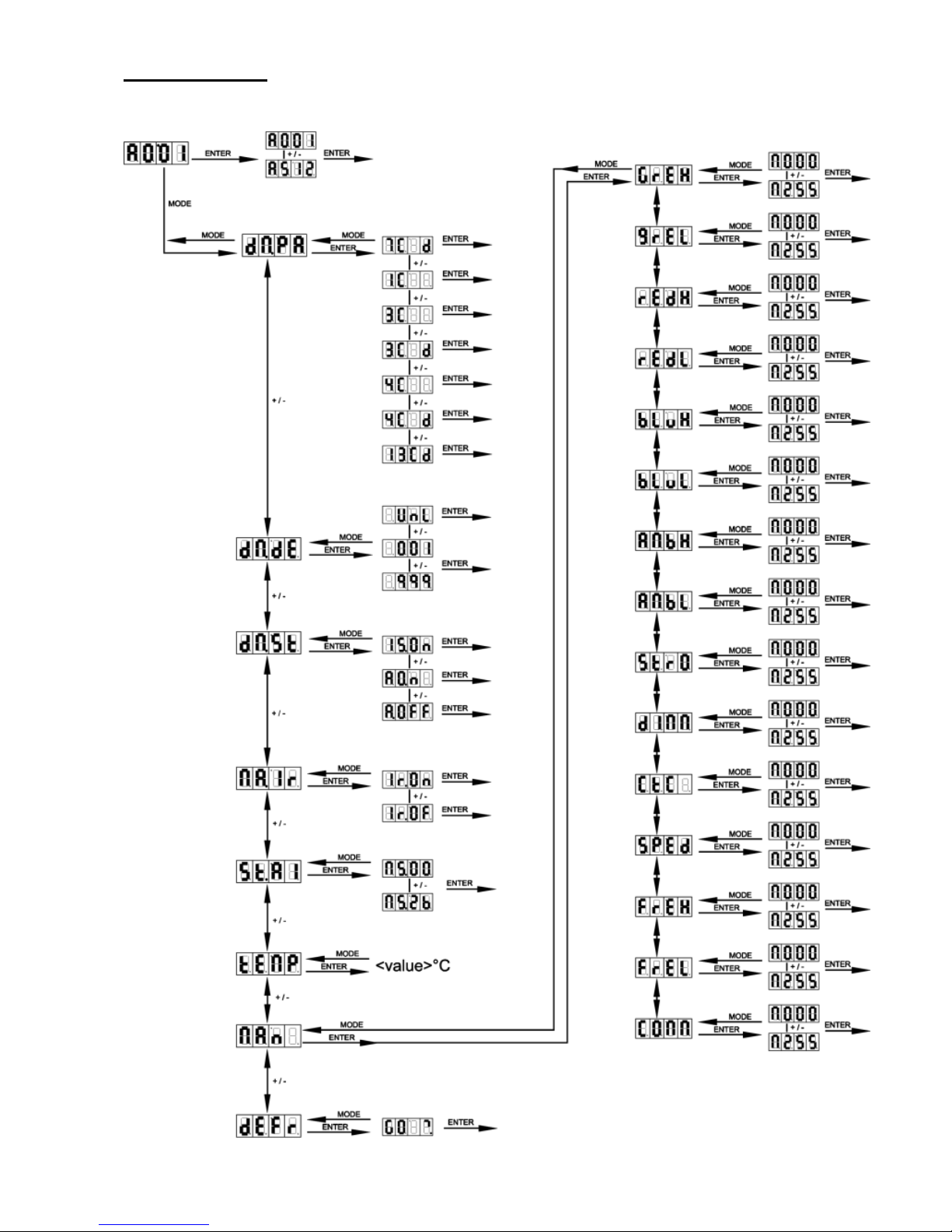

Go to this submenu pushing Mode , choose DM.ST with + and - and push Enter . Use + and - to select the
desiderate value and push Enter to confirm
Admissible mode:
15.ON, (15% ON) r,g,b,a channels ON at 15%
A.ON, (ALL ON) r,g,b,a channels ON at 100%
A.OFF, (ALL OFF) r,g,b,a channels OFF
- MA.IR: (master infrared) Whit I.R. sensor cabled, the board can run one of the stored Chase or do a fixed
colour, that can be controlled by the LED REMOTE.
LED REMOTE has 10m (free air) capacity.
Default value ON
Go to this submenu pushing Mode , choose MA.IR with + and - and push Enter . Use + and - to select the
ON or OFF and push Enter to confirm.
With red button of the LED REMOTE, you can switch ON or OFF the leds (ATTENTION: when you switched
OFF the led, the board is still running!!! ), with P+ e P- you can choose the program or change the colour. This
function allows to use the MASTER/SLAVE function.
ATTENTION: Disable MA.IR function on Slave boards. Two boards in Master mode can do several errors on
DMX transmission.
- ST.AL:(stand alone) The board can run in StandAlone mode with Master/Slave function.
Default value MS00
Go to this submenu pushing Mode , choose ST.AL with + and - and push Enter . Use + and - to select the
macro needed and push Enter to run it.
The board run in loop mode the Macro selected from M01 to M26 and output the DMX signal (master mode) for
the other board (slave).
To use Master/Slave function, all the boards need to be patched with the dmx patch 7C d !
StandAlone mode remains also if power supply is interrupted.
Macro Mode Colour changing
time (seconds)
Color holding
time (seconds)
MA01 SLOW rainbow without amber 20 5
MA02 MEDIUM rainbow without amber 10 5
MA03 FAST rainbow without amber 5 5
MA04 SLOW rainbow without amber 20 2
MA05 MEDIUM rainbow without amber 10 2
MA06 FAST rainbow without amber 5 2
MA07 Very SLOW rainbow without amber 40 NO
MA08 SLOW rainbow without amber 20 NO
MA09 MEDIUM rainbow without amber 10 NO
MA10 FAST rainbow without amber 5 NO
MA11 SLOW Random colours without amber 10 NO
MA12 MEDIUM Random colours without amber 5 NO
MA13 FAST Random colours without amber 2 NO
MA14 SLOW rainbow + amber 20 5
MA15 MEDIUM rainbow + amber 10 5
MA16 FAST rainbow + amber 5 5
MA17 SLOW rainbow + amber 20 2
MA18 MEDIUM rainbow + amber 10 2
MA19 FAST rainbow + amber 5 2
MA20 Very SLOW rainbow + amber 40 NO
MA21 SLOW rainbow + amber 20 NO
