LAI Games MEGA STACKER LITE Manuel utilisateur

OPERATORS MANUAL

VERSION 3

MEGA STACKER LITE

Correspondence regarding this machine should be addressed to your

closest LAI Games office, or LAI Games Distributor.

For contact details, refer to the back page of this manual.

Authorization is hereby provided to you to copy this

manual in its entirety provided such copies are used for

non-commercial purposes and solely for use with

LAI Games products. This authorization is specifically

conditioned to include all legends, copyright, proprietary

and other notices which appear herein are unaltered on any

and all copies you make.

LAI Games

[email protected] www.laigames.com

Operator's Manual –Mega Stacker Lite

LAI Games Notes

Dear Customer,

Keep up to date with new software updates or Service Bulletins for this

game.

Check our Website at www.laigames.com and click on Support, here you

will find links to all the Bulletins and Software Updates to keep your game

in top working order.

Thanks,

 Operator's Manual –Mega Stacker Lite
 © LAI GAMES

ii
TABLE OF CONTENTS
SAFETY PRECAUTIONS......................................................................................................1
MACHINE INSTALLATION AND INSPECTION............................................................2
INTRODUCTION ................................................................................................................2
SPECIFICATIONS ..............................................................................................................4
ASSEMBLE THE GAME....................................................................................................5
HOW TO PLAY....................................................................................................................8
OPERATION............................................................................................................................9
OPERATIONAL DIAGRAM.............................................................................................9
ATTRACT MODE..............................................................................................................9
PLAY MODE......................................................................................................................9
TEST MODE.......................................................................................................................10
TEST MODE DIAGRAM.................................................................................................10
SOUND, LAMPS &DISPLAY TEST..............................................................................11
SWITCH TEST.................................................................................................................11
PROGRAMMABLE ADJUSTMENTS............................................................................13
DESCRIPTION.....................................................................................................................13
RANGE ...............................................................................................................................13
DEFAULT ...........................................................................................................................13
PROGRAMMABLE ADJUSTMENTS DETAILED .......................................................14
AUDITS MODE..................................................................................................................19
AUDITS MODE DIAGRAM............................................................................................19
AUDIT PROCEDURE......................................................................................................20
AUDITS QUICK REFERENCE TABLE .........................................................................21
AUDITS DETAILED........................................................................................................22
GAME HISTORY MODE..................................................................................................24
GAME HISTORY MODE DIAGRAM.............................................................................24
GAME HISTORY QUICK REFERENCE TABLE..........................................................24
GAME HISTORY PROCEDURE ....................................................................................25
ERRORS AND TROUBLESHOOTING..........................................................................26
ERROR CODE QUICK REFERENCE TABLE...............................................................26
TROUBLESHOOTING GAME ERRORS.......................................................................27
SECTION A: SERVICE INSTRUCTIONS.........................................................................28
LOCATING AND ACCESSING PARTS.........................................................................29
LAMPS ................................................................................................................................31
MAINTENANCE................................................................................................................32
SECTION B: TECHNICAL DETAILS ...............................................................................33
MAINS VOLTAGE ADJUSTMENT................................................................................34
TICKET DISPENSER REFERENCE GUIDE ................................................................35

Operator's Manual –Mega Stacker Lite

iii

COIN OPTIONS REFERENCE GUIDE..........................................................................40

MEGA STACKER LITE MAIN WIRING.......................................................................41

MEGA STACKER LITE MAIN WIRING 1....................................................................42

MEGA STACKER LITE MAIN WIRING 2....................................................................43

MEGA STACKER LITE CONTROL WIRING..............................................................44

MEGA STACKER LITE CONTROL WIRING 1...........................................................45

MEGA STACKER LITE POWER WIRING...................................................................46

MEGA STACKER LITE POWER WIRING 1................................................................47

MEGA STACKER LITE OPTIONAL WIRING.............................................................48

Operator's Manual –Mega Stacker Lite

Page 1

SAFETY PRECAUTIONS

The following safety precautions and advisories are used throughout this manual and

are defined as follows.

BE SURE TO READ THE FOLLOWING

* WARNING! *

Disregarding this text could result in serious injury.

* CAUTION! *

Disregarding this text could result in damage to the machine.

* WARNING! *

Always turn OFF Mains AC power and unplugged the game, before

opening or replacing any parts.

Always when unplugging the game from an electrical outlet, grasp the

plug, not the line cord.

Always connect the Game Cabinet to grounded electrical outlet with a

securely connected ground line.

DoNotinstalls theGame Cabinet outdoors or inareas of high humidity,

direct water contact, dust, high heat or extreme cold.

Do Not installs the Game Cabinet in areas that would present an

obstacle in case of an emergency, i.e. near fire equipment or emergency

exits.

* NOTE! *

Is an advisory text to hint or help understand more !.

* CAUTION! *

Always use a Digital Multimeter, logic tester or oscilloscope for testing

integrated circuit (IC) logic PC boards. The use of a continuity tester is

not permitted.

Do Not Connect or disconnect any of the integrated circuit (IC) logic PC

boards while the power is ON.

Do Not uses any fuse that does not meet the specified rating.

Do Not Subject the game cabinet to extreme temperature variations.

Reliability of electrical components deteriorates rapidly over 60 oC.

Operator's Manual –Mega Stacker Lite

Page 2

MACHINE INSTALLATION and INSPECTION

When installing and inspecting “Mega Stacker Lite”, be very careful of the following

points and pay attention to ensure that the players can enjoy the game safely.

Be sure to turn the power OFF before working on the machine.

Make sure the power cord is not exposed on the surface (floor, ground, etc.) where

people walk.

Check that the rubber glide feet levelers are set correctly on the floor so that the

game cabinet is level and stable.

Always make complete connections for the integrated circuit (IC) logic PC Boards

and other connectors. Insufficient insertion can damage the electrical components.

Only qualified personnel should inspect or test the integrated circuit (IC) logic PC

Boards.

If any integrated circuit (IC) logic PC Boards should need servicing. Please contact

the nearest LAI Games

Distributor. (Refer to the back page of this manual)

INTRODUCTION

* CAUTION! *

Before

Switching the machine on be sure to check that it has been set on the

correct voltage for your area!

Refer

To the mains voltage adjustment section of this manual. Machines are

normally shipped on 220V AC unless otherwise specified.

* WARNING! *

Always Turn OFF

mains power before removing safety covers and refit all safety

covers when work is completed.

Operator's Manual –Mega Stacker Lite

Page 3

CONGRATULATIONS on your purchase of “Mega Stacker Lite.”This game is a

great centerpiece with a large, bright and attractive display panel. It also has dynamic

sound effects with a powerful subwoofer for that great game experience.

We hope you take the time to read this manual and learn about the many other features

and user-friendly adjustments that can be made to “fine-tune” the game for maximum

earning potential.

DESCRIPTION

The “Mega Stacker Lite”is a quick skill game that is simple to learn and fast to

play. The player uses the start/stop button to stop the moving blocks on top of the

blocks in the previous level. Each level higher the blocks are stacked the game will

get progressively harder.

Once the player reaches the Ticket Level, they can collect the Tickets or continue to

play on for the Major Prize but if they lose, they get nothing unless the Mercy Prize

option has been activated. Most players who reach the Ticket Level will continue to

play for the Major Prize believing they can reach it easily.

PACKAGING

At delivery, the machine should arrive in good condition. To move the packaged

machine for transport or placement, use a forklift and take carenot to hit the package

or stack heavy objects on top, as this may cause damage to the machine.

CONTENTS

The “Mega Stacker Lite” cabinet

Keys: 2 x coin door keys

2 x back door keys

2 x ticket door key

Operator’s manual

IEC Power Cord (In cash box)

Parts & Accessories (In cash box)

Operator's Manual –Mega Stacker Lite

Page 4

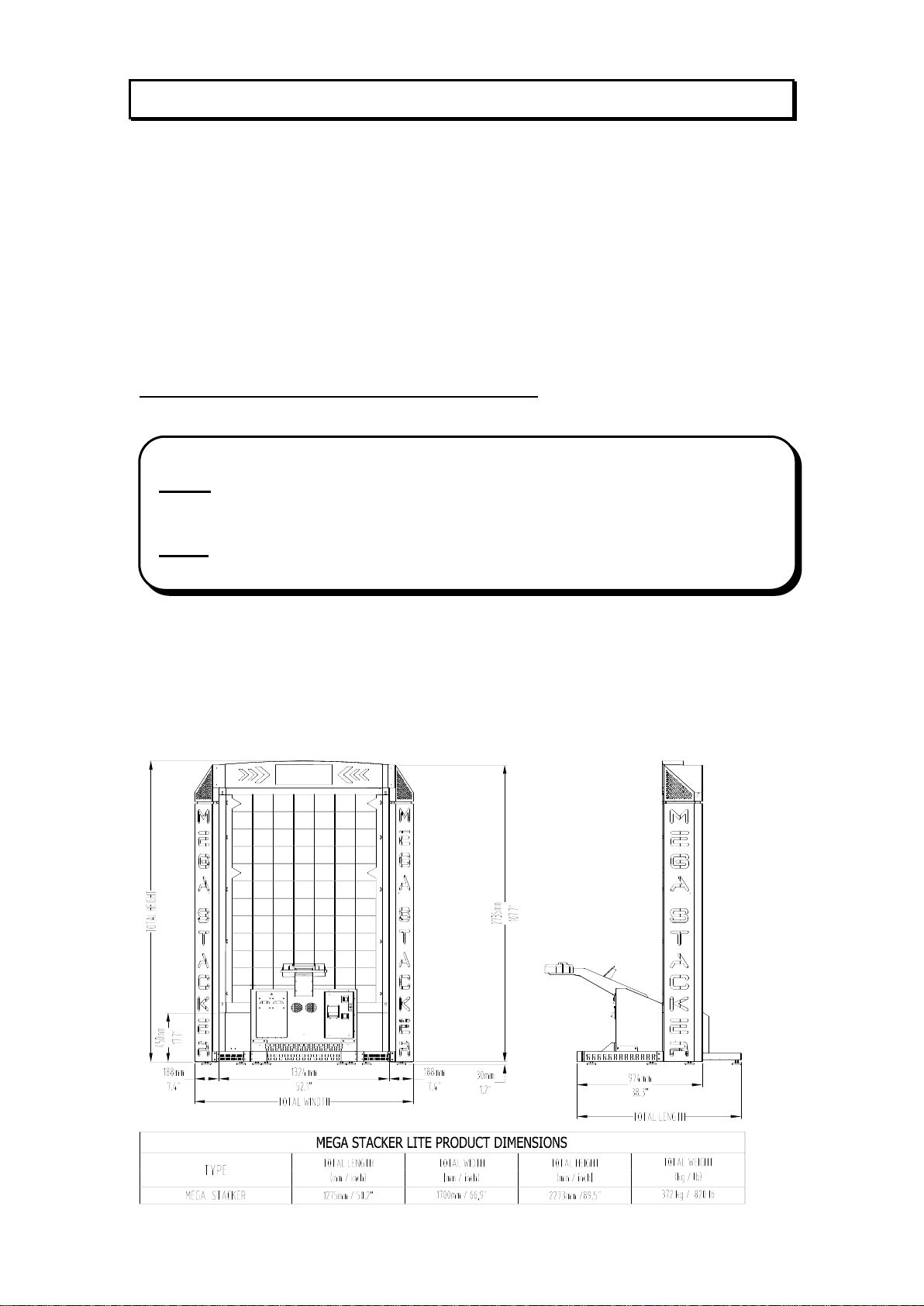

SPECIFICATIONS

DIMENSIONS

Weight: 372 kg 820(lb)

Height: 2273 mm 89.5”

Width: 1700mm 66.9”

Length: 1275mm 50.2”

Power: Maximum 350 W –(220V @ 1.75 A)(120V @ 3.4 A)

ELECTRIC SUPPLY

The game has the option to operate on an 110V, 120V, 220V or 240V AC 50/60Hz

single phase mains electric supply.

The supply must be a three wire grounded supply.

LOCATION REQUIREMENTS

Ambient temperature: between 5°C and 40°C.

Ambient humidity: Low

Ambient U.V. radiation: Very low

Vibrations level: Low

* CAUTION! *

Before

switching the machine on be sure to check that it has been set on the correct

voltage for your area!

Please

Refer to the mains voltage adjustment section of this manual. Machines are

normally shipped on 220V AC unless otherwise specified.

Operator's Manual –Mega Stacker Lite

Page 5

ASSEMBLE THE GAME
