La Crosse Technology 513-1417 Manuel utilisateur

Atomic Digital Clock

Table of Contents

Model: 513-1417

Instructional Manual

DC: 122016

http://bit.ly/LaxTechTalk

View online setup video at:

Display Outdoor Temperature or Seconds .................................

LCD Features ........................................................................

Setup ..................................................................................

Atomic Time Signal ...............................................................

Settings: Language, Time, Date, etc. .......................................

Moon Phase ..........................................................................

Set Time Alarm .....................................................................

Deactivate/Activate Alarm ......................................................

Snooze ................................................................................

Indoor/Outdoor Temperature ..................................................

Temperature Trend Arrows .....................................................

Sensor Reception ..................................................................

Low Battery Icon ...................................................................

Mount Temperature Sensor .....................................................

Position Clock .......................................................................

Restart ................................................................................

Care and Maintenance ...........................................................

Specications .......................................................................

Warranty and Support ............................................................

Visit Us on Social Media .........................................................

FCC Statement .....................................................................

Canada Statement ................................................................

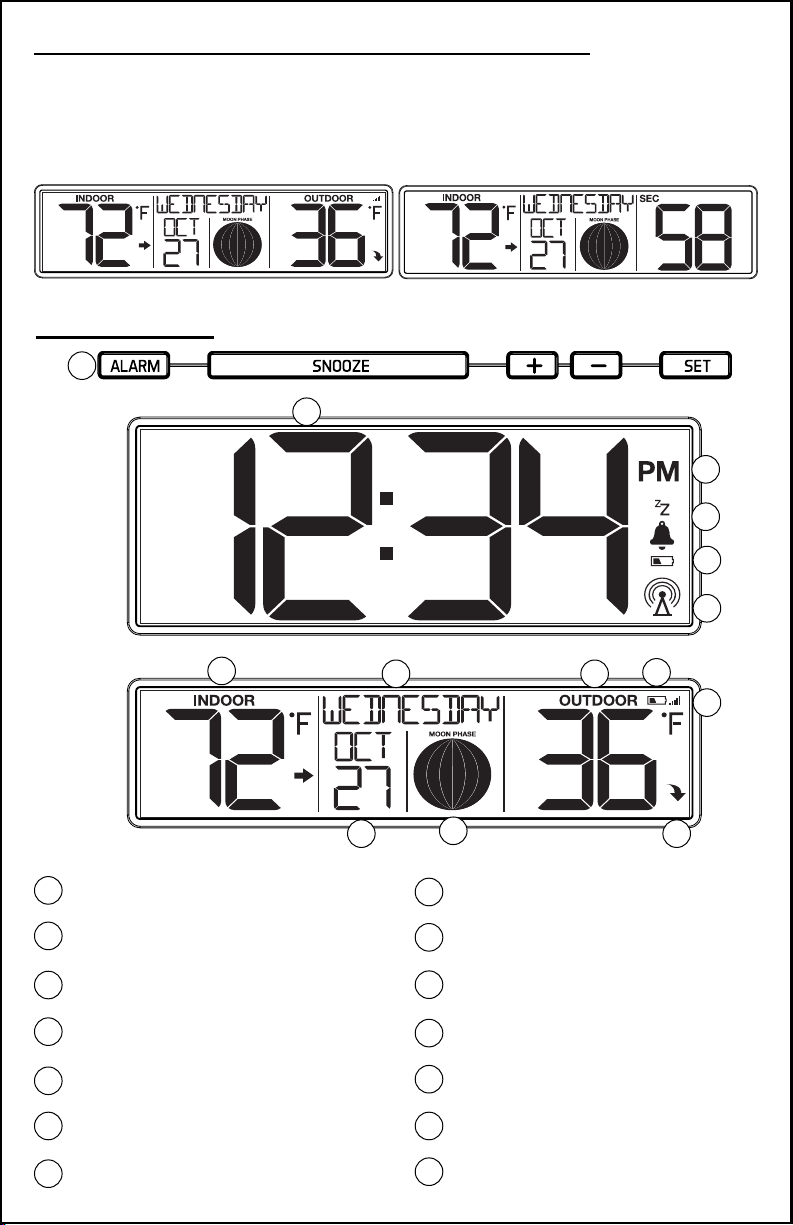

LCD Features

Atomic Time

AM/PM

Temperature Trend

Moon Phase

Indoor Temperature

Atomic Signal Reception

Alarm & Snooze

Low Battery (Clock)

WeekdayButtons (on top)

Sensor Strength

Low Battery (Sensor)

Month/Date

Outdoor Temp or Seconds

This versatile clock allows you to display outdoor temperature or

seconds counting in the outdoor temperature area. Press the +button

to toggle between outdoor temperature or seconds. Clock will stay on

selected option.

Display Outdoor Temperature or Seconds

Outdoor Temperature Seconds Counting

Page 1 www.lacrossetechnology.com/support 513-1417

• Once batteries are installed, the clock will automatically search for

the atomic time signal at UTC 7:00, 8:00, 9:00, 10:00, and 11:00.

• If there is no WWVB reception, the clock will search for the atomic

time signal every 2 hours until the WWVB time is received.

• After reception, this clock will only search for the atomic signal

after midnight.

• Press and release SET to search for the WWVB time signal.

• Select your proper time zone. When the Atomic time signal is

received, the clock will set to the time zone selected.

• For information about WWVB visit: http://bit.ly/AtomicTime

Note: If your clock advances one hour in December it is due to a leap

second adjustment that was programmed incorrectly. If this happens

your clock will automatically correct itself Jan 1st.

There are two easy ways to immediately correct the hour.

1.Use the setting menu to select DST OFF then set the hour back one hour

– or the clock will correct the hour overnight with the next WWVB reception.

Then in January use the setting menu to turn DST ON and resume normal use.

2.Use the setting menu to turn WWVB OFF and set the correct hour

Either way your clock will resume normal WWVB functions Jan 1st with the

DST ON setting.

We apologize for the inconvenience caused by our programing error.

Atomic Time Signal

513-1417 www.lacrossetechnology.com/support Page 2

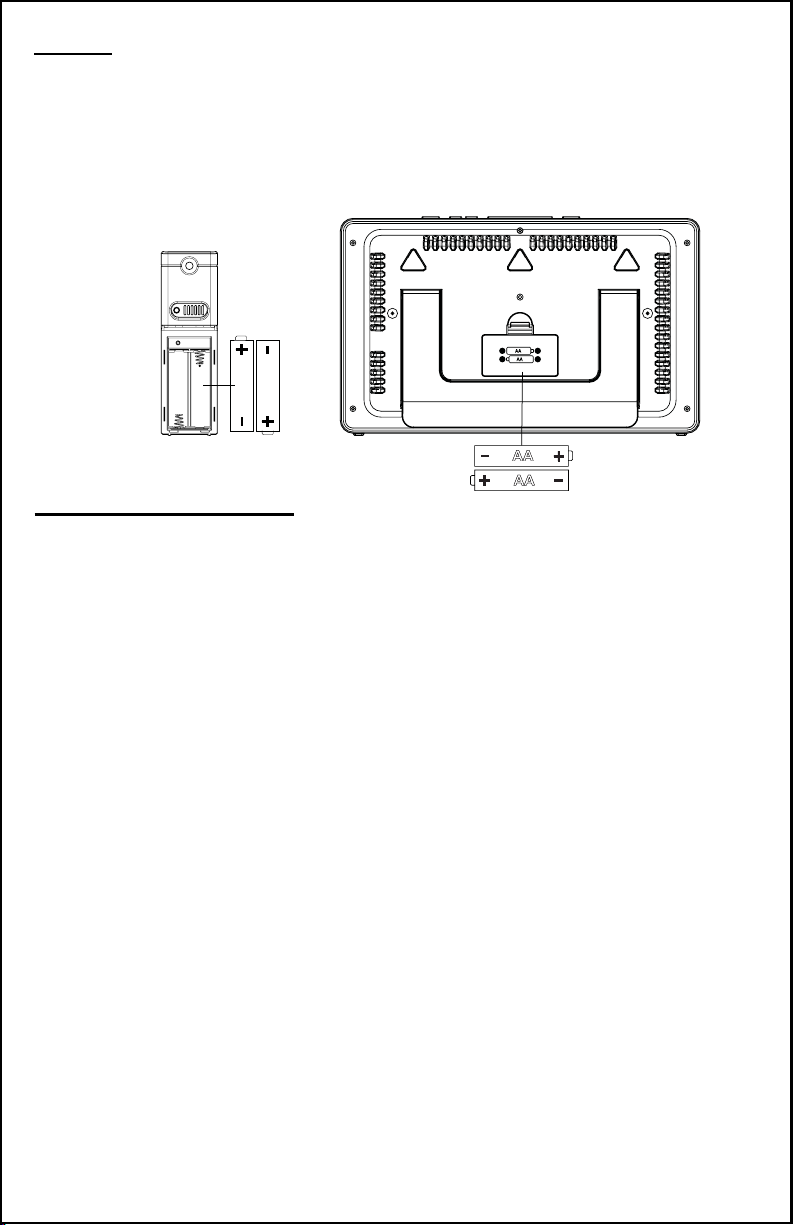

Setup

1. Insert 2-AA batteries into the TX141-Bv2 sensor according to

polarity.

2. Insert 2-AA batteries into the clock.

4. After 5 minutes place sensor in a shaded outdoor location.

5. Set time and date.

To begin: Hold the SET button 3 seconds, then release, to enter the

settings menu:

Settings: Language, Time, Date, etc.

• Hold then release the SET button to enter time set mode.

• Press and release the +or -buttons to adjust the values. Hold to

adjust quickly.

• Press and release the SET button to conrm and move to the next

item.

• Press and release the SNOOZE button at any time to exit.

Time set order:

1. Language (English or Español)

2. Beep ON/OFF

3. Atomic ON/OFF

4. DST ON/OFF (Daylight Saving Indicator)

5. Time Zone

6. 12/24 hour time format

7. Hour

8. Minutes

9. Year

10. Month

11. Date

12. Fahrenheit/Celsius

Note: Only press one button at a time when setting.

2. Beep ON or OFF

1. English or Español

Page 3 www.lacrossetechnology.com/support 513-1417

Note: If Atomic OFF is selected, you will skip DST and Time Zone

and move directly to the 12/24 hour time selection.

Note: Time Zone needs to be

set to your area for the hours

to be correct.

AST

EST

CST

MST

PST

AKT

HAT

Atlantic

Eastern

Central

Mountain

Pacific

Alaskan

Hawaiian

Time Zone

5. Time Zone-EST (default))

6. 12/24 Hour Time Format

3. Atomic ON or OFF

4. DST ON or OFF

513-1417 www.lacrossetechnology.com/support Page 4

All States except Arizona must set the DST mode to OFF.

12. Fahrenheit or Celsius

• Press and release the SET button to conrm and exit the settings

menu.

• Press and release the SNOOZE button at any time to exit.

9. Year 10. Month 11. Date

7. Hour 8. Minutes

New

Moon

Small Waxing

Crescent

Large Waxing

Crescent

First

Quarter

Small Waxing

Gibbous

Large Waxing

Gibbous

Full

Moon

Large Waning

Gibbous

Small Waning

Gibbous

Last

Quarter

Large Waning

Crescent

Small Waning

Crescent

Moon Phase

The moon phase is based on the lunar calendar and the year, month

and date set. Most Internet moon phase calculations are based on the

lunar calendar. There are 12 separate moon phases.

Page 5 www.lacrossetechnology.com/support 513-1417

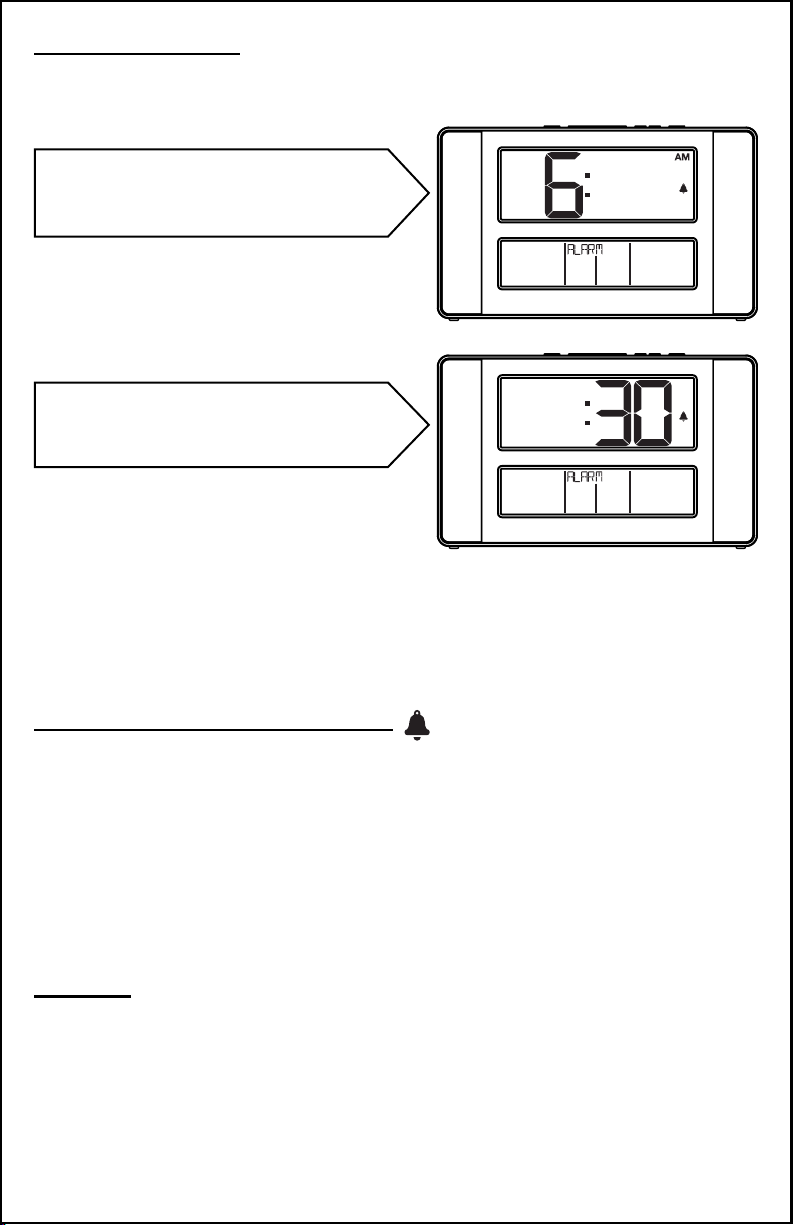

Set Time Alarm

Note: The alarm will be active when set.

Hold ALARM button 3 seconds:

• Alarm Hour will ash.

• Use the +/- button to adjust.

Press ALARM button:

• Alarm Minutes will ash.

• Use the +/- button to adjust.

Snooze

• When the alarm sounds, press the SNOOZE button to silence the alarm

for 10 minutes.

• The snooze icon Zz will ash.

• Press any button except SNOOZE to silence the alarm for 24 hours.

Deactivate/Activate Alarm

• The alarm is active when set.

• From normal time display, press and release the ALARM button to

view alarm time.

• While viewing alarm time, press and release the ALARM button to

deactivate or activate the alarm.

• The alarm icon (bell) will show when active.

• Press and release the ALARM button to conrm and exit the alarm

menu.

• Press and release the SNOOZE button at any time to exit.

• Alarm is crescendo sound alarm. When the alarm sounds, it

continues for 2 minutes and then shuts off completely.

513-1417 www.lacrossetechnology.com/support Page 6

Temperature Trend Arrows

The outdoor temperature (2°F / 1°C) trend indicators update every 15

minutes or less. This provides a 1 hour comparison which changes on

every 15 minutes:

Example: At 3:00 - compare to 2:00 data;

at 3:15 -compare to 2:15 ….. etc.

Temperature rose over

the past hour

Temperature is

unchanged over the

past hour

Temperature fell over

the past hour

Indoor/Outdoor Temperature

• Indoor and outdoor temperature are displayed in the lower section of

the clock.

• Select Fahrenheit or Celsius in the Settings menu.

• Temperature trend arrows track temperature over the past hour.

• The outdoor sensor reception signal indicates the connection strength

between sensor and clock.

Sensor Reception

• Hold the - button 3 seconds to search for the sensor.

• The strength signal icon will ash until the sensor signal is received

or for 3 minutes if no signal available.

• The signal will show solid when connected to the sensor.

Temperature Temperature

Trend

Arrows

Page 7 www.lacrossetechnology.com/support 513-1417

Low Battery Icon

Mount Temperature Sensor

• Battery icon by time-Change batteries in the clock.

• Battery icon by outdoor temperature-Change batteries in the sensor.

• Mount the outdoor sensor on a north-facing wall or in any

well-shaded area. Under an eave or deck rail is preferred.

• The maximum wireless transmission range to the forecast station is

over 300 feet (91 meters) in open air; this does not include barriers

such as walls or oors.

• Be sure the outdoor sensor is mounted vertically.

Position Clock

The clock has pullout stand to sit on a desk or table, or an opening on

the back to mount on the wall.

• For best Atomic time reception orientate the clock with the front or

the back facing Ft. Collins, Colorado.

• Choose a location 6 feet or more from electronics such as cordless

phones, gaming systems, televisions, microwaves, routers etc.

• Place within range of the outdoor sensor (300 feet open air).

Restart

When the outdoor readings show dashes:

• Bring the sensor in the house ve feet from the station.

• Remove batteries from the sensor, and the batteries from the clock.

• Press any button 20 times.

• After 15 minutes insert batteries into the sensor, and into the clock.

• Wait 15 minutes to establish a strong connection. Place sensor outside

in shaded location.

513-1417 www.lacrossetechnology.com/support Page 8

Specications

Indoor Temp Range: 32°F to 122°F (0°C to 50°C)

Outdoor Temp Range: -40°F to 140°F (-40°C to 60°C)

Distance: Over 300 ft. (91 meters) RF 433MHz (open air)

Power Clock: 2-AA, IEC, LR6 batteries (not included)

Power TX141-Bv2: 2-AA, IEC, LR6 batteries (not included)

Battery life Clock: over 12 months with reputable batteries

Battery life TX141-Bv2: over 12 months with reputable batteries

Dimensions Clock: 11.10” W x 1.14” D x 6.75” H

(281.9 W x 28.9 D x 171.5 H mm)

Dimensions TX141-Bv2: 5.12 H x 1.57 W x 0.79 D in

(130 X 39.8 X 20mm)

• Do not mix old and new batteries

• Do not mix Alkaline, Standard, Lithium, or Rechargeable Batteries

• Always purchase the correct size and grade of battery most suitable

for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to

battery installation.

• Ensure the batteries are installed with correct polarity (+ and -).

• Remove batteries from equipment when it is not to be used for an

extended period of time.

• Promptly remove expired batteries.

Care and Maintenance

Page 9 www.lacrossetechnology.com/support 513-1417

Autres manuels pour 513-1417

Table des matières

Autres manuels La Crosse Technology Horloge

La Crosse Technology

La Crosse Technology WS-8017U-MAH Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-8008U Manuel utilisateur

La Crosse Technology

La Crosse Technology 404-1225 Manuel utilisateur

La Crosse Technology

La Crosse Technology C86224 Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1918S Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1417H-AL Dimensions

La Crosse Technology

La Crosse Technology 513-1918S Manuel utilisateur

La Crosse Technology

La Crosse Technology WA-1140U Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1419BL Manuel utilisateur

La Crosse Technology

La Crosse Technology Landshark Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3161 Guide d'installation

La Crosse Technology

La Crosse Technology WS6158-IT Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3102B Manuel utilisateur

La Crosse Technology

La Crosse Technology 513-1918S Manuel utilisateur

La Crosse Technology

La Crosse Technology BBB86118v3 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-8055U Manuel utilisateur

La Crosse Technology

La Crosse Technology 515-1419 Dimensions

La Crosse Technology

La Crosse Technology BBB87733 Manuel d'utilisation et d'entretien

La Crosse Technology

La Crosse Technology 616-1410 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3144S Manuel utilisateur

La Crosse Technology

La Crosse Technology 433-3256W Manuel utilisateur

La Crosse Technology

La Crosse Technology T73743 Manuel utilisateur

La Crosse Technology

La Crosse Technology WT-3143 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-7098U Manuel utilisateur

Manuels Horloge populaires d'autres marques

Silicon Laboratories

Silicon Laboratories SI5324 Manuel utilisateur

Heathkit

Heathkit GC-1005 Manuel utilisateur

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuel utilisateur

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuel utilisateur

ALGE-Timing

ALGE-Timing ASC3 Manuel utilisateur

Bodet

Bodet Profil 960 Manuel utilisateur

Nixie Clock

Nixie Clock Divergence Meter Manuel utilisateur

Mini Gadgets

Mini Gadgets MCPro Manuel utilisateur

Casio

Casio TMR-200 Manuel utilisateur

Progetti

Progetti ILTEMPOSTRINGE Manuel

BVItech

BVItech BV-101 Manuel utilisateur

Progetti

Progetti KALIMERO Manuel

Sharp

Sharp SPC900 Manuel utilisateur

Datexx

Datexx DF0063 Manuel utilisateur

LG LEC-005 Manuel utilisateur

IKEA

IKEA ROTBLÖTA Manuel utilisateur

U-Line

U-Line Н-2811 Manuel utilisateur

Digiview

Digiview RC305EL Manuel utilisateur
