Introduction

About this Guide

This guide explains the following setting method necessary to use this machine.

Installation of the machine

• Unpacking

• Installing Toner Container

• Loading Paper

• Connecting Cables

• Connecting Modular Cords

Operation at the machine panel

• Selecting Language

• Date and Time Settings

• Setting Network Interface Parameters

Operation at the PC

• Accessing COMMAND CENTER (Internal HTML web page)

• Sharing Folder to use Scan to SMB

• Installing Printer Driver

• Setting TWAIN Driver

• Setting WIA Driver

IMPORTANT: Please read safety information on the Operation Guide before installing

this machine.

Trademark Information

• Windows is a registered trademark of Microsoft Corporation in the U.S.A. and/or

other countries.

• Windows XP and Windows Vista are trademarks of Microsoft Corporation.

• This machine contains the software having modules developed by Independent

JPEG Group.

All other company and product names contained in this guide are trademarks or

registered trademarks of their respective companies. The designations ™ and ® will not

be used in this guide.

SETUP GUIDE 3

1 Preparations

Clearance

Environment

• Temperature: 10 to 32.5 °C (50 to 90.5 °F)

• Humidity: 15 to 80 %RH

• Power Supply: 120 V AC, 60 Hz / 220 to 240 V AC, 50/60 Hz

CAUTION: Be sure to provide enough space around machine. Prolonged use

without sufficient clearance may cause overheating.

Unpacking

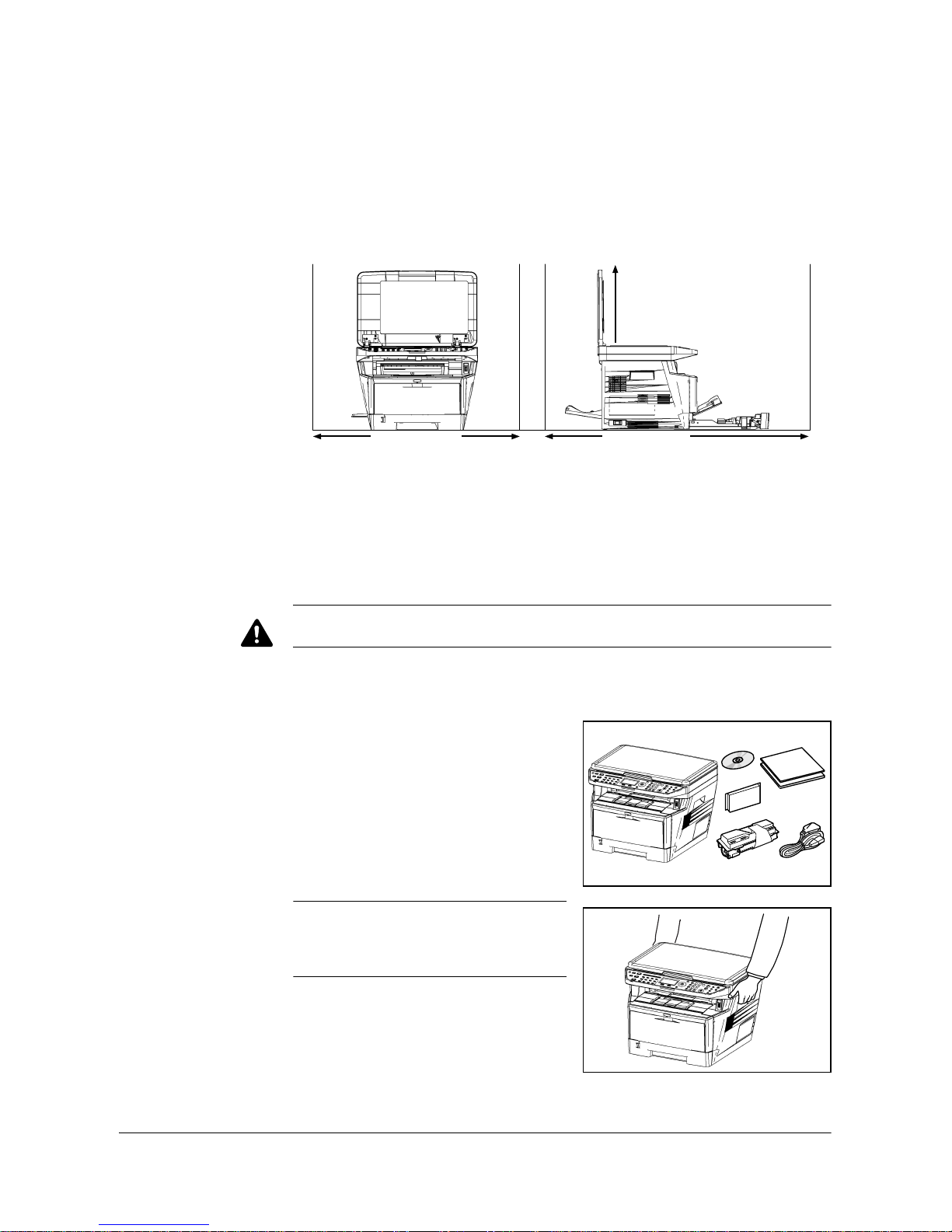

1Unpack the machine and all its included

components.

If the machine is FS-1128MFP, the modular

cord with the attached ferrite core is

enclosed.

IMPORTANT: Place the machine in a

stable position. When carrying the printer,

always hold the right and left sides as

shown.

2Remove the packing tape and the protective sheet.

300 mm

(11-13/16")

1000 mm

(39-3/8")

500 mm

(19-11/16")

300 mm

(11-13/16")

300 mm

(11-13/16")

Preparations

4SETUP GUIDE

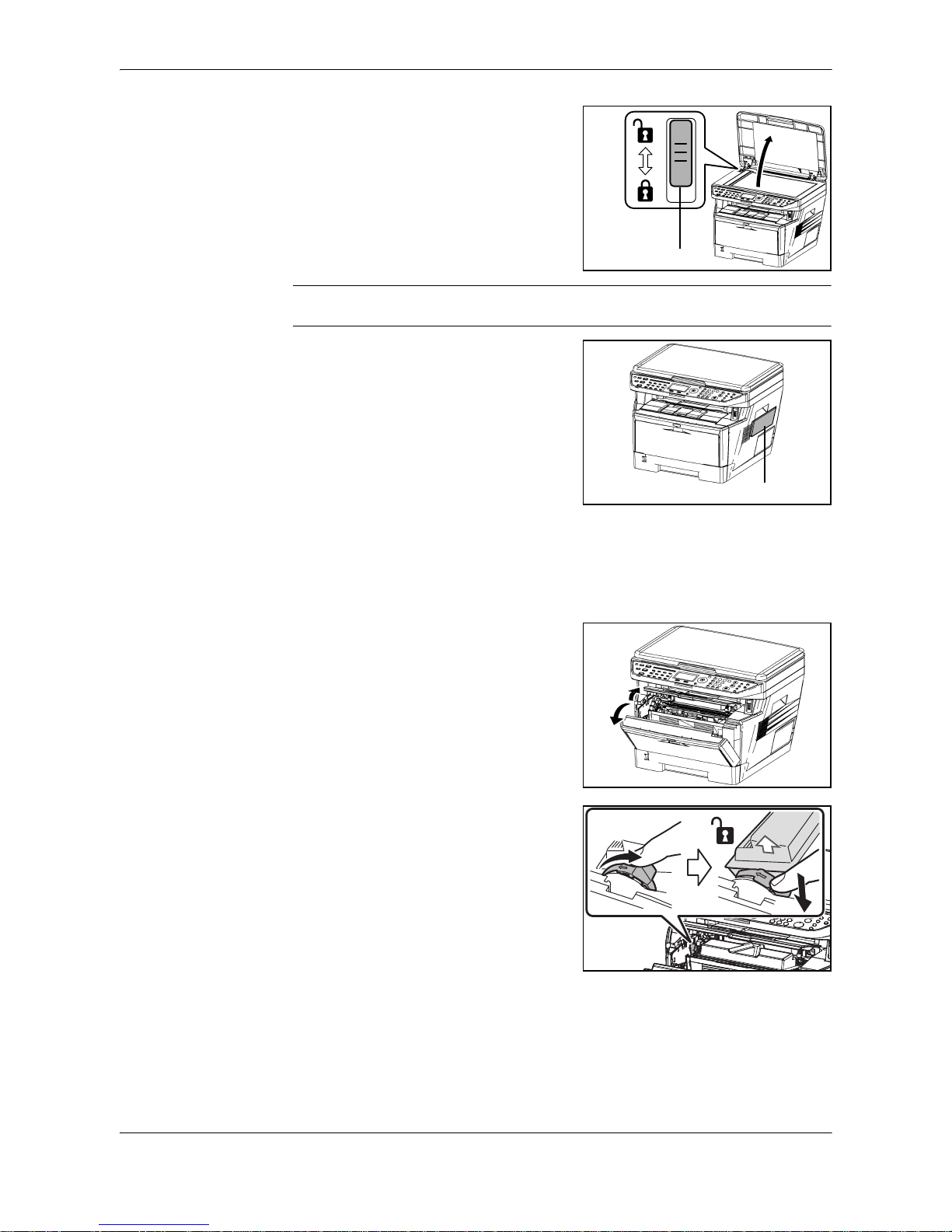

3Slide the Shipping Lock to the unlock

position.

IMPORTANT: When installing the Document Processor, refer to Installation Guide

attached to the Document Processor.

4Attach the Guide Case to the machine right

as required.

Installing Toner Container

1Open the front cover.

2Check the lock lever to the UNLOCK

position.

Shipping Lock

Guide Case

Preparations

SETUP GUIDE 5

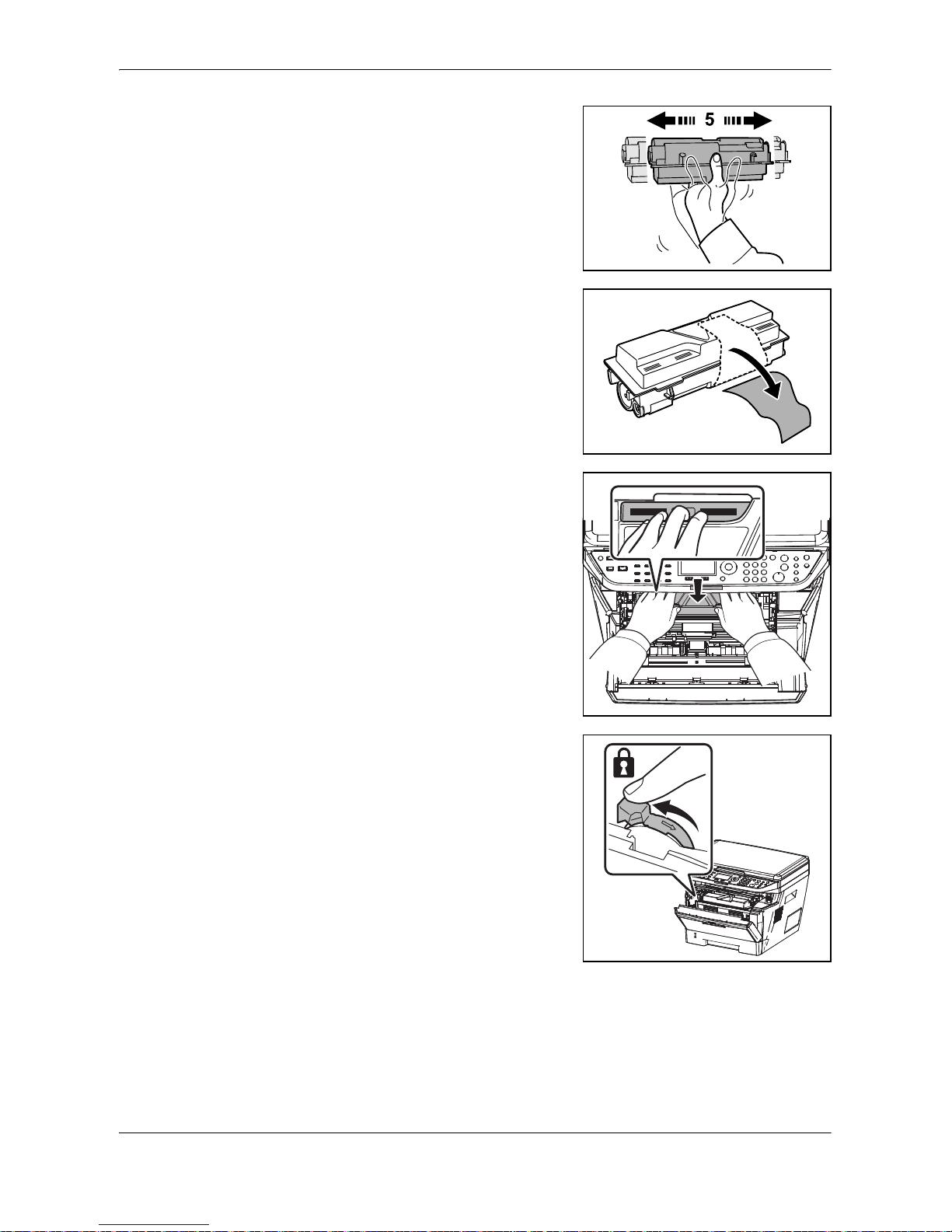

3Shake the toner container horizontally 5 or

6 times so that the toner inside becomes

evenly distributed.

4Remove the orange protective seal.

5Push on the PUSH marks on the toner

container until the container clicks into

place.

6Push the lock lever back into its LOCK

position (away from you).

7Close the front cover.

Preparations

6SETUP GUIDE

Loading Paper

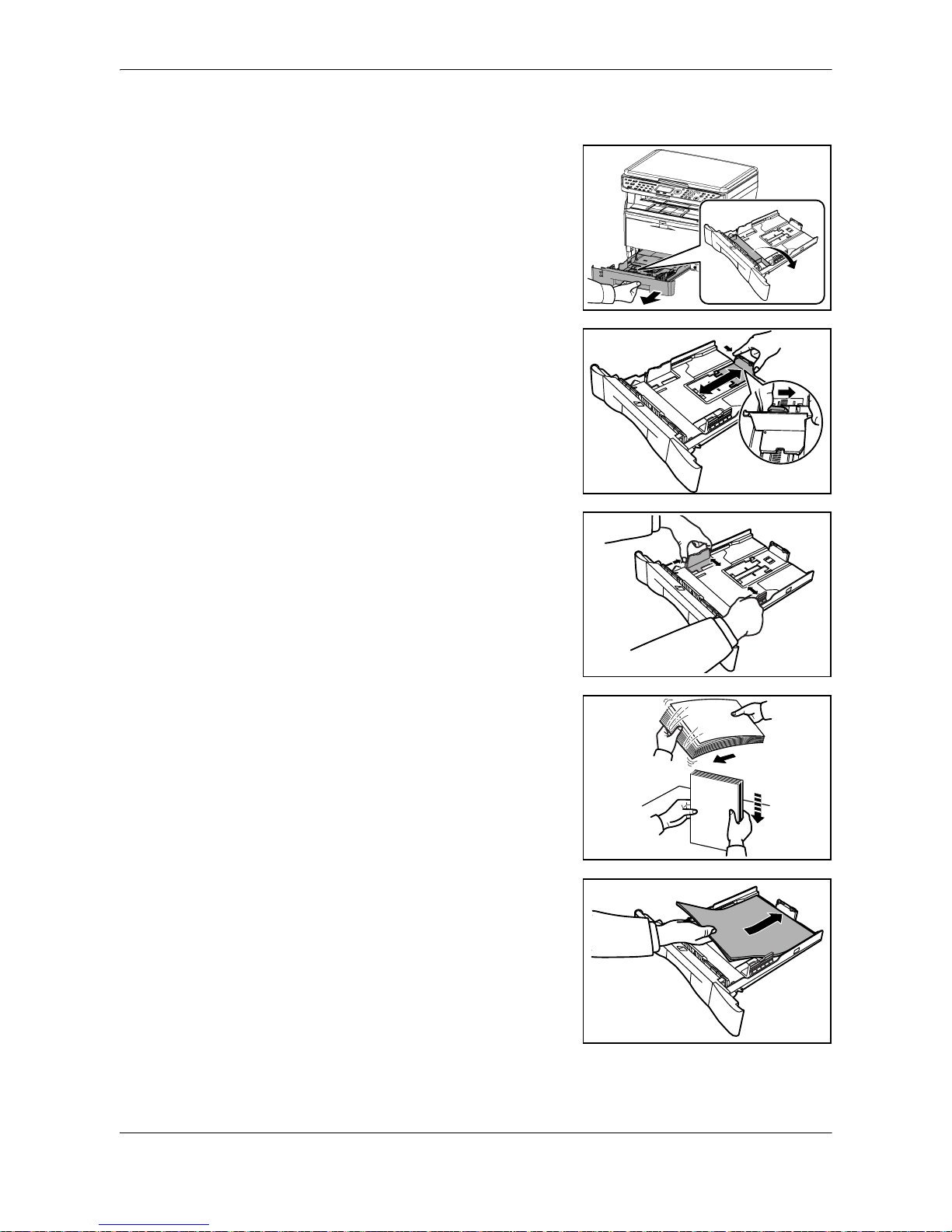

1Carefully pull the cassette all the way out of

the machine and remove the protective

packing from inside the cassette.

2Adjust the paper length by pressing in on

the release buttons and sliding paper

stopper to fit the size of the paper. The

paper sizes are marked on the bottom of the

cassette.

3Adjust the paper width by pressing in on the

release buttons and sliding the guides to fit

the width of the paper.

4Fan the paper, then tap it on a level surface

to avoid media jams or skewed printing.

5Place the paper in the cassette, with side to

be printed downward, so that the leading

edge is aligned against the paper stopper.

Preparations

SETUP GUIDE 7

IMPORTANT: Do not exceed the upper limit

of the cassette. Otherwise, it may cause

paper jams.

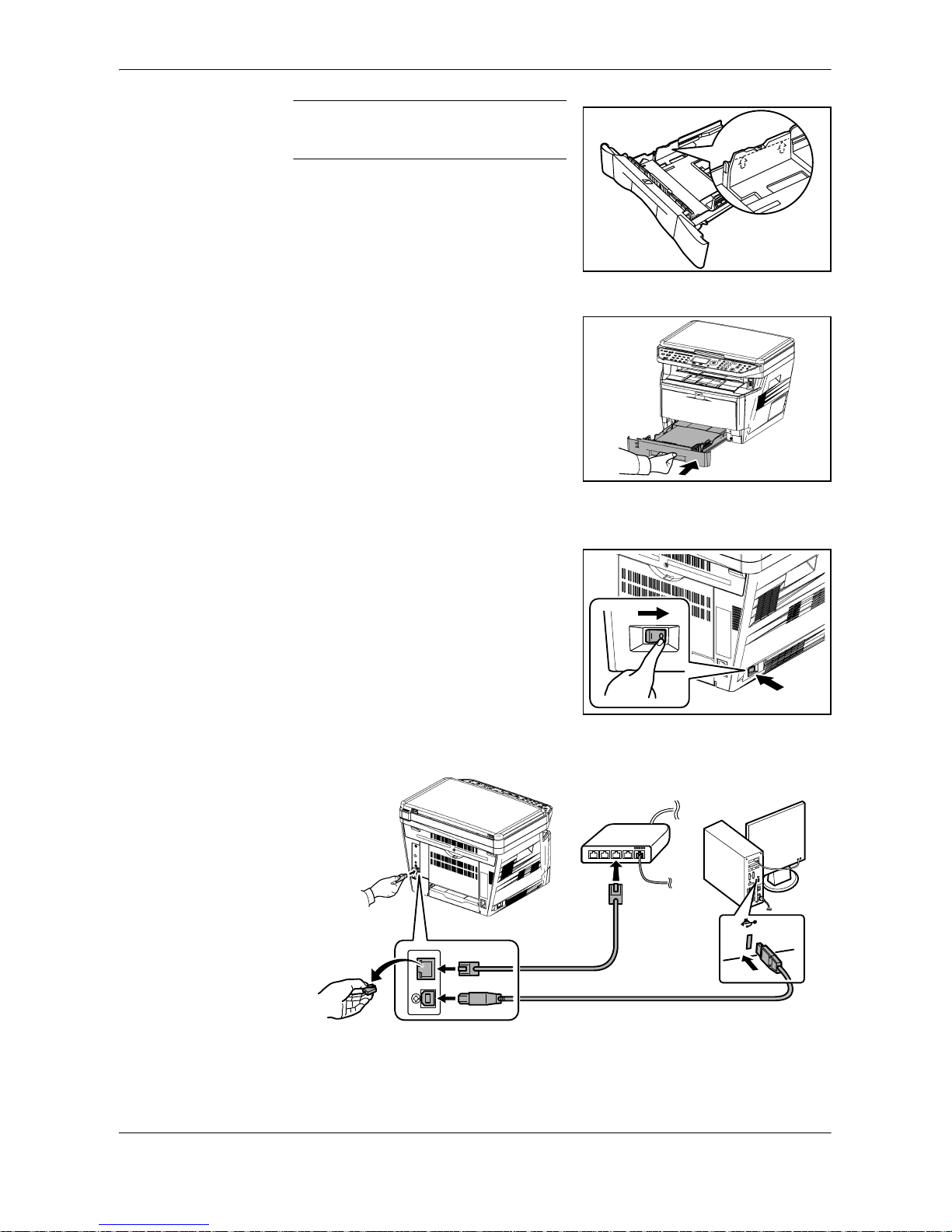

6Push the cassette securely all the way back

into the machine until it stops.

Connecting Cables

1Turn the power switch off (O).

2Connect the machine to the PC or your network device. When using the network

interface, remove the cap. These cables are sold separately.

Preparations

8SETUP GUIDE

Available Standard Interfaces:

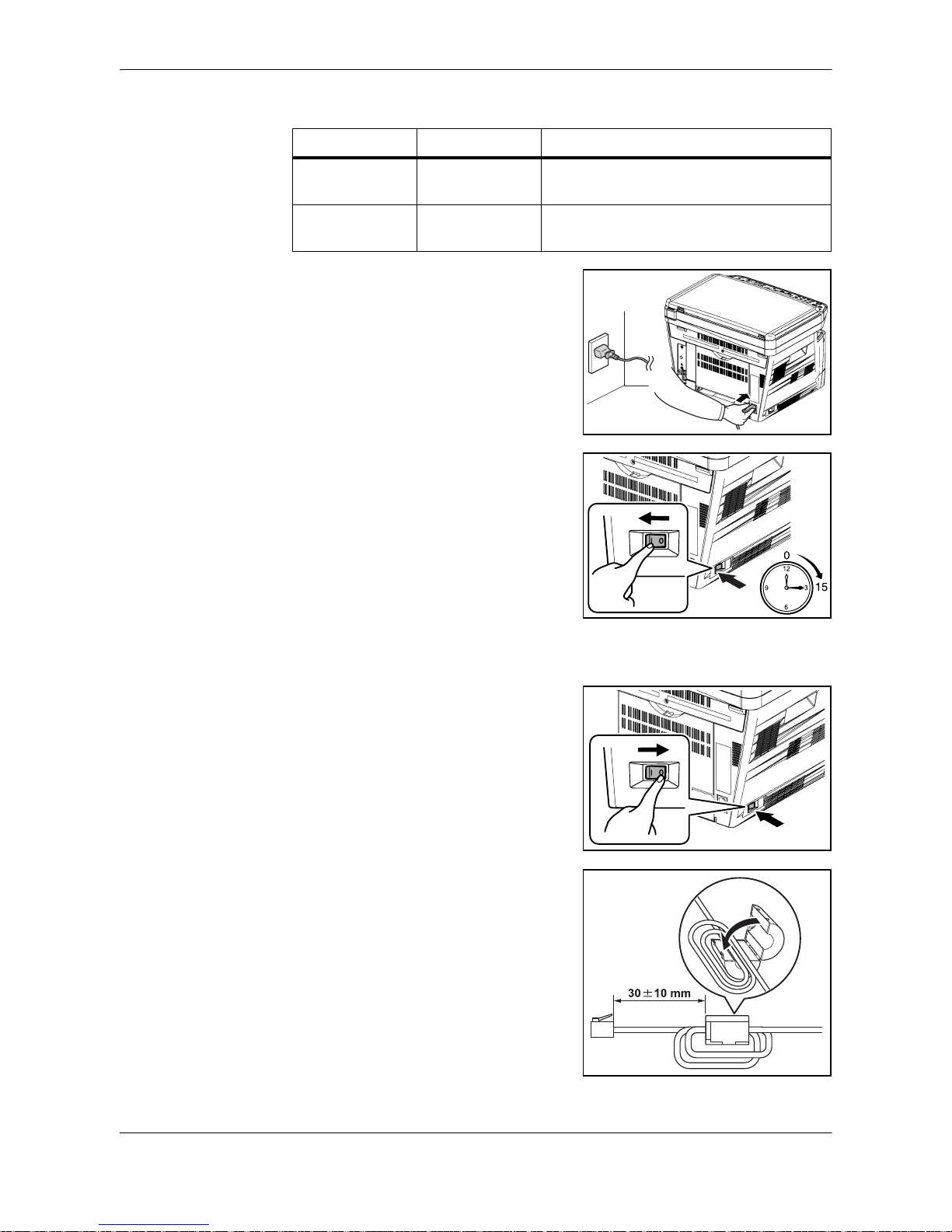

3Connect the power cord to the machine and

the other end into a power outlet.

4Turn the power switch on (|). The machine

begins to warm up. The machine will begin

replenishing the toner; this will take

approximately 15 minutes.

Once the toner has been replenished,

Ready to copy will appear on the

message display.

Connecting Modular Cords (FS-1128MFP only)

1Turn the power switch off (O).

2Be sure to loop the cord three times through

the ferrite core.

Interface Function Necessary Cable

Network

Interface

Printer/Scanner/

Network FAX

LAN (10Base-T or 100Base-TX, Shielded)

USB Interface Printer/TWAIN/

WIA

USB2.0 compatible cable (Hi-Speed USB

compliant, Max. 5.0 m, Shielded)

Preparations

SETUP GUIDE 9

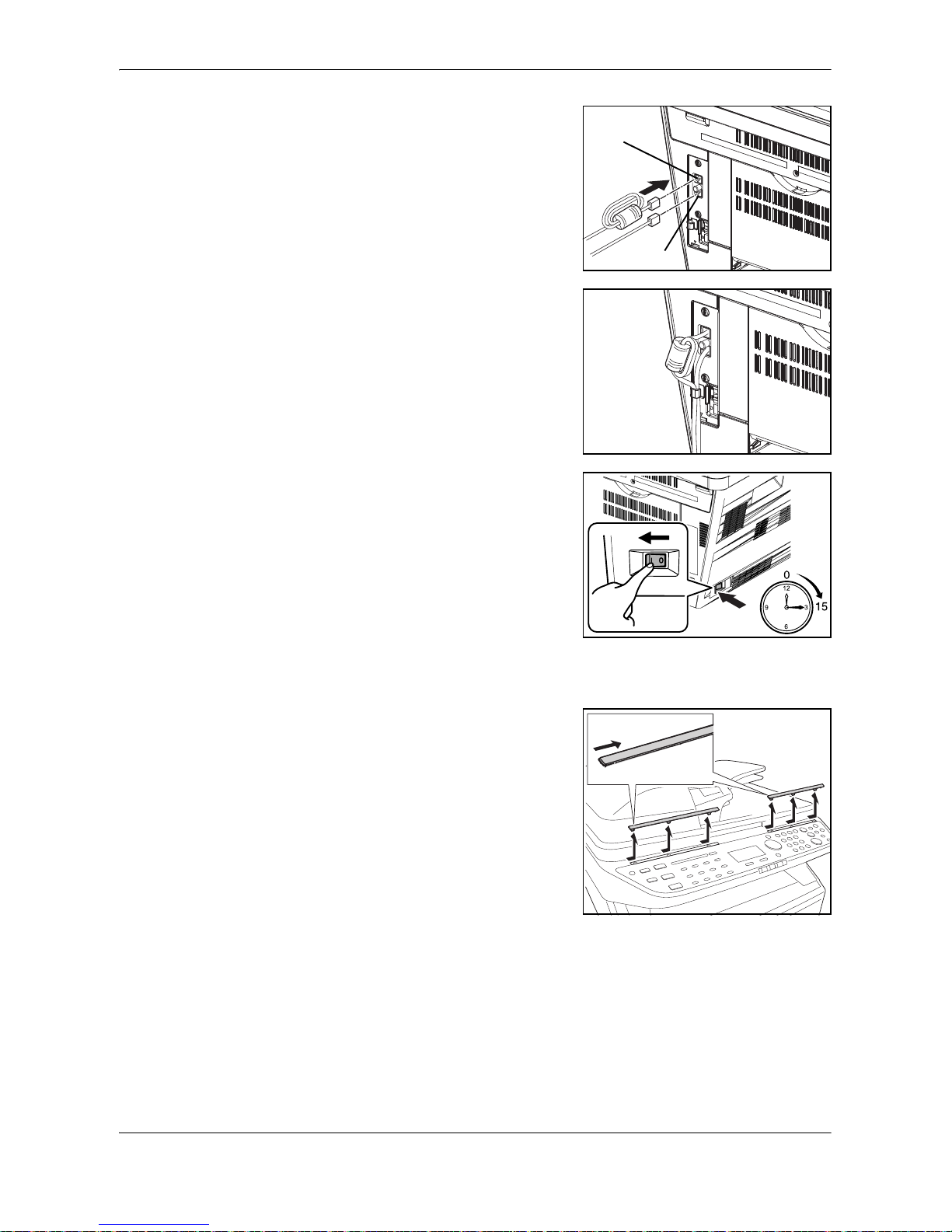

3Connect the modular cord with the attached

ferrite core to the line jack (A) of the

machine. Then, connect the modular cord to

the telephone jack (B) of the machine.

4Route the cords as shown in the figure.

5Turn the power switch on (|). The machine

begins to warm up. If the mache is first

installation, it will begin replenishing the

toner; this will take approximately 15

minutes.

Once the toner has been replenished,

Ready to copy will appear on the

message display.

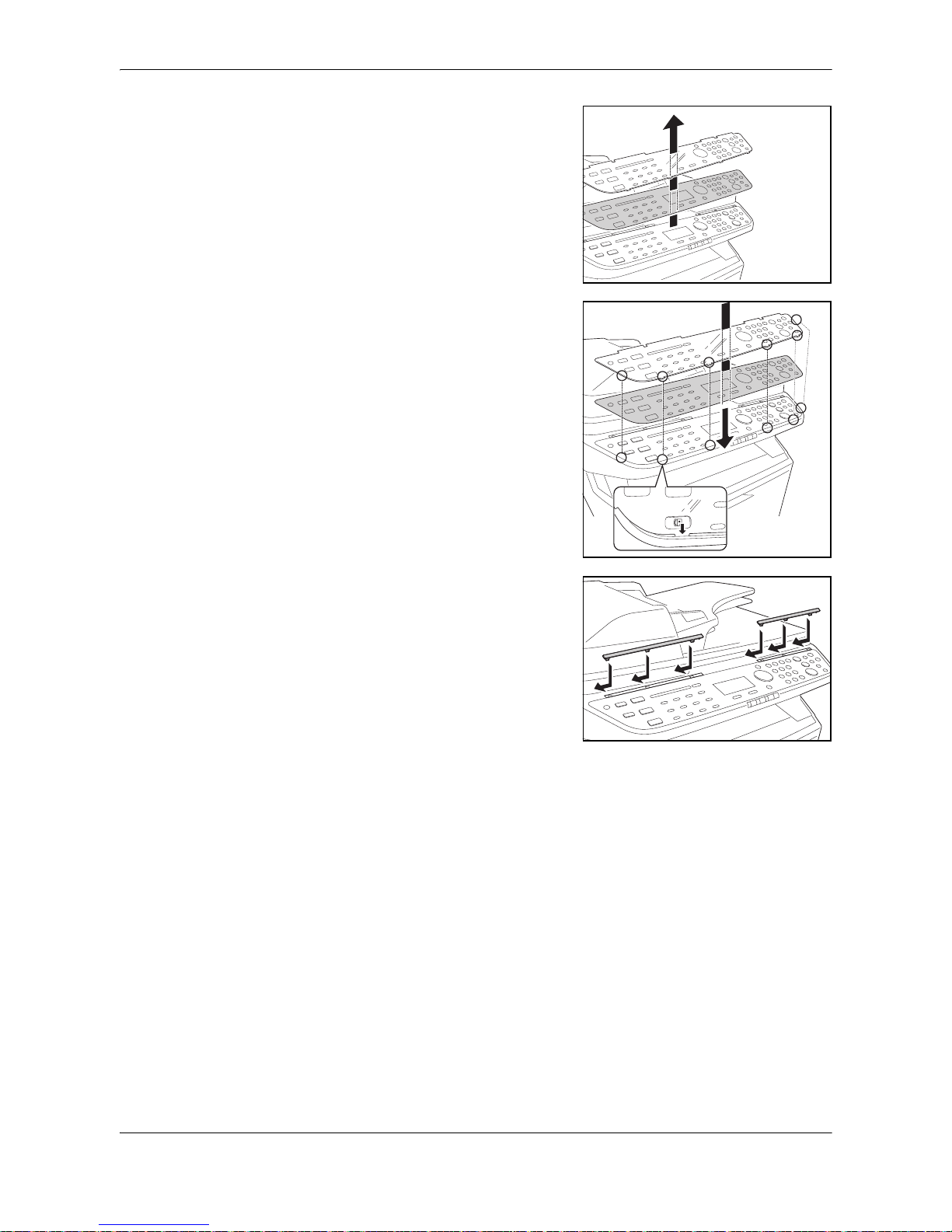

Replacing the Operation Panel Language Sheet

1Remove the attachements as shown.

Preparations

10 SETUP GUIDE

2Remove the plastic cover and the operation

panel language sheet.

3Insert the desired operation panel lanhuage

sheet and the plastic cover as shown.

4Fix the attchements as shown.
