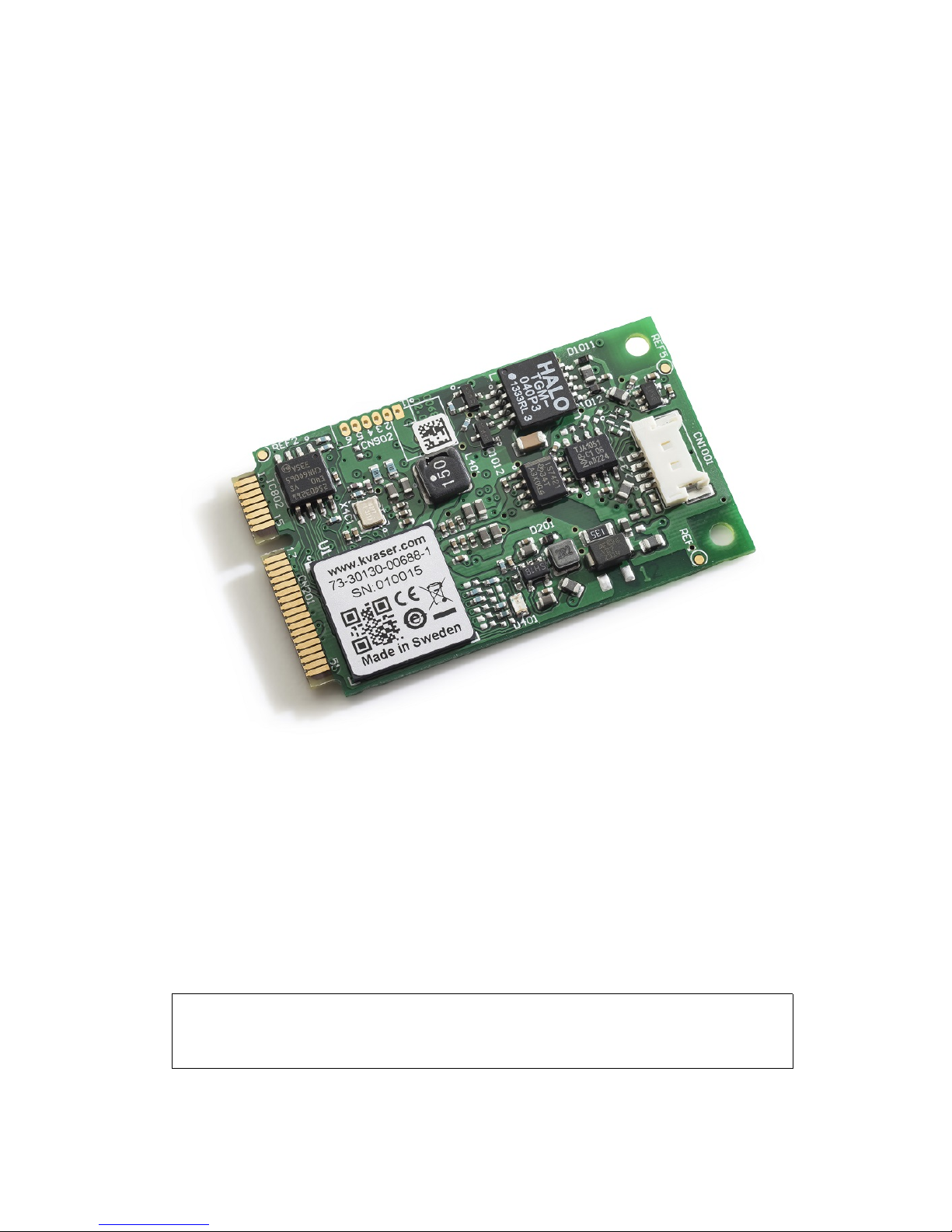

Kvaser Mini PCI Express User’s Guide
Copyright 2013-2014 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
Printed Sunday 28th September, 2014
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Kvaser Mini PCI Express User’s Guide 2 (18)
(This page is intentionally left blank.)
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 3 (18)
Contents
1 About this manual 4
2 Introduction 5
2.1 Welcome to Kvaser Mini PCI Express . . . . . . . . . . . . . . . . . 5
2.2 Major features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Additional software and documentation . . . . . . . . . . . . . . . . 6
3 Kvaser Mini PCI Express hardware 7
3.1 Hardware installation . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Kvaser Mini PCI Express connection . . . . . . . . . . . . . . . . . . 7
3.4 CAN channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.5 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.6 LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 How to use the Kvaser Mini PCI Express 10
4.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Appendices 11
5.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.2 CAN connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.3 CAN bus termination . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Disposal and Recycling Information 14
7 Legal acknowledgements 15
7.1 Usage warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7.2 EC Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . 16
7.3 Patents, copyrights and trademarks . . . . . . . . . . . . . . . . . . 16
8 Version history 18
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 4 (18)
1 About this manual
This manual is intended for Kvaser Mini PCI Express users. This manual contains
a description of the hardware properties and general instructions for connecting
the device to a computer.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 5 (18)
2 Introduction
This section will describe the functions and features of the Kvaser Mini PCI
Express.
2.1 Welcome to Kvaser Mini PCI Express

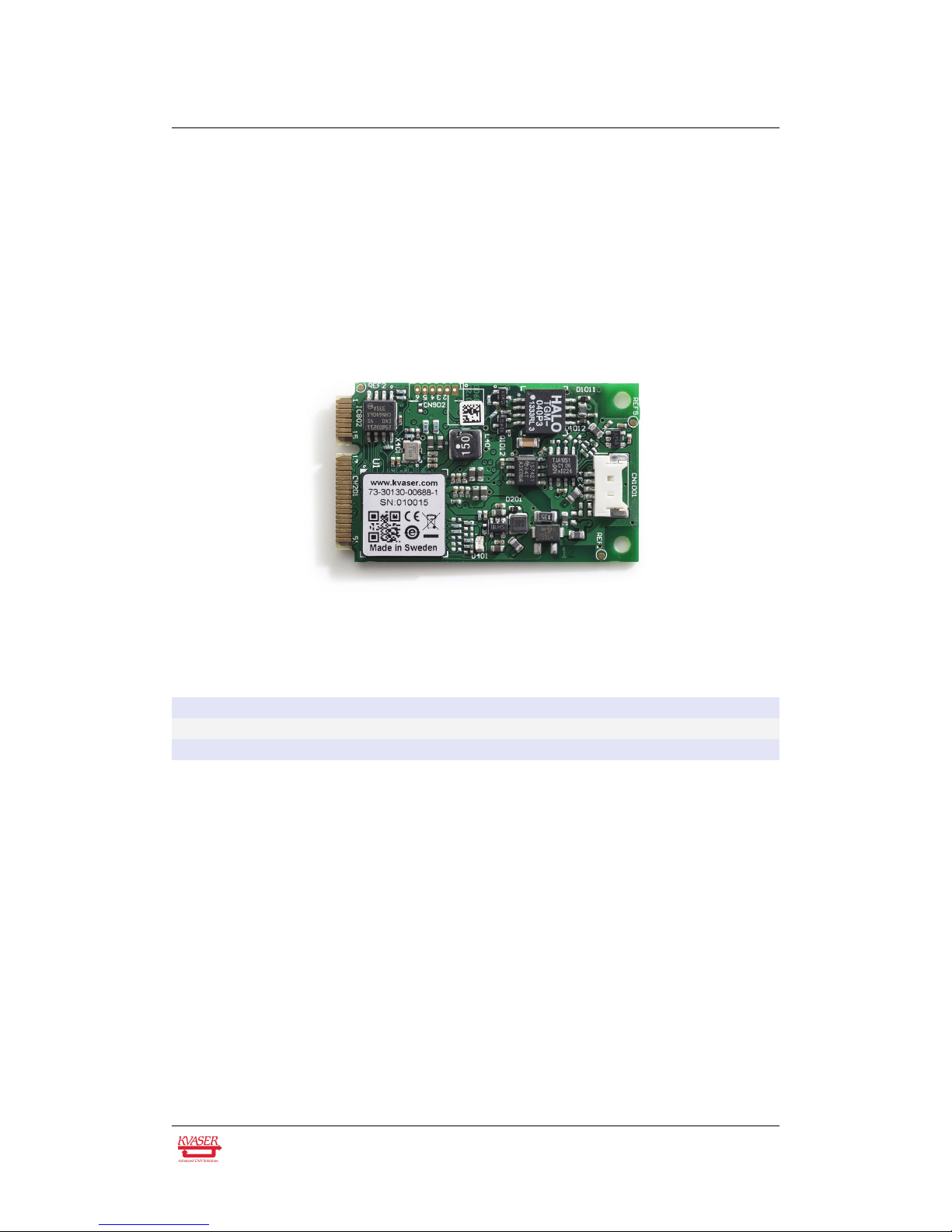

Figure 1: Kvaser Mini PCI Express
The Kvaser Mini PCI Express is a small, yet advanced, CAN interface.
Device Product Number
Kvaser Mini PCI Express HS 73-30130-00688-1
Kvaser Mini PCI Express 2xHS 73-30130-00743-7
Table 1: Kvaser Mini PCI Express device and EAN number.
Throughout this document, we use the name Kvaser Mini PCI Express to mean
any one of the different Kvaser Mini PCI Express products listed in Table 1, unless
otherwise noted.
2.2 Major features
•Mini PCI Express CAN interface.
•Quick and easy plug-and-play installation.
•Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
•100 % compatible with applications written for other Kvaser CAN hardware
with Kvaser CANlib.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 6 (18)
•High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit /s.
•Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
•Supports silent mode for analysis tools – listen to the bus without interfering.
•Simultaneous operation of multiple devices.
2.3 Additional software and documentation
•Kvaser CANlib SDK, which includes everything you need to develop software
for the Kvaser CAN hardware. Includes full documentation and many sample
programs, written in C, C++, C#, Delphi, Python and Visual Basic. All Kvaser
CAN interface hardware shares a common software API. Programs written
for one device type will run without modification on other device types!
•On-line documentation in Windows HTML Help and Adobe Acrobat format.
•The latest versions of documentation, software and drivers can be
downloaded for free at http://www.kvaser.com/download/.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 7 (18)
3 Kvaser Mini PCI Express hardware
In this section you can read more about the CAN channels, power supply and LED
indicators.
3.1 Hardware installation
The Kvaser Mini PCI Express may be inserted in any free Mini PCI Express slot on
the host computer that supports USB. You do need to switch the power off before
inserting or removing the device. For the Kvaser Mini PCI Express to communicate
with the host computer, compatible versions of the Kvaser driver and firmware
must be used. The firmware is downloaded and installed directly on the Kvaser
Mini PCI Express. The driver is installed on the host computer.
The latest version of the drivers,
kvaser_drivers_setup.exe
, and firmware can
be downloaded from http://www.kvaser.com/download/.
3.2 Firmware Update
Firmware updates and upgrade instructions can be found at
http://www.kvaser.com/download/. Use “Kvaser Hardware” to see the current
firmware version of your Kvaser Mini PCI Express.
3.3 Kvaser Mini PCI Express connection

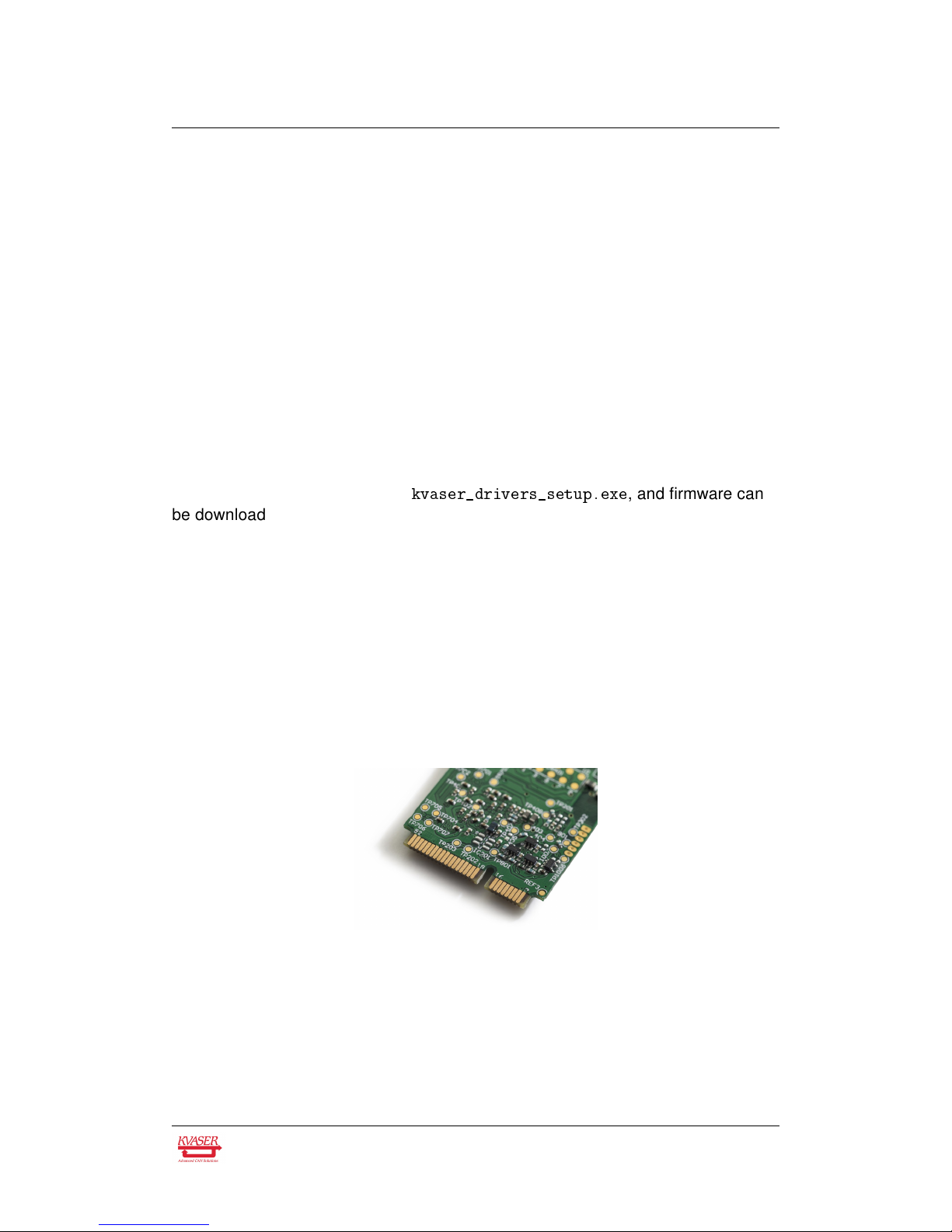

Figure 2: Kvaser Mini PCI Express
The Kvaser Mini PCI Express is a Card of type F2 (Full-Mini with bottom side keep
outs).
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 8 (18)
3.4 CAN channels
The Kvaser Mini PCI Express HS has one CAN channel and has a 4-pin Molex
connector (see Figure 3 on Page 8), the Kvaser Mini PCI Express 2xHS has two
CAN channels and a 7-pin Molex connector (see Figure 4 on Page 8). See
Section 5.2, CAN connectors, on Page 11 for pinout information.

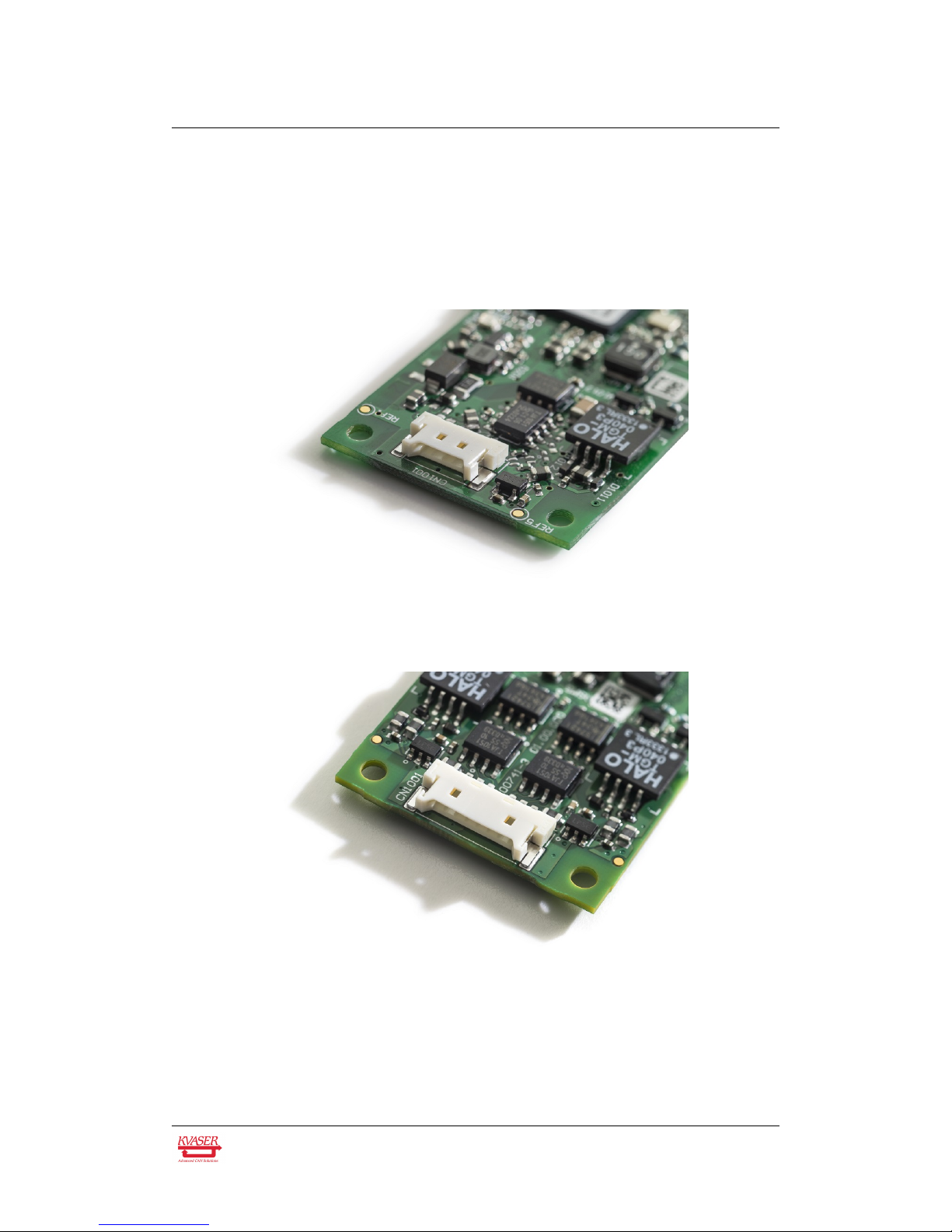

Figure 3: CAN connector on Kvaser Mini PCI Express HS
Figure 4: CAN connector on Kvaser Mini PCI Express 2xHS
3.5 Power supply
The Kvaser Mini PCI Express is powered from the Mini PCI Express connector.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 9 (18)
3.6 LED indicators
The Kvaser Mini PCI Express has one LED, its functionality is shown in Table 2 on
Page 9.
LED Function Description
Green Power Steady light when unit is powered and working.
USB configuration Blinking once every three seconds when something is wrong with
the USB connection.
Firmware 2 Hz flash if something is wrong with the firmware or configuration.
Table 2: LED configuration
Kvaser AB, Mölndal, Sweden — www.kvaser.com
Kvaser Mini PCI Express User’s Guide 10 (18)
4 How to use the Kvaser Mini PCI Express
To use the Kvaser Mini PCI Express as a CAN interface, connect the unit to a free
Mini PCI Express slot.
4.1 Troubleshooting
Use “Kvaser Hardware” in the Control Panel to verify that the computer can
communicate with the Kvaser Mini PCI Express. If the firmware version shown is
all zeroes, there are communication problems.
If the LEDs are not flashing or illuminated at all, check the power supply.
If the LEDs are flashing or illuminated, compare the pattern with the specified led
indicators in Section 3.6, LED indicators, on Page 9.
