Congratulations on the purchase of your new Kustom bass amplier.
Your KXB Model draws on decades of amp design and manufacturing
experience at Kustom. This model was built from the ground up to offer
world-class tone, useful features and reliable performance. Inside this manual,
you’ll nd valuable information about the amp’s controls and specications.
Being familiar with its features will help you effectively dial in different tones.
We wish you many years of enjoyment with your Kustom amplier.
OWNER’S MANUAL
kustom.com

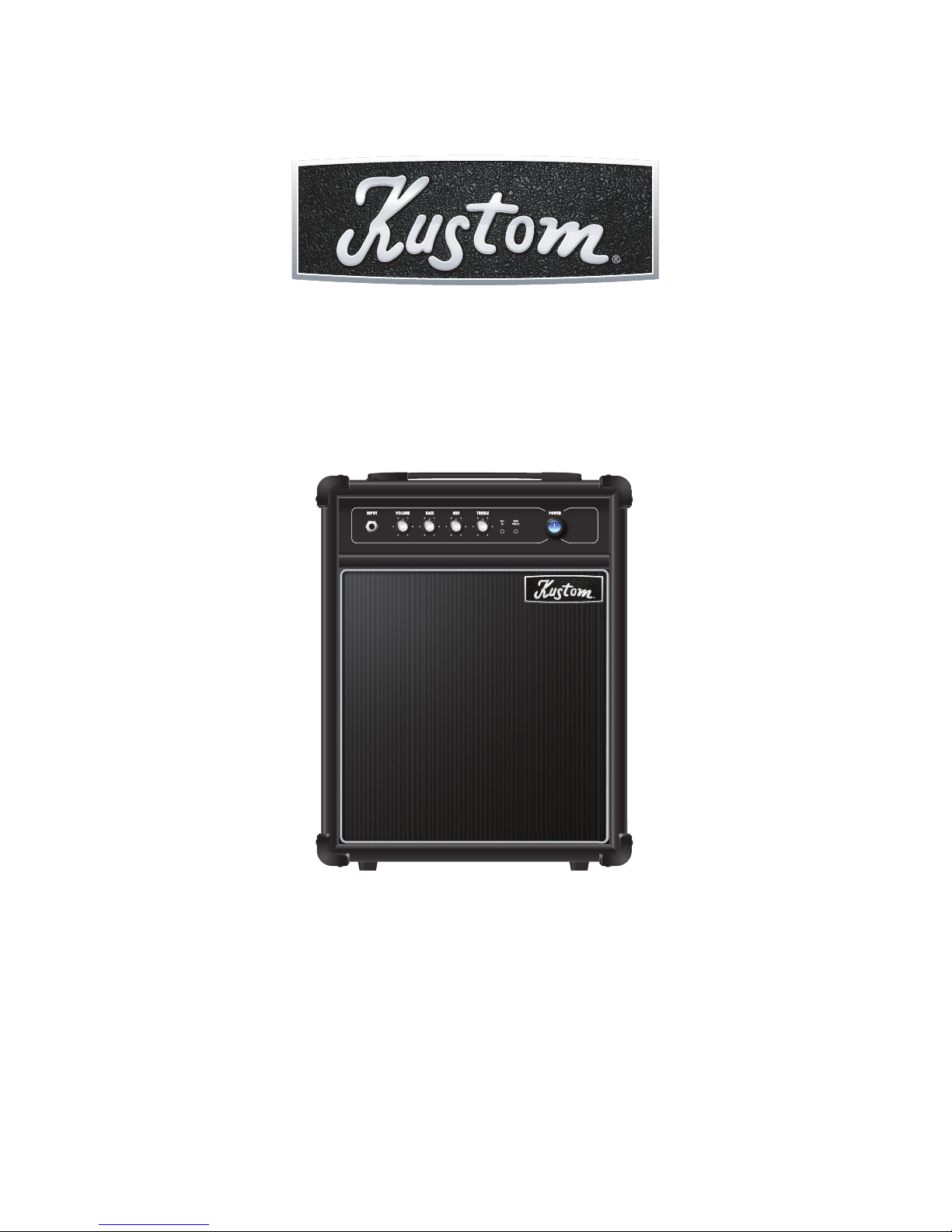

KXB10 BASS GUITAR AMPLIFIER
KXB10 KXB10
FCC Statements
1. Caution: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ENGLISH
kustom.com
FRENCH
kustom.com
1. Input Jack: ¼-inch input that is intended for bass guitar but will accept other instruments as well.
2. Volume: Adjust this control to set the desired volume level of the amplier. Note: If you are using an instrument with a
built-in active preamp, set its level to mid-position before increasing its volume or distortion may occur.
3. Bass: This control adjusts the lower frequencies to provide rich, full tones. It will boost or cut by 15 dB at 60 Hz.
4. Mid: This control adds a thick, punchy quality to your tone. It will boost or cut by 15 dB at 500Hz.
5. Treble: Increasing this control will add presence and attack to your bass tone. It will boost or cut by 15 dB at 10 kHz.
6. Aux In: This is a 3-conductor, 1/8-inch, stereo jack that allows playback from a Compact Disc, MP3 player or other
audio device. The overall volume level will be determined by the audio device, so start with lower volume levels and
increase as needed.
7. Headphones: This is a 3-conductor, 1/8-inch input jack intended for headphone use. The amplier’s internal speaker
is disconnected when this jack is used.
8. Power Switch: This dual-function component is both an On/Off power switch and a status indicator light. When
illuminated, it shows that your amplier is ready to be played. To turn amplier on, press switch upward. To turn amp off,
press switch downward.
KXB10
1234678
kustom.com
5
KXB10 Control Panel
kustom.com
KXB10
Power Cord: This supplies AC power to the amplier. If the cord becomes damaged, take the amplier to an authorized
service center for repair.
KXB10 Back Panel
KXB10
KXB10
KXB10
KXB10 Suggested Settings
The following suggested settings will help you dial in a variety of popular tones. Keep in mind, these are starting points to
get you up and running with your KXB amplier. Feel free to experiment to achieve your own signature sounds.
TRADITIONAL/VERSATILE TONE
In this setting, the amplier will deliver a traditional, yet versatile, electric bass sound. Whether you are playing Rock,
Country, Blues or Gospel, this setting will get you close. If you play with a pick and want less treble attack on the notes,
decrease the amount of high frequencies using the Treble control. If you need a deeper bottom end, increase the amount
of low frequencies using the Bass control. Adjust the amount of Midrange to best match the tone of your bass guitar and
how it ts into the overall sound.
FUNKY, SLAPPED TONES
This style of music needs a strong attack with lots of treble content. Using less Midrange will produce the extra top end
necessary for this type of music. If you use a “slapping” thumb technique, add a bit more low end and extra volume – or
less if you really hit the strings hard. Even though this is a practice or rehearsal-level amplier, it will deliver the punch
and clarity that you require.
ALTERNATIVE STYLE
These settings are designed for upper-end punch and edge that will cut through most any sound mix. This tone will work
well with pick or ngers. Make sure your bass guitar’s volume control is up all the way. Since you’re adding volume, be
careful with the amount of Bass, Mid and Treble that you dial in, as it can also add some distortion to the sound.
kustom.com
Kustom® KXB10 Specications
Output Power 10 Watts 4 Ohms at 10% THD+N
Speaker 1 X 10” Custom Designed 4 Ohms
Input Impedance Single Input 470K Ohm
Gain 48 dB Volume @ Max, All EQ at 12 o’clock
S/N Ratio -80 dB typical Below rated power
Aux Input 800 mV Sensitivity Stereo 3.5mm High Impedance
Headphone Output 10 mW @ 30 ohms
per channel
Stereo 3.5mm
Amplier Tone Controls 60 Hz +/- 15 dB
500 Hz +/- 15 dB
10 Hz +/- 15 dB
Power Requirements USA/Canada 120VAC/60Hz, 25W
Europe 230VAC/50Hz, 25W
UK 240VAC/50Hz, 25W
Australia 240VAC/50Hz, 25W
Japan 100VAC/50-60Hz, 25W
Dimensions/Weight cm3/Kilogram 44.5 (Height) X 35.1 (Width) X 26.4 (Depth),
10.4 Kilogram
Inches/Pounds 17.5 (Height) X 13.8 (Width) X 10.4 (Depth),
23 Lbs
kustom.com
kustom.com
KXB10 SIGNAL FLOW DIAGRAM
kustom.com
19 November 2009
