OPERATION

MANUAL

DIGITAL

MULTIMETER

KM 6030

An ISO 9001:2008 Company

17, Bharat Industrial Estate, T. J. Road, Sewree (W),

Mumbai-400015. INDIA

Sales Direct: 24156638 (022)2412 4540, 2418 1649 2414 9659

E-mail : [email protected], Website : www.kusamelectrical.com,

www.kusam-meco.co.in

Tel.: Fax:

Digital Multimeter

Digital AC & AC/DC Clampmeter

AC Clamp Adaptor

AC/DC Current Adaptor

Transistorised Electronic Analog & Digital

Insulation Resistance Testers(upto 10 KV)

Digital Sound Level Meter & Sound Level

Calibrator

Digital contact & Non-contact Type

Tachometer

Digital Non-contact (infrared) Thermometer

Thermo Hygrometer

Thermo Anemometer

Wood & Paper Moisture Meter

Distance Meter

Digital Hand Held Temperature Indicators

Digital Lux Meter

Network Cable Tester

Power Factor Regulator

Maximum Demand Controller/Digital Power

Meter

Earth Resistance Tester

LIST OF PRODUCTS

OPERATION MANUAL

DIGITAL

MULTIMETER

KM 6030

Nearly every electrical engineer has a hand held

Multimeter. We sometimes take them for granted, until

we damage them or “burn them out” if you incorrectly

connect your DMM to a circuit or have the DMM on

wrong setting, you damage the meter and possibly hurt

yourself. You can also get into trouble if you try to

measure the voltage across a charged capacitor.

DMM users frequently burn their meters by trying

to measure current the same way as they measure

voltage, Remember, you measure voltage across a

circuit, and current through a circuit. When you use the

current input, your DMM becomes a lower impedance

circuit element. If you accidentally connect this low

impedance path across your circuit, you’ll effectively

short-circuit it. You can, therefore send high current

through your meter and severely damage it. Unless the

meter has a fused input, you can even get an explosion

or fire.

Even if you correctly insert your DMM into the

circuit, you can still damage your meter. Don’t try to

measure current in excess of your meter’s capacity.

Handheld DMMs usually have a maximum current

rating of 10Aor 20A.

If you are measuring current in industrial

environment, you can easily exceed those ratings. The

best way to avoid damage is to use a clamp meter or to

connect a clamp attachment to your DMM.

To prevent excess current from flowing through

your meter, always disconnect the test leads from the

circuit under test whenever you change DMM

functions, Set your meter to the correct function, say

current and its highest range for the setting, say 20A.

Next, connect the test leads before you apply power to

the circuit. To be safe, start by setting your meter to its

highest range first.

TAKE MEASUREMENT CAREFULLY AND YOU’LL

SPARE YOUR METER AND YOURSELF, SOME PAIN

Table of Contents

Title Page

Overview ....................................................1

Unpacking Inspection................................1

Features......................................................2

General Specifications..............................3

Electrical Specifications............................4

A. DC Voltage

B. AC Voltage

C. AC Current

D. DC Current

E. Resistance

F. Capacitance

G. Temperature

H. Frequency

I. Transistor hFE Test

J. Diode Test & Continuity

Rules For Safe Operation..........................7

International Electrical Symbols...............8

The Multimeter Structure...........................9

Functional Buttons....................................10

Display Symbols........................................11

Measurement Operation

A. DC Voltage ...............................12

B. AC Voltage................................13

C. AC Current................................15

D. DC Current................................16

E. Resistance................................18

F. Capacitance..............................20

G. Temperature..............................21

H. Frequency.................................22

I. Diode Test & Continuity.............23

J. Transistor hFE Test...................25

Maintenance..............................................26

A. Replacing the Battery

Test Certificate..........................................27

Warranty....................................................28

OVERVIEW

Warning

To avoid electric shock or personal injury, read

the “Safety Information” and “Rules for Safe

Operation”carefully before using the Meter.

Digital Multimeter Model - 6030 (hereafter referred to

as “the Meter”) is a 3½ digits Multimeter with steady

operations, and highly reliable hand-held measuring

instrument having different measurement positions.

The Multimeter not only can measure AC/DC

Voltage, AC/DC Current, Resistance, Capacitance,

Frequency, Temperature, Transistor hFE Test, Diode

Test, but also has Data Hold, Range & function

selection & backlight display.

Terms in this manual

Warning : Identifies conditions and actions

that could result in serious injury or

even death to the user.

Caution : Identifies conditions and actions

that could cause damage or

Malfunction in the instrument.

Unpacking Inspection

Open the package case and take out the Multimeter.

Check the following items carefully to see any missing

or damaged part :

Item Description Qty.

1 English Operating Manual 1 piece

2 Test Lead 1 pair

3 Temperature Probe 1 piece

In the event you find any part missing or damaged,

please contact your dealer immediately.

FEATURES :

nLow power consumption CMOS double

integration, A/D transform integrated circuit,

Auto Zero Calibration, Auto Polarity display,

Data Hold, Low Battery & Over range

indication.

nDisplay : 3½ digit (2000 Counts) with digit height

28mm and function/units sign annunciators.

nSelected Range displayed on LCD.

nTest lead jack mechanical protection function

& full Range over-load protection function.

nPolarity : Automatic (-) negative polarity

indication.

nAuto Power Off : The meter will shut off

automatically about 15 minutes after power is ON

if the meter is not in use.

nHigh Accuracy - Digital Reading.

nInstant Continuity Buzzer.

nOverload Protection in all Ranges.

nRecessed Safety Designed Input Jacks.

n“DATA - HOLD ” switch freezes reading.

nBack light display .

nRange & Function Selection.

GENERAL SPECIFICATIONS :

Display : 3½ digit LCD. Maximum

reading 2000 with

automatic sign and

Function annunciators.

Digital Size : 28mm(H)

Overrange indication : Highest digit of (1) or (-1)

is displayed.

Low battery : The “ ” sign is

Displayed when the battery

Voltage drops below the

operating Voltage.

Measurement rate : 2.5 measurements

per Second, nominal.

Operating temperature : 0°C to + 50°C, <70% RH.

Storage temperature : -20°C to 60°C, <80% RH

with battery removed.

Accuracy : Accuracy specifications at

23 ± 5°C less than 75% RH.

Power : Single 9 V Battery.

Dimension : 192mm (L),88mm(W),

42mm(H)

Weight : Approx (600 grams)

including battery

Accessories : Test leads, Operators

Manual, Battery,

Carrying Case,

Protective Holster,

Temp. Probe.

- +

ELECTRICAL SPECIFICATION :

AC VOLTAGE

Input Impedance : 10MW

Frequency range : 40Hz~ 400Hz(it is 40Hz-100Hz in 200V,

750V range position)

Overload Protection :250V(for 200mV),DC or AC

peak value,1000V on all other ranges.

Input Impedance : 10MW

Overload Protection : 250V(for 200mV),DC or AC

Peak value, 1000V( for other range)

Accuracy

±(0.5% rdg + 3dgts)

±(0.8% rdg + 3dgts)

Resolution

100 mV

1 mV

10 mV

1 V

100 mV

Range

200 mV

2 V

20 V

1000 V

200 V

DC VOLTAGE

Accuracy

±(0.8% rdg +3 dgts)

±(1.2% rdg + 5 dgts)

Resolution

1 mV

10 mV

100 mV

1 V

Range

2 V

20 V

200 V

700 V

Overload Protection: 0.2A/250 V fuse

Max input current : 20A

AC CURRENT (40Hz~400Hz)

Accuracy

±(1.8% rdg + 3 dgts)

±(1.0% rdg +3dgts)

±(3.0% rdg +7dgts)

Resolution

1 mA

100 mA

10 mA

Range

2 mA

200 mA

20 mA

20 A

CAPACITANCE

Frequency Measurement: Approx.400Hz

Voltage Measurement : Approx. 40mV

Accuracy

±(3.0% rdg + 3 dgts)

±(5.0% rdg + 3 dgts)

±(0.8% rdg + 3 dgts)

Resolution

1 pF

10 pF

100 pF

100 hF

1 hF

Range

2 hF

20 hF

200 hF

200 mF

2 mF

Overload Protection: 0.2A/250 V fuse

Max input current : 20A

DC CURRENT

RESISTANCE

Overload Protection : 250V DC or AC peak value.

Open circuit voltage: <1V.

Accuracy

±(0.8% rdg +3 dgts)

±(0.8% rdg + 2 dgts)

+(1.0% rdg + 5 dgts)

Range

200 W

2 KW

20 KW

200KW

2 MW

20 MW

Resolution

0.1 W

1 W

10 W

100 W

1 KW

10 KW

Accuracy

±(1.2% rdg + 2dgts)

±(0.8% rdg +2dgts)

±(2% rdg +5dgts)

Resolution

1 mA

100 mA

10 mA

Range

2 mA

200 mA

20 mA

20 A

DIODE AND CONTINUITY MEASUREMENT

Description

Indicate approx forward-way

voltage drop of diode

The buzzer inside sounds

when continuity resistance

is about <50W

Forward-way current is

approx. 1mA contray-

way voltage is approx.

2.8 V. Open circuit

voltage is approx. 2.8V.

Overload Protection : 250 V AC or DC peak value.

Accuracy

±(0.75% rdg + 4dgts)

±(1.5%rdg + 15dgts)

Resolution

1°C

Range

-40°C~400°C

400°C~1000°C

TEMPERATURE

Accuracy

±(2.0% rdg + 5dgts)

Resolution

1 Hz

Range

2 KHz

FREQUENCY

Overload Protection : 500 V DC or AC peak value.

Input Sensitivity : 150 mV rms

Range Description

hFE

TRANSISTOR hFE MEASUREMENT

It can measure NPN

or PNP type of transistor

triode hFE parameter.

Indication range : 0~1000

1b approx. 10uA,

Vec approx. 2.8 V

Rules For Safe Operation (1)

Warning

To avoid possible electric shock or personal

injury, and to avoid possible damage to the Meter

or to the equipment under test, adhere to the

following rules :

!Before using the Meter inspect the case. Do not

use the Meter if it is damaged or the case (or part

of the case) is removed. Look for cracks or

missing plastic. Pay attention to the insulation

around the connectors.

!Inspect the test leads for damaged insulation or

exposed metal. Check the test leads for

Continuity. Replace damaged test leads with

identical electrical Specifications before using the

Meter.

!Do not apply more than the rated voltage, as

marked on the Meter, between the terminals or

between any terminal and grounding.

!The rotary switch should be placed in the right

position and no any changeover of range shall be

made while measurement is conducted to prevent

damage of the Meter.

!When measurement is taken at an effective voltage

over 60V in DC or 30V rms in AC, special care

should be takenforthereisdanger of electric shock.

!Use the proper terminals, function, and range for

your measurements.

!Do not use or store the Meter in an environment of

high tempe r ature, humid i ty, e x plosiv e,

inflammable and strong magnetic field. The

performance of the Meter may deteriorate after

the meter is dampened.

!When using the test leads, keep your fingers

behind the finger guards.

Rules For Safe Operation (2)

!Disconnect circuit power and discharge all high

-voltage capacitors before testing resistance,

continuity, diodes, current or capacitance.

!Replace the battery as soon as the battery

indicator appears. With a low battery, the

Meter might produce false readings that can lead

to electric shock and personal injury.

!Turn the Meter power off when it is not in use and

take out the battery when not using for a long

time.

!Constantly check the battery as it may leak when

it has not been used for some time, replace the

battery as soon as leaking appears. A leaking

battery will damage the Meter.

- +

AC (Alternating Current).

DC (Direct Current).

Both DC & AC.

Grounding.

Double Insulated.

Deficiency of Built-In Battery.

Continuity Test.

Diode.

Fuse.

Warning ! Refer to the Operating Manual.

Caution ! Risk of Electric Shock.

- +

International Electrical Symbols

The Multimeter Structure (see figure 1)

( Figure 1)

1) LCD DISPLAY :

A 3½ digit display (maximum reading 1999)

indicates measured values, and features symbols

indicating function, Low Battery,Continuity, Diode.

2) FUNCTION SELECTOR :

To Select ACV, DCV, ACA, DCA, Resistance,

Capacitance, Temperature, Frequency, Diode,

Continuity & Transistor Test.

3) INPUT JACKS (VW,mA,Aand COM) :

Test leads are inserted into these jacks for

Voltage, Resistance, Current measurements,

Continuity & Diode Checks.

4) POWER SWITCH :

A push button (ON/OFF) POWER switch will `

switch ON or switch OFF the multimeter.

5) DATA HOLD SWITCH :

A push button ( ON/OFF) Data-Hold switch

will freeze reading when pressed.

6030

COM

VWHz

20A

NPN

PNP

20A 15SEC

MAX UNFUSED 200mA MAX FUSED

1000V DC

700V AC

MAX

1999

Display Symbols (see figure 2)

( Figure 2)

. . .

6) BACK LIGHT SWITCH:

To turn OFF or ON the back light so that readings

Can be taken in the dark.

7) FUNCTION SELECTOR:

To select various functions

8) INPUT SOCKET FOR TEMPERATURE

MEASUREMENT :

Temperature Probes are inserted into these jacks

and the other end is connected to the point

where the temperature is to be measured.

9) INPUT SOCKET FOR CAPACITANCE

MEASUREMENT :

Capacitors are inserted into these jacks

whose capacitance is to be measured.

10) INPUT SOCKET FOR TRANSISTOR TEST.

11) PROTECTIVE HOLSTER :

Prevents the instrument from damage.

the hand while in use.

Symbol

No.

Meaning

Dangerous Voltages.

Indicator for AC voltage or

current, The displayed value

is the mean value.

Indicates negative reading.

Test of diode.

Data Hold is active.

The continuity buzzer is on.

A : Amperes (amps). The unit

of current.

V : Volts. The unit of voltage.

Hz : The unit of frequency.

mV, V

- +

mA, A

The battery is low.

Warning : To avoid false

readings, which could lead to

possible electric shock or

personal injury, replace the

battery as soon as the battery

indicator appears.

11 W, kW,

W: Ohm. The unit of

resistance.

KW: kilohm. 1 x 10 or

1000 ohms.

°C

hF,mF

°C : The unit of temperature.

The unit of capacitance.

MEASUREMENT OPERATION

nMake sure the Low Battery display is not on,

otherwise false readings may be provided.

nPay extra attention to the symbol which is located

besides the input terminals of the Meter before carrying

out measurement.

A. DC voltage measurement (see figure 3)

Warning

To avoid harms to you or damages to the Meter from

electric shock, please do not attempt to measure

voltages higher than 1000VDC or 700V rms although

readings may be obtained.

The DC Voltage ranges are :200mV, 2V, 20V, 200V, 1000V.

To measure DC voltage, connect the Meter as follows :

1) Insert the red test lead into the VWinput terminal and

the black test lead into the COM input terminal

2) Set the rotary switch to an appropriate measurement

position in V range.

3) Connect the test leads across with the object being

measured.

The measured value is shown on the display.

- +

( Figure 3 )

6030

COM

VWHz

20A

NPN

PNP

20A 15SEC

MAX UNFUSED 200mA MAX FUSED

1000V DC

700V AC

MAX

!RedBlack

Caution :

nIf the value of voltage to be measured is

unknown, use the maximum measurement

position (1000V) and reduce the range step by

step until a satisfactory reading is obtained.

nThe LCD displays “1” indicating the existing

selected range is overloaded, it is required to

select a higher range in order to obtain a correct

reading.

nIn each range, the Meter has an input impedance

of approx. 10MW. This loading effect can cause

measurement errors in high impedance circuits.

If the circuit impedance is less than or equal to

10kW, the error is negligible (0.1% or less).

nWhen DC voltage measurement has been

completed, disconnect the connection between

the testing leads and the circuit under test.

B. AC Voltage Measurement (see figure 4)

( figure 4)

6030

COM

VWHz

20A

NPN

PNP

20A 15SEC

MAX UNFUSED 200mA MAX FUSED

1000V DC

700V AC

MAX

!RedBlack

Warning :

To avoid harm to you or damages to the Meter

from electric shock, please do not attempt to

measure voltages higher than 1000V or 700V rms

although readings may be obtained.

The AC Voltage measurement has 4 measurement

positions on the rotary switch : 2V, 20V, 200V and

700V

To measure AC Voltage, connect the Meter as

follows :

1) Insert the red test lead into the VWterminal

and the black test lead into the COM terminal.

2) Set the rotary switch to an appropriate

measurement position in V ~ range.

3) Connect the test leads across with the object

being measured.

The measured value is shown on the display,

which is effective value of sine wave (mean value

response).

Caution :

nIf the value of voltage to be measured is

unknown, use the maximum measurement

position (700V) and reduce the range step by

step until a satisfactory reading is obtained.

nThe LCD displays “ 1 “ indicating the existing

selected range is overloaded, it is required to

select a higher range in order to obtain a correct

reading.

nWhen AC Voltage measurement has been

completed, disconnect the connection between

the testing leads and the circuit under test.

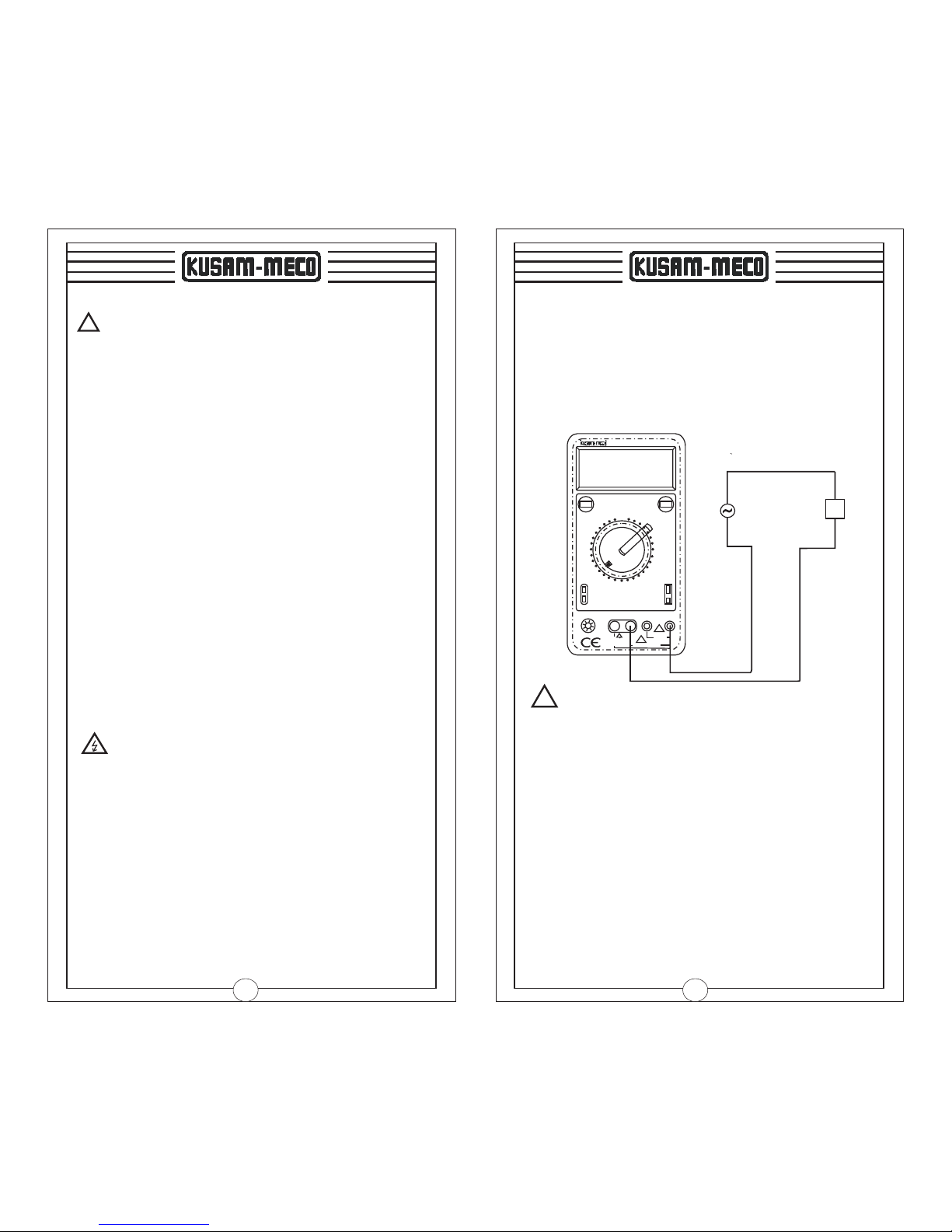

C. AC Current Measurement (see figure 5)

Warning :

Never attempt an in - circuit current measurement

where the open circuit voltage between terminals and

ground is greater than 60V DC or 30V rms. If the fuse

burns out during measurement, the Meter may be

damaged or the operator himself may be hurt. Use

proper terminals, function, and range for the

measurement. When the testing leads are connected

to the current terminals, do not parallel them across

any circuit.

The AC current measurement has 4 measurement

positions on the rotary switch : 2mA, 20mA, 200mA,

20A.

To measure AC Current, connect the meter as

follows :

!(figure 5)

nWhen AC Voltage measurement has been

completed, disconnect the connection between

the testing leads and the circuit under test.

Supply

Load

6030

COM

VWHz

20A

NPN

PNP

20A 15SEC

MAX UNFUSED 200mA MAX FUSED

1000V DC

700V AC

MAX

Autres manuels pour KM 6030

Table des matières

Autres manuels Kusam-meco Multimètre

Kusam-meco

Kusam-meco KM 520B Manuel utilisateur

Kusam-meco

Kusam-meco KM 878 Manuel utilisateur

Kusam-meco

Kusam-meco KM-459 Manuel utilisateur

Kusam-meco

Kusam-meco 2754A Manuel utilisateur

Kusam-meco

Kusam-meco 8010 Manuel utilisateur

Kusam-meco

Kusam-meco 2772 Manuel utilisateur

Kusam-meco

Kusam-meco 306 Manuel utilisateur

Kusam-meco

Kusam-meco KM-DMM-41 Manuel d'installation

Kusam-meco

Kusam-meco KM 6030 Manuel utilisateur

Kusam-meco

Kusam-meco KM 6050 Manuel utilisateur

Kusam-meco

Kusam-meco KM 2777 Manuel utilisateur

Kusam-meco

Kusam-meco KM 656 Manuel utilisateur

Kusam-meco

Kusam-meco KM 839 Manuel utilisateur

Kusam-meco

Kusam-meco KM 2778 Manuel utilisateur

Kusam-meco

Kusam-meco 801-L Manuel utilisateur

Kusam-meco

Kusam-meco KM 887 Manuel d'installation

Kusam-meco

Kusam-meco M3500A Manuel utilisateur

Kusam-meco

Kusam-meco KM 255 Manuel utilisateur

Kusam-meco

Kusam-meco KM 111M Manuel utilisateur

Kusam-meco

Kusam-meco KM 5040-T Manuel utilisateur

Kusam-meco

Kusam-meco KM 233 Manuel utilisateur

Kusam-meco

Kusam-meco KM 822sEX Manuel utilisateur

Kusam-meco

Kusam-meco KM 525 Manuel utilisateur

Kusam-meco

Kusam-meco M3511A Manuel utilisateur

Manuels Multimètre populaires d'autres marques

Agilent Technologies

Agilent Technologies 34420A Manuel utilisateur

Fluke

Fluke 83 Manuel utilisateur

Hameg

Hameg HM 8012 Manuel utilisateur

Mastech

Mastech MY70 Manuel utilisateur

Steren

Steren MUL-300 Manuel utilisateur

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuel utilisateur

PeakTech

PeakTech 4000 Manuel d'utilisation et d'entretien

YOKOGAWA

YOKOGAWA 90050B Manuel utilisateur

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuel utilisateur

Fluke

Fluke 8846A Manuel d'utilisation et d'entretien

Tempo Communications

Tempo Communications MM200 Manuel utilisateur

Elenco Electronics

Elenco Electronics CM-1555 Manuel utilisateur

Mastech

Mastech MS8238C Manuel utilisateur

SDAR

SDAR 830A, 830B, 830D, 830C Manuel utilisateur

RS PRO

RS PRO RS-9519BT Manuel utilisateur

BGS technic

BGS technic 8890 Manuel utilisateur

Amprobe

Amprobe Hexagon 60 Manuel utilisateur
