Kurzweil K2600R Document technique

Speciﬁcations

K2600 Features

A-1

Appendix A

Speciﬁcations

K2600 Features

¥ 240 x 64-pixel backlit ßuorescent graphic display with adjustable contrast

¥ 3.5-inch ßoppy disk drive, for DD or HD disks, DOS compatible

¥ MIDI In, Thru, and Out with selectable second MIDI Out

¥ MIDI LED to indicate MIDI activity

¥ 48-note polyphony with dynamic voice allocation

¥ Multi-timbral, for multi-track sequencing and recording

¥ Hundreds of factory preset programs, and mroe than 100 factory preset setups

¥ Up to three layers per program, up to 32 layers for drum programs

¥ Receives mono (channel) pressure and poly (key) pressure

¥ Eight-zone setups transmit on eight MIDI channels with independent programmable controls

¥ Fully featured onboard sequencer for recording from keyboard or via MIDI; loads and plays MIDI

Type 0 sequences

¥ Easy-to-use programming interface including soft buttons, Alpha Wheel, and alphanumeric pad

¥ Eight Megabytes of 16-bit sample ROM, including acoustic instrumental sounds, waveforms, and

noise

¥ 20 KHz maximum bandwidth

¥ Optional stereo sampler with analog and digital inputs

¥ AES/EBU I/Os and optical I/O

¥ Sound ROM expandable to a total of 28 Megabytes

¥ Two SIMM sockets for optional sample RAMÑup to 128 Megabytes

¥ Stereo sample playback capability

¥ Akai

S1000, Roland,

and EPS

sample disk compatibility

¥ Two 1/4-inch mixed audio outputs (stereo pair)

¥ Eight 1/4-inch audio outputs programmable as four stereo pairs or as eight separate outputs, with

insert capability for effects patching

¥ Stereo headphone jack

A-2

Speciﬁcations

Environmental Speciﬁcations

¥ 500K battery-backed RAM for user programs, setups and other objects, expandable to 1500K

¥ Two SCSI ports for connection with external SCSI disks, CD-ROM drives, or personal computers

¥ Optional internal hard disk

¥ Optional eight-channel interface to AES, ADAT, DA-88

¥ Realtime DSP for each voice: 31 programmable DSP algorithms incorporating Þlters, EQ, distortion,

panning, pulse width modulation, and more; up to 3 programmable DSP functions per voice

¥ Filters: Lowpass, Highpass, Allpass, Bandpass, Notch, programmable resonance

¥ Programmable stereo multi-effects on MIX outputs, including simultaneous reverb, chorus, delay,

ßanging, EQÑand more

¥ Realtime internal and MIDI control of effects parameters

¥ MIDI standard sample dump/load capability

¥ SMDI sample dump/load capability

¥ System Exclusive implementation

¥ MIDIScopeª for analyzing MIDI events

Environmental Speciﬁcations

Temperature Ranges

Relative Humidity Ranges (Non-condensing)

For operation: minimum 41° F (5° C)

maximum 104° F (40° C)

For storage: minimum -13 ° F (-25° C)

maximum 186° F (85° C)

Operation and storage: 5—95%

Speciﬁcations

Physical Speciﬁcations

A-3

Physical Speciﬁcations

Electrical Speciﬁcations

AC supply: selectable; 100V, 120V, 220V, or 240V. 1.0 amps at 120 volts nominal

SafeVoltage Ranges

If the voltage drops below the minimum safe level at any voltage setting, the K2600 will reset,

but no data will be lost. If the voltage exceeds the maximum safe level, the K2600 may overheat.

Overall dimensions

K2600R K2600 K2600X

Width 16.9in

1. Excluding rack-mount brackets

43.0cm 47.8 in 121.4cm 54.3 in 137.9cm

Depth 13.9in 35.4cm 17.8 in 45.1cm 17.8 in 45.1cm

Height 5.1 in 13.0cm 4.8 in 12.2cm 4.8 in 12.2cm

Weight 24.65lb 11.2 kg 55.5 lb 25.2 kg 72.0 lb 32.7 kg

Voltage setting: 100V 120V 220V 240V

Safe voltage range: 85—107 95—125 180—232 190—250

Safe frequency range: 48—65 48—65 48—65 48—65

A-4

Speciﬁcations

Analog Audio Speciﬁcations

Audio Jacks

¥ 1/4-inch TRS balanced/unbalanced

¥ Tip = Positive

¥ Ring = Negative

¥ Sleeve = Chassis Ground

Separate Outputs

Mix Outputs

Headphone Output

Balanced Unbalanced

Maximum Output 21 dBu 15 dBu

Output Impedance 200

Ω

200

Ω

Balanced Unbalanced

Maximum Output 27 dBu 21 dBu

Output Impedance 200

Ω

200

Ω

Maximum Output 21 dBu

Output Impedance 47

Ω

Speciﬁcations

MIDI Implementation Chart

A-5

MIDI Implementation Chart

Model: K2600

Manufacturer: Date: 3/21/95

Young Chang Version 1.0

Digital Synthesizers

Mode 1: Omni On, Poly Mode 2: Omni On, Mono O = yes

Mode 3: Omni Off, Poly Mode 4: Omni Off, Mono X =no

Function Transmitted Recognized Remarks

Basic Channel Default 1 1 Memorized

Changed 1 - 16 1 - 16

Mode

Default Mode 3 Mode 3 Use Multi mode for multi-

timbral applications

Messages

Altered

Note Number 0 - 127 0–11 sets intonation key

True Voice 0 - 127 0 - 127

Velocity Note ON O O

Note OFF O O

After Touch Keys X O

Channels O O

Pitch Bender O O

Control Change O 0 - 31

32 - 63 (LSB)

64 - 127

O 0 - 31

32 - 63 (LSB)

64 - 127

Controller assignments are

programmable

Program Change O 1 - 999 O 1 - 999 Standard and custom

formats

True # 0 - 127 0 - 127

System Exclusive O O*

System Common

Song Pos. O O

Song Sel. O O

TuneXX

System Real Time Clock O O

Messages O O

Aux Messages

Local Control O O

All Notes Off O O

Active Sense X X

Reset X X

Notes *Manufacturer’s ID = 07

Device ID:default = 0;

programmable 0–127

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kurzweil Synthétiseur

Kurzweil

Kurzweil K2500 Mode d’emploi

Kurzweil

Kurzweil PC3A8 Manuel utilisateur

Kurzweil

Kurzweil PC3LE6 Manuel utilisateur

Kurzweil

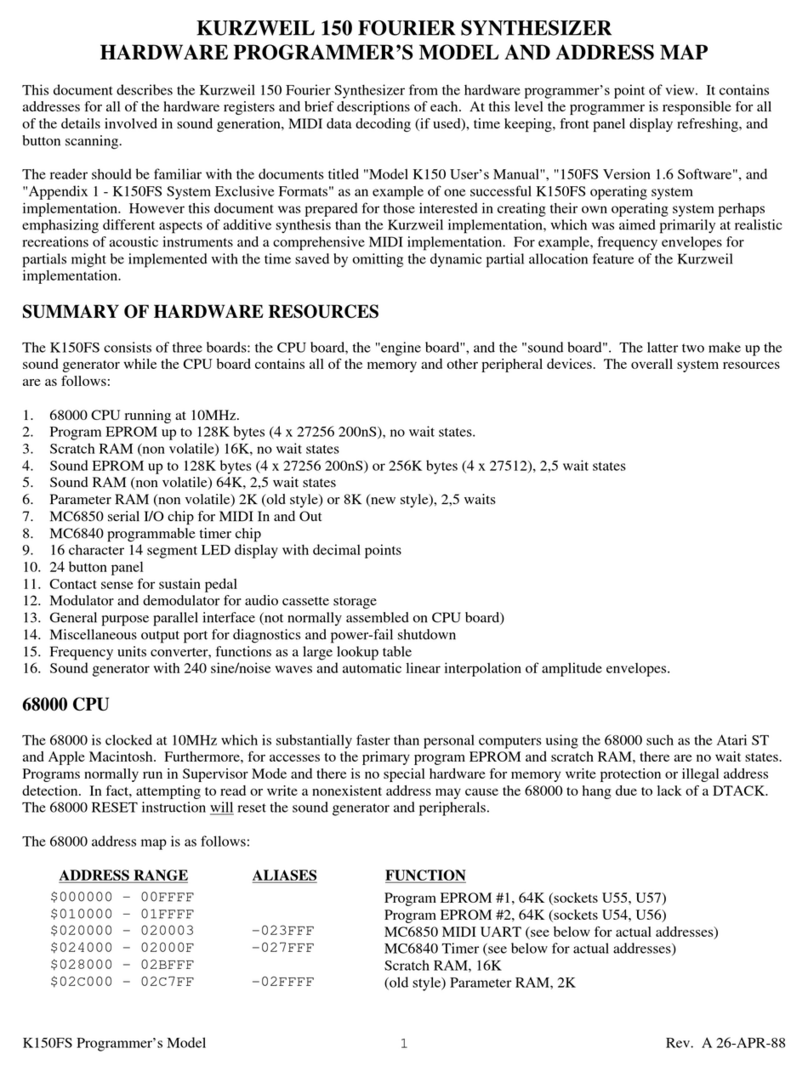

Kurzweil K150 - PROGRAMMERS MODEL REV A Instructions d'installation
