Kuryakyn 3181 Manuel utilisateur

PartS Included

1 License Plate Backplate

1 License Plate Z-Bracket

1 License Plate Frame

1 Hardware Kit

4 ¼-20 x ¾” Flat Screws

5 ¼-20 Acorn Nuts

5 ¼” Split Lock Washers

1 ¼-20 x ½” Socket Head Cap Screw (SHCS)

2 10-24 x ½” Button Socket Cap Screws (BSCS)

2 10-24 Acorn Nuts

2 #10 Split Lock Washers

1 1” x 3” x 0.1” Single Side PS

1 Installation Instructions

Please read and understand entire instructions before starting installation.

thank you for chooSIng küryakyn!

In order to Protect you and otherS from PoSSIble Injury

and/or ProPerty damage or loSS, PleaSe Pay cloSe attentIon

to all InStructIonS, warnIngS, cautIonS and attentIon noteS

regardIng the uSe and care of thIS Product.

WARNING! THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE

CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR

SERIOUS INJURY.

CAUTION! This indication alerts you to the fact that ignoring the contents described herein

can result in potential injury or material damage.

ATTENTION!

This indication alerts you to the fact that ignoring the contents described herein

may negatively affect product performance and functionality.

toolS SuggeSted

Set of Hex Wrenches, Combination Wrenches, Socket Set with Extensions and Ratchet

StrIctly obServe the followIng guIdelIneS In order to uSe the

Product ProPerly and avoId PotentIally dangerouS accIdentS.

Procedure

SteP 1 Read and understand all steps in the instructions before starting the installation. Park

the motorcycle on a hard, level surface; turn off the ignition and allow the engine to cool.

ATTENTION! A factory service manual may be helpful in performing this installation. Do not

attempt to perform this installation if you are not confident in your ability to complete all of the

steps in the procedure; consult a trained technician.

3181-11HD-0709

curved laydown lIcenSe Plate mount 3181

fItS: ’05-uP flStn SoftaIl deluxe, ’05-’07 flStSc SoftaIl SPrInger claSSIc and

’97-’03 flStS herItage SPrInger

INSTALLATION

SteP 2 Remove the black cover located inside the rear fender by pulling at the bottom and releasing the

top of the cover from the clip.

SteP 3 Remove the license plate backing plate and hardware from the taillight housing and

support arm.

SteP 4 Remove the taillight housing by removing the 3 screws (PIC 1) located on the front of the

taillight.

SteP 5 Remove the hardware securing the stock support arm. It will be necessary to reach the

hardware inside the fender.

SteP 6 Install the new Z-Bracket (PIC 2) in place re-using the stock hardware.

SteP 7 Secure the new License Plate Backplate (PIC 3) to the taillight housing using the 10-24

BSCS, 10-24 Acorn Nuts and #10 Split Lock Washers.

SteP 8 Install the taillight/backplate assembly to the bike. Secure with the 3 screws removed in

Step 4.

SteP 9 Install the ¼-20 x ½” SHCS through the top hole in the back plate and into the Z-

Bracket. Secure with a ¼” Split Lock Washer and Acorn Nut.

SteP 10 Install your license plate to the backplate and place the license plate frame over the

assembly and secure with the ¼-20 Flat Screws, Flat Washer and Acron Nuts.

SteP 11 Tighten all fasteners

ATTENTION! It is the installer’s responsibility to ensure that all of the fasteners (including pre-

assembled) are tightened before operation of the motorcycle. Küryakyn will not issue a warranty on

components lost due to improper installation. Periodic maintenance may be required.

Page

lIcenSe Plate mount

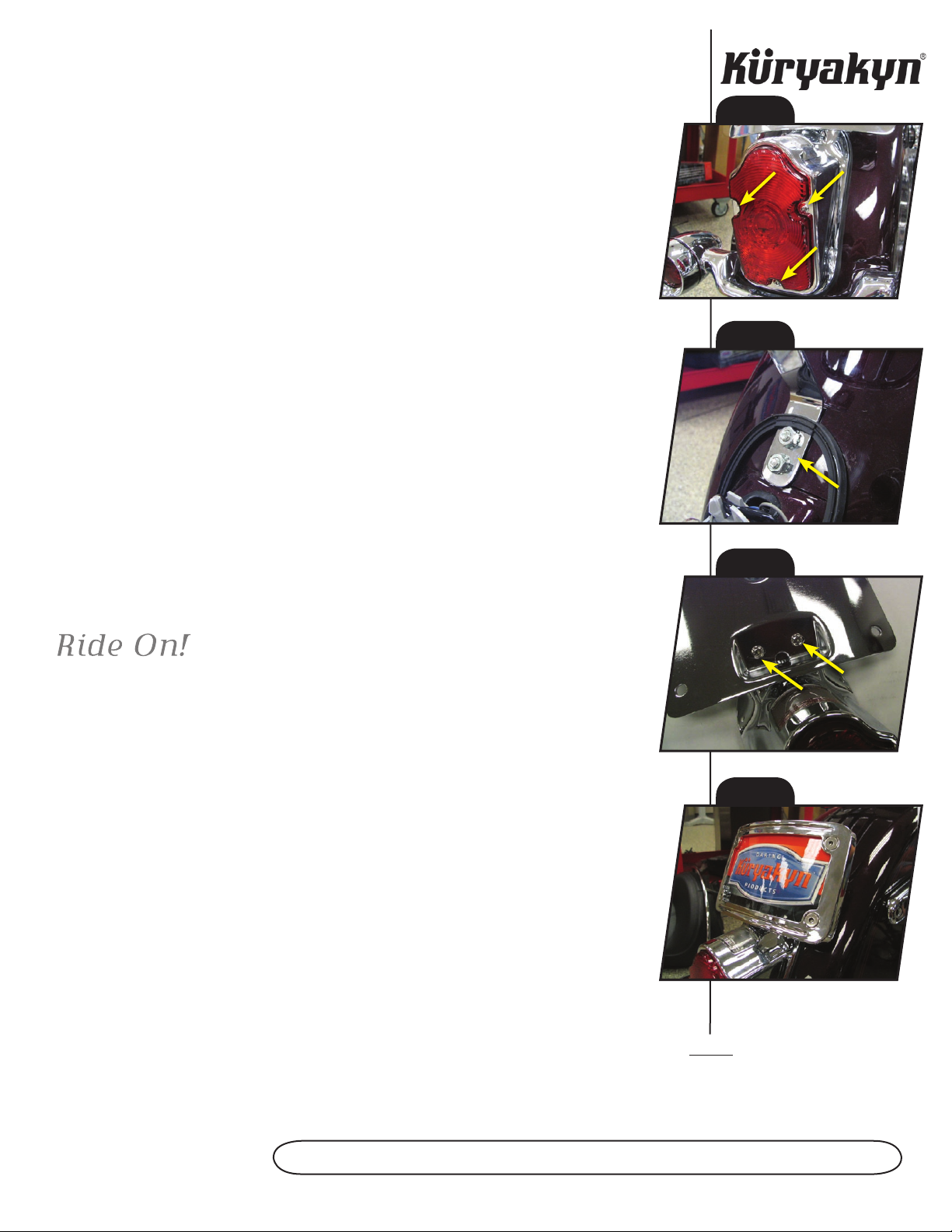

PIC. 1

PIC. 2

PIC. 3

PIC. 4
