BEDIENUNGSANWEISUNG
mit Montageanweisungen
INSTRUCTIONS FOR USE
and installation
Lesen Sie unbedingt die Gebrauchsanleitung
und den Montageplan vor Aufstellung,
Installation sowie Inbetriebnahme.
Please read the users and installation
instructions carefully before installation
of the appliance and before starting to use it.
Service und Kundendienst
Telefon: 0209 – 401 631
Email: [email protected]
FKF4800.0i
EN NL FR DE
CONTENTS
Safety information 2
Safety instructions 4
Installation 6
Operation 7
Daily use 8
Hints and tips 9
Care and cleaning 10
Troubleshooting 11
Technical data 13
Subject to change without notice.
VISIT OUR WEBSITE TO:
Get usage advice, brochures, trouble shooter, service and repair
information:
www.kueppersbusch-home.com
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result of
incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children aged from 3 to 8 years are allowed to load and
unload the appliance provided that they have been
properly instructed.
•This appliance may be used by persons with very
extensive and complex disabilities provided that they have
been properly instructed.
•Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
2
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and
other working environments;
–By clients in hotels, motels, bed and breakfast and other
residential type environments.
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact with
food and accessible drainage systems;
–store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
•WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
•WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
•When the appliance is empty for long period, switch it off,
defrost, clean, dry and leave the door open to prevent
mould from developing within the appliance.
3
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• At first installation or after reversing the
door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the door),
remove the plug from the power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the
rain.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
• The appliance contains a bag of
desiccant. This is not a toy. This is not
food. Please dispose of it immediately.
Electrical connection
WARNING! Risk of fire and
electric shock.
WARNING! When positioning
the appliance, ensure the
supply cord is not trapped or
damaged.
WARNING! Do not use multi-
plug adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING! Risk of injury,
burns, electric shock or fire.
4
The appliance contains flammable
gas, isobutane (R600a), a natural gas with
a high level of environmental compatibility.
Be careful not to cause damage to the
refrigerant circuit containing isobutane.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by the
manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
Internal lighting
WARNING! Risk of electric
shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational status
of the appliance. They are not intended
to be used in other applications and are
not suitable for household room
illumination.
Care and cleaning
WARNING! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains
flammable gas. Contact your municipal
authority for information on how to
discard the appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
5
INSTALLATION
WARNING! Refer to Safety
chapters.
Location
Refer to the assembly
instructions for the installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate freely
around the back of the cabinet.
Positioning
Install the appliance in a dry, well
ventilated indoors where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance.
Cli‐
mate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types of
models when operating outside
of that range. The correct
operation can only be
guaranteed within the specified
temperature range. If you have
any doubts regarding where to
install the appliance, please
turn to the vendor, to our
customer service or to the
nearest Authorised Service
Centre.
Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.
Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
CAUTION! Refer to the
assembly instructions for the
installation.
6
OPERATION
Control Panel
Functions
32
45
6
1
1Display
2Temperature warmer button
3Temperature colder button
4OK
5Functions
6ON/OFF
It is possible to change predefined sound
of buttons by pressing together Functions
and temperature colder button for a few
seconds. Change is reversible.
Display
A C
DEF
B
A. Timer indicator
B. Shopping function
C. Temperature indicator
D. Alarm indicator
E. ChildLock function
F. DrinksChill function
Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off. The temperature
indicators show the set default
temperature.
To select a different set temperature refer
to "Temperature regulation".
If "dEMo" appears on the display, refer to
"Troubleshooting" .
Switching off
1. Press the appliance ON/OFF for 5
seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
Temperature regulation
Set the temperature of the appliance by
pressing the temperature regulators.
Default set temperature:
• +5°C for the fridge
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
7
Shopping function
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the Shopping function to chill the products
more rapidly and to avoid warming the
other food which is already in the
refrigerator.
1. Press the Functions until the
corresponding icon appears.
The Shopping indicator flashes.
2. Press the OK to confirm.
The Shopping indicator is shown.
The Shopping function shuts off
automatically after approximately 6 hours.
To switch off the function before its
automatic end, repeat the procedure.
The function switches off by
selecting a different fridge set
temperature.
ChildLock function
Activate the ChildLock function to lock the
buttons from unintentional operation.
1. Press Functions until the
corresponding icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
DrinksChill function
The DrinksChill function is to be used to
set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for a
certain period of time.
1. Press Functions until the
corresponding icon appears.
The DrinksChill indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Timer regulator to change
the Timer set value from 1 to 90
minutes.
3. Press OK to confirm.
TheDrinksChill indicator is shown.
The Timer start to flash (min).
At the end of the countdown the
DrinksChill indicator flashes and an
audible alarm sounds. Press OK to switch
off the sound and terminate the function.
To switch off the function repeat the
procedure until the DrinksChill goes off.
It is possible to change the time
at any time during the
countdown and at the end by
pressing the Temperature
colder button and the
Temperature warmer button.
Door open alarm
If the door is left open for a few minutes,
the acoustic alarm starts and alarm
indicator flashes.
The alarm stops after closing the door.
During the alarm, the acoustic signal can
be muted by pressing any button.
DAILY USE
WARNING! Refer to Safety
chapters.
Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap to
remove the typical smell of a brand-new
product, then dried thoroughly.
CAUTION! Do not use
detergents, abrasive powders,
chlorine or oil-based cleaners
as they will damage the finish.
8

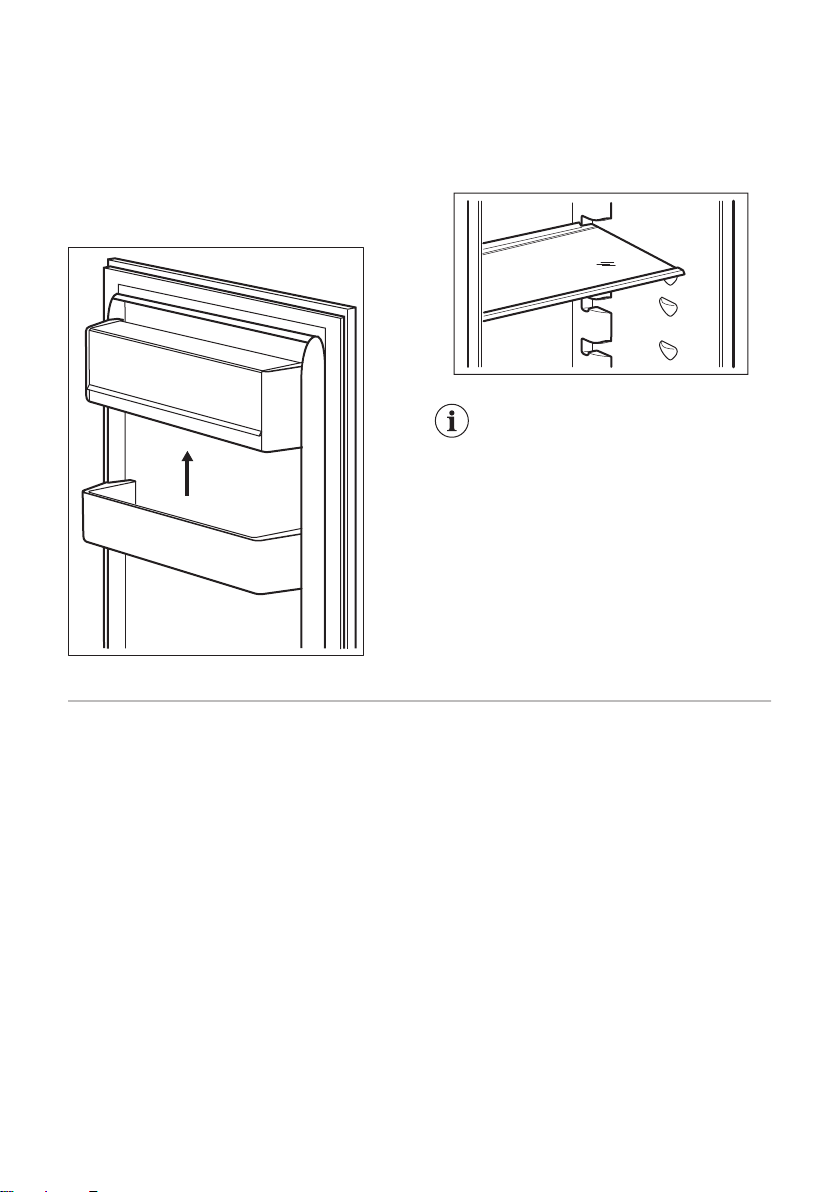

Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf up until it
comes free.
2. Reposition as required.
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer to
ensure correct air circulation.
HINTS AND TIPS
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor
switches on or off.
Hints for energy saving
• Eco mode / default setting preserves
fresh foods while saving energy.
• Fresh Food Compartment (Fridge):
Most efficient use of energy is ensured
in the configuration with the drawers in
the bottom part of the appliance and
shelves evenly distributed. Position of
the door bins does not affect energy
consumption.
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
Hints for fresh food refrigeration
• Do not store warm food or evaporating
liquids in the refrigerator.
• Cover or wrap the food, particularly if it
has a strong flavour.
9
• Position food so that air can circulate
freely around it.
Hints for refrigeration
Useful hints:
• Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
• Cooked foods, cold dishes: cover and
place on any shelf.
• Fruit and vegetables: clean thoroughly
and place in a special drawer.
Bananas, potatoes, onions and garlic
must not be kept in the refrigerator if
not packed.
• Butter and cheese: place in a special
airtight container or wrap in an
aluminium foil or a polythene bag to
exclude as much air as possible.
• Bottles: close with a cap and place on
the door bottle shelf, or (if available) on
the bottle rack.
CARE AND CLEANING
WARNING! Refer to Safety
chapters.
General warnings
CAUTION! Unplug the
appliance before carrying out
any maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
The accessories and parts of
the appliance are not suitable
for washing in a dishwasher.
Periodic cleaning
CAUTION! Do not pull, move
or damage any pipes and/or
cables inside the appliance.
CAUTION! Do not damage the
cooling system.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe them clean to ensure they are
clean and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This will improve the performance of
the appliance and save electricity
consumption.
Defrosting of the refrigerator
Defrosting of the fridge compartment is
automatic. The water that condenses
flows into a recipient on the compressor
and evaporates. The recipient cannot be
removed.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
CAUTION! If you want to keep
the appliance switched on, ask
somebody to check it once in a
while to prevent the food inside
from spoiling in case of a
power failure.
10
Table des matières
Langues :
Autres manuels Kuppersbusch Réfrigérateur
Kuppersbusch
Kuppersbusch KE 650-2-2T Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE187-9 Manuel utilisateur
Kuppersbusch
Kuppersbusch FKG9500.0I Manuel d'utilisation
Kuppersbusch
Kuppersbusch IKF 249-5 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE 458-4-4T Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE 197-5 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE3180-3 Manuel utilisateur
Kuppersbusch
Kuppersbusch FKGF8800 0i Series Manuel d'utilisation
Kuppersbusch
Kuppersbusch IKEF30804Z3 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE 159-6 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE328022T Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE3390-3 Manuel d'utilisation
Kuppersbusch
Kuppersbusch IKE 318-4 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE 318-4-2T Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE 178-4 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKE3390-3 Manuel utilisateur
Kuppersbusch
Kuppersbusch IKF 209-5 Manuel utilisateur
Kuppersbusch
Kuppersbusch ? ???KE9600-0-2T Manuel utilisateur
Kuppersbusch
Kuppersbusch FKG8850.0i Manuel utilisateur
Kuppersbusch
Kuppersbusch FK2540.0i Manuel d'utilisation
