Kuat Transfer2 Manuel utilisateur

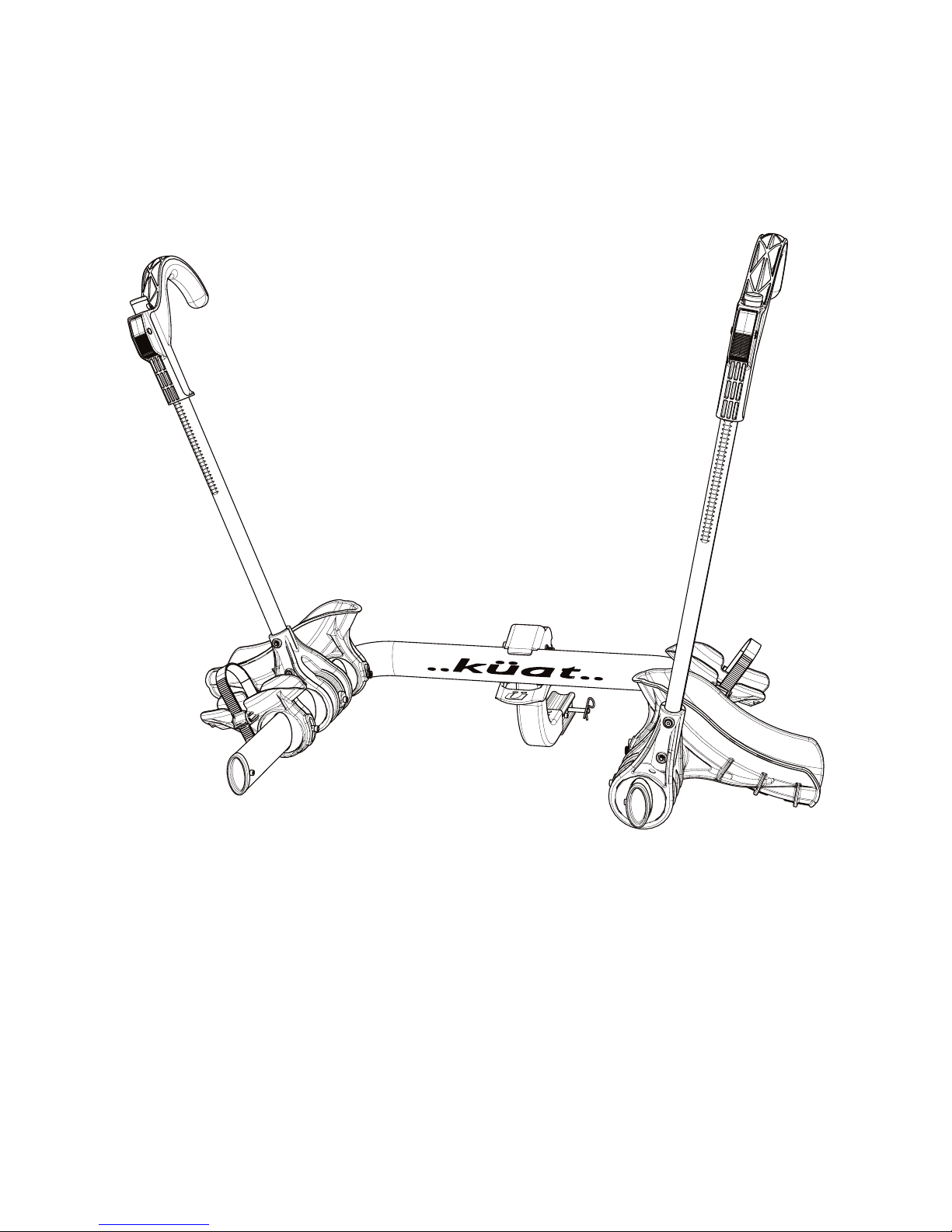

TRANSFER2
USER GUIDE
2
(1) Hitch Washer
(1) Hitch Lock Washer
PARTS INCLUDEDHARDWARE INCLUDED

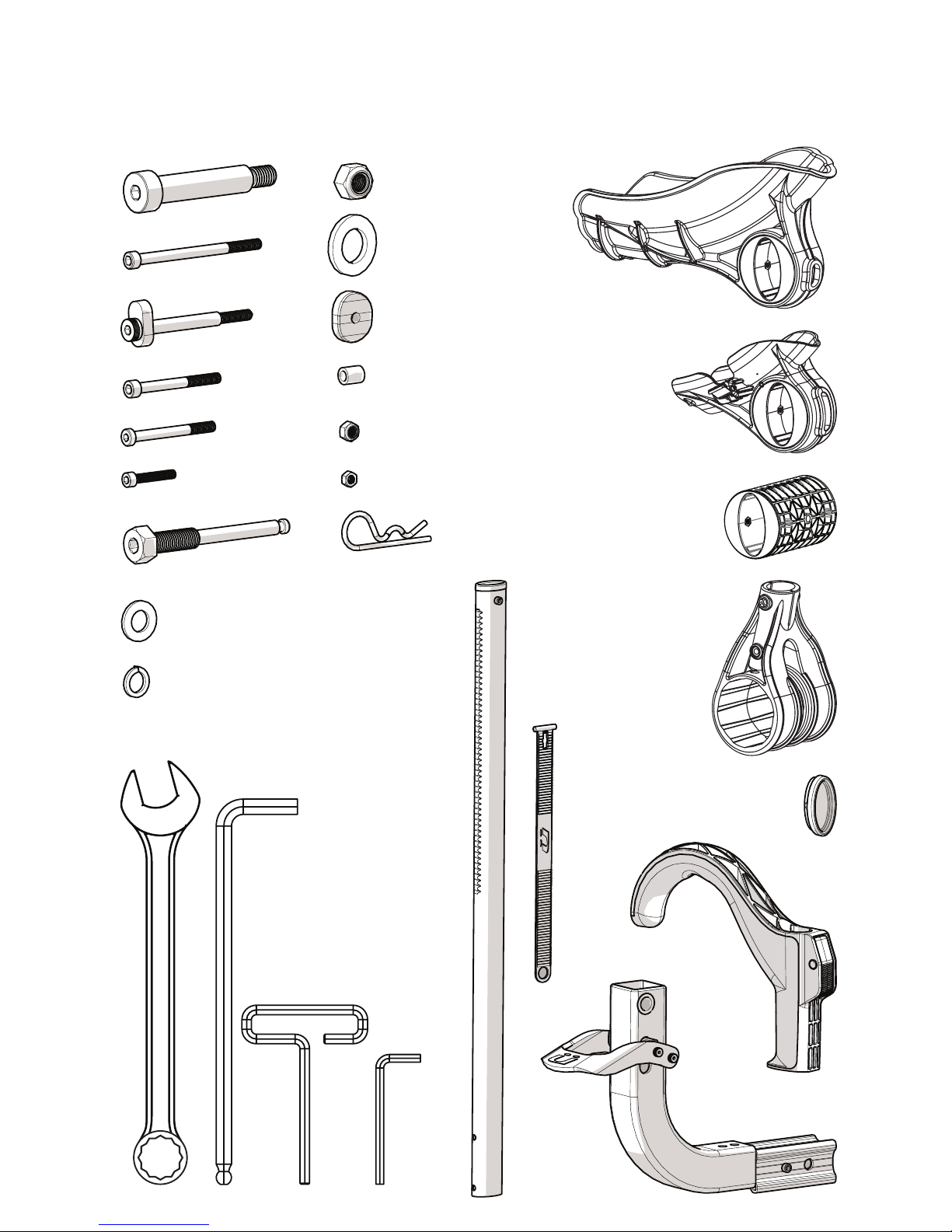

PARTS LIST
TOOLS INCLUDED
8mm
19mm
(1) Pivot Bolt
(2) Front Tire Cradle
(2) Rear Tire Cradle
(2) Arm Puck
(2) Arm Ratchet Tube
(2) Rear Tire Strap
(2) Arm Knuckle
(2) Ratchet Handle
(1) Hitch Stinger
(2) End Cap
(1) Pivot Nut
(1) Pivot Washer
(2) Plate
(2) Spacer
(4) M6 Nut
(2) M5 Nut
(2) Locator Tab Bolt
(4) M6 x 90
(4) M6 x 60
(4) M6 x 60 Low Prole
(2) M5 x 30
(1) Hitch Bolt (1) Cotter Pin
5mm
4mm
3
x1 x1
ASSEMBLY INSTRUCTIONS

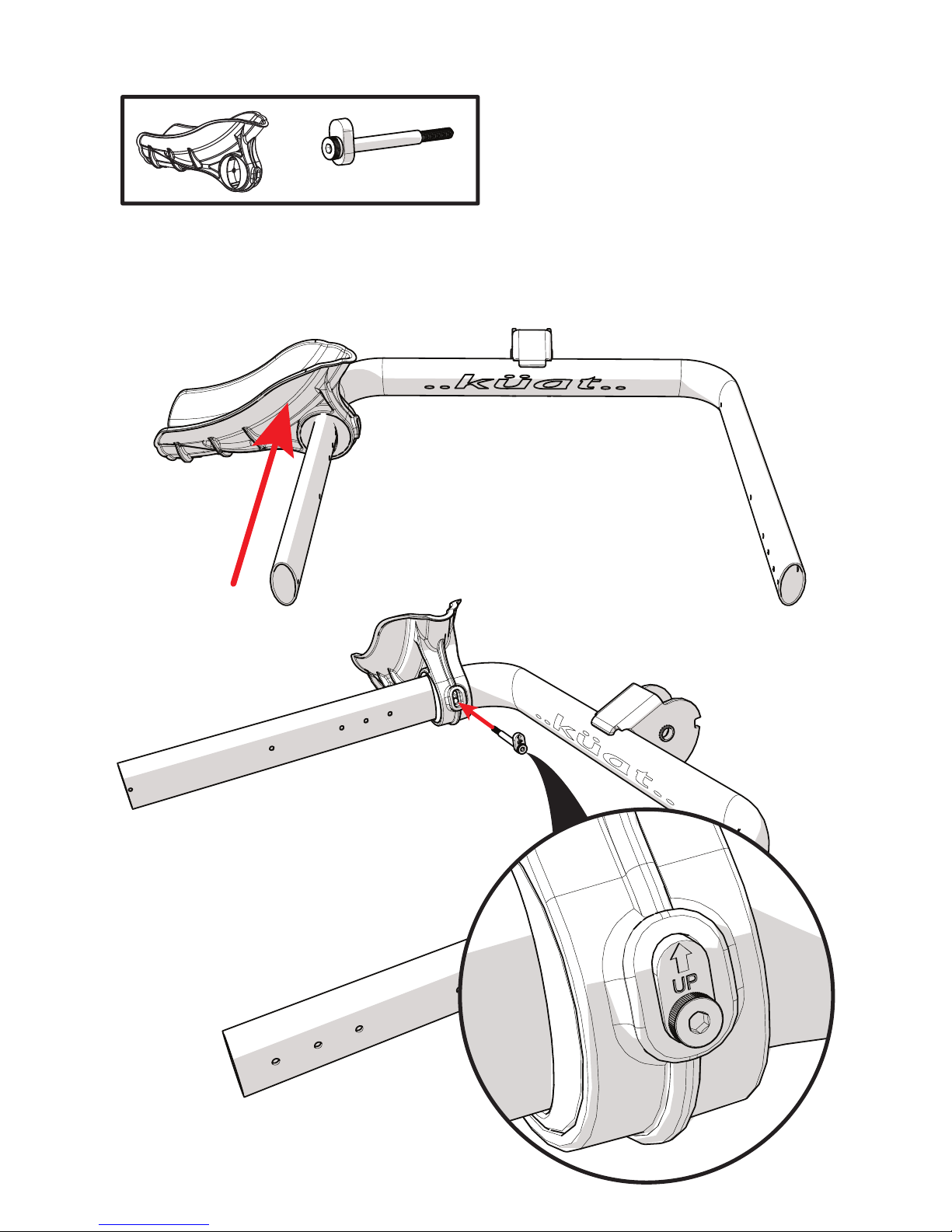

Slide front tire cradle
into position.
Front Tire Cradle Locator Tab Bolt
Install bolt with locator
tab as shown.
Reference page 18 for
information on locator tab
functionality.
4
x1 x1 x1

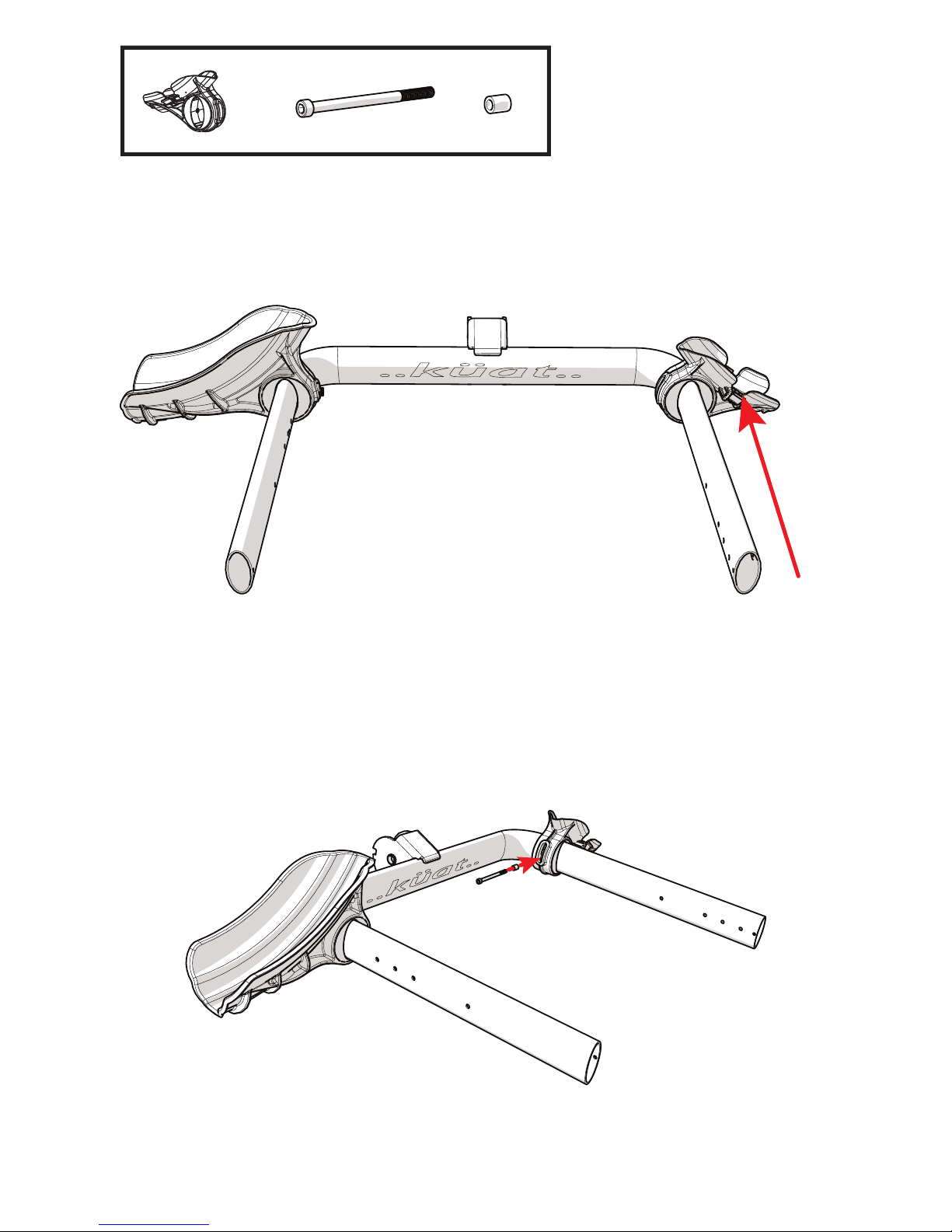

Slide rear tire cradle
into position.
Secure with bolt and spacer.
Rear Tire Cradle SpacerM6 x 90
5
x1 x2

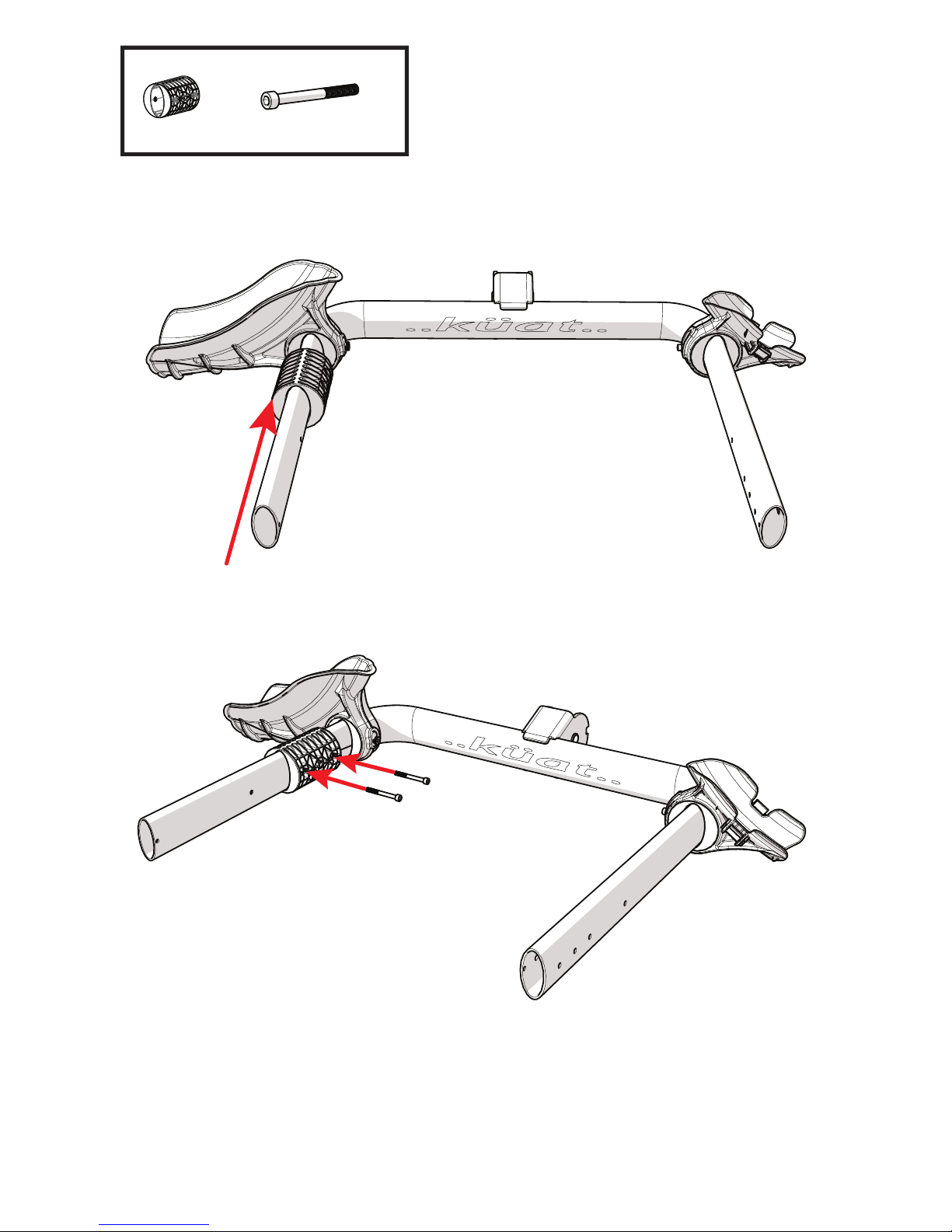

Slide arm puck into position with
the pre-installed nuts facing out.
Install screws.
Arm Puck M6 x 60
6
x2
x2
x1
x1 x1
Assemble tire hook arm.
NOTE: Use arm without Küat logo.
Arm Ratchet Tube
Arm Knuckle
Ratchet Handle
M6 x 60 Low Prole
M6 Nut
7
x1
x1 x1

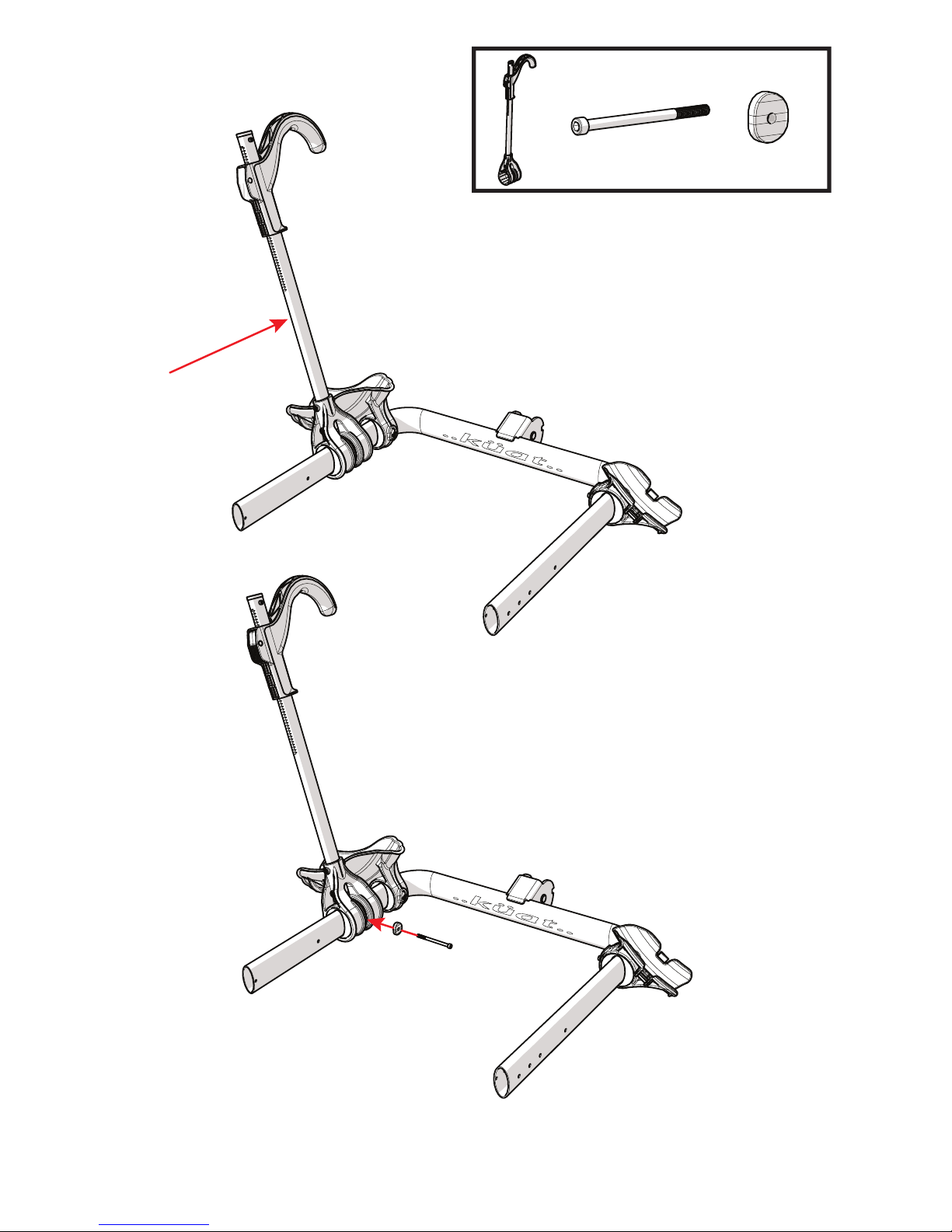

Slide tire hook arm
onto puck.
Install arm tensioner
plate and bolt.
PlateM6 x 90Assembled Arm
8
x1 x1
Slide front tire cradle
into position.
Install bolt with locator
tab as shown.
Front Tire Cradle Locator Tab Bolt
Reference page 18 for
information on locator tab
functionality.
9
x1 x1 x1

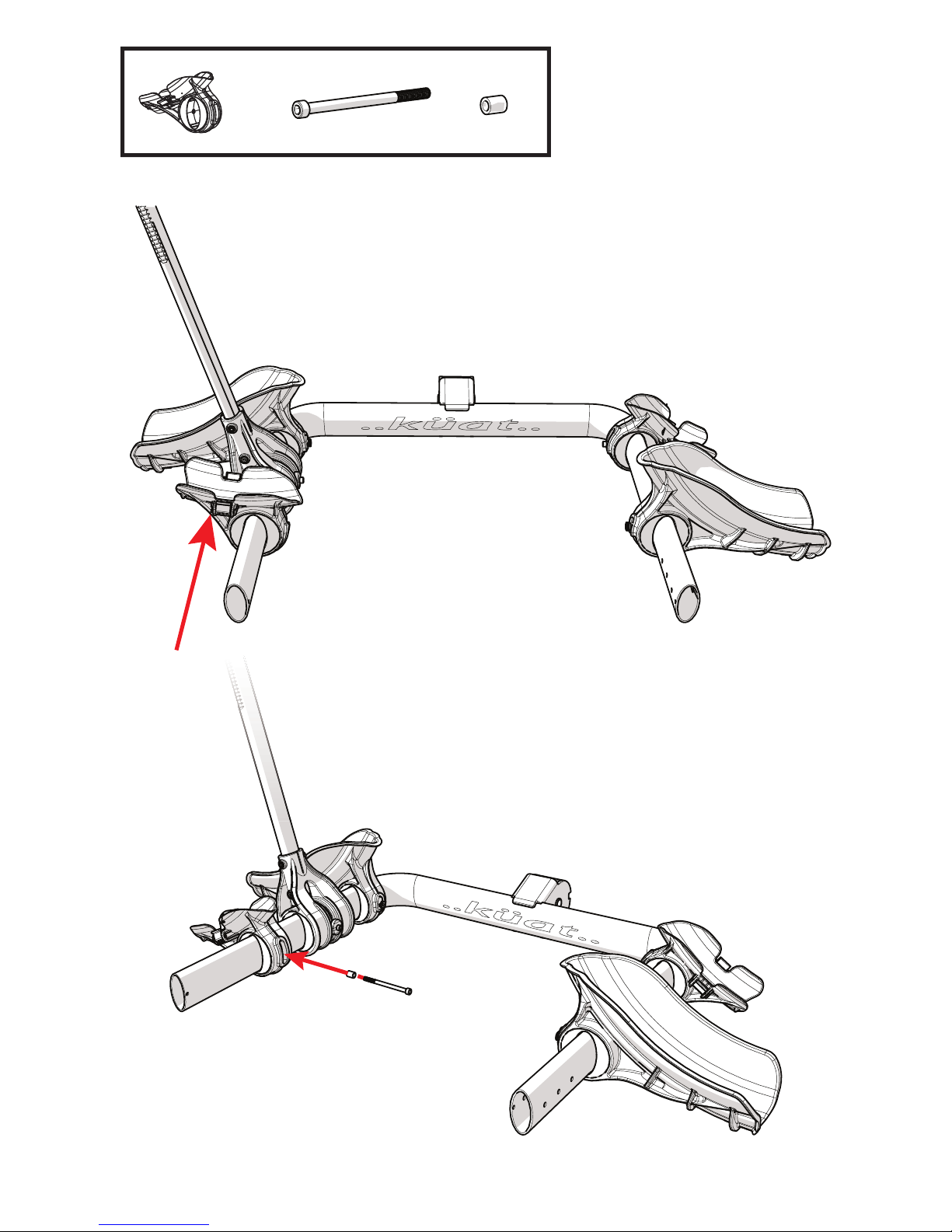

Slide rear tire cradle
into position.
Secure with bolt
and spacer.
Rear Tire Cradle SpacerM6 x 90
10
x1 x2

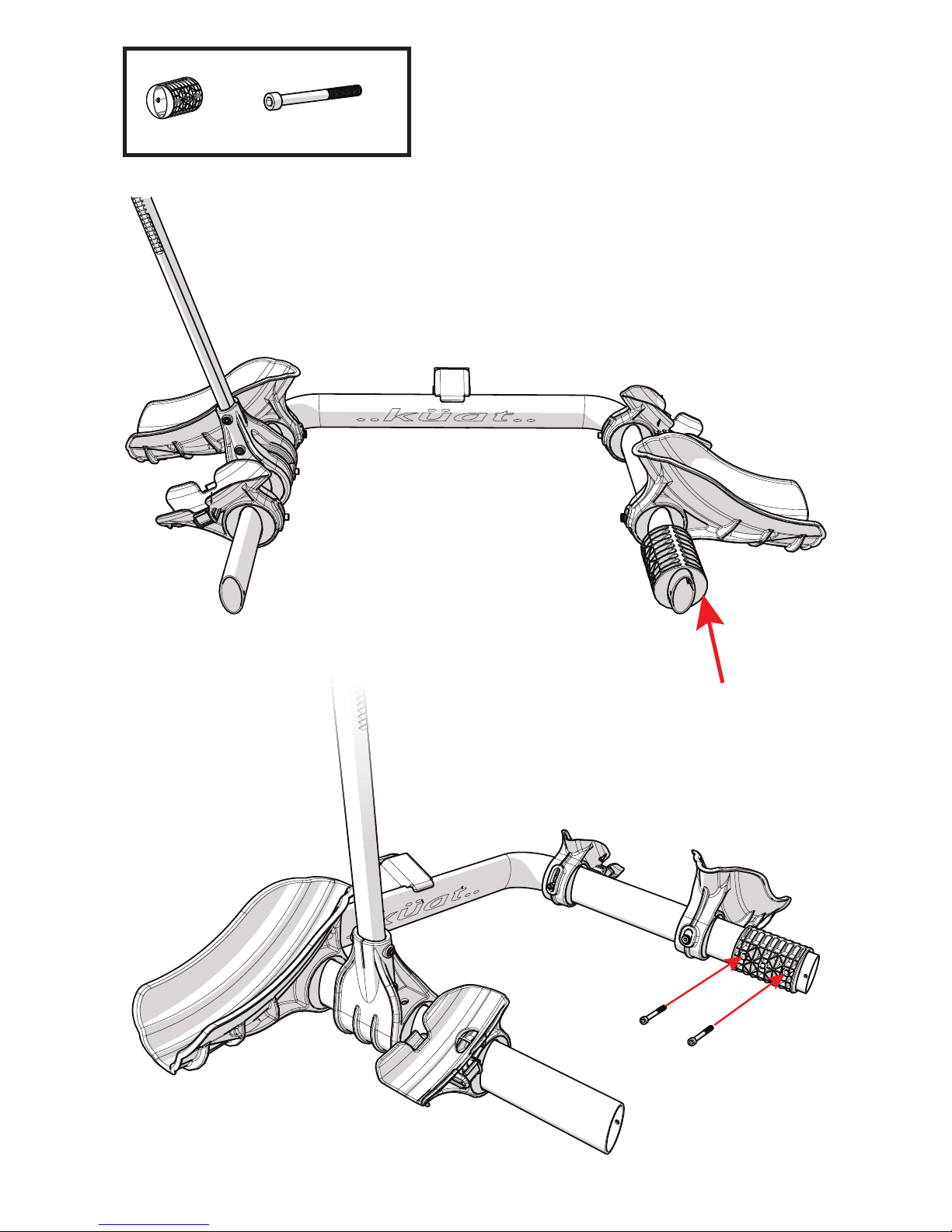

Slide arm puck into position with the
pre-installed nuts facing out.
Install screws.
Arm Puck M6 x 60
