KS LEV Manuel utilisateur
HEIGHT ADJUSTABLE SEATPOST
USER MANUAL
This user manual covers the following models: LEV, LEV Carbon, LEV DX, and LEV 272
i
PLEASE READ THIS FIRST
ATTENTION
WARNING
Thank you for purchasing a new KS Height Adjustable Seatpost.
Your new seatpost is warranted for a period of two years from the
date of purchase. The warranty is expressly limited to the repair or
replacement of the defective part and is the sole remedy of the
warranty. The warranty applies only to the original owner and is
not transferrable. Proof of purchase is required to validate
warranty eligibility. The warranty does not cover normal wear and
tear, routine maintenance, improper installation or improper use of
the seatpost. Modification of the seatpost in any manor shall void
the warranty. Kind Shock Hi-Tech Co. Ltd. shall not be responsible
for incidental or individual costs incurred by the warranty service
provider that are not covered by this warranty. The user assumes
the risk of any personal injury or property damage, including
damage to the seatpost, and any other losses, if the seatpost is
modified or improperly used at any time. This warranty gives the
consumer specific legal rights and those rights vary from state to
state. This warranty does not affect the statutory rights of the
consumer.
This is a high performance product. It will give you reliable service
if it is installed properly and regularly maintained by an authorized
KS Service Center. Please read through these instructions fully and
follow them careful before you install your new seatpost.
KS Height Adjustable Seatposts must be regularly maintained by
an a qualified service technician. If you need assistance locating
a qualified service technician, more information can be found at
http://www.kssuspension.com. Service center locations can be
found at www.kssuspension.com. Do not disassemble your
seatpost. Disassembly could cause damage and severe
personally injury as some of the contents are under pressure.
Failure to follow these warnings and instructions will immediately
void your warranty.
1
BEFORE YOU INSTALL THE SEATPOST
Please be sure your new KS seatpost is designed to fit in your frame.
All LEV models are designed to fit either 27.2mm, 30.9mm, 31.6mm,
or 34.9mm seat tube inner diameters. Improper fit may cause
slippage, faulty performance, injury and may result in void of
warranty.
Make sure your frame is clean and free of debris, grease
and the inside of your seat tube is smooth and free of any
object that may score the seatpost.
Apply grease to all seatpost bolt threads.
Apply a friction or anti-seize compound to the inside of the
seat tube and inserted surface of the seatpost. Do not use
grease.
2
(LEV DX & LEV Carbon)
(LEV DX & LEV Carbon)
(LEV DX)
(LEV DX)
Rear of Bicycle
(LEV DX )
Rear of Bicycle
(LEV DX)
SEATPOST ORIENTATION (LEV AND LEV 272)
To accomodate all frame styles and cable routing configurations,
LEV can be oriented in 20-degree increments as shown below:
SEATPOST INSTALLATION
3
SEATPOST INSTALLATION
MINIMUM INSERTION DISTANCE
All seat post models must be inserted into the bicycle’s seat tube
to cover the minimum insertion line indicated on the seat post.
Insufficient insertion of the
seat post into the bicycle
frame’s seat tube could
result in damage to the seat
post and/or bicycle and
may result in a loss of control
of the bicycle which may
lead to serious injury or
death.
SEAT COLLAR TORQUE
Tighten your frame’s seat collar to a maximum torque of 7 N-m. Do
not over torque your frame’s seat collar as this may inhibit proper
function of your seat post.
6-7 N-m
Do not over torque your
frame’s seat collar as this
may inhibit proper function
of your seat post. Seat Collar
4
SADDLE INSTALLATION
AFTER SETTING SEATPOST ORIENTATION IN YOUR FRAME
Depending on how you have oriented your LEV seatpost within
your seat tube, you may need to align your saddle to point
forward. To do this, please first remove the two saddle head
clamp bolts, spherical nuts, upper and lower floating clamp using
a 4mm Hex wrench.
Note: The lower clamp body may slide down the stanchion tube at
this point.
4mm
4mm
5
SADDLE INSTALLATION
Using a flathead screwdriver, remove the air valve cap from the
top end of the stanchion tube.
At this point, the lower floating clamp cradle and lower clamp
body can rotate freely and be correctly oriented to the front of the
bicycle.
NOTE: The low end of the lower floating clamp cradle and lower
clamp body must point toward the front of the bicycle.
Clamp Body
Clamp Cradle
Air Valve Cap
4mm
8 N-m
4mm
8 N-m
Head Clamp Bolts
Head Clamp Bolts
Saddle Rails
Lower Floating Clamp
Spherical NutsSpherical Nuts
Upper Floating Clamp
See note below
6

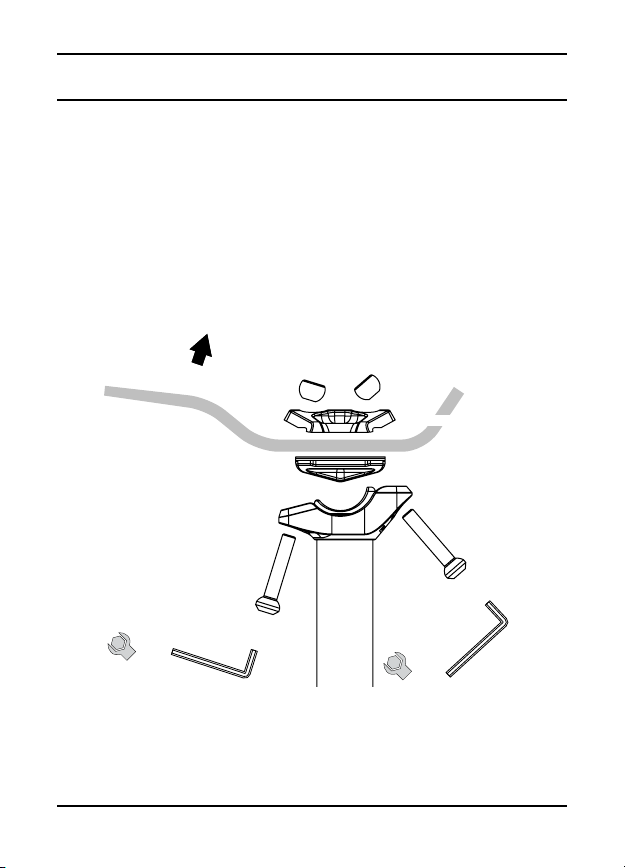

SADDLE INSTALLATION
When the desired seatpost orientation is determined and the
saddle head clamp parts have been aligned with the front of the
bicycle, the saddle can then be installed.
To install the saddle, replace the two saddle head clamp bolts,
spherical nuts, upper and lower floating clamp in the order in
which they were removed.
Before tightening, place the rails of your saddle between the
upper and lower floating clamps so that the rails seat in the
channel provided by the lower floating clamp.
Using a 4mm hex wrench, tighten the two head clamp bolts to the
maximum torque indicated on your KS dropper post head clamp.
Torques may vary by model.
See note below
WITH STANDARD GRIP
Using a 3mm Hex wrench, loosen the remote lever clamp pinch
bolt and remove the bolt. Open the hinged lever clamp and
position it in the desired location on your handlebar. Close the
clamp and install the pinch bolt. Tighten to a maximum torque of
5 N-m (LEV alloy remote) and 1N-m (LEV Integra polycarbonate
remote).
WITH ODI LOCK-ONTM COMPATIBLE GRIP
The alloy remote lever clamp can be used to replace the inner
lock ring on ODI LOCK-ONTM compatible grips. Remove the inner
lock ring on your grip. Replace with the seat post remote lever
clamp. Follow the instructions above. NOTE: Polycarbonate
remote lever clamp is not hinged and not compatible with ODI
LOCK-ONTM compatible grips.
7
REMOTE LEVER INSTALLATION
4-5 N-m 1 N-m
Pinch Bolt
Hinged
Lever Clamp
Non-hinged
Lever Clamp
Remote Lever Cable Housing
Your new LEV seatpost includes a 1700mm long cable, 1500mm
long cable housing, and an in-line barrel adjuster. Depending on
your own requirements, you may need to shorten the cable to
minimize excess slack when mounted to your frame.
With the remote lever installed on your handlebar, route the cable
housing according to your frame manufacturer’s
recommendations. You will need to cut the housing into two
pieces to fit the in-line barrel adjuster. The total length of the two
pieces of housing and barrel adjuster must be long enough to
properly route from the remote lever to the seatpost.
Feed the inner wire through the remote lever, integrated barrel
adjuster and cable housing.
