Dear customer

We would like to congratulate you on your new high pressure cleaner and to thank

you for the purchase.

To ease your introduction to the use of the cleaner, we have provided the following

pages of explanations, tips and hints, which we ask you to read before using it for

the first time.

The equipment will assist you professionally in all cleaning tasks, e.g.:

Description

Zulässige Abweichung der Zahlenwerte ±5 % nach VDMA Einheitsblatt 24411

Technical

data

Operating pressure,

steplessly adjustable

Nozzle size

Perm. overpressure

Water output

Hot water input (1-8 bar)

Suction height

High pressure hose

Electrical ratings

Connect. wattage input

output

Weight

Dimensions in mm

Sound level acc.to DIN 45 635

with dirtkiller

Sound level LWA

Recoil at lance

Vibrations at lance

with dirtkiller

Kränzle

HD 7/120

10 - 120 bar

20 03

135 bar

at 1400 rpm 7 l/min

max. 60 °C

1.0 m

10 m

230V ; 50 Hz ; 7,5 A

P1: 1.6 kW

P2: 1.0 kW

18,5 kg

300 x 330 x 800

71 dB (A)

84dB (A)

84 dB (A)

ca. 27 N

1.9 m/s²

Order n°:

41.720

41.720 1

Muß dem Gerät mindestens zugeführt werden (Siehe Seite 7)

Kränzle

HD 10/120

10 - 120 bar

20 045

135 bar

at 2800 rpm 10 l/min

max. 60 °C

1.0 m

10 m

230V ; 50 Hz ; 11 A

P1: 2.5 kW

P2: 1.8 kW

18,5 kg

300 x 330 x 800

71 dB (A)

91 dB (A)

ca. 27 N

1.9 m/s²

Order n°:

41.721

41.721 1

- facades

- flagstones

- terraces

- vehicles of all types

- containers

- machines etc.

- removing of

old paint

Connection principle

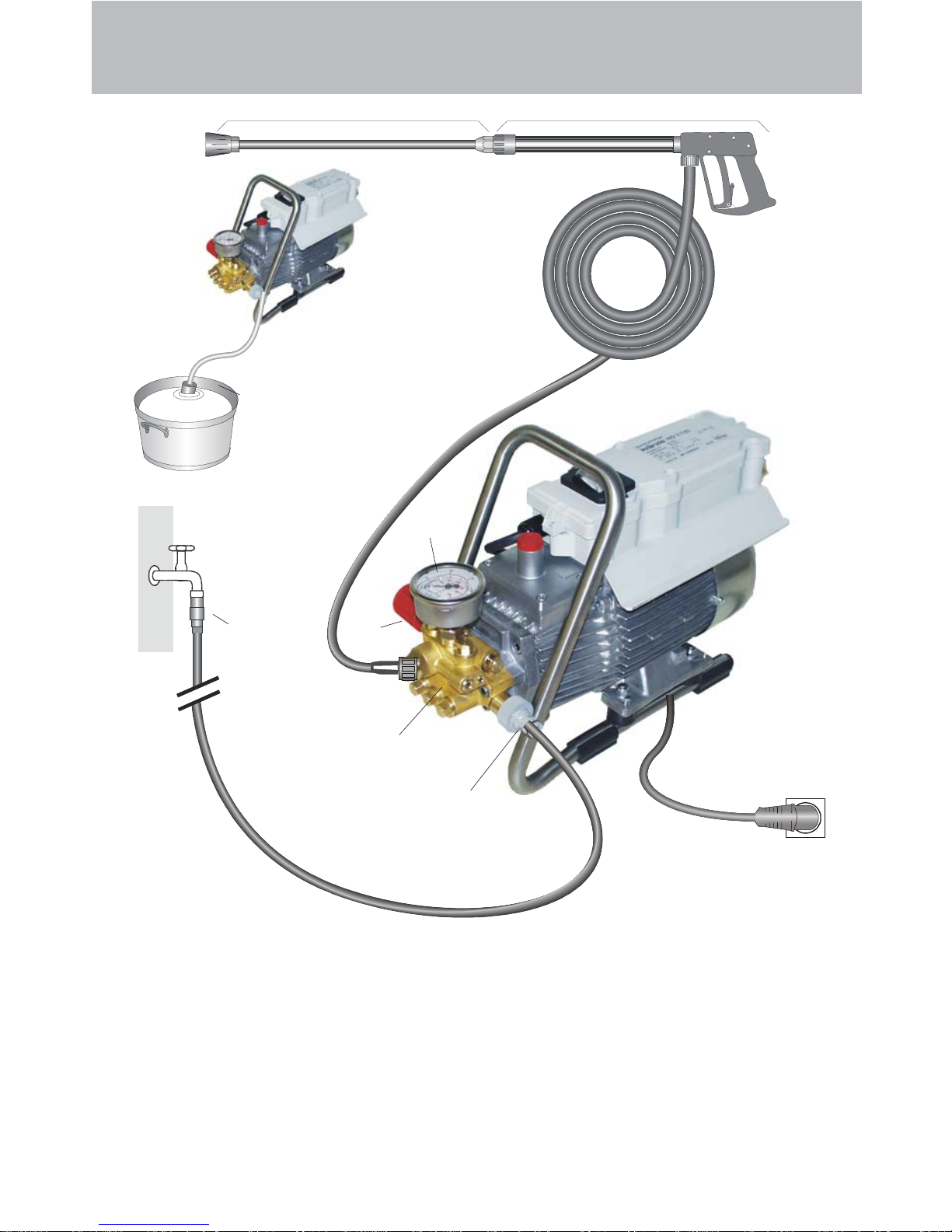

The KRÄNZLE HD7/120 + HD10/120 - high pressure cleaners are mobile ma-

chines. The design can be seen from the diagram.

Components

1 Water inlet connection with filter

2 Suction hose with filter (special

accessory) Order no. 15.038 3

3 High pressure pump

4 Press. gauge with glycerin filling

5 Unloader valve - safety valve

6 High pressure hose

7 Spray gun

8 Interchangeable lance with high

pressure nozzle

9 Nonreturn valve (see page 8)

Description

Water

230 V

Water- and cleaning/detergent system

Water can be connected at mains pressure to the high pressure pump or it can

be sucked directly from a storage tank. The water is then forced under pressure

by the high pressure pump to the lance. The high pressure jet is formed by the

nozzle at the end of the lance.

Lance with trigger gun

The machine can only be operated when the safety trigger is squeezed. The

machine can only be operated when the safety trigger is squeezed. When

the lever is squeezed, the spray gun opens. The liquid is then pumped to

the nozzle. The spray pressure increases and quickly reaches the selected

operating pressure.

When the trigger is released, the trigger gun closes and any further spraying

of liquid from the lance is stopped.

The increase in pressure when the trigger gun is closed causes the unloader

valve-safety valve to open. The pump remains switched on and continues to

pump liquid through the pump at reduced pressure. When the trigger gun is

opened, the unloader valve - safety valve closes and the pump ressumes

pressure spraying from the lance.

The trigger gun is a safety device. Repairs should

only be performed by qualified persons. Should

replacement parts be required, use only components

authorized by the manufacturer.

Unloader valve - safety valve

The unloader valve - safety valve protects the machine from a build p of

excess pressure, and is designed not to permit an excess pressure to be

selected for operation. The limit nut on the handle is sealed with a spray

coating.

*(see page 22:"Stopping leaks from the hose or gun".)

The operating pressure and spray rate can be steplessly adjusted by turning

the handle.

Replacements, repairs, new adjustments and sealing

should only be performed by qualified persons.

Description

The motor is protected from overload by a motor protection switch, which

automatically cuts out the motor in the event of overload. However should the

switch trip frequently, the cause of the malfunction should be located and

rectified (see page 6).

Motor protection switch

Setting up

Neither set up and operate the machine in rooms where there is

a risk of fire or explosion nor put it into puddles. Do not use the

machine under water.

Never use liquid containing solvents such as paint thinners,

petrol, oil or similar liquid matter. Pay attention to the

instructions of the manufacturers of the cleaning

agents. The seals in the machine are not resistant to solvents.

The spray of solvents is inflammable, explosive and poisonous.

CAUTION !

When running your high pressure cleaner with hot water of 60°

C raised temperatures occur. Do not touch the machine

without safety gloves!

Replacements and inspection work should only be performed by

qualified persons when the machine is disconnected

from the power supply, i.e. pull out the plug from the

electrical socket.

Location

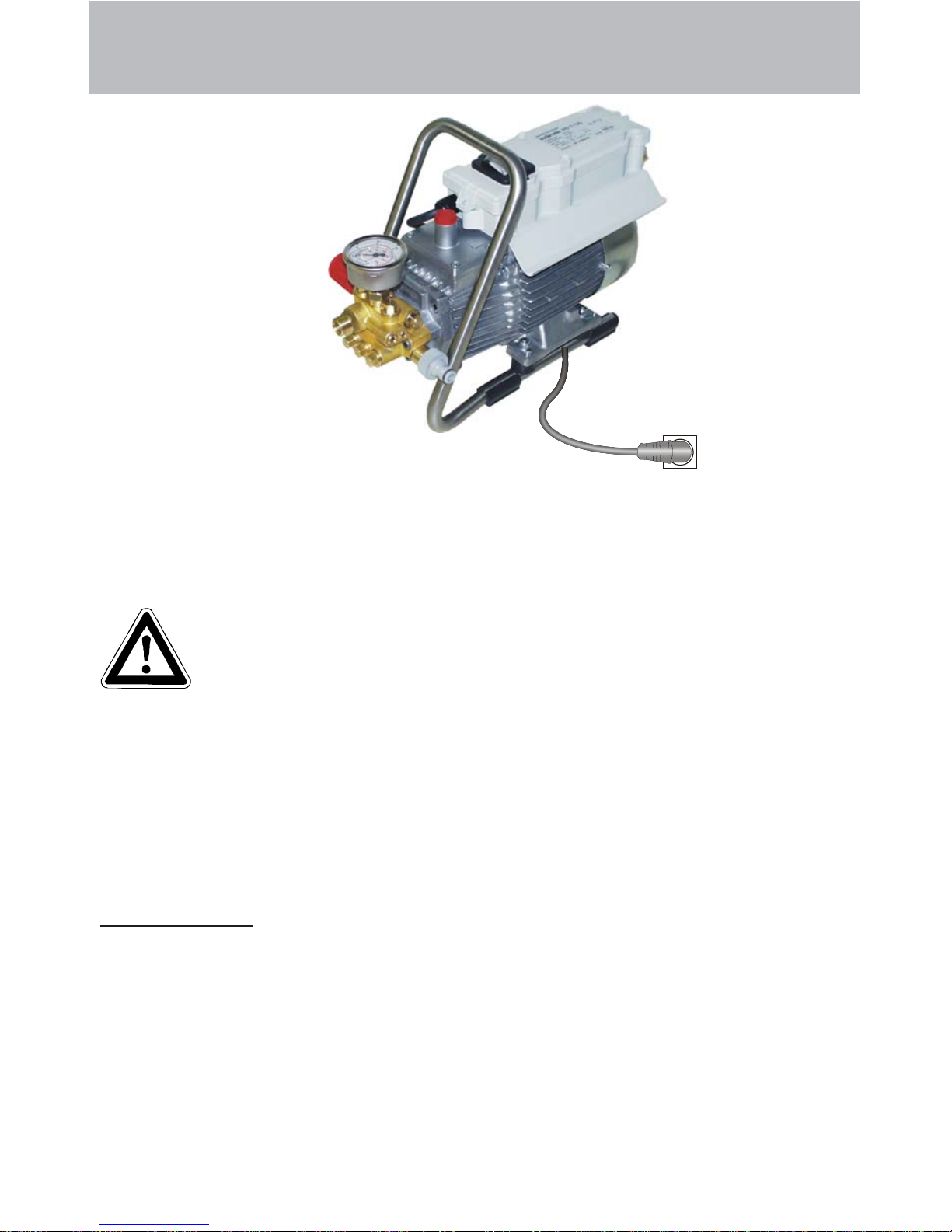

Electrical connection

The machine is supplied with an electrical power cable with plug.

The mains plug must be fitted to a standard grounded socket with a

30mA residual current operated device. The socket must be protected

with a 16A delay action fuse on the mains side.

KRÄNZLE HD 7/120 230 Volt / 50 Hz

KRÄNZLE HD 10/120 230 Volt / 50 Hz

When using an extension cable, this must have an earthed lead

which is properly connected to the socket. The conductors in the

extension cable must have a minimum cross section of 1.5 mm².

Plug connections must be of a spray-proof design, and may not

be located on a wet floor.

(with extension cables of more than 10 m - 2.5 mm2)

CAUTION !

The use of extension cables which are too long may lead to malfunctions and

start up difficulty.

When using a cable drum, always keep the cable wound as far as possible.

Description

230 V

Description

Please check that the high pressure cleaner has available the quantity

of water specified on page 2 (techn. specifications) (Litres per minute).

Water connection:

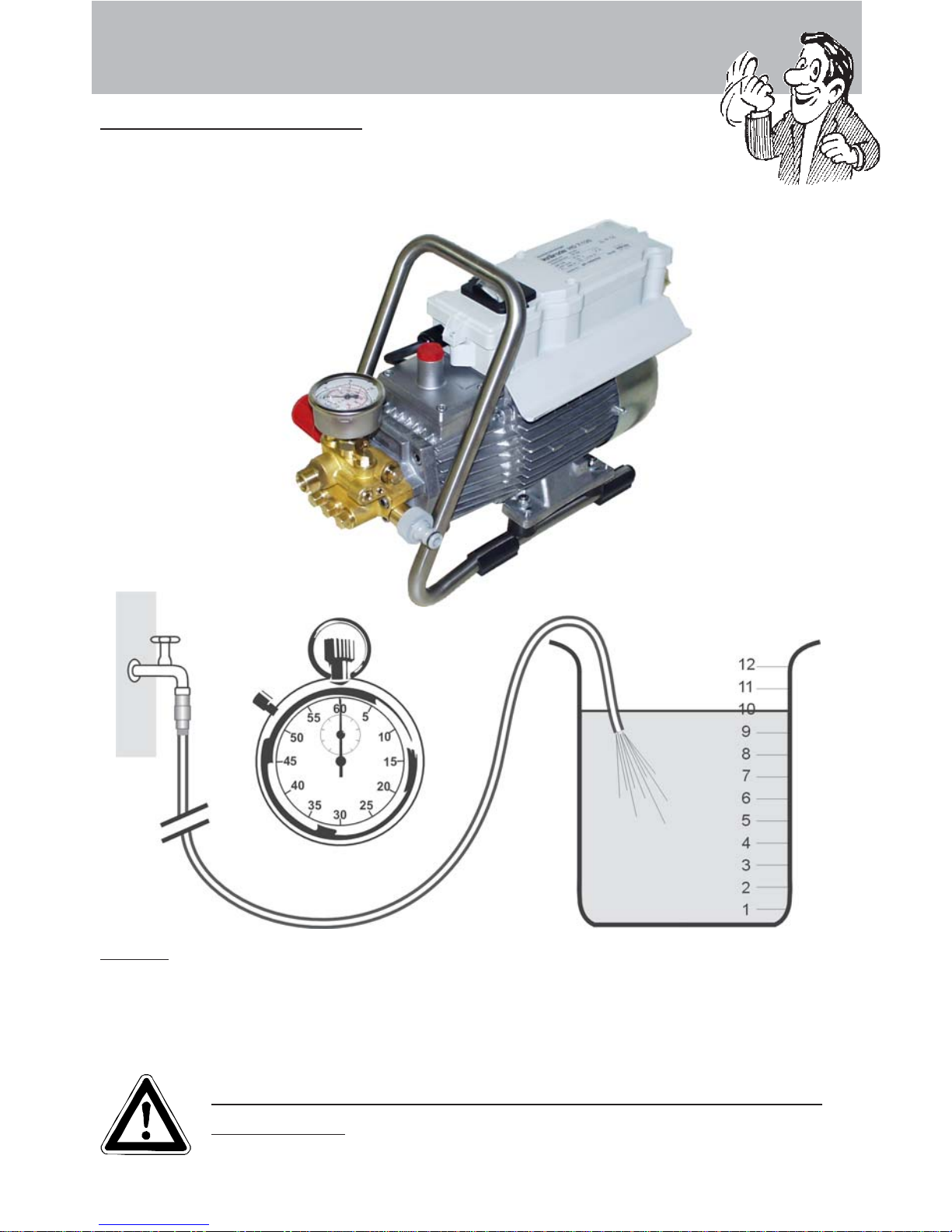

Test:

Allow the water to run through the supply hose into a bucket for 1 minute.

The received quantity of water must be at least the quantity given on page 2 !!!

Lack of water causes fast wear on seals (no

warranty)

Brief operating instructions

When operating your high pressure cleaner

pay attention that it is in a horizontal position.

1. Connect the high pressure hose with the spray gun.

2. Connect to suitable water supply.

3. Flush the air from the pump (open and close the spray gun several

times)

4. Make the electrical connection

5. Switch on the machine with opened spray gun and commence

cleaning.

6. After completing the work, completely empty the pump (switch

the motor on for approximately 20 seconds without the suction and spray

gun).

- Only use clean water ! Protect from frost !

CAUTION !

Please pay attention to the regulations of your waterworks company. In accordance

with EN 61 770, the machine may not be directly connected to the public drinking

water supply lines.

A brief connection however is permissible according to DVGW (German Association

for Gas and Water Affairs) if a tube ventilator with check valve (Kränzle Order-No.

41.016 4) is built into the water supply.

Also indirect connection to the public drinking water supply lines is permissible by

way of free emission in accordance with EN 61 770; e.g. by using a reservoir with a

float valve.

Direct connection to a non-drinking water supply line is permissible.

High pressure hose and spray device

The high pressure hose and spraying device supplied with the machine are

made of high grade material, they are also optimized for the machine and

marked as required by the appropriate regulations.

- Hose length max. 20 m.

If replacement parts are required, only such parts

that are authorized by the manufacturer and which

bear the markings required by the appropriate regula-

tions may be used. The high pressure hose and spray

device must be connected in a pressure-tight manner

(no leak). The high pressure hose may not be driven

over, pulled excessively, or twisted. The hose may

under no circumstances be pulled over sharp edges,

since otherwise the guarantee is automatically void.

Description

Safety notes

As to the recoil -

see notice on page 2!

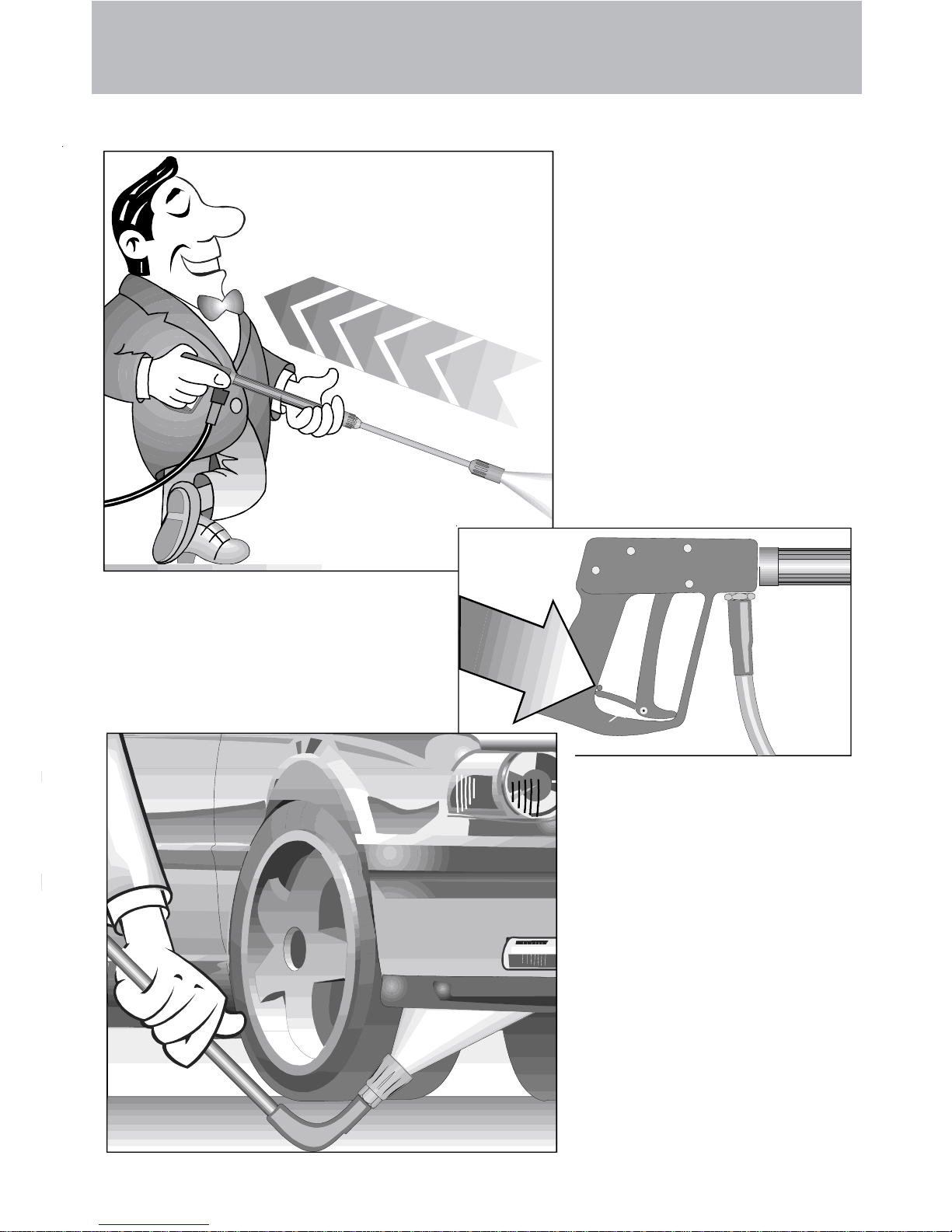

Always aim the

underbody lance. Note

when using an angled

underbody lance, like

forexamplelanceno.

41.075 1, that there is a

certain amount of

torque in the recoil.

(Amount of torque 26

Nm)

Apply the safety catch on the

spray gun after each use, in

order to prevent uninten-

tional spraying!

1. Spray lance with

high pressure nozzle

2. Spray gun with

insulated pistol grip

and screw connection

3. KRÄNZLE - High pressure cleaners HD7/120 / HD 10/120

4. Operating instructions

5. Water inlet components

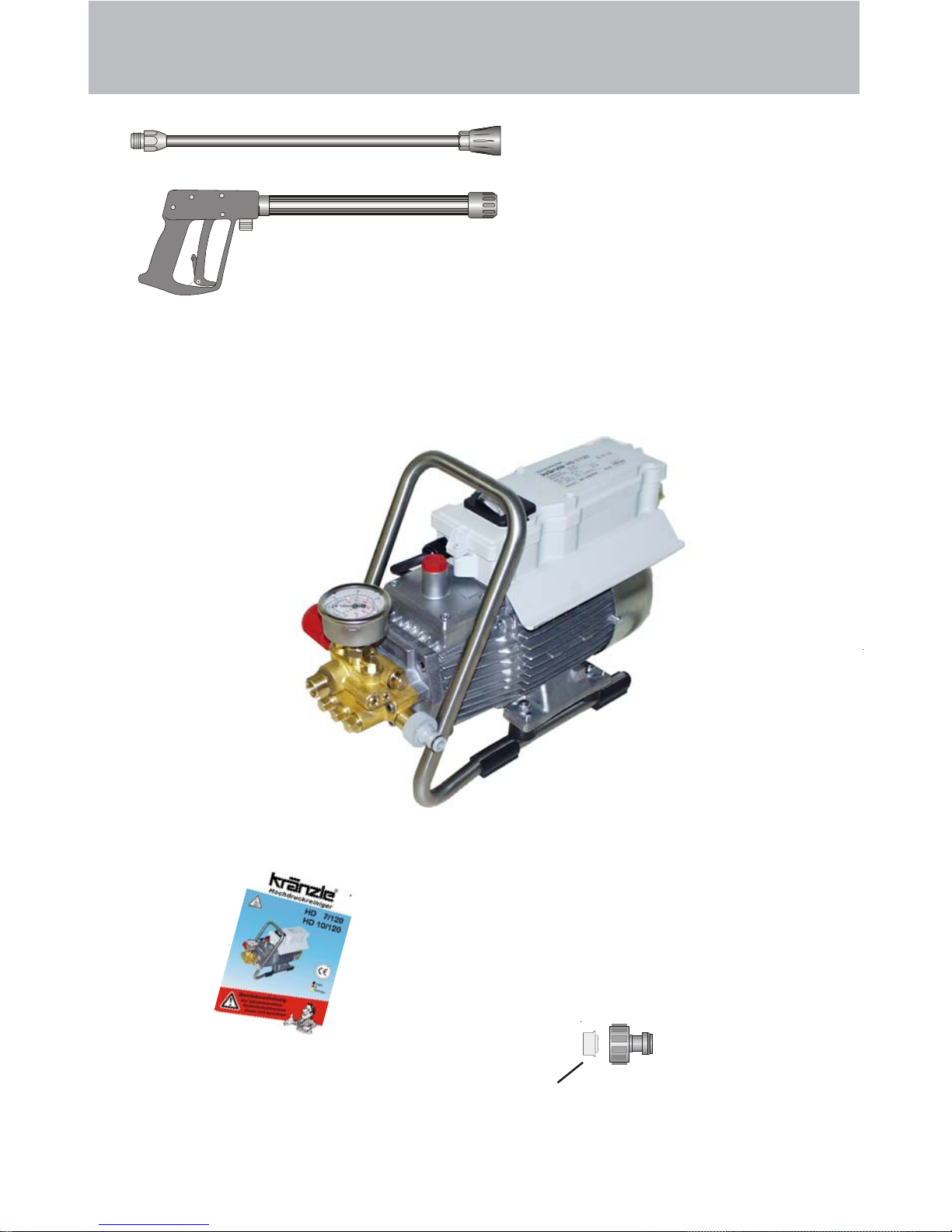

This is what you’ve purchased:

is already installed
