Kramer 673T Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

673T

HD-SDI Optical Transmitter

673R

HD-SDI Optical Receiver

P/N: 2900-000485 Rev 4

673T, 673R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the 673T, 673R HD-SDI Optical Transmitter/Receiver 5

4Connecting the 673T, 673R 7

5Technical Specifications 9

Figures

Figure 1: 673T HD-SDI Optical Transmitter 5

Figure 2: 673R HD-SDI Optical Receiver 6

Figure 3: Connecting the 673T, 673R HD-SDI Optical Transmitter/Receiver 8

673T, 673R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer 673T, 673R HD-SDI Optical

Transmitter/Receiver, which is ideal for the following typical applications:

Home theater, presentation and multimedia applications

Long range multimedia distribution for cinemas, stores, and entertainment

centers

Video production and broadcast facilities

Retail stores and other point-of-sale systems

673T, 673R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer 673T, 673R away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

673T, 673R - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

Warning:

Avoid direct eye exposure into the optic connectors

when powered, although this product is regulated

strictly enough to operate under the Laser Class 3R for

eye safety

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

673T, 673R - Overview

3 Overview

The 673T is a high-performance fiber optic transmitter for 3G HD-SDI, HD-SDI,

SDI, and dual-link SDI signals. The unit converts up to four channels of serial

digital signals on gold-plated BNC connectors to light pulses that are transmitted

over a single multimode fiber optic cable to a 673R receiver that converts them

back to serial digital signals. The 673T and 673R pair has a transmission range of

1000 meters (more than 3,200ft).

Both the 673T and 673R:

Feature a maximum data rate of up to 3Gbps, enabling it to be used for

standard definition, high definition and the new 3G high definition serial

digital video signals (SD/HD-SDI)

Feature a single multimode OM3 fiber optic with SC connectors

Include four HD-SDI signals on gold-plated BNC connectors each for the

transmitter and the receiver

Support SDI, HD-SDI, 3G HD-SDI and dual-link and support data rates of

270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps

Are strictly regulated in accordance with Class 3R Laser Eye Safety in

compliance with ANSI Z136 and IEC 60825-1:2007

Feature HDTV compatibility

Include cable equalization up to 350m for SD signals, 140m for 1.5GHz HD

signals, and 120m for 3GHz HD signals

Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of

480 (for NTSC) or 576 (for PAL) lines of interlaced video. High Definition (HD) means a

video format, consisting of 720 active lines of progressive video or 1080 lines of

progressive or interlaced video

Feature fiber optic, output and input indication LEDs

Include reclocking and equalization on each channel

Include 5V DC power adapters and housing in Kramer DigiTOOLS®

enclosures

Can be rack mounted in a 1U rack space with the optional RK-3T rack

adapter

673T, 673R - Overview

3.1 Defining the 673T, 673R HD-SDI Optical

Transmitter/Receiver

This section describes the:

673T HD-SDI Optical Transmitter, see Section 3.1.1

671R HD-SDI Optical Receiver, see Section 3.1.2

3.1.1 Your 673T HD-SDI Optical Transmitter

Figure 1 defines the 673T HD-SDI Optical Transmitter:

Figure 1: 673T HD-SDI Optical Transmitter

Feature

Function

CONNECTED INPUT LEDs

Lights when a valid input is connected (from 1 to 4)

FIBER LED

Lights when the fiber optic cable is connected

ON LED

Illuminates when receiving power

SDI IN BNC Connector

Connects to the SDI source (from 1 to 4)

OPTIC CABLE Connector

Connects to the optical connector on the 673R via

multimode fiber cable

5V DC

+5V DC connector for powering the unit

673T, 673R - Overview

3.1.2 Your 673R HD-SDI Optical Receiver

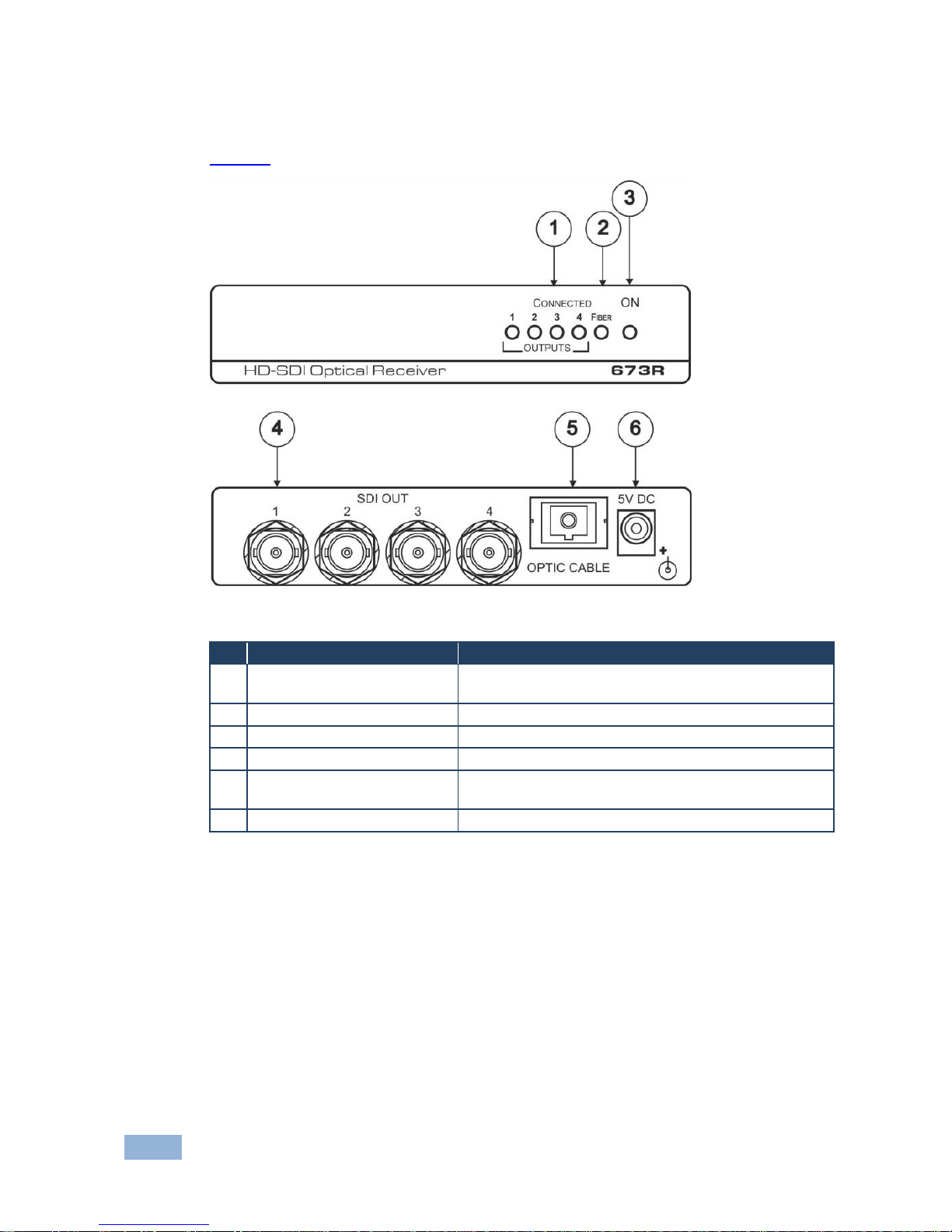

Figure 2 defines the 673R HD-SDI Optical Receiver:

Figure 2: 673R HD-SDI Optical Receiver

Feature

Function

CONNECTED OUTPUT LEDs

Illuminates to show the valid input signals connected on

the transmitter (from 1 to 4)

FIBER LED

Illuminates when the fiber optic cable is connected

ON LED

Illuminates when receiving power

SDI OUT BNC Connector

Connects to the SDI acceptor (from 1 to 4)

OPTIC CABLE Connector

Connects to the optical connector on the 673T via

multimode fiber cable

5V DC

+5V DC connector for powering the unit

673T, 673R - Connecting the 673T, 673R

4 Connecting the 673T, 673R

Always switch off the power to each device before connecting it to

your 673T, 673R. After connecting your 673T, 673R, connect its

power and then switch on the power to each device.

Warning:

Avoid direct eye exposure into the optic connectors when powered,

although this product is regulated strictly enough to operate under

the Laser Class 3R for eye safety.

To connect the 673T and 673R, as illustrated in the example in Figure 3, do the

following:

1. Connect up to four SDI sources (for example video players and/or HD-SDI

cameras) to the four SDI IN connectors.

You do not have to connect all the inputs and outputs.

2. Connect the four SDI OUT connectors to up to four SDI acceptors (for

example, HD-SDI displays).

3. Remove the dust caps and connect the OPTIC CABLE connector of the

673T to the OPTIC CABLE connector of the 673R, via OM3 cabling with SC

connectors (maximum range of 900 meters (2950ft)).

4. Connect the 5V DC power adapter to the power socket on each unit and

connect the adapter to the mains electricity (not shown in Figure 3).
