Kramer VP-434 Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-434

Component/UXGA HDMI Scaler

P/N: 2900-000346 Rev 6

VP-434 – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VP-434 Component/UXGA HDMI Scaler 5

4Connecting the VP-434 7

4.1 Connecting the Contact Closure Remote Control PINs 9

5Operating the VP-434 10

5.1 Using the Front Panel Buttons 10

5.2 Using the CONTROL Buttons 10

5.3 Using the Infrared Remote Control Transmitter 12

6Technical Specifications 13

Figures

UFigure 1: VP-434 Component/UXGA HDMI ScalerU5

UFigure 2: Connecting the VP-434 Component/UXGA HDMI ScalerU8

UFigure 3: Connecting the Contact Closure Remote Control PINsU9

UFigure 4: Infrared Remote Control TransmitterU12

VP-434 - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VP-434 Component/UXGA HDMI

Scaler, which is ideal for the following typical applications:

•Projection systems in conference rooms, boardrooms, auditoriums, hotels

and churches, production studios, rental and staging

•Home theater up-scaling

2 VP-434 - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer VP-434 away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VP-434 - Getting Started 3

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 VP-434 - Overview

3 Overview

The Kramer VP-434 is a high-quality component video/UXGA (computer video

graphics) to HDMI scaler. It accepts one of two inputs: either component video (Y,

Pb, Pr, Y, Cb, Cr and YUV; compatible with both SD and HD component) on RCA

connectors or computer video graphics on a 15-pin HD computer graphics video

connector (selected via a front panel selector button or via the remote contact

closure switch). It scales the video, embeds the audio, and outputs the signal to

the HDMI output.

The VP-434 Component / UXGA HDMI Scaler:

•Is HDTV compatible and the resolution can be scaled up to 480p, 576p,

720p, 1080i or 1080p via a front panel selector button

Select other resolutions from the OSD menu including: 1080i, 1080p, 576i, 576p, 720p,

1080i, 1080p, WXGA, WSXGA, WUXGA, NATIVE, VGA, SVGA, XGA, SXGA, UXGA,

480i, 480p.

•Has analog audio inputs for the COMP and UXGA sources

•Comes with an On-Screen Display (OSD) for easy setup and adjustment,

accessible via the IR remote control and via the front-panel buttons

•Has a non-volatile memory that retains the last settings used

•Is housed in a desktop sized enclosure and is 12VDC fed

Control your VP-434:

•Directly, via the front panel push buttons

•Remotely, from the infrared remote control transmitter

•Remotely, from the remote contact closure switch

VP-434 - Overview 5

3.1 Defining the VP-434 Component/UXGA HDMI Scaler

This section defines the VP-434.

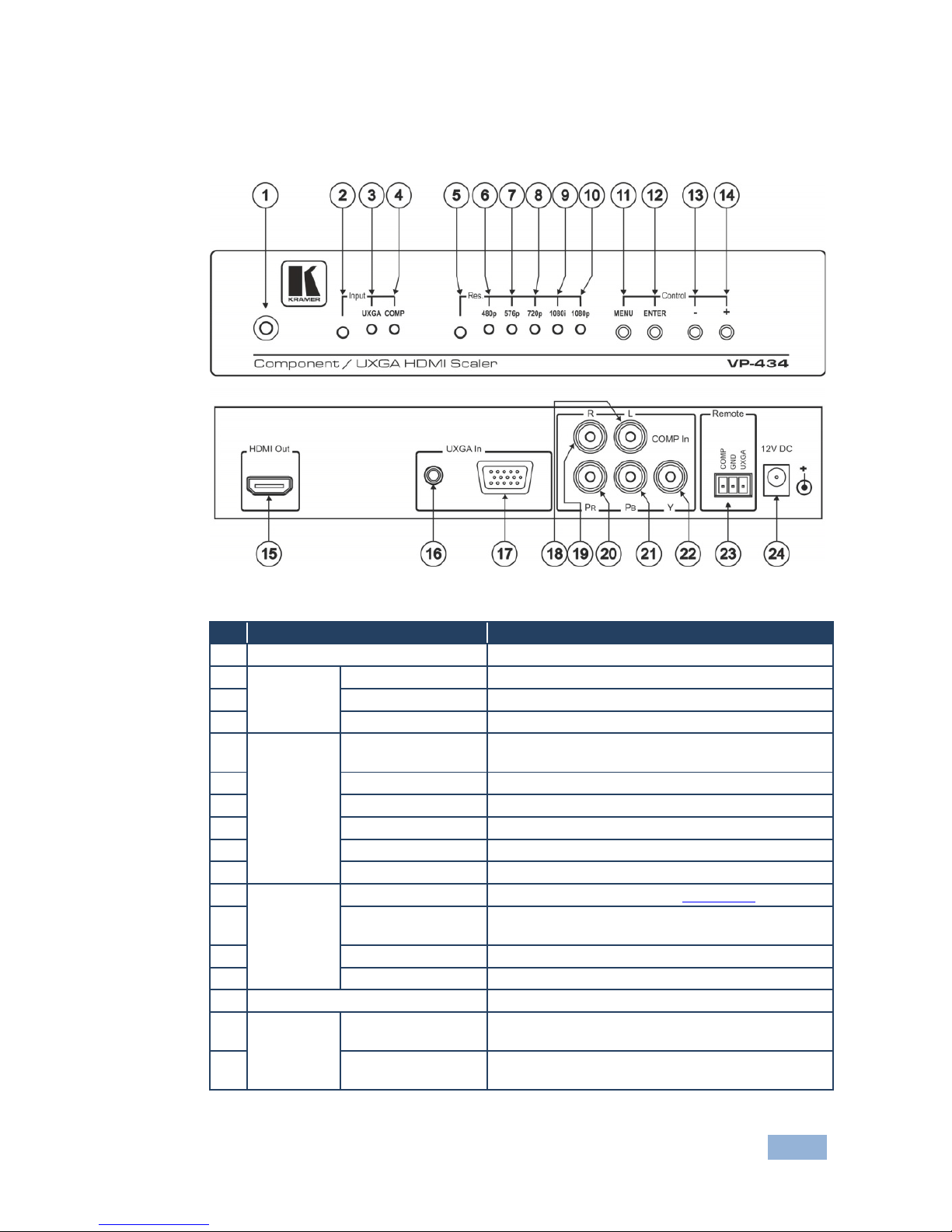

Figure 1: VP-434 Component/UXGA HDMI Scaler

# Feature Function

1 IR Receiver Receives signals from the remote control transmitter

2 INPUT Selector Button Press to select the UXGA input or the COMP input

3 UXGA Indicator LED Lights when the UXGA input is selected

4 COMP Indicator LED Lights when the COMP input is selected

5 RES. Selector Button Press to select the resolution: 480p, 576p, 720p,

1080i or 1080p

6 480p Indicator LED Lights when the 480p resolution is selected

7 576p Indicator LED Lights when the 576p resolution is selected

8 720p Indicator LED Lights when the 720p resolution is selected

9 1080i Indicator LED Lights when the 1080i resolution is selected

10 1080p Indicator LED Lights when the 1080p resolution is selected

11 CONTROL MENU Button Displays the OSD menu (see Section 5.2

)

ENTER Button Press to accept changes and change the SETUP

parameters

13 - Button Press to move down the menu list

14 + Button Press to move up the menu list values

15 HDMI Out Connector Connects to the HDMI acceptor

16 UXGA In 3.5mm Mini Jack

Connector

Connects to the analog unbalanced stereo audio

signal source

17 UXGA 15-pin HD

Connector

Connects to the UXGA source

6 VP-434 - Overview

# Feature Function

18 COMP In L RCA Connector Connect to the left and right analog unbalanced

stereo audio source (of the COMP source)

19 R RCA Connector

20 PRRCA Connector Connects to the component video source

For component video, connect all three connectors:

Y, Cb, Cr (also known as YUV)

21 PBRCA Connector

22 YRCA Connector

23 Remote Contact Closure Pins Connects to a contact closure switch (see Section

4.1

)

12V DC +12V DC connector for powering the unit

VP-434 - Connecting the VP-434 7

4 Connecting the VP-434

Always switch off the power to each device before connecting it to your

VP-434. After connecting your VP-434, connect its power and then

switch on the power to each device.

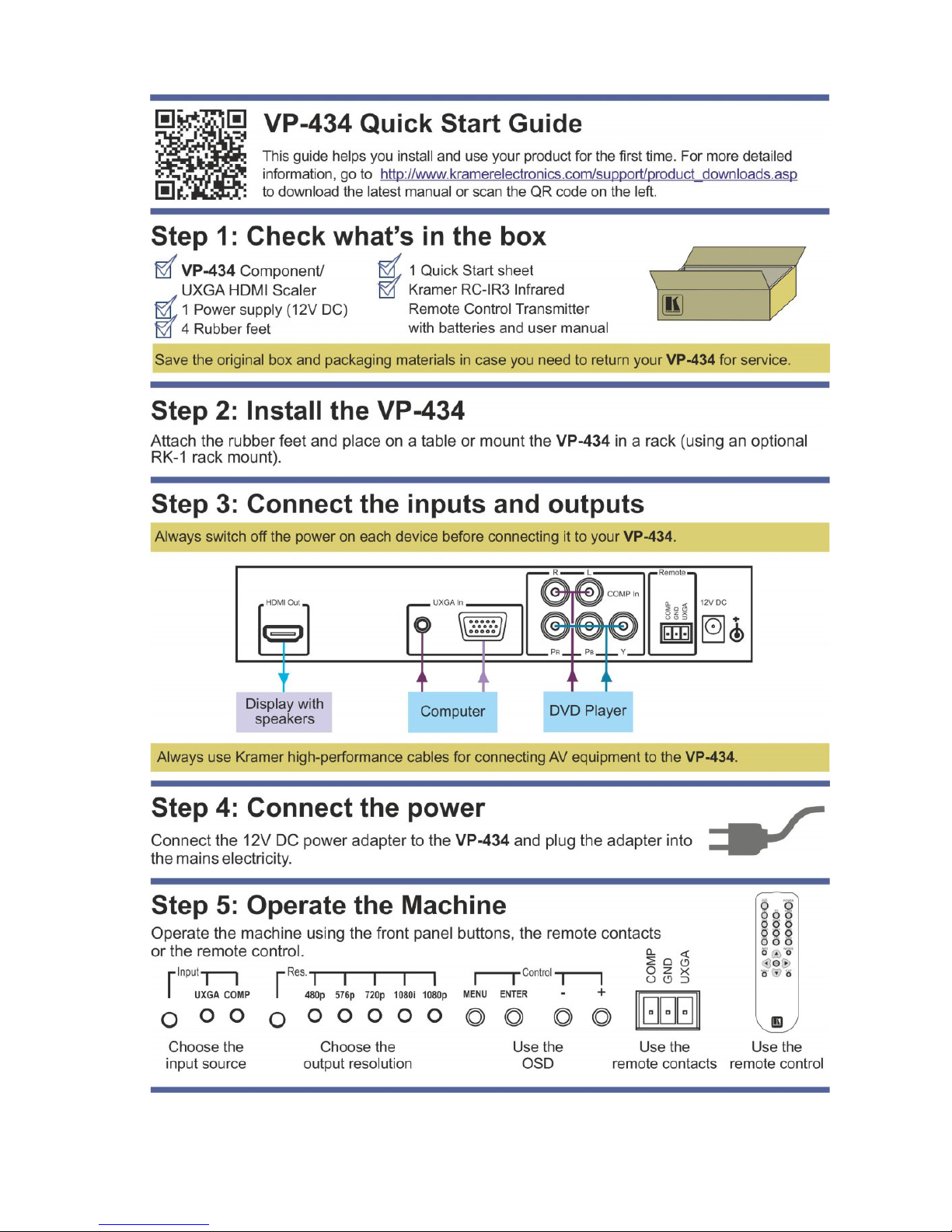

To connect the VP-434 as illustrated in the example in Figure 2:

1. Connect a component video source (for example, a DVD player) to the

COMP In Y, Pb, Pr, RCA connectors, and to the COMP In L and R audio

RCA connectors.

2. Connect a computer graphics source to the UXGA In 15-pin HD computer

graphics video connector, and to the UXGA In audio 3.5mm mini jack

connector.

3. Connect the HDMI Out connector to an HDMI acceptor (for example, a

plasma display).

4. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity (not shown in Figure 2).
