Kramer VP-88ETH Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL

Models:

VP-88ETH,

8x8 RGBHV / Balanced Audio Matrix Switcher

VP-84ETH,

8x4 RGBHV / Balanced Audio Matrix Switcher

VP-82ETH,

8x2 RGBHV / Balanced Audio Matrix Switcher

VP-66ETH,

6x6 RGBHV / Balanced Audio Matrix Switcher

VP-64ETH,

6x4 RGBHV / Balanced Audio Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your RGBHV / Balanced Audio Matrix Switcher 4

4.1

Using the IR Transmitter 12

Installing in a Rack 13

Connecting the RGBHV / Balanced Audio Matrix Switcher 14

6.1

Connecting the Balanced/Unbalanced Stereo Audio Input/Output 16

6.2

Controlling via RS-232 (for example, using a PC) 17

6.3

Controlling via RS-485 18

6.4

Controlling the VP-88ETH via the Ethernet Port 19

6.4.1

Connecting the ETHERNET Port directly to a PC (Crossover Cable) 19

6.4.2

Connecting via a Straight-Through Cable 20

6.4.3

Configuring the Ethernet Port 20

6.5

Setting the VP-88ETH Dipswitches 21

6.5.1

Setting the SELF ADDRESS Dipswitches 22

6.5.2

Setting the Reply Dipswitch 22

6.5.3

Setting the RS-232\RS-485 Dipswitch 22

Operating Your VP-88ETH Machine 23

7.1

Displaying the Unit Characteristics 23

7.2

Selecting and Connecting an Output and/or Input 23

7.3

Choosing the Audio-Follow-Video or Breakaway Option 24

7.3.1

Setting the Audio-Follow-Video Option 24

7.3.2

Setting the Breakaway Option 24

7.4

Confirming Settings 24

7.4.1

Toggling between the At Once and Confirm Modes 25

7.4.2

Confirming a Switching Action 25

7.5

Storing/Recalling Input/Output Configurations 26

7.5.1

Storing an Input/Output Configuration 26

7.5.2

Recalling an Input/Output Configuration 26

7.5.3

Deleting an Input/Output Configuration 26

7.6

Resetting the Machine 26

7.7

Using the TERM: 75/TTL Buttons 27

Controlling Several RGBHV / Balanced Audio Matrix Switchers 27

8.1

Control Configuration via RS-232 and RS-485 27

8.2

Control Configuration via RS-485 29

8.3

Control Configuration via the ETHERNET Port 30

Technical Specifications 31



Table of Hex Codes for the Master VP-88ETH 32

Communication Protocol 33

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Figures

Figure 1: VP-88ETH 8x8 RGBHV / Balanced Audio Matrix Switcher 5

Figure 2: VP-84ETH 8x4 RGBHV / Balanced Audio Matrix Switcher 6

Figure 3: VP-82ETH 8x2 RGBHV / Balanced Audio Matrix Switcher 7

Figure 4: VP-66ETH 6x6 RGBHV / Balanced Audio Matrix Switcher 8

Figure 5: VP-64ETH 6x4 RGBHV / Balanced Audio Matrix Switcher 9

Figure 6: Connecting the VP-88ETH 8x8 RGBHV / Balanced Audio Matrix Switcher 15

Figure 7: Connecting the Balanced Stereo Audio Input/Output 16

Figure 8: Connecting the Unbalanced Stereo Audio Output 16

Figure 9: Connecting an Unbalanced Source to the Balanced Input 16

Figure 10: Connecting a PC without using a Null-modem Adapter 17

Figure 11: Controlling via RS-485 (for example, using an RC-3000) 18

Figure 12: Local Area Connection Properties Window 19

Figure 13: Internet Protocol (TCP/IP) Properties Window 20

Figure 14: VP-88ETH Dipswitches 21

Figure 15: Control Configuration via RS-232 and RS-485 28

Figure 16: Control Configuration via RS-485 30

Tables

Table 1: The RGBHV / Balanced Audio Matrix Switcher Front Panel Features 10

Table 2: The RGBHV / Balanced Audio Matrix Switcher Rear Panel Features 11

Table 3: Dipswitch Settings 21

Table 4: MACHINE # Dipswitch Settings 22

Table 5: Technical Specifications of the RGBHV / Balanced Audio Matrix Switchers 31

Table 6: Hex Codes for Switching the Master VP-88ETH 32

Table 7: Protocol Definitions 33

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 500-plus different models

now appear in eight groups

that are clearly defined by function.

Congratulations on purchasing your Kramer RGBHV / Balanced Audio Matrix

Switcher

, which is ideal for presentation and production applications. The

package includes the following items:

VP-88ETH/VP-84ETH/VP-82ETH/VP-66ETH/VP-64ETH RGBHV /

Balanced Audio Matrix Switcher

Power cord and Null-modem adapter

Windows®-based Configuration Manager XPort software and Com Port

Redirector (for the Lantronix type Ethernet port) or Windows®-based

Ethernet Configuration Manager and Virtual Serial Port Manager (for the

FC-11 type Ethernet port)

Windows®-based Kramer control software

and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

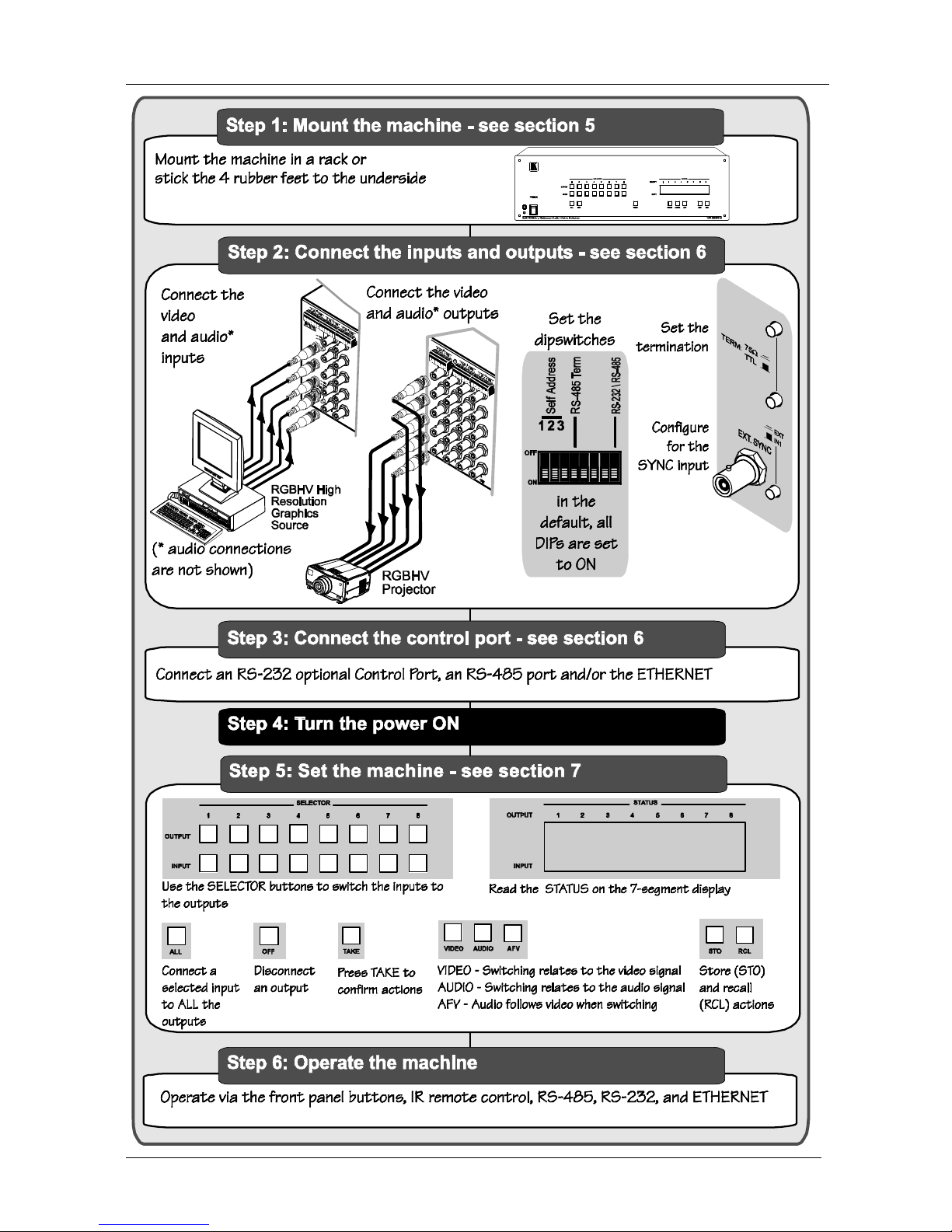

2.1 Quick Start

This quick start chart summarizes the basic steps when connecting an

RGBHV / Balanced Audio Matrix Switcher

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Available in the following models: VP-88ETH (an 8x8 model), VP-84ETH (an 8x4 model), VP-82ETH (an 8x2 model),

VP-66ETH (a 6x6 model), and/or VP-64ETH (a 6x4 model)

3 Downloadable from our Web site at http://www.kramerelectronics.com

4 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

6 This quick start applies to the VP-88ETH, VP-84ETH, VP-82ETH, VP-66ETH, and the VP-64ETH

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The high performance VP-88ETH/VP-84ETH/VP-82ETH/VP-66ETH/

VP-64ETH RGBHV / Balanced Audio Matrix Switcher is designed for high-

resolution computer graphics signals and balanced stereo audio signals. Each

machine is a true matrix, routing any input to any or all outputs simultaneously.

In particular, the RGBHV / Balanced Audio Matrix Switcher:

Consists of three large bandwidth video channels, Red, Green and Blue

(RGB) and two TTL (logic level) channels – Horizontal and Vertical sync

Switches channels during the vertical interval, offering glitch free

transitions when sources share a common reference sync

Provides Audio breakaway, for switching audio independently from video

Offers preset memory locations for quick access to common

configurations

Includes the TAKE button, which lets you place multiple switches in a

queue and then activate them with one touch of this button

Can be used for mixed video applications such as CV, Y/C and YUV

simultaneously

Includes an ETHERNET connection that supports easy dial-up and Internet

system remote control (requiring only a dedicated IP address

and a modem in

the remote location) whether it is a stand-alone PC or a LAN

system

Control the VP-88ETH/VP-84ETH/VP-82ETH/VP-66ETH/VP-64ETH

using the front panel buttons, or remotely via:

RS-485 or RS-232 serial commands transmitted by a touch screen system,

PC, or other serial controller

ETHERNET

The Kramer RC-IR2 Infra-Red Remote Control Transmitter

An external remote IR receiver (optional), see section 4.1

The VP-88ETH/VP-84ETH/VP-82ETH/VP-66ETH/VP-64ETH is dependable,

rugged and fits into three vertical spaces (3U) of a standard 19" rack.

1 IP Address is a 32-binary digit number that identifies each sender or receiver (within a network via a particular server or

workstation) of data (HTML pages or e-mails) that is sent in packets across the Internet. Every device connected to an IP

network must have a unique IP address. This address is used to reference the specific unit

2 LAN is Local Area Network

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your RGBHV / Balanced Audio Matrix Switcher

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position

your Kramer VP-88ETH / VP-84ETH / VP-82ETH / VP-66ETH /

VP-64ETH away from moisture, excessive sunlight and dust

4 Your RGBHV / Balanced Audio Matrix Switcher

This section describes each switcher as follows:

VP-88ETH (see Figure 1)

VP-84ETH (see Figure 2)

VP-82ETH (see Figure 3)

VP-66ETH (see Figure 4)

VP-64ETH (see Figure 5)

Table 1 and Table 2 define the front and rear panels of the machines.

Your RGBHV / Balanced Audio Matrix Switcher

Figure 1: VP-88ETH 8x8 RGBHV / Balanced Audio Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your RGBHV / Balanced Audio Matrix Switcher

Figure 2: VP-84ETH 8x4 RGBHV / Balanced Audio Matrix Switcher

Your RGBHV / Balanced Audio Matrix Switcher

Figure 3: VP-82ETH 8x2 RGBHV / Balanced Audio Matrix Switcher
