Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 1,000-plus

different models now appear in 11 groups1

Congratulations on purchasing your Kramer RC-8IR Universal Room

Controller, which is designed to let an instructor enter a multimedia

classroom and operate an A/V system with ease.

that are clearly defined by function.

The package includes the following items:

•RC-8IR device housing and separate faceplate

•One 3.5mm to IR emitter control cable

•This user manual2

•Configuration software

2 Getting Started

This user manual is written for the end user. Refer to the separate online

RC Configuration and Installation Guide for details of how to install and

configure the Universal Room Controller3

We recommend that you:

•Review the contents of this user manual

•Use Kramer high performance high resolution cables4

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 That provides information about how to set up the system. This online guide may well be updated on a regular basis. For

the latest online guide, go to http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

3 Overview

Kramer’s RC-8IR one-gang wall plate is a highly versatile controller

interface that acts as an all-in-one extended remote control panel for control

of A/V equipment—especially projectors and associated equipment—in any

room (such as classrooms, boardrooms, or auditoriums). It streamlines

operations and simplifies control by integrating audio, video, and computer-

video sources into a centralized system.

The RC-8IR includes:

•An Ethernet port for configuration and control1

•Configurable backlit buttons

2to set up any supported3

•Two bidirectional RS-232 wired serial ports, for universal display (for

example, projectors) and switcher control, and one RS-485 serial port

command

•Two relays for the simplified and centralized control of room functions

(such as lighting, closing blinds, screen settings, and so on)

•Two IR control ports

•An IR-learner for the customized control of external sources, receiving the

IR commands from different remote transmitters without the need for an

external IR remote control unit

•Macro mode operation, for programming up to 15 commands with the

press of a single button, and summing up to a total of 120 commands

•Support for firmware upgrade

To achieve the best performance:

•Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

•Avoid interference from neighboring electrical appliances and position

your Kramer RC-8IR away from moisture, excessive sunlight and dust

1 Of up to five machines with unique IP addresses

2 Six buttons for RC-6IR, and eight buttons for the RC-8IR

3 To be configured by the system integrator only

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your Universal Room Controller

4 Your Universal Room Controller

Figure 1and Table 2define the RC-8IR front panel:

Front Panel with Faceplate Front Panel without Faceplate

Figure 1: RC-8IR Front Panel

Table 1: RC-8IR Front Panel Features

Feature

Function

1 Faceplate Attachment Holes Use to attach the faceplate to the device housing (see Table 2)

2 IR IN Receiver Accepts IR remote commands (for the IR-learner feature)

3 Configurable Control

Buttons (Macro Buttons)

Control the room and the A/V equipment (from 1 to 8)

4 Housing Attachment Holes Use to install the device housing

5 Button Caps Button caps with “wings” on the left and right sides (8)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your Universal Room Controller

Figure 2and Table 2define the RC-8IR right side panel:

Front Panel

Buttons

Figure 2: RC-8IR Right Side Panel

Table 2: RC-8IR Right Side Panel Features

Feature

Function

1 Housing and Faceplate Support Device housing supports the faceplate

2 RELAY2 Connect each relay to a room item (such as lighting, screen

settings, blinds, and so on)1

RELAY1

4 RS-485 Terminal Block

Connector

Connect to the RS-485 detachable terminal block on a switcher

or PC

5 RS-232 Terminal Block

Connector (1 and 2)

Connect to the RS-232 connector on the A/V equipment or a PC or

other Serial Controller

IR OUT1 PIN

GND PIN Connect to an IR emitter cable

IR OUT2 PIN

7 GND PIN Connects (-) to the Ground

8 +12VDC IN PIN Connects (+) to the connector for powering the unit

1 See the examples in Figure 4

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Installing the RC-8IR Universal Room Controller

Figure 3and Table 3define the RC-8IR rear panel:

Figure 3: RC-8IR Rear Panel

Table 3: RC-8IR and Rear Panel Features

Feature

Function

1 N.U Switch Not used

2 PROGRAM Switch Switch to OFF for normal operation;

Switch to ON for firmware upgrade

3 RS-485 TERM. Switch Switch to ON for RS-485 line termination

4 FACTORY DEFAULT Button Press to return to the factory default settings, including all the

configured buttons and the network settings1

Ethernet Port Connects to a PC or other controller through computer networking

6 Grounding Screw Connect to grounding wire

5 Installing the RC-8IR Universal Room Controller

This section describes the installation of the RC-8IR and includes:

•Setting up the labels on the buttons, according to your specific

requirements2

•Mounting the RC-8IR device to the wall

•Installing the button caps

•Mounting the faceplate

•Setting of the device

1 Including the factory default IP number: 192.168.1.39 (an IP number is a device's numerical address as expressed in the

format specified in the Internet Protocol)

2 It is recommended to place labels before mounting the faceplate

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Installing the RC-8IR Universal Room Controller

5.1 Setting the Labels and Button Caps

To install the labels and button caps:

1. Remove the required labels from the supplied button label sheet.

2. Hold the button cap so that it is oriented as shown in Figure 4with the

“wings” on the left and right sides, and insert the label inside the cap.

Figure 4: Button Cap Orientation

3. Repeat for all eight caps.

4. Retaining the orientation, place the eight button caps on the buttons of

the RC-8IR (see Figure 5).

Figure 5: Placing the Button Cap

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Installing the RC-8IR Universal Room Controller

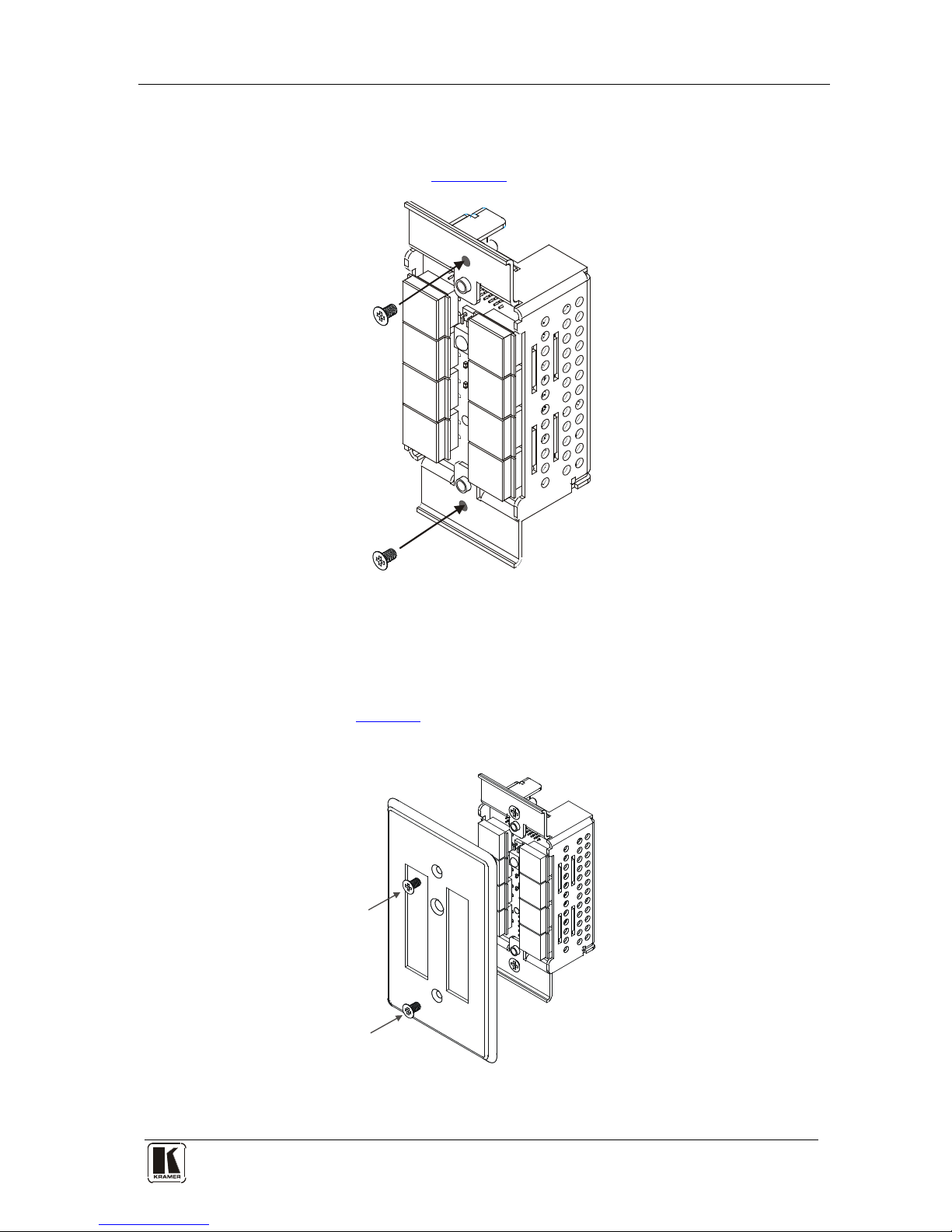

5.2 Mounting the Device Housing

The device housing is mounted to the wall via the two housing mounting

screws holes, as illustrated in Figure 6:

Figure 6: Mounting the Device Housing

5.3 Mounting the RC-8IR Faceplate

1. Place the faceplate on the RC-8IR so that the two screw mounting holes

are aligned (see Figure 7).

2. Insert the two mounting screws and tighten with a screwdriver.

Figure 7: Mounting the Faceplate

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Table des matières

Autres manuels Kramer Contrôleurs

Kramer

Kramer RC-7LC Manuel utilisateur

Kramer

Kramer SL-280 Manuel utilisateur

Kramer

Kramer RC-54DL Manuel utilisateur

Kramer

Kramer RC-76R Manuel utilisateur

Kramer

Kramer SL-12 Manuel utilisateur

Kramer

Kramer SL-12 Manuel utilisateur

Kramer

Kramer RC-2C Manuel utilisateur

Kramer

Kramer RC-63DLN Manuel utilisateur

Kramer

Kramer FC-26 Manuel utilisateur

Kramer

Kramer RC-8RKL Manuel utilisateur

Kramer

Kramer RC-2 Manuel utilisateur

Kramer

Kramer SL-12 Manuel utilisateur

Kramer

Kramer SL-1N Manuel utilisateur

Kramer

Kramer SL-1 Manuel utilisateur

Kramer

Kramer RC-13TC Manuel utilisateur

Kramer

Kramer KC-Virtual Brain5 Manuel utilisateur

Kramer

Kramer RC-7RL Manuel utilisateur

Kramer

Kramer FC-26LA Manuel utilisateur

Kramer

Kramer FC-10ETH Manuel utilisateur

Kramer

Kramer RC-74DL Manuel utilisateur

Kramer

Kramer SL-240C Manuel utilisateur

Kramer

Kramer PT-12 Manuel utilisateur

Kramer

Kramer FC-22ETH Manuel utilisateur

Kramer

Kramer FC-18 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
