Introduction

ThankyouforpurchasingtheKORGPANDORAminipersonalmulti‐effect

processor.InordertoenjoyyourPANDORAmini,pleasereadthisowner’s

manualcarefullyandretainitforfuturereference.

Main features

ThePANDORAminiisaversatilemulti‐effectunitthatpacksanincredible

rangeofguitaramps,bassampsandeffectsintoacompactunitwhichutilizes

Korg’sproprietary“”modelingtechnologytocreatedetailedand

powerfulmodelingsounds.

158 types of effect variations with a maximum of seven effects that can

be used simultaneously.

200 user and 200 preset programs 

(Pleaserefertopage214forprogramnames.)

Auto Tuner function

Youcanalsotunewithoutbeingheard(i.e.,whilemuted).

Rhythm function(Pleaserefertopage217forrhythmpatternnames.)

Youcanuse100rhythmpatternsorametronomesound.

AUX Pitch function

YoucantransposethepitchofaudiothatisinputfromtheAUXjack.

TAP/TUNER button

YoucansetthedelaytimeorthetempooftheRhythmfunctiontomatchthe

tempoofthesong.

Program Memory buttons

FourProgramMemorybuttonsenableyoutoswitchbetweenprograms

quickly.

What is ?

(Resonant structure and Electronic circuit Modeling System) is KORG’s propri-

etary sound modeling technology which precisely reproduces the complex character and

nature of both acoustic and electric instruments as well as electronic circuits in real world

environments. emulates a wide variety of sound generation characteristics

including instrument bodies, speakers & cabinets, acoustic fields, microphones, vacuum

tubes, transistors, etc..

Inserting the Battery

Removethebatterycoverlocatedonthebottomof

thePANDORAminibyslidingitinthedirectionof

thearrow.InsertoneAAalkalinebatteryasshownin

theillustration.Besuretoinsertthebatteryobserv‐

ingthecorrectpolarity.

Battery Low display

Whenthebatterybeginstorunlow,theLowBatteryicon willlight‐up.

Whenthisiconlights‐up,youshouldreplacethebatteryassoonaspossible.

Programsandotherdata(exceptforthedatabeingedited)willnotbelost

evenifthebatteryisremovedandchanged.

BatterythathaverundownmustberemovedfromthePANDORAmini.Ifyou

leaveadeadbatteryintheunit,malfunctions(batteryleakage,etc.)mayoccur.

YoushouldalsoremovethebatterywhenyoudonotexpecttousethePANDORA

miniforanextendedperiodoftime.

Setthebatterytype(seep.31)tomatchthebatteryyouuse.

YoucanalsouseUSBbuspower.

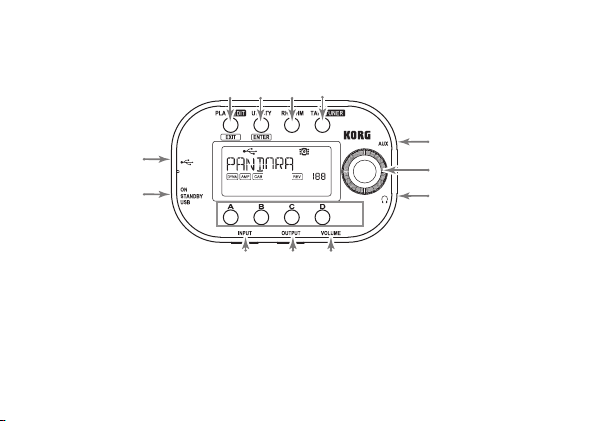

Controls and connectors

234

1. TAP/TUNER Button:

Usethisbuttontosetthedelaytimefordelaymodels(seep.26)ortosetthe

tempoinRhythmmode(seep.20).InPlaymode,pressingthisbuttonwill

placethePANDORAminiintoBypassorMutemodeandactivatethetuner

(seep.18).
