Digital Recording Studio D12 Guided Tour

Getting Started:

Audio connections, Recording sources for this guide 3

Power-up, Select and Play the Demo Song 4

Demo song Track Layout 4

Quick Tour of D12 modes 5

D12 Additional Features 12

Working with the D12:

Select and work with the demo song 14

Using the FF and REW keys in a song 14

Copy the demo song to a new song location for editing 14

Un-protect and rename the demo song 14

Disable Scene Memory and work with the MixView display 15

View the Post Fader levels as you mix 15

Mute/un-mute tracks with the TRACK STATUS keys 15

Work with the EQ function 16

View the Insert effect assignments for the demo song 16

Overview of Insert effect configurations 16

Work with the lead vocal track in “I Can’t Wait” 17

Set a new Locate point in the song 17

Work with the lead vocal Insert effect 17

Work with the Counter 18

Work with the synth bass track 18

Scrub the audio to find and set a new Locate point 18

Assign and work with a new Insert effect for track 4 19

Store IN and OUT points, and use the Loop Playback function 20

Work with the Master and Final effects 20

Work with the Master effect and set new send levels 21

Work with the Final effect 21

Store the new Final effect in a user location 22

Playback the song and make any final mix changes 22

Store a new initial Scene for the song 22

Additional tips when working with Scenes 23

Work with the Solo function 23

Work with the Monitor Cue function 24

Work with the Metronome and Rhythm patterns 24

KORG D12 Guided Tour

Recording and Editing Basics:

Create and rename a new song 25

Assign the built-in mic and set the input level 26

Check the Pre Fader Level and adjust the input signal 26

Recording new tracks 26

Working with the Virtual tracks 28

Create a “12-2” Virtual Mixdown 29

Work with the Clipboard, Fade and Undo functions 30

Guitar and Insert effect / Rhythm Pattern Demo:

Create a new song and connect a guitar 33

Assign an Insert effect chain on input, for recording 34

Audition the Metronome and Rhythm patterns 34

Create a Tempo Map 35

Record the new Tempo Map to stereo tracks 35

Record a guitar track as the rhythm track plays back 36

Creating an Audio CD on the D12:

Overview 36

Create a blank region of audio at the start of the new song 37

Write and finalize a CD 37

Playback the new song from CD 37

D12 QuickSteps:

Basic Operations 38

Song and Track Editing 40

Owner’s Manual References 41

KORG D12 Guided Tour

D12 Guided Tour

Getting Started:

Audio connections: Connect the rear panel MONITOR L / R outputs to a stereo monitoring system for playback/recording, and

connect headphones to the front panel PHONES jack. Note: Use the rear panel MASTER L/R outputs when mastering to external

DAT, MD, etc.

Recording sources for this guide: We’ll make it easy for you to get quickly familiar with the D12 recording procedures: You ‘ll be

using the built-in microphone for the basic recording exercises, so there’s no need to connect an external microphone. In addition to

the basic recording section, there’s a “Guitar/Insert effect/Rhythm Pattern Demo”, and (of course) an electric guitar is necessary for

the exercises in this section.

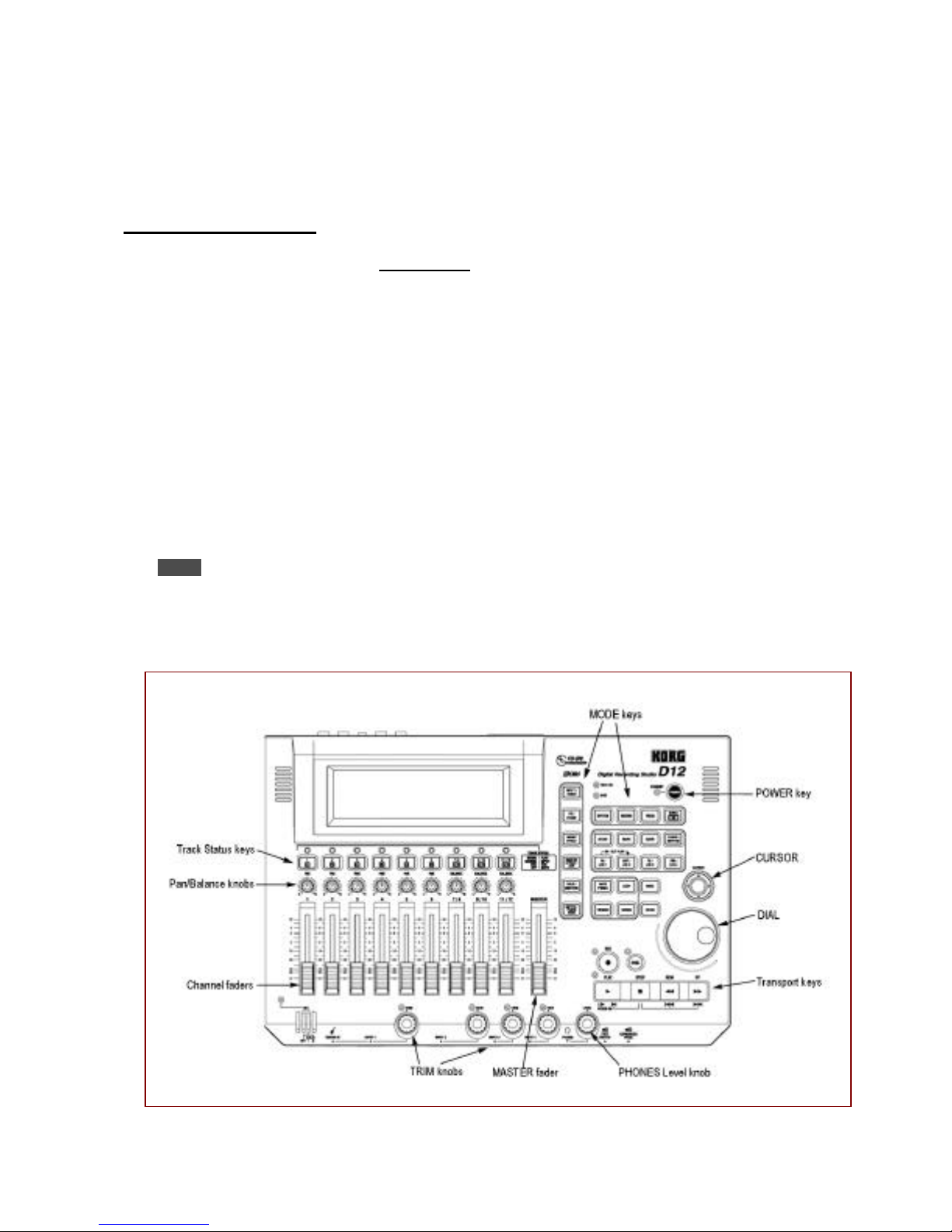

Objects referred to in this guide: D12 top panel objects that you'll work with are: Keys, Dial, Faders and Pan/Balance knobs.

D12 Display objects that you'll work with are: Tabs, Popup and Radio buttons, Dialog boxes and Icons. All top panel keys are

indicated in brackets: [SONG/CD], etc.

Navigating the D12: To select the tabs in each mode, repeatedly press a mode key: [INPUT/TUNER],[EQ/PHASE] etc.

To move to different locations in the display, press the [CURSOR] key (u). To confirm a highlighted selection in the display,

press ENTER, To change a highlighted value, rotate the [DIAL].

About the CURSOR key: Throughout this guide, the use of the CURSOR key will be indicated by the usymbol. This key is a four-

position key, allowing you to move left, right, up or down in the display.

KORG D12 Guided Tour

Power up:

1. With the MASTER fader in the minimum position, connect the AC adaptor to the AC9V input on the rear panel, then to a power

source. Note that the STANDBY LED indicator lights on the top panel.

2. Press the [POWER] key on the top panel to power up the D12. Note: The current software version will be indicated in the

display on power-up.

Many of the examples and exercises in this guide refer to the internal demo song “I CAN’T WAIT”. If the demo

song has been deleted from memory and is no longer available, you can still follow this Guided Tour, and gain a

basic understanding of the D12 features and operation modes.

Note: The CURSOR key is indicated by

Select and Play the Demo Song:

3. Press [SONG/CD] until you select the “SelSong” tab in the display.

4. Rotate the [DIAL] to the left, until the first demo song “I001: I CAN’T WAIT” loads.

5. The [TRACK STATUS] LED's should all be lit green. If not, press any of the [TRACK STATUS] keys that are not green (Play

status).

6. Raise your external monitoring system levels, and then press [PLAY] on the D12.

7. Slowly raise the D12 MASTER fader to the “0” position, and rotate the D12 MONITOR LEVEL knob (on the rear panel) to a

comfortable listening level (or raise the PHONES LEVEL knob if you’re only using headphones).

8. When the demo song has finished playing, press [STOP].

D12 Demo Song “I CAN’T WAIT” Track Layout:

KORG D12 Guided Tour

Effects used in the demo song:

Insert effects (4 used)

1) Track 1 Vocal: I105 MM33: Mic/Sm57/414

2) Track 5 Kick: I086 MM18: Limitr-P4EQ

3) Track 7 Snare: I101: MM33: MicSim-Lmtr

4) Track 8 Drums, Percussion: I101: MM33: MicSim-Lmtr

Master effects

1) M002 RV2: Smooth Hall

2) M004 RV4: Dry Plate

Final effect

F019 LS2: TwoMix 80’s

Important! To power-off the D12 and auto-save any recording/editing you’ve done, press and hold the POWER key. When the

display indicates “Power Off?”, press ENTER and the D12 will automatically save your work and power-off (the STANDBY LED will

continue to be lit after power-off).

A Quick Tour of the D12 Modes

Note: Throughout this guide, the CURSOR key is indicated by

Refer to the Demo Song “I CAN’T WAIT” Track Layout on page 4 for the following tours:

METER / TRACK VIEW mode:

1. Reset the song to the beginning, by pressing [IN/LOC1], or press and hold [STOP] and then press [REW] once.

2. Press [PLAY]. As the song plays, press [METER/TRACK VIEW] to select the meter display, and work with the Channel

Faders - the display will indicate all track level changes and Send, Monitor and Master levels. Note that the top line in the

display indicates “CLP” (clipping). As you mix, watch the display and avoid clipping on any of the tracks! Note: Each time you

press [METER/TRACK VIEW] it will “toggle” between the meter and previously selected mode displays.

Note: Make sure that the display mode is set to “PostFdr” in the upper-left of the display - if not, to the >

>button in the upper-

left, press ENTER, to highlight “PostFaderLevel”, press ENTER, then to the “OK” button and press ENTER.

The METER/TRACK VIEW page features five ways to see overall mix and track data: PreFader and PostFader, for accurate

metering of all signal levels, plus TrackView1-6, TrackView7-12 and Track View 1-12, to check whether tracks contain audio events.

KORG D12 Guided Tour

PAN/BALANCE controls:

1. As the song continues to play, adjust the PAN knobs for Channels 1-6.The BALANCE knobs for tracks 7/8, 9/10, 11/12 should

all be set to the center position.(Refer to the Track Layout on page 4)

Note: When you reset the demo song to the beginning, the original settings for fader, pan, EQ, effect settings, and effect and aux

send levels will be reset to the values stored in the initial Scene (SCENE key is lit when “SceneRead:On” is set).

The D12 features a Channel Pairing function to group adjacent channels for controlling Track Status, Pan, EQ, Effect and Aux send

settings as well as fader position. See the Owner’s Manual page 102, for more information on channel pairing.

SCENE MEMORY mode:

The D12 features 100 -Scene Memory for "snapshot" automation of channel faders, pan, EQ and Effect settings and effect and aux

send levels. The Demo Song “I CAN’T WAIT” has an initial Scene stored. When the song is selected, the [SCENE] key will light

and the original mix settings will be recalled.

Note: More “hands-on” work with the SCENE function later in this guide.

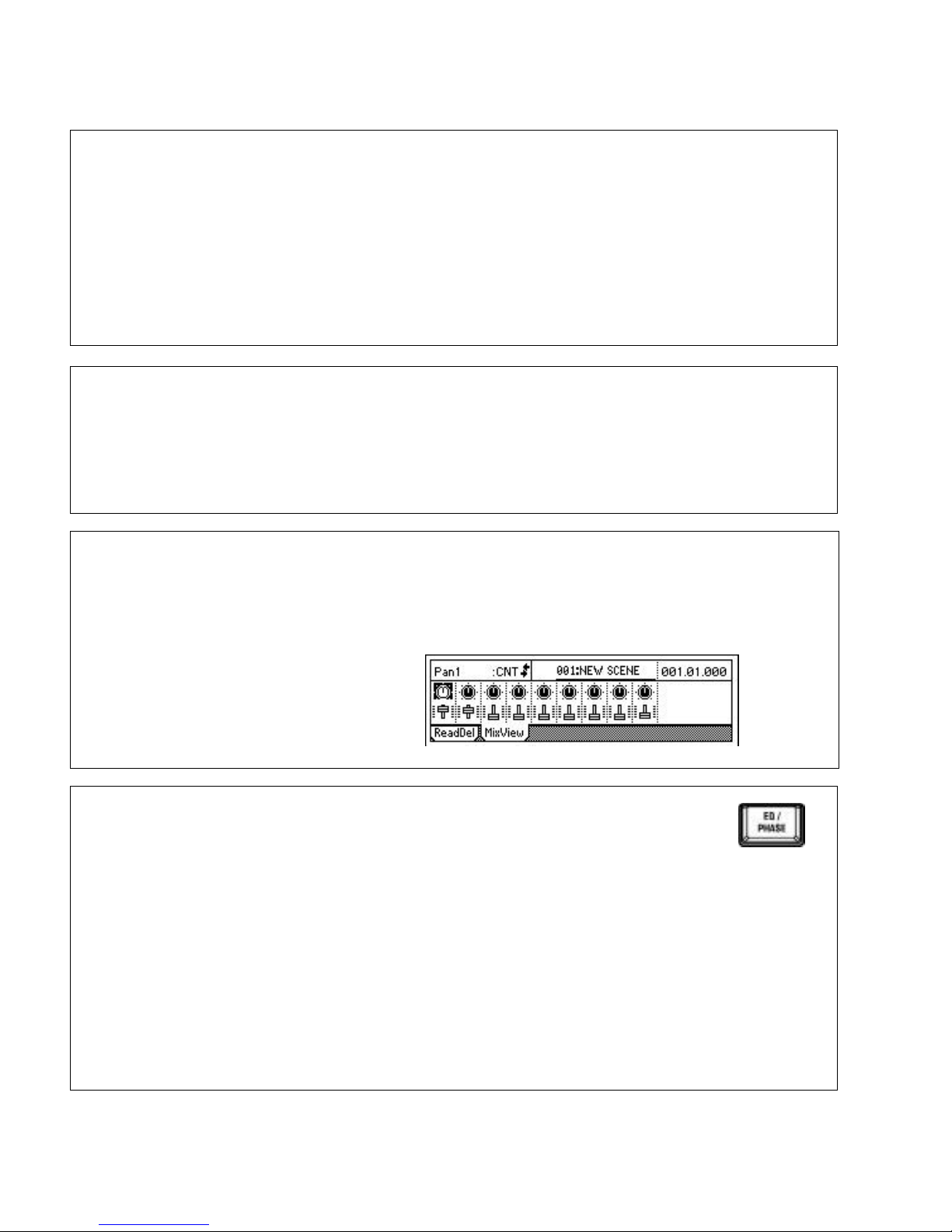

SCENE MEMORY “MixView” tab:

The “MixView” tab is helpful when selecting and viewing the stored Scenes in a song.

1. Press [SCENE] (lit) until you select the “MixView” tab (in the display. As you mix, the display will indicate the changes you

make to the channel faders and pan/balance controls.

EQ mode:

1. Press [EQ/PHASE] until you select the “Eq1-4” tab (in the display. Here you'll see EQ settings for tracks 1-4.

2. uto any EQ "knob" icon in the display, and rotate the [DIAL] to make changes to the track EQ. The upper-left of the display

will indicate the track and EQ parameter that is highlighted.

3. As the song continues to play, press [EQ/PHASE] to select another “Eq” tab, and work with the track EQ settings. The upper-

left of the display will indicate the EQ parameter and track you are working with. Note: Use the Track Layout on page 4 of this

guide to reference tracks that you are working with in the demo song.

Lo, Mid and Hi EQ plus Mid frequency control for every track, available as you record, or during track playback!

The D12 features 3- band EQ for all tracks!

KORG D12 Guided Tour

INSERT EFFECT mode:

1. Press [INSERT EFFECT] until you select the “InsAss” tab (: In this mode you can set Insert effect assignments for each track

and assign the effect type.

2. By selecting one of the Insert effect tabs (“InsEff1”, etc.) you can apply an Insert effect. Once selected with the [DIAL], you can

uto the effect number button, and press ENTER to view, then u/ENTER to edit parameters for the effect icon you've selected.

There are 128 preset insert effect programs to choose from, including 98 chains of up to 5 effects at once. The D12 features

Korg's famous REMS modeling effects - accurate amp, cabinet and microphone simulations. You can edit any of the preset effect

programs, then store your edits to 128 user effect programs. Plus, some of the effects like wah can be controlled in realtime using

the D12's exclusive Expression Pedal input!

MASTER EFFECT mode:

1. Press [MASTER EFFECT/AUX] until you select the MstEff1 tab (in the display. For both Master effect 1 and Master effect 2,

you can select one of 32 available effects, set return levels and balance, and easily-edit the effect parameters. The “Eff1” and

“Eff2” tabs let you set individual send levels for all tracks.

The highest-quality effect algorithms are onboard, and if you need more external processing or audio sends, there's an AUX send

for every track. The Master and Final effect programs let you polish your mix for CD-ready mastering. You can choose from 32

preset effects, and store edited effects to one of 32 user locations.

Note: The demo song “I CAN’T WAIT” includes Master and Final effects. You can view the effects by pressing [MASTER

EFFECT/AUX] until you select the ”MstEff1”, “MstEff2” or “FinalEff” tabs. The effects used for the demo song are

referenced on page 5.

Send your mix through Master and Final effects - for ultimate processing!

8 Insert, 2 Master and 1 Final mastering effect: 11 simultaneous per song!

KORG D12 Guided Tour

SOLO mode:

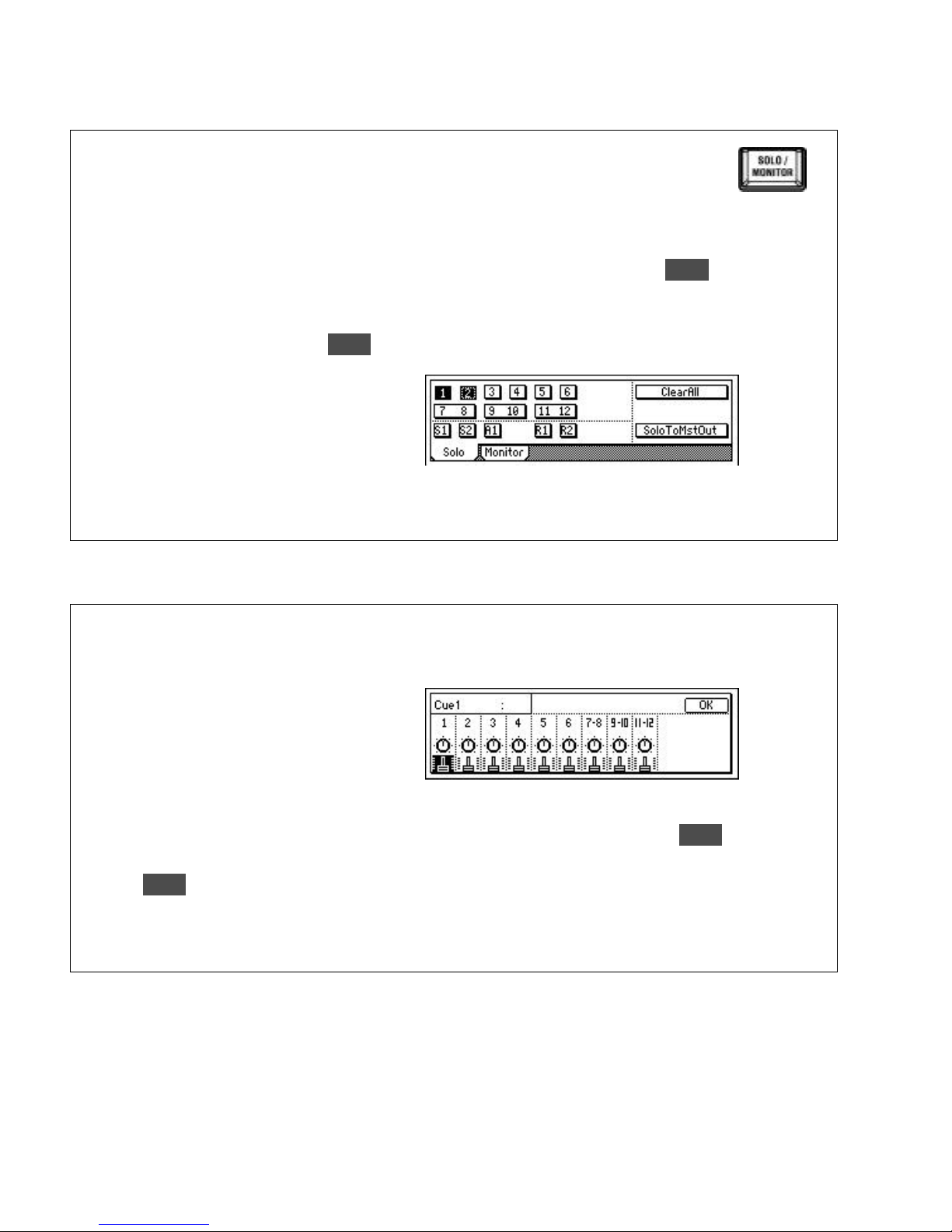

1. Press [SOLO/MONITOR]. To listen to one or more sources: uto a button in the display and press ENTER. The solo audio can

be routed to the MONITOR L/R outputs or MASTER L/R and HEADPHONE outputs. You can solo effect send 1 and 2 levels,

aux level, as well as return levels for Master effects.

2. uto the “ClearAll” button, then press ENTER to disable solo for all tracks.

Tip:You can also press the [TRACK STATUS] keys during playback, to mute/un-mute desired tracks.

Note: More "hands-on" work with the SOLO function later in this guide.

MONITOR mode:

1. Press [SOLO/MONITOR] until you select the “Monitor” tab, then uto the “Level” button and press ENTER to view the

display.

2. Press ENTER again, to return to the previous page.

The D12 features Monitor Cue level and pan settings, to dial in your own separate mix, without affecting the mix routed to the Master

outputs. See the Owner’s Manual, page 39 for more information.

The SOLO function lets you isolate and listen to specific tracks, as well as

effect and send / return levels.

The MONITOR function gives you an independent cue mix for all tracks!

KORG D12 Guided Tour

SCRUB mode:

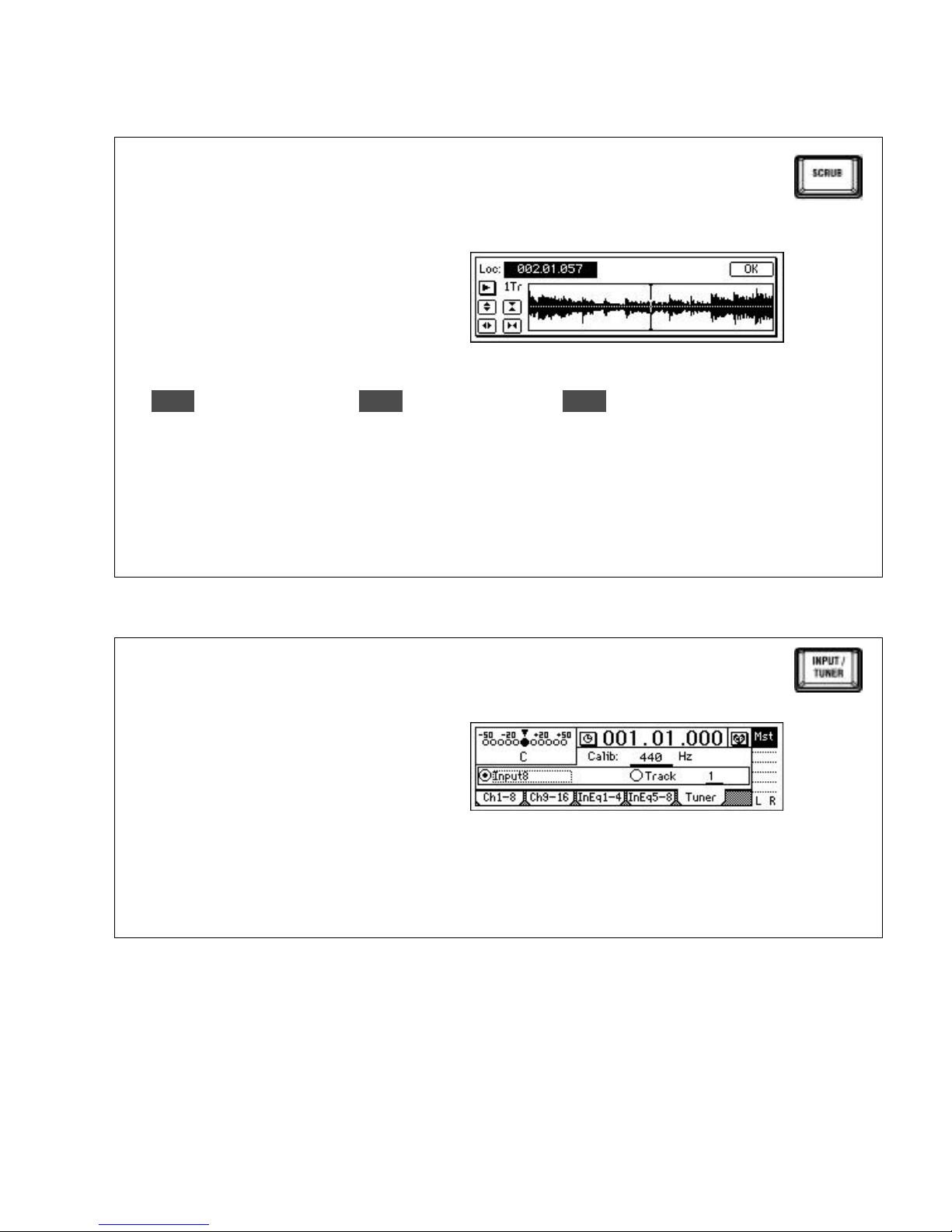

1. STOP playback, then press [SCRUB]. To select track waveform data: uto the >

>popup button next to “1Tr”, then press

ENTER. uto select the track, press ENTER, then uto “OK” and press ENTER. Once you’ve selected a track, uto “Loc”

and use the [DIAL] to scrub the audio. The “zoom” buttons in the display let you resize the waveform.

2. uto “Loc”, then press [SCRUB] to return to the previous page.

Tip: Pressing [FF] while the SCRUB function is ON sets the audio data to play back at half-speed - an octave lower than the original

pitch. This is a great way to rehearse and learn intricate solo lines!

Note: More “hands-on” work with the SCRUB function later in this guide.

TUNER mode:

The D12 features a built-in auto-chromatic tuner!

1. [STOP] playback, then press [INPUT] until you select the “Tuner” tab. Here, you can tune an instrument connected to the

GUITAR IN or INPUT1 jack.

When you select the “Input 1” radio button, you can precisely tune connected instruments. If you select the “Track” radio button you

can check the tuning of any previously recorded track.

The Scrub function gives you precise control when working with your tracks!

KORG D12 Guided Tour

TEMPO / RHYTHM modes:

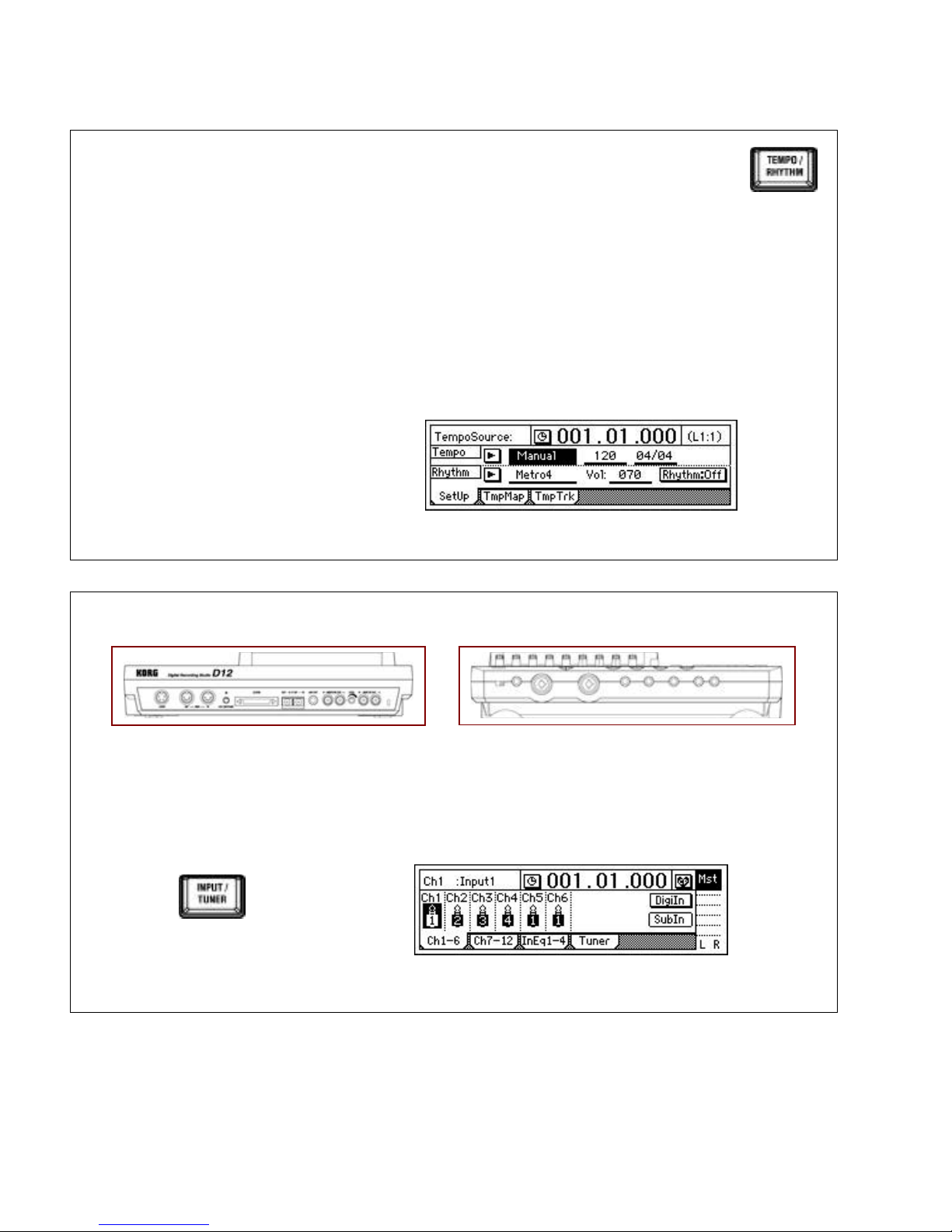

1. Press [TEMPO/RHYTHM] until you select the “SetUp” tab. On this page you can set tempo, time signature and rhythm settings

for a song.

The D12 provides you with the "ultimate metronome" - the sampled drum patterns in memory provide a great tempo "guide" for

many music genres. The drum patterns can be recorded to tracks, and you can create up to 200 tempo map events per song,

allowing tempo, time signature and rhythm patterns to change during recording and playback!

Note: More "hands-on” work with the Tempo, Metronome and Rhythm functions later in this guide.

INPUTS, ASSIGNMENTS and INPUT EQ:

The D12 features 4 TRS-balanced audio inputs, including 2 XLR / 1/4 (3-31) type connectors. In addition, a dedicated 1/4

unbalanced Guitar input is included. All inputs have TRIM control, and can be instantly routed to any channel.

1. Press [INPUT/TUNER]. Here, you can quickly route inputs to specific channels, and apply EQ on input for tracks 1-12.

The S/PDIF (DigiIn) input allows stereo digital sources to be routed to channels 1-6, and the SUB inputs can be used to input

synchronized sequenced audio and returns from external processors via the AUX send.

The D12 features a built-in METRONOME with 96 metronome patterns and 215

PCM-based drum patterns!

Autres manuels pour D12

Table des matières

Autres manuels Korg Équipement d'enregistrement

Korg

Korg PXR4 Errata Manuel utilisateur

Korg

Korg iM1 Manuel utilisateur

Korg

Korg Karma Manuel utilisateur

Korg

Korg KAOSS PAD KP2 Manuel utilisateur

Korg

Korg MPS-10 Manuel utilisateur

Korg

Korg microSAMPLER Manuel utilisateur

Korg

Korg EASYSTART D1600MKII Manuel utilisateur

Korg

Korg D1200 mkII Fiche d'information produit

Korg

Korg Pandora Stomp Manuel utilisateur

Korg

Korg DL 8000R Manuel utilisateur

Korg

Korg D16 Manuel utilisateur

Korg

Korg Audio Gallery AG-10 Manuel utilisateur

Korg

Korg KAOSS PAD KP3 Manuel utilisateur

Korg

Korg Pandora PX2 Manuel utilisateur

Korg

Korg D1200 mkII Manuel utilisateur

Korg

Korg Electribe ESX-1 Fiche d'information produit

Korg

Korg EASYSTART D1600MKII Fiche d'information produit

Korg

Korg D16 Guide de démarrage rapide

Korg

Korg ToneLab TT Manuel utilisateur

Korg

Korg Pearl e/MERG MDL1 Manuel utilisateur

Korg

Korg Triton-Rack Fiche d'information produit

Korg

Korg KONTROL49 Manuel utilisateur

Korg

Korg mr-2 Manuel utilisateur

Korg

Korg ToneWorks PXR4 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
