Konica Minolta PagePro 1390 MF Manuel utilisateur

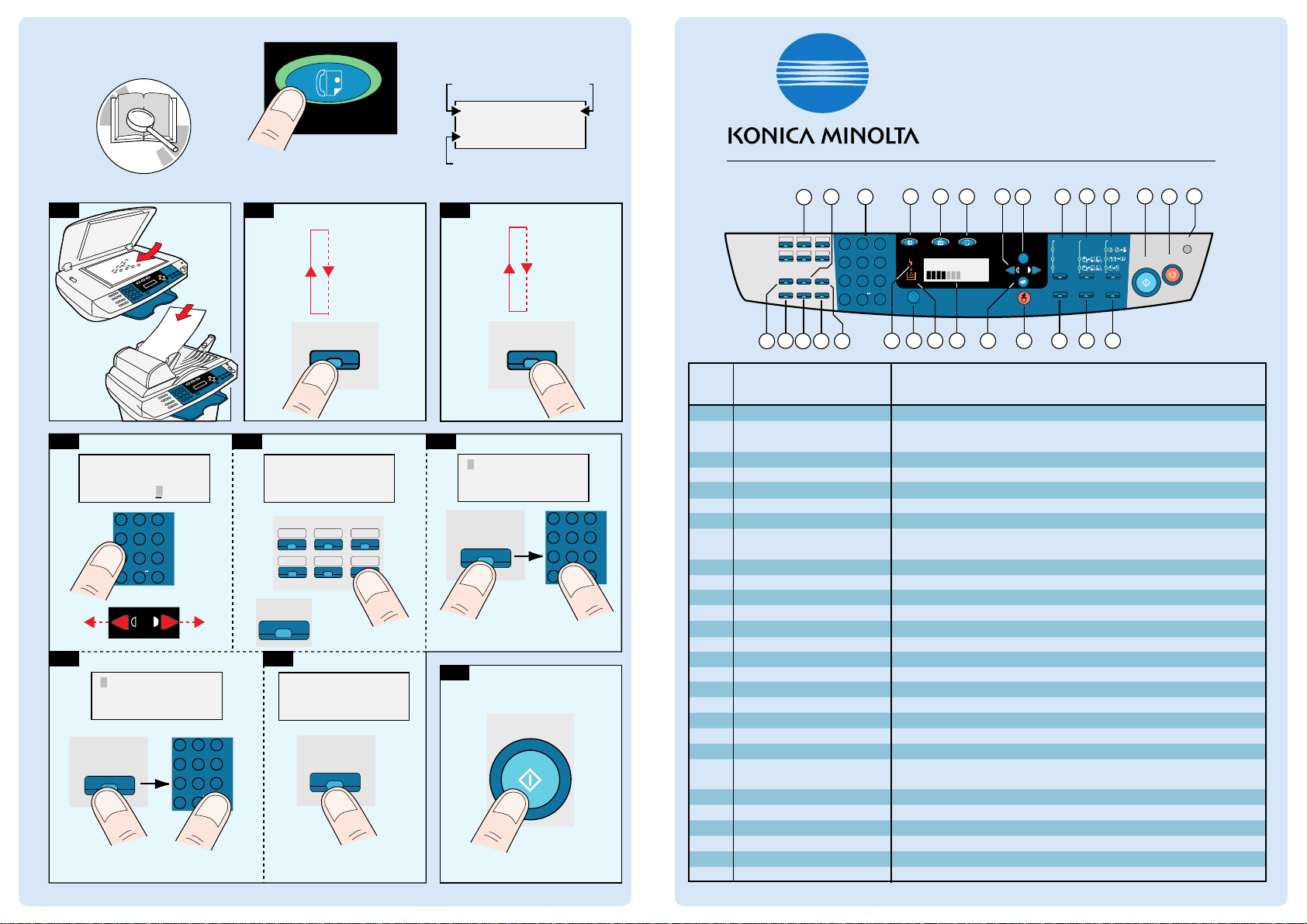

PagePro™1390 MF

Quick Guide

Item

Name

One-Touch keys

Redial / Pause key

Speed Dial / Search key

Resolution key

Brightness key

On Hook key

Shift key

Numeric Keypad

Fax key / LED

Scan key / LED

Copy key / LED

Arrow keys

Menu key

Copy Quality key

Collate key

N in 1 key

Error LED

Scan To key

Toner LED

Message Window

Select key

Cancel key

Copies key

Light / Dark key

Reduce / Enlarge key

Start key

Stop / Reset key

Toner Save key / LED

Function

Recalls the last number dialed or inserts a pause when

a fax number is dialed

Recalls a speed dial number

Adjust the image quality of a fax document

Adjust the brightness of a fax document

Sends/receives transmissions with the receiver on the hook

Hold down to select One-Touch keys 7 through 12

Enter the number of copies, set the custom media size,

or enter a fax number

Enter Fax mode

Enter Scan mode

Enter Copy mode

Cycle through the available menus, options, or choices

Enter the configuration menu

Select the type of document to be copied or scanned

Sort multiple copies into sets

Select the number of pages to print on one sheet

Indicates a media jam

Scan to a file or email

Indicates the toner cartridge or drum must be replaced

Displays settings, menus, and messages

Select the displayed menu, option, or choice

Cancel a print job, deletes entered data, or exits from the

current menu

Set the number of copies (incremental)

Adjust the brightness of the copy or scan job

Set the size of the copy

Start a Copy, Scan, or Fax job

Stop the current process or exits a menu

Save toner

1760565-001A 4558-9552-00A

- 1 -

- 4 -

Fax Guide Fax

45 6

789

12 3

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

Mixed


Text

Collate N in 1

Copy Quality

Start

Copy

Light/Dark Reduce/Enlarge

Copies

- +

Select

Cancel

Stop/Reset

Toner Save

Scan To

Error

89 10 11 13

18 19 20 22

14 15 16

23 24 25

26 27 28

100% A4

Toner

Scan

Fax

172 8 3 9

410 5 11 6 12

SpeedDial/

Search Redial/

Pause Shift

Resolution Brightness OnHook

6 75

2 3

Start

max.

50 sheets

60-90 g/m2

(16-24 lb)

1 sheet

Brightness Resolution

Normal STD.

Brightness/

Fax address

Date & Time/

Fax number

Resolution

XX/YY XX:YY

Normal

Light

Dark

STD.

Fine

S-Fine


45 6

789

12 3

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

Normal STD.

123456789_

172 8 3 9

410 5 11 6 12

XXXXXXXX

123456789

Normal STD.

123456789

Speed Dial

Press 2x

= 7-12

Chapter

1 - 9

45 6

789

12 3

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

45 6

789

12 3

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

2 digits

SpeedDial

Search Redial

Pause

4b 4c

4d 4e

Shift

- +

100% A4

Reduce/

Enlarge

Light/Dark

Media Size

Copies

2 3

Mixed


Text

Reduce/Enlarge

Copy Quality

Copies

Collate N in 1

Copy

1, 2,....99

(1) (7)

Light/Dark

Off

45 6

789

12 3

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

Select

Original ............... 100%

Legal A4 .......   83%

Legal Letter ..  78%

Letter A4 .......   97%

A4 Letter ..   94%

Fit to Paper

Custom ............. xxx%

- +

25%.........400%

Select

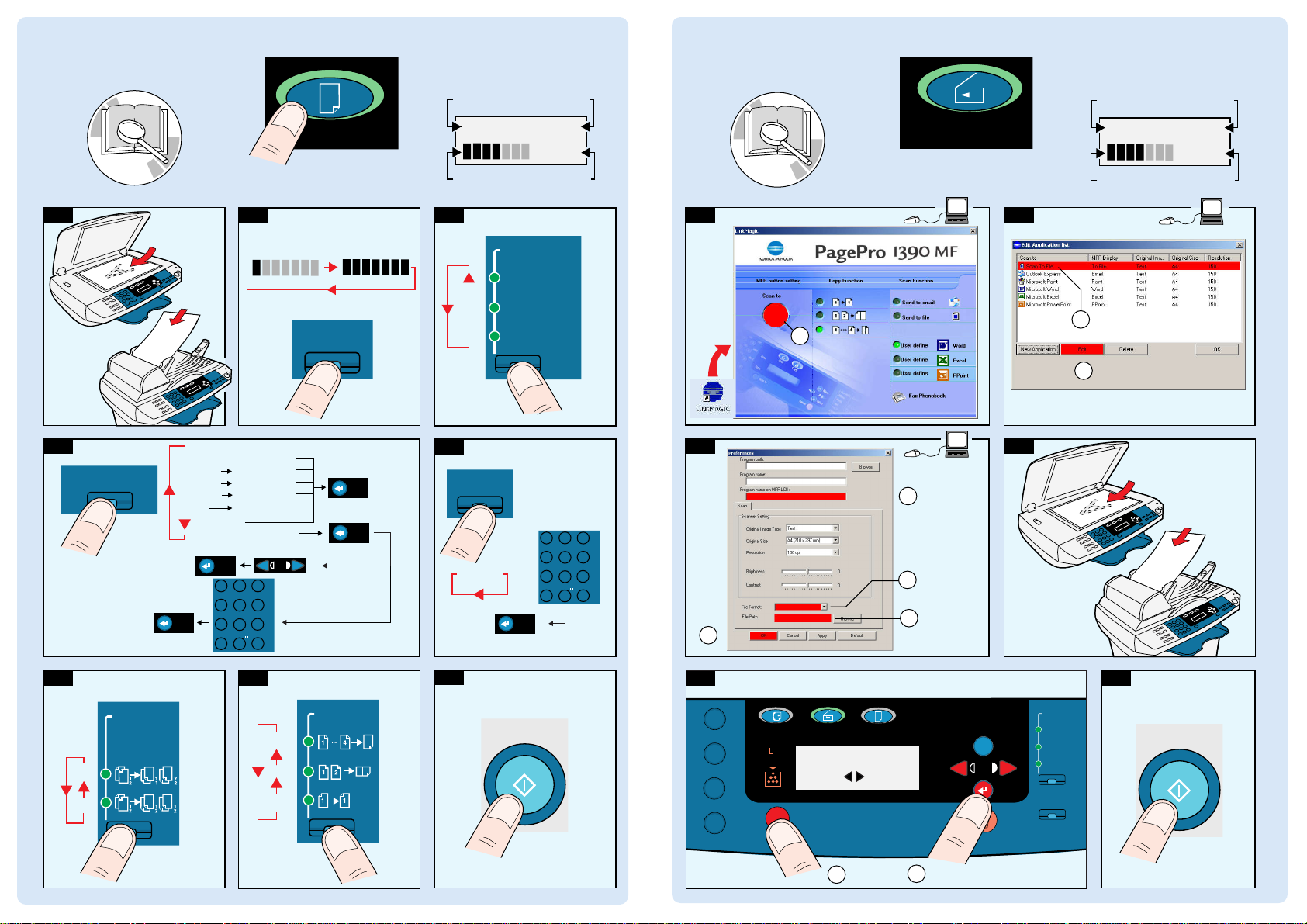

Scan

Start

Chapter

6 & 7

Chapter

5 & 7

Select Select

100% A4

Reduce/

Enlarge

Light/Dark

Media Size

Copies

45 6

789

12 3

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

- 2 - - 3 -

Off

4 in 1

2 in 1

User's Guide User's Guide

Start

ABC DEF

JKL MNO

TUV WXYZ

Mixed


Text

Copy Quality

Copy

Copies

- +

Select

Cancel

Scan To

Error

Toner

Scan

Scan To : To File

Press

Fax

(BMP

PDF

TIFF)

Default

Microsoft Paint

PDF

c:\LinkMagic

To File

max.

50 sheets

60-90 g/m2

(16-24 lb)

max.

50 sheets

60-90 g/m2

(16-24 lb)

1 sheet
