Konica Minolta Magicolor 2490 MF Manuel utilisateur

- 1 -

magicolor®2490MF

Quick Guide

1760563-001A 4556-9623-00

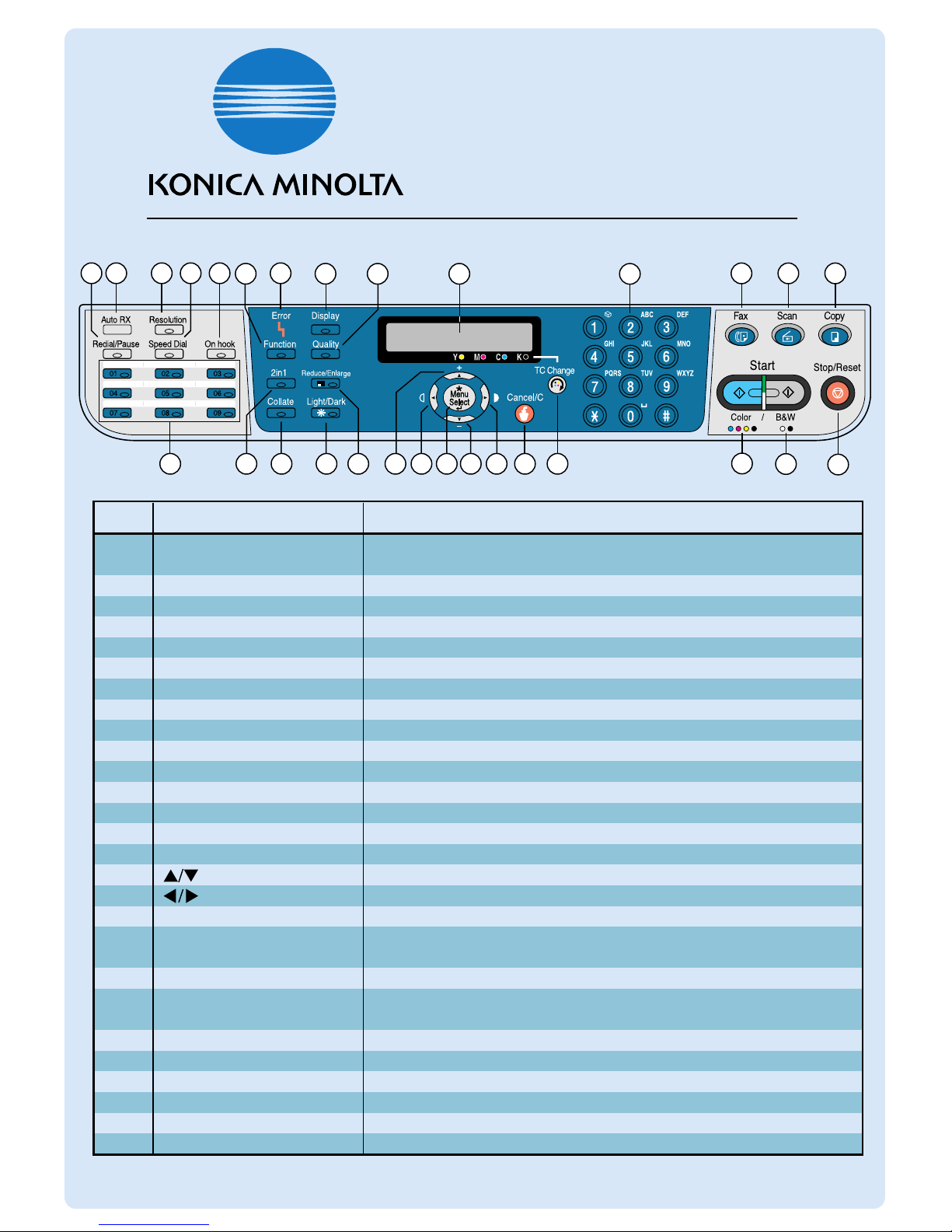

Item Name Function

Redial/Pause key

Auto RX indicator

Resolution key

Speed Dial key

On hook key

One-touch dial keys

Function key

Error indicator

Display key

Quality key

2in1 key

Collate key

Light/Dark key

Reduce/Enlarge key

Message Window

keys

Menu Select key

Cancel/C key

TC Change key

Keypad

Fax key/LED

Scan key/LED

Copy key/LED

Start (Color) key/LED

Start (B/W) key/LED

Stop/Reset key

Recalls the last number dialed

Inserts a pause when a number is dialed

Lights up when the automatic reception function is selected

Adjusts the image quality of the fax documents

Recalls a speed dial number

Sends and receives transmissions with the receiver on the hook

Registers and recalls one-touch dial numbers

Specify tray, duplex, IC card copy, and fax settings

Indicates an error condition

Use to check the machine status and settings

Select type of document to be copied and the copy resolution

Specify that two originals be copied onto one page

Sort multiple copies into sets

Adjust the brightness of the copy

Set the size of the copy

Displays settings, menus, and messages

Move up and down through menus, options, or choices

Move left and right through menus, options, or choices

Enter configuration mode or select a setting

Clears the specified number of copies

Switches to the first screen of a menu item or to the main screen

Prepare the printer for toner replacement

Use to specify the desired number of copies

Use to type in fax numbers, email addresses, and names of recipients

Enter fax mode

Enter scan mode (only network)

Enter copy mode

Start a color copy

Start a monochrome copy or fax

Returns the settings to their defaults and stops functions

832 541 97 10 15 21 24

11 126 13 14 27

25 26

19 201716 1718 16

2322

- 2 -

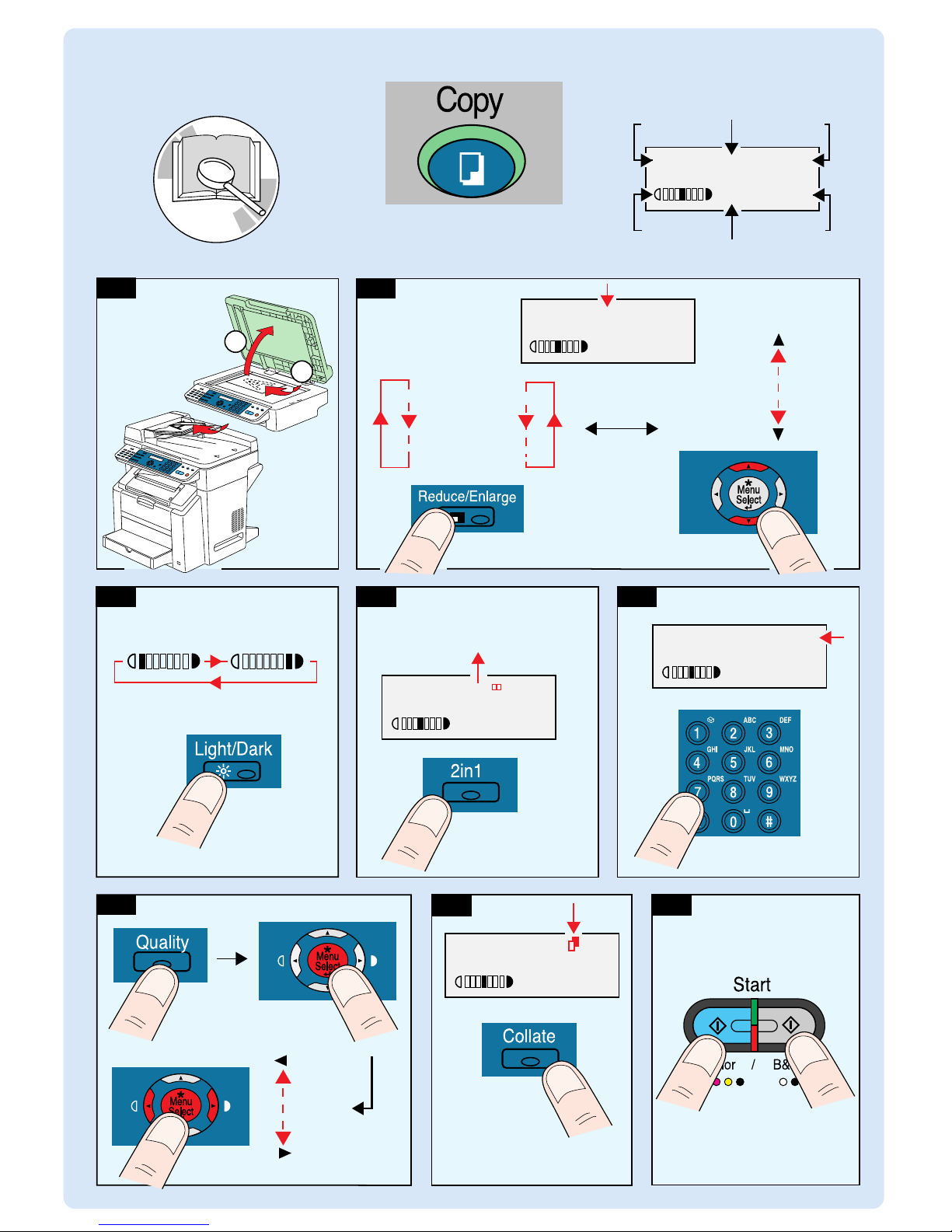

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

(-3) (+3)

MIX x1.00 1

1XX Status

2 digits

Metric

(millimeter)

0.50

0.70

0.81

1.00

1.15

1.41

2.00

Inch

0.50

0.64

0.78

1.00

1.29

1.54

2.00

For ADF only

2 in 1 copying and

collated copying

cannot be combined.

MIX x-.-- 1

1XX Status

USA and Canada: Zoom = 0.64

Other countries: Zoom = 0.70

...

X.Y1

X.Y2

X.Y3

...

MIX x1.00 1

1XX Status

MIX

TEXT


MIX x1.00 1

1XX Status

2 in 1 copying and collated

copying cannot be combined.

Printer/Copier/Scanner

User’s Guide

Chapter

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet

- 3 -

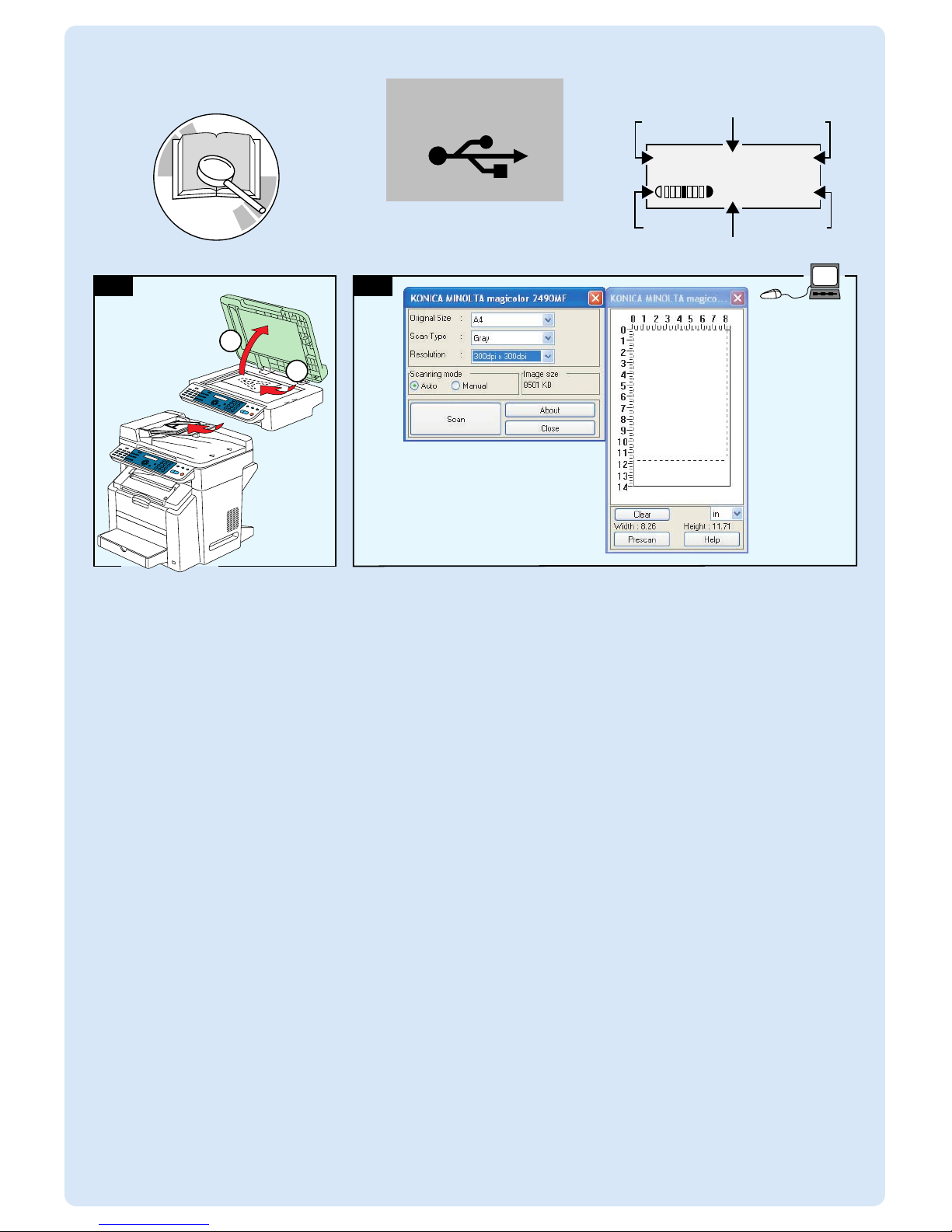

Scan

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

Note : Refer to the User’s Guide (PDF manual on the CD-ROM) for details on how to use the scanner

driver.

Printer/Copier/Scanner

User’s Guide

Chapter

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet

- 4 -

COLOR

GRAY or B/W

Printer/Copier/Scanner

User’s Guide

Chapter

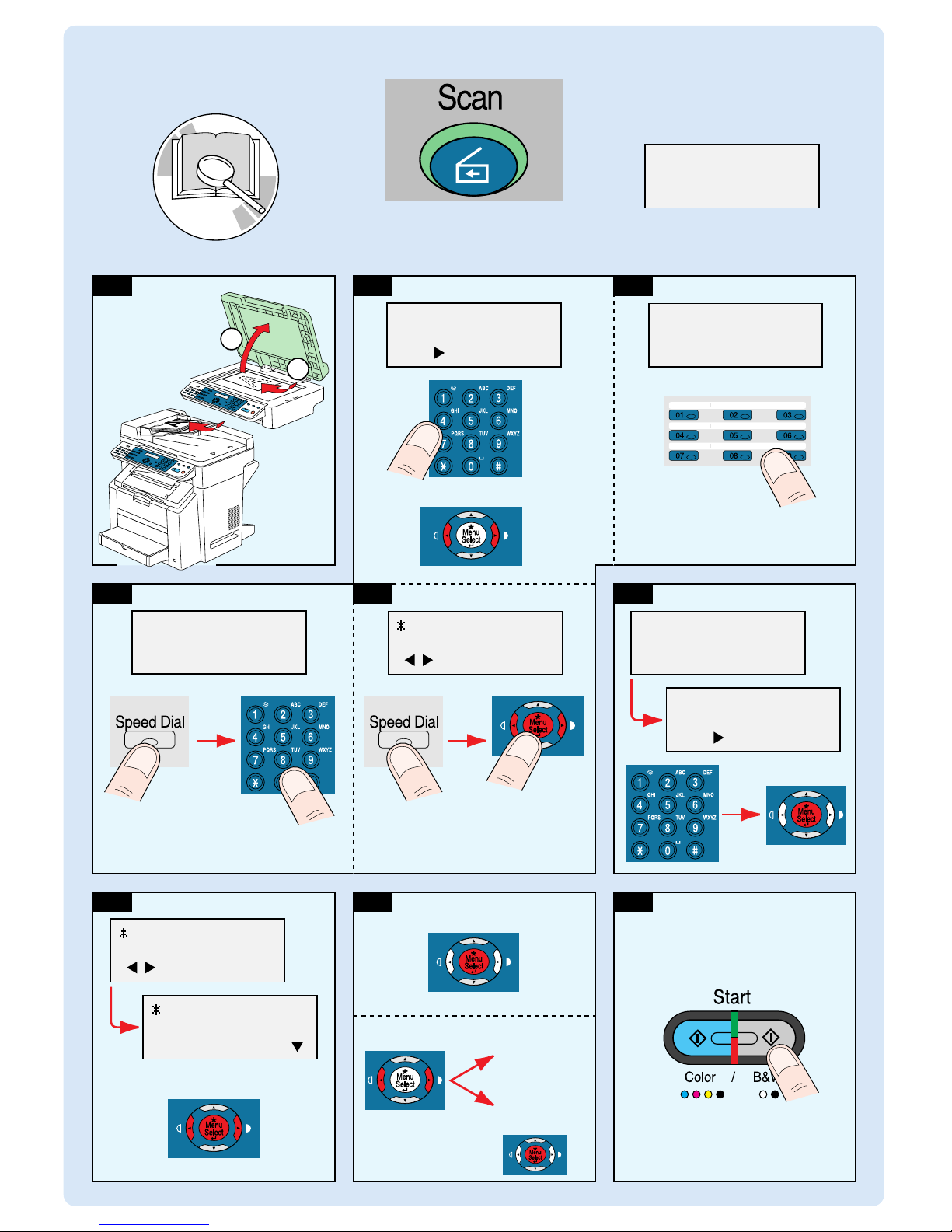

SCAN TO E-MAIL

-SET DOCUMENT-

12a 2b

2c 2d 3

456

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet

T[email protected]

OK= [A]

TO=XXXXX

(SEND=START)

3 digits

SPEED DIAL=XX

Press 2x

LIST SEARCH

, & SEL

SUBJ.=XXXXX

OK=SEL [A]

ADF

Step 6

150x150 300x300

OK=SEL (SETTING= )

COLOR GRAY B/W

, & SEL

CC [email protected]

OK= [A]

Book

(Original glass)

OK=SEL

- 5 -

Resolution

STD

FINE

S/F

H/T

Press 2x

3 digits

3c 3d

XX:XX STD 100%

Time

-SET DOCUMENT-

Resolution

Memory

=XXXXXXXX

(TX=START)

SPEED DIAL=XX LIST SEARCH

, & SEL

=12345678_

TX=START [1]

=12345678_

TX=START [1]

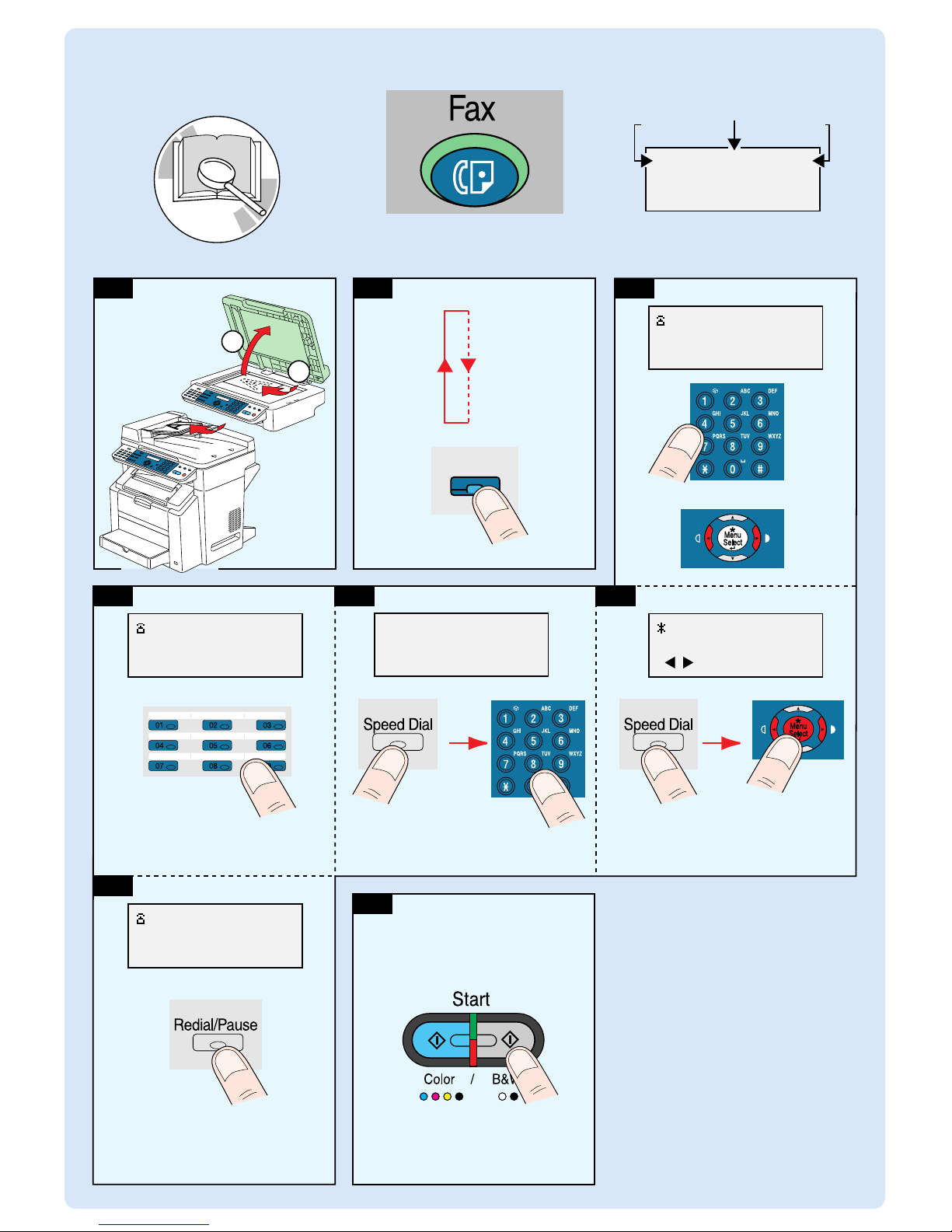

Facsimile

User’s Guide

Chapter

1 - 8

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet

- 6 -

REPLACING

CONSUMABLES

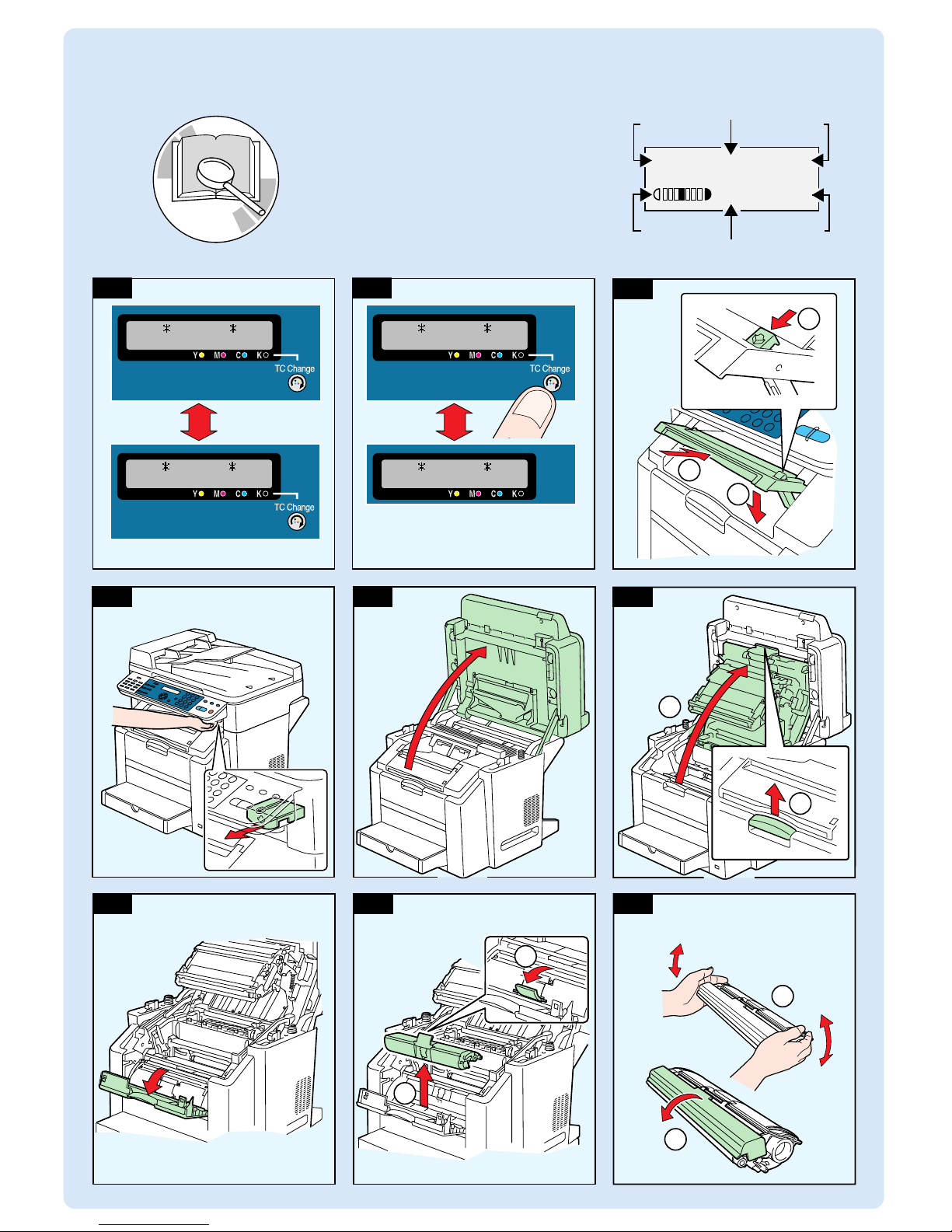

TONER CARTRIDGE

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper Size

Status

messages

Zoom

ratio

NEW TONER CARTRIDGE

4-5x

(X = C, M, Y, K)

CAUTION!

REPLACE MODE

CAUTION!

X TONER EMPTY

CAUTION!

CHANGE X TONER

CAUTION!

CHANGE X TONER

Display the toner cartridge to be replaced.

(Each press switches to a different toner

cartridge color.)

Printer/Copier/Scanner

User’s Guide

Chapter

(CLOSE ADF)

- 7 -

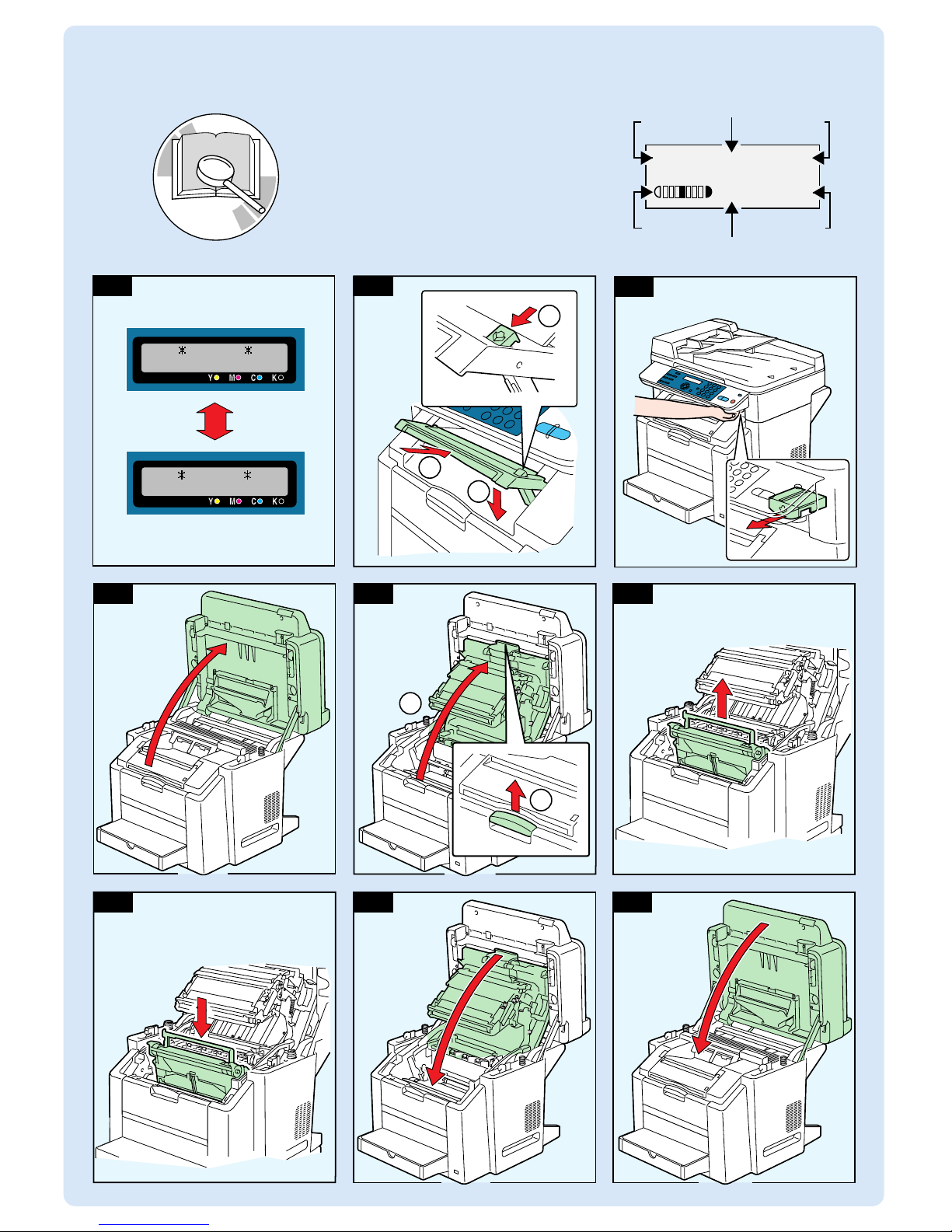

TONER CARTRIDGE

(cont.)

REPLACING

CONSUMABLES

13 15

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

Printer/Copier/Scanner

User’s Guide

Chapter

- 8 -

REPLACING

CONSUMABLES

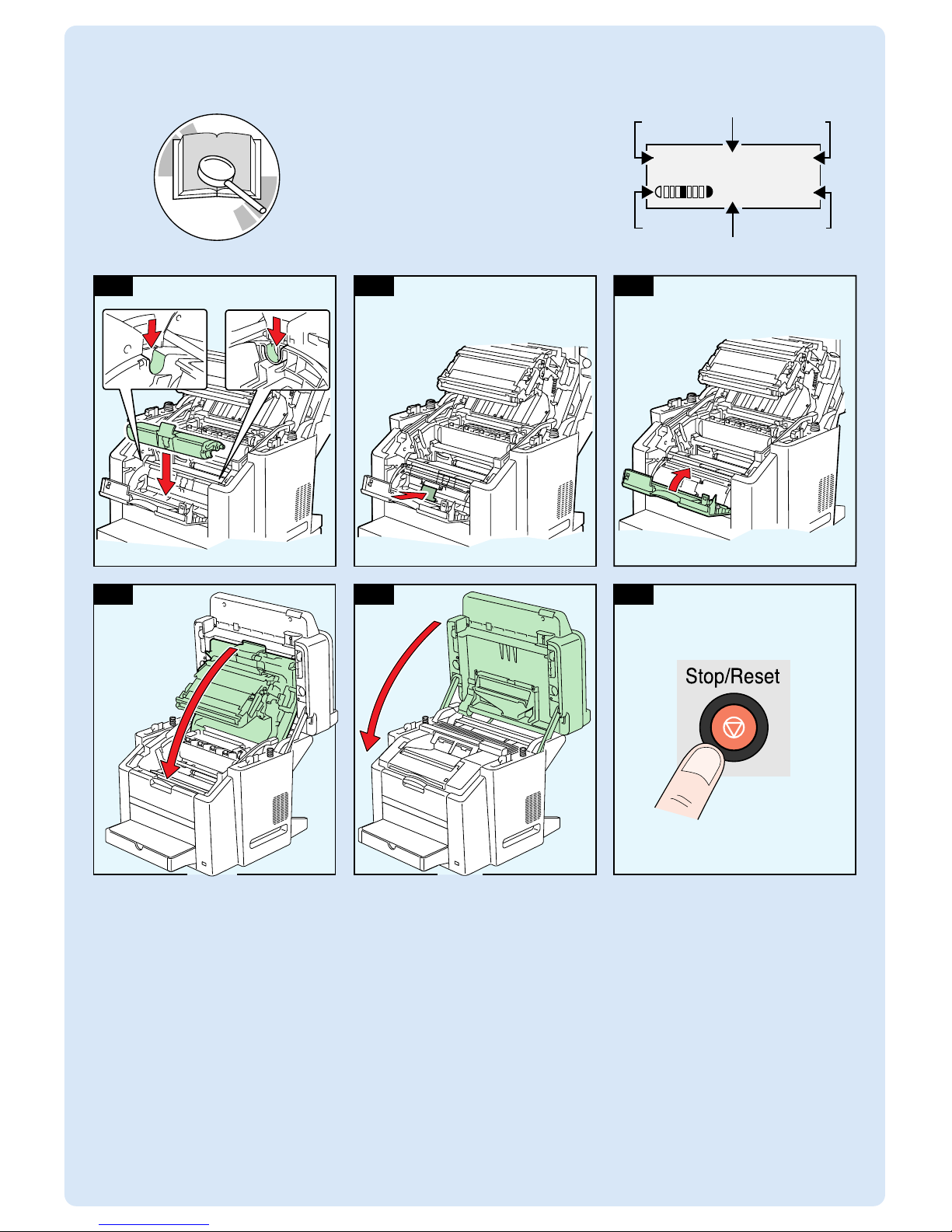

DRUM CARTRIDGE

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

NEW DRUM CARTRIDGE

3(CLOSE ADF)

CAUTION!

DRUM LIFE END

CAUTION!

CHANGE DRUM

Printer/Copier/Scanner

User’s Guide

Chapter
