Konica Minolta Magicolor 1690MF Manuel utilisateur

- 1 -

Quick Guide

A0HF-9235-00

Item Name Function

Addressbook key

Auto RX indicator

Redial/Pause key

Onhook key

Message Window

keys

Select key

Error indicator

Back key

Keypad

Fax key/LED

Scan key/LED

Copy key/LED

Start (B&W) key

Start indicator

Start (Color) key

Stop/Reset key

Displays the information registered in the favorite list, speed dial

destinations and group dial destinations

Lights up when the automatic receiving function is selected

Recalls the last number dialed

Inserts a pause when a number is dialed

Sends and receives transmissions with the receiver on the hook

Displays settings, menus, and messages

Moves up and down through menus, options, or choices

Moves left and right through menus, options, or choices

Press to select the setting that is currently displayed

Indicates an error condition

Clears the specified number of copies and entered text

Press to return to the previous screen

Press to cancel the setting that is currently displayed

Enters desired number of copies

Enters

fax numbers, mail addresses, and names of recipients

Enters Fax mode

Lights up in green to indicate that the machine is in Fax mode

Enters Scan mode (Scan to E-mail, Scan to FTP, Scan to a shared

folder on a computer, Scan to PC, or Scan to USB Memory)

Lights up in green to indicate that the machine is in Scan mode

Enters Copy mode

Lights up in green to indicate that the machine is in Copy mode

Starts monochrome copying, scanning or faxing

Lights up in blue when copying and fax transmissions are possible

Lights up in orange when copying and fax transmissions are not

possible, for example, during warm-up or if an error has occurred

Starts color copying, scanning or faxing

Returns the settings to their defaults and stops functions

62 51 7 711 12 13 14

15 17168 10

- 2 -

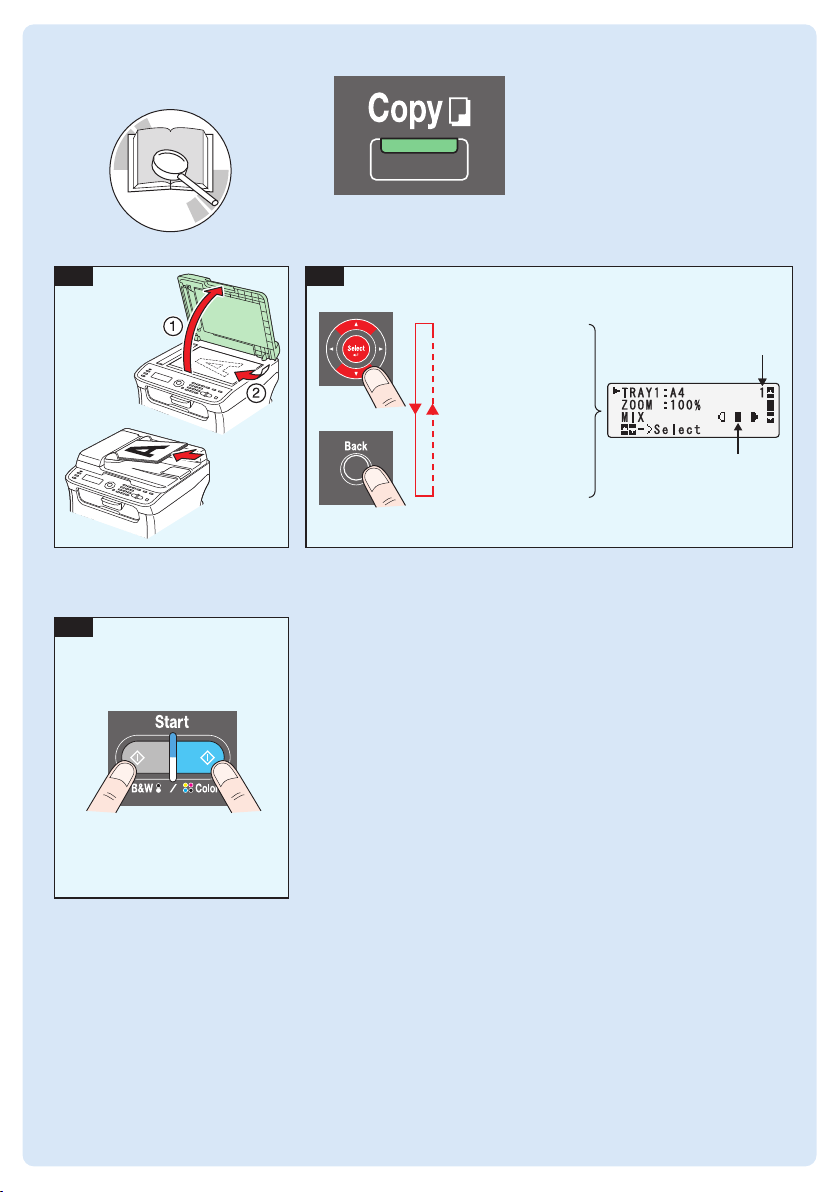

Note : Refer to the Printer/Copier/Scanner User’s Guide (PDF

manual on the CD/DVD) for details on copy functions.

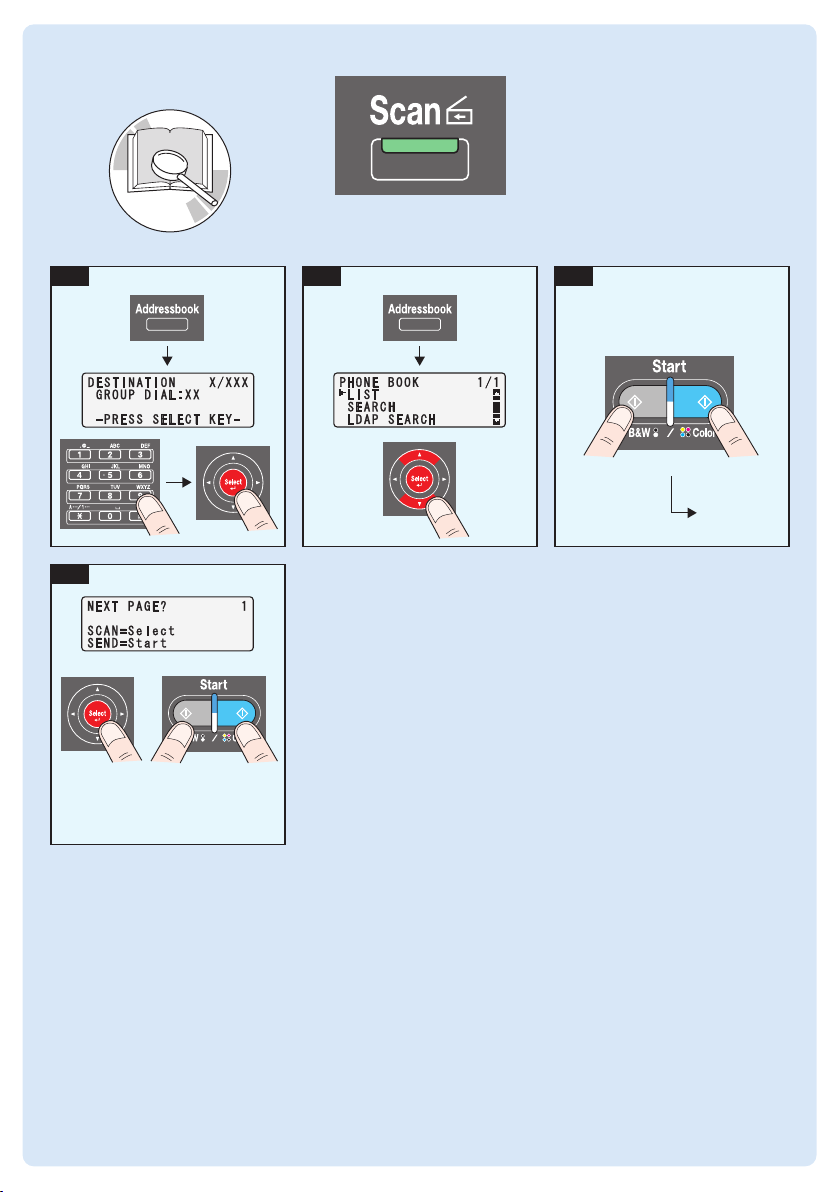

Printer/Copier/Scanner

User’s Guide

Chapter

max.

35 sheets

80 g/m2

(21 lb)

1 sheet

Copies

Density

TRAY1:A4

ZOOM:100%

MIX

NON-SORT

1 in 1

DUPLEX-OFF*

NORMAL COPY

UTILITY

REPORT/STATUS

- 3 -

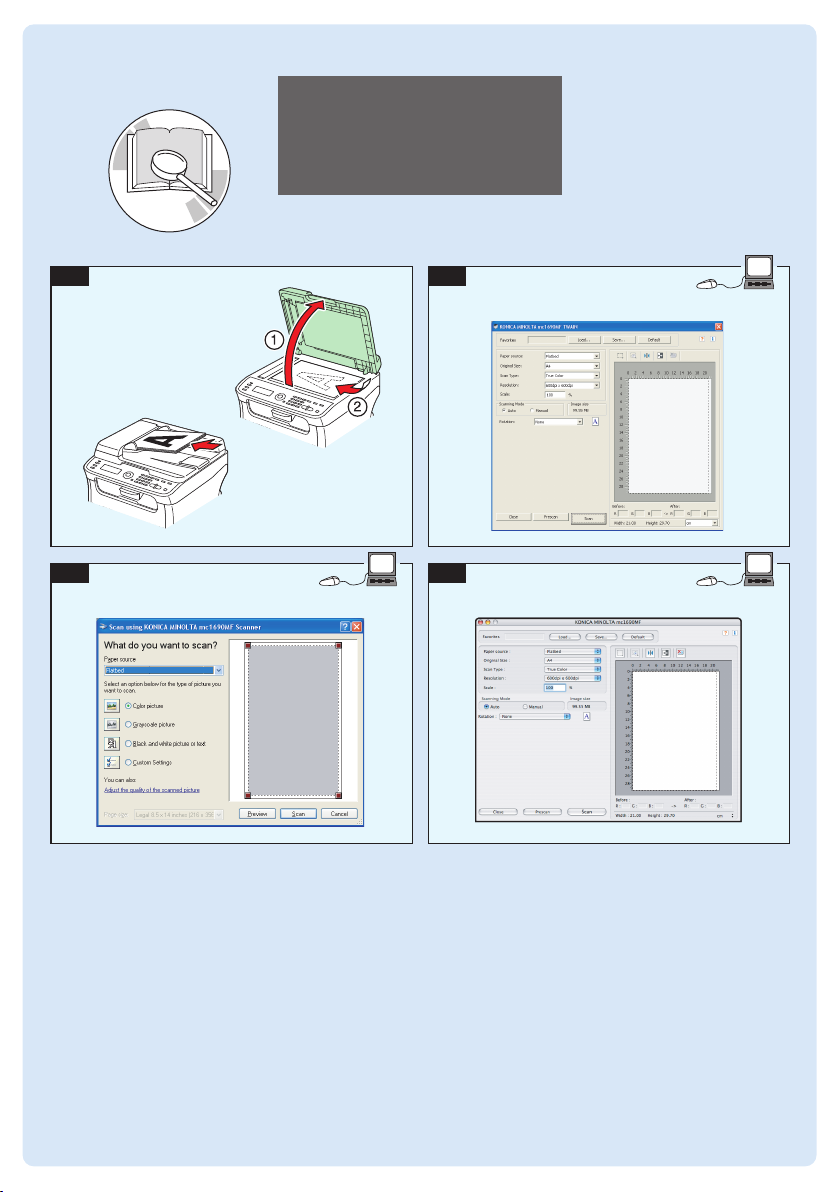

Scan from

TWAIN (Windows)

Scan from

WIA (Windows)

Scan from

TWAIN

(Macintosh)

2b 2c

TWAIN (Windows)

WIA (Windows) TWAIN (Macintosh)

Note : Refer to the Printer/Copier/Scanner User’s Guide (PDF manual on the CD/DVD) for details on

how to use the scanner driver.

Printer/Copier/Scanner

User’s Guide

Chapter

1 sheet

max.

35 sheets

80 g/m2

(21 lb)

- 4 -

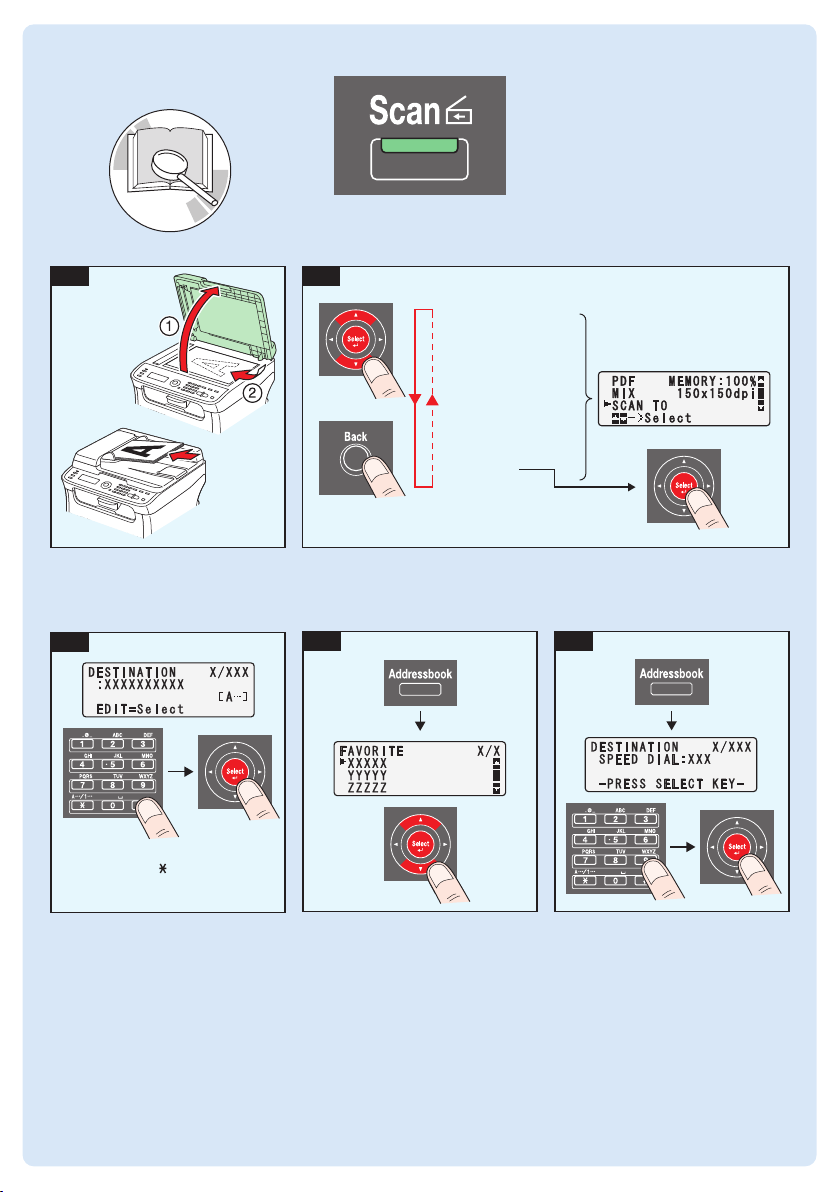

3b 3c SPEED DIAL

FAVORITE

Press 2x

3 digits

Note : Refer to Printer/Copier/Scanner User’s Guide (PDF

manual on the CD/DVD) for details on Scan to E-mail/FTP/SMB.

3a DIRECT

* Each press of the key switches the in-

put mode between numeric and alpha-

numeric characters

Printer/Copier/Scanner

User’s Guide

Chapter

Scan to E-mail / FTP / SMB

SIZE:A4

COLOR or GRAY

SUBJECT

CANCEL RESERV.

UTILITY

REPORT/STATUS

PDF

MIX

SCAN TO

max.

35 sheets

80 g/m2

(21 lb)

1 sheet

- 5 -

Printer/Copier/Scanner

User’s Guide

Chapter

Scan to E-mail / FTP / SMB

(cont.)

3d 3e

GROUP DIAL

Press 3x

2 digits

BOOK

(Original glass)

Step 5

PHONE BOOK

Press 4x

SCAN

SEND

- 6 -

Printer/Copier/Scanner

User’s Guide

Chapter

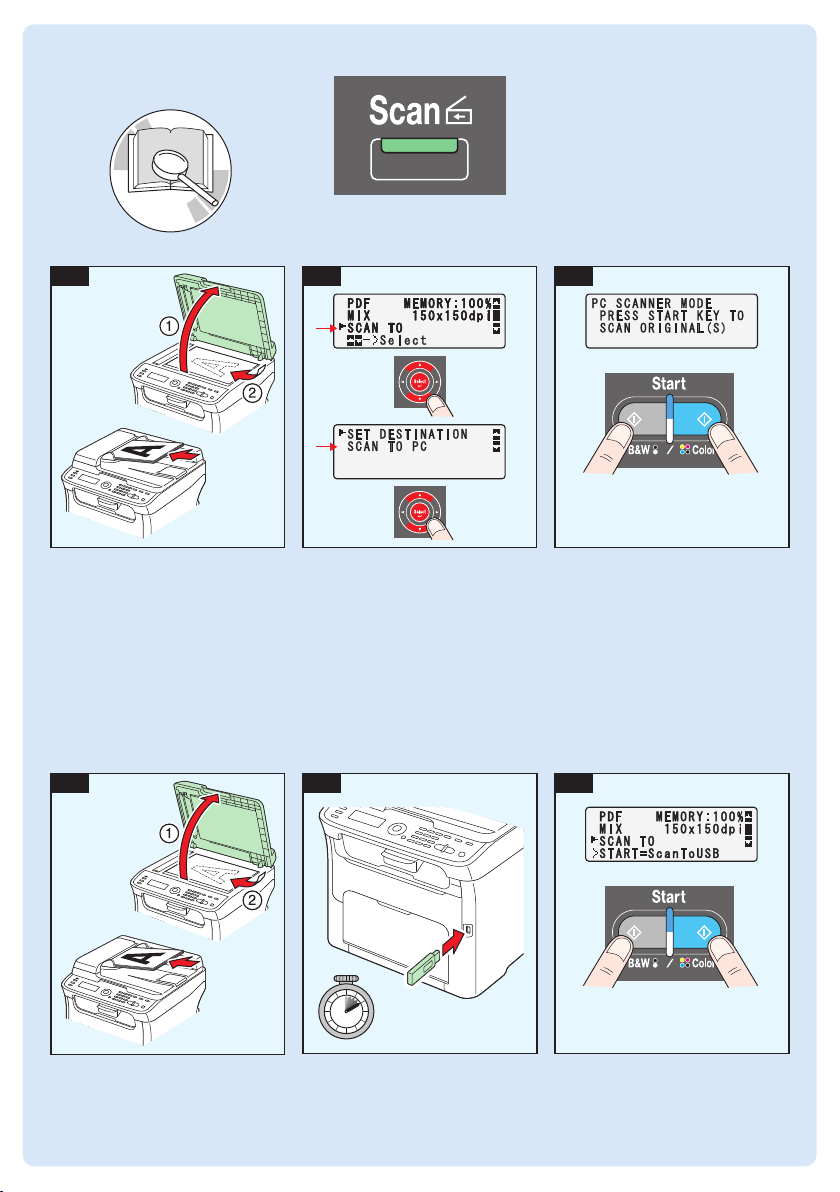

Scan to PC

Scan to USB Memory

2 3

Note : Refer to Printer/Copier/Scanner User’s Guide (PDF manual on the CD/DVD) for details on

Scan to USB Memory.

Note : The Scan-to-PC function can be used when the TWAIN Scanner driver, Printer driver, and

KONICA MINOLTA LinkMagic (Windows only) are installed on your PC. Make sure that

KONICA MINOLTA LinkMagic is started first.

Refer to Printer/Copier/Scanner User’s Guide (PDF manual on the CD/DVD) for details on

Scan to PC.

max.

35 sheets

80 g/m2

(21 lb)

1 sheet

max.

35 sheets

80 g/m2

(21 lb)

1 sheet

- 7 -

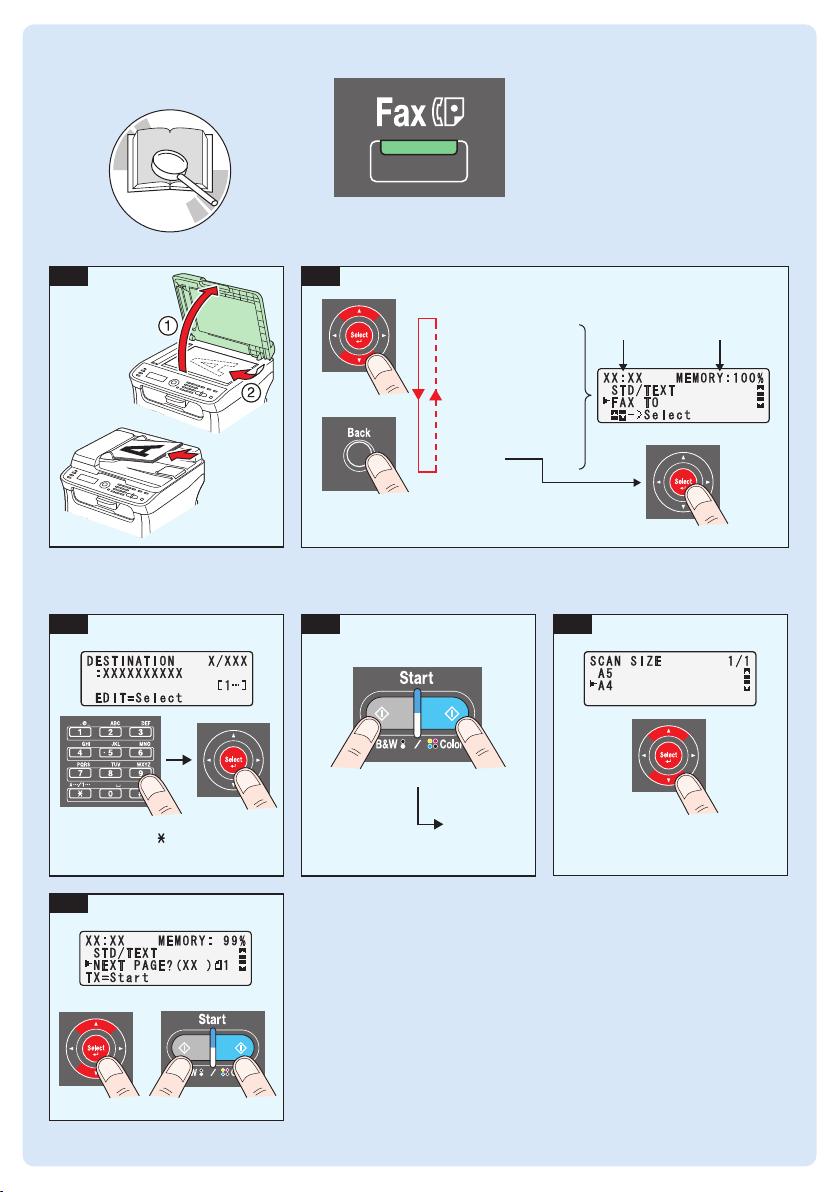

Note : Refer to Facsimile User’s Guide (PDF manual on

theCD/DVD) for details on Fax operation.

DIRECTDIRECT

BOOK

(Original glass)

Step 5-6

* Each press of the key switches the in-

put mode between numeric and alpha-

numeric characters.

Facsimile

User’s Guide

Chapter

1 - 6

max.

35 sheets

80 g/m2

(21 lb)

1 sheet

MemoryTime

TIMER TX

MEMORY TX

CANCEL RESERV.

UTILITY

REPORT/STATUS

STD/TEXT

FAX TO

- 8 -

Facsimile

User’s Guide

Chapter

FAX from PC

Note : Refer to the Facsimile User’s Guide (PDF manual on the CD/DVD) for details on how to use

the PC-FAX driver.

PC-FAX (Windows)

- 9 -

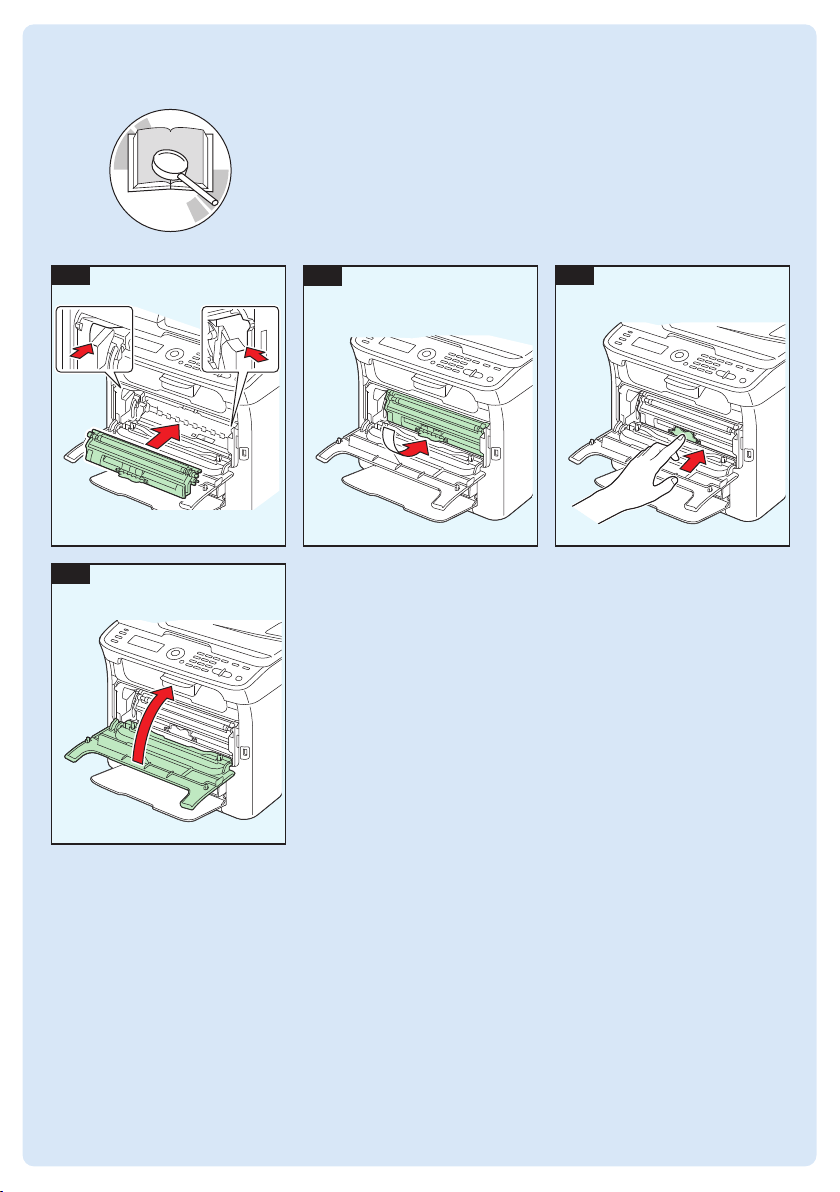

REPLACING

CONSUMABLES

TONER CARTRIDGE

123

8 9

Printer/Copier/Scanner

User’s Guide

Chapter

5 64

- 10 -

Printer/Copier/Scanner

User’s Guide

Chapter

REPLACING

CONSUMABLES

TONER CARTRIDGE

(cont.)

11 12
