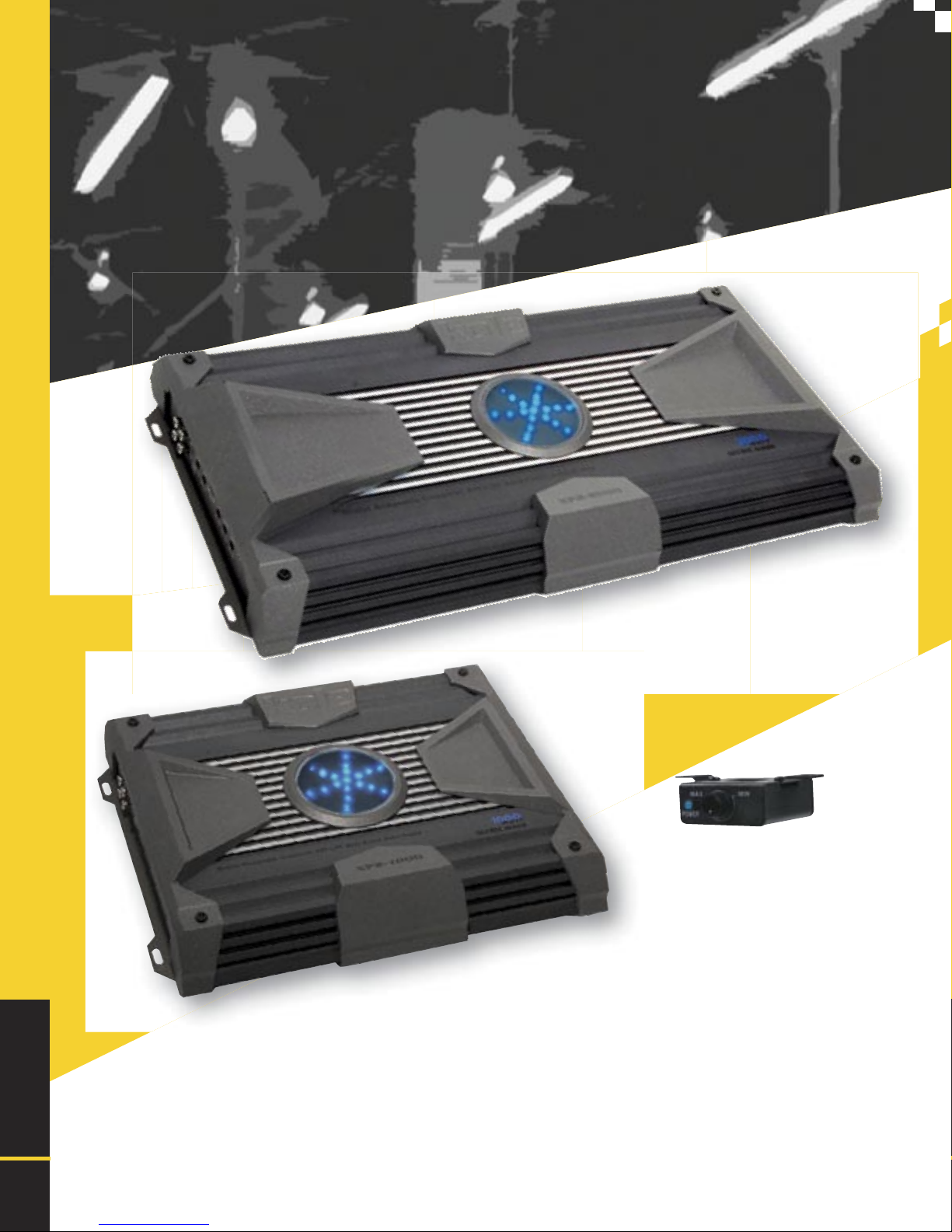

The Kole Nitric series amplifiers are elegantly appointed with the Star Pulse audio
recognition system that confirms the musical notes by variable burst LED’s. We have
appointed these amplifiers with full mosfet power supplies and 24db. Subwoofer
crossovers and dash mounted bass controls on all two channel models from 1000
watts to 2000 watts. If you’re looking for bass to totally annoy your neighbors this
will do the trick!
Remote Dash Mount
Bass Knob Control
3
WWW.KOLEAUDIO.COM

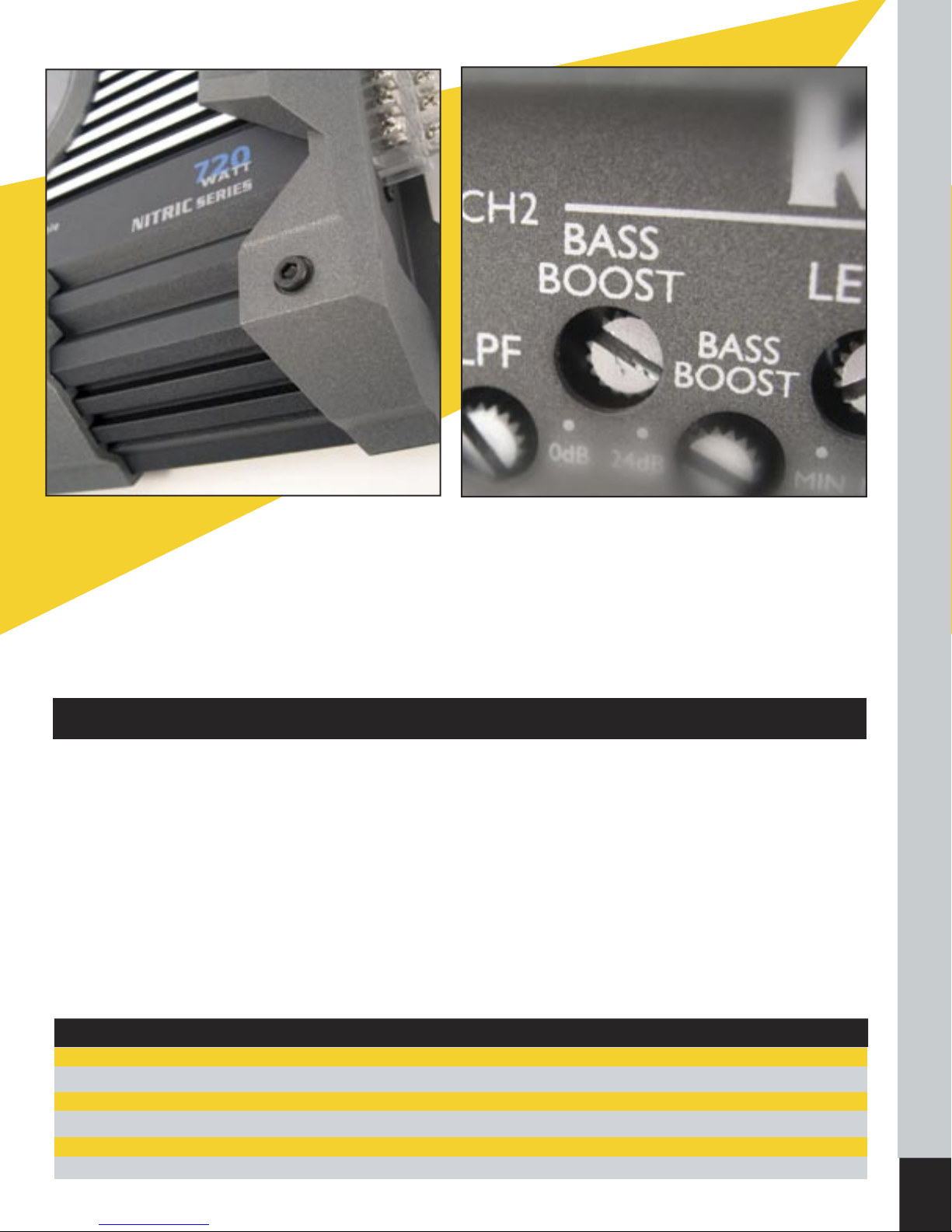

NITRIC SERIES
End Caps New Hyper Bass
Common Features:
MODEL 2CH/4CH 4OHM RMS 2OHM RMS MONO RMS BRIDGED MAX DIMENSION W”XH”XD” BASS KNOB
XP2-620 2 150x2 180x2 360 620 12x2.7x11.7 No
XP2-1000 2 220x2 280x2 560 1000 14x2.7x11.7 Yes
XP2-1500 2 300x2 380x2 760 1500 19x2.7x11.7 Yes
XP2-2000 2 370x2 450x2 900 2000 21x2.7x11.7 Yes
XP4-720 4 85x4 100x4 200x2 720 12x2.7x11.7 No
XP4-1000 4 100x4 125x4 250x2 960 14x2.7x11.7 No
• Star PulseAudio Recognition System
• Full Mosfet Power Supply
• PWM Circuitry
• Full Selectable Crossover Hi/Full/Low
• Three Way Protection Circuit
• 2 Ohm Stable Stereo
• Tri-Mode Capable
• Variable Low Pass 40Hz-250Hz
• Variable Hi Pass 40Hz-250Hz
• Variable 24 dB Bass Boost@40Hz
• Variable Subsonic Filter 60Hz-200Hz
• Frequency Response: 10Hz to 30KHz
• S/N Ratio: 98 dB
• THD: 0.02%
• System Distress Indicator
• 4 Guage Power/Ground Connection
• Platinum Plated RCA Connectors
• Line Output
• High/Low level inputs with Floating Ground
• Optional Accessories: METER-4
• This series has direct coupling For METER-4
4
KXSERIES
AMPLIFIERS
Remote Dash Mount Bass
Knob Control

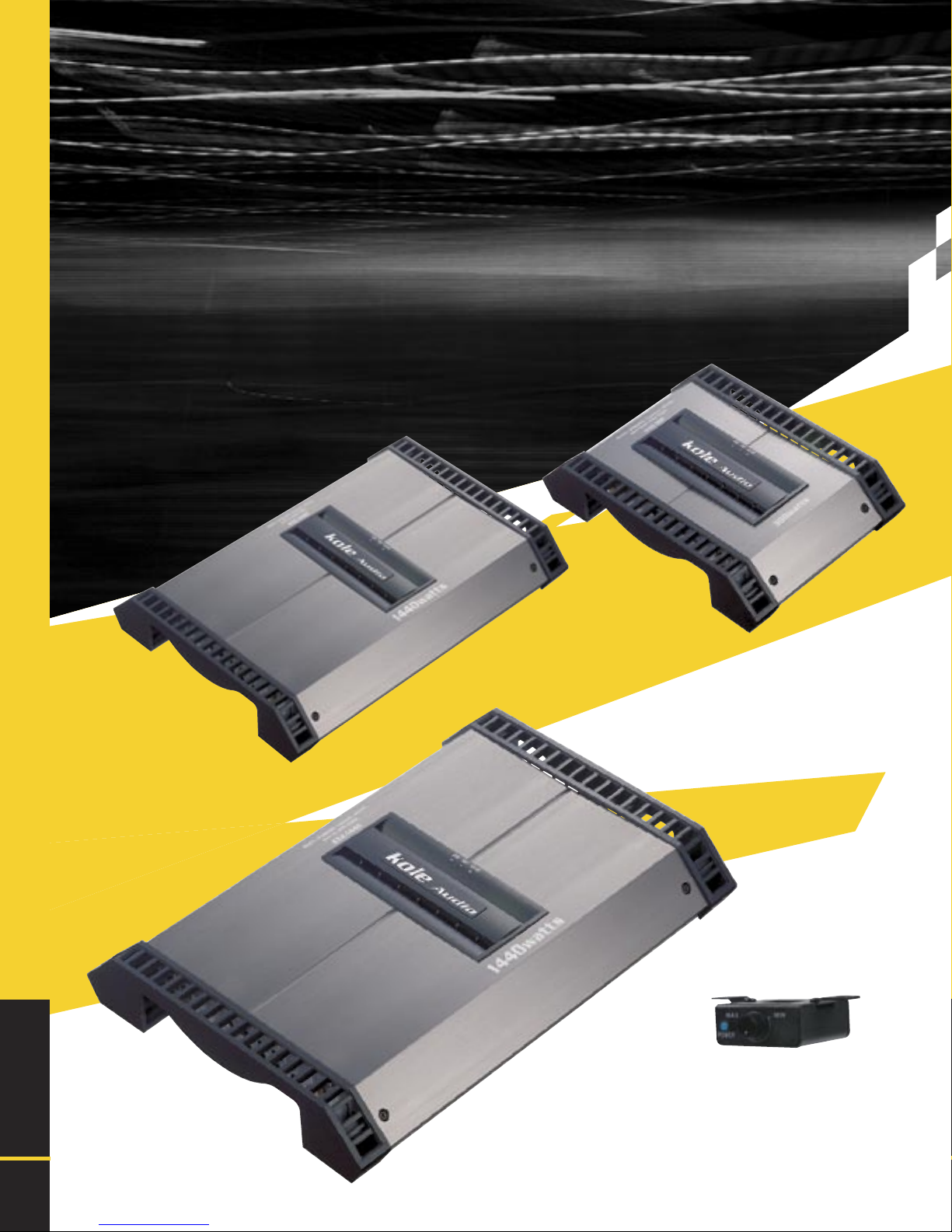

The Kole KX series amps are designed and built with the Competition (SPL) enthusiast
in mind. The top vent is designed to accelerate cooling to enable the amps to produce
what they were designed for: extreme bass reproduction using the KX series unique
proprietary power supply design. And on top of everything the sides panels will give
you a clean installation look hiding all your connections.
c
5

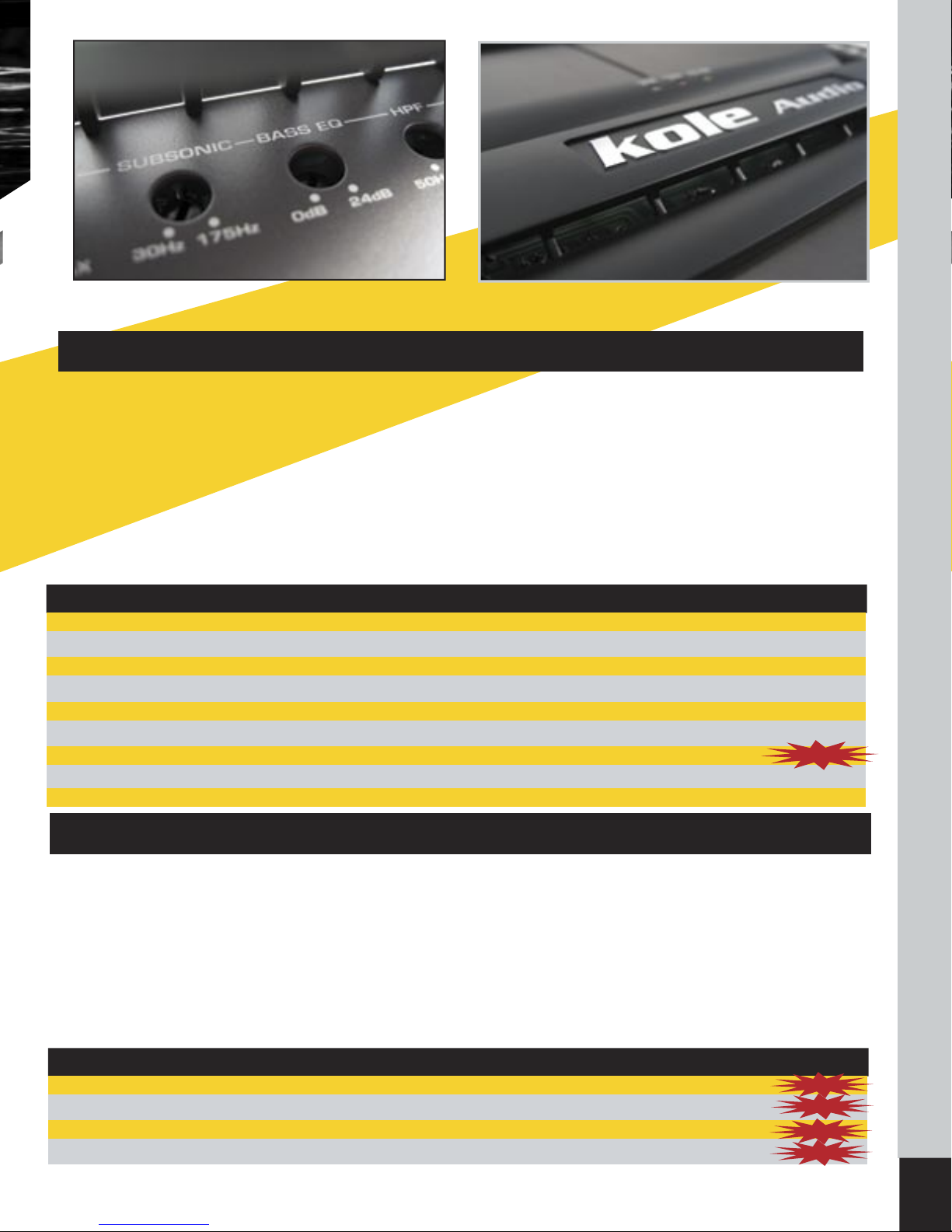

WWW.KOLEAUDIO.COM
- New Hyper Bass - Top Vent For Accelerated Cooling
- End Caps For Clean Installation
Class A/B Common Features:
• Full Mosfet Power Supply
• PWM Circuitry
• Full Selectable Crossover Hi/Full/Low
• Three Way Protection Circuit
• 2 Ohm Stable Stereo
• Tri-Mode Capable
• Variable Low Pass 30Hz-500Hz
• Variable Hi Pass 50Hz-500Hz
• Variable 24 dB Bass Boost
• Variable Subsonic Filter 60Hz-200Hz
• Frequency Response: 10Hz to 30KHz
• S/N Ratio: 98 dB
• THD: 0.02%
• System Distress Indicator
• 4 Guage Power/Ground Connection
• End Caps for Clean Installation
• Gold Plated RCA Connectors
• Line Output
• Top Vent For Accelerated cooling
Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max DimensionW”xH”xD” Bass Knob
KX2-300 2 70x2 85x2 170 300 8.2x2.25x11 No
KX2-400 2 85x2 105x2 210 400 9.5x2.25x11 No
KX2-620 2 150x2 180x2 360 620 12.25x2.25x11 Yes
KX2-980 2 220x2 280x2 560 980 14.25x2.25x11 Yes
KX2-1440 2 300x2 360x2 720 1440 20.5x2.25x11 Yes
KX2-1920 2 370x2 440x2 880 1920 22x2.25x11 Yes
KX2-2400 2 450x2 540x2 1080x2 2400 24x2.25x11 Yes
KX4-600 4 70x4 85x4 170x2 600 12.25x2.25x11 No
KX4-800 4 85x4 105x4 210x2 800 14.25x2.25x11 No
Model CH 4ohm RMS 2ohm RMS 1 ohm RMS Max Dimension W”xH”xD” Bass Knob
KX1-2000D 1 600 900 1200 2000 12x2.3x11.7 Yes
KX1-3000D 1 900 1300 1700 3000 13.5x2.3x11.7 Yes
KX1-4000D 1 1200 1700 2200 4000 16x2.3x11.7 Yes
KX1-5500D 1 1700 2500 3200 5500 193.2x2.3x11.7 Yes
Class D Common Features:
• Hi Speed Digital Circuitry
• Fully Regulated PWM Power Supply
• Four Way Protection Circuit
• 1 Ohm Stable Stereo
• Bridging Synchronization
• Variable Low Pass 50Hz-150Hz
• Variable Subsonic Filter 15Hz-40hz
• Variable Subwoofer EQ @ 45Hz
• Phase Switch 0-180
• Remote Dash Mount Low Level Gain Control With
Cable
• Frequency Response: 15Hz to 150hz
• S/N Ratio: 100 db
• THD: 0.5%
• System Distress Indicator
• Inputs Sensitivity: 200mv-8v
• Dual Mono Speaker Output Connectors
• Gold Plated Heavy Duty Power & Speaker Terminals
NEW
NEW
NEW
NEW
NEW
6
QXSERIES
AMPLIFIERS
- Chrome End Caps
- Leaving No Visible Connections
Remote Dash Mount
Bass Knob Control
7
WWW.KOLEAUDIO.COM
Common Features For Class D:
• Hi Speed Digital Circuitry
• Fully Regulated PWM Power Supply
• Four Way Protection Circuit
• 1 Ohm Stable Stereo
• Bridging Synchronization
• Variable Low Pass 50Hz-150Hz
• Variable Subsonic Filter 15Hz-40hz
• Variable Subwoofer EQ @ 45Hz
• Phase Switch 0-180
• Remote Dash Mount Low Level Gain Control With
Cable
• Frequency Response: 15Hz to 150hz
• S/N Ratio: 100 db
• THD: 0.5%
• System Distress Indicator
• Inputs Sensitivity: 200mv-8v
• Dual Mono Speaker Output Connectors
• Gold Plated Heavy Duty Power & Speaker Terminals
Common Features For Class A/B:
Model 2ch/4ch 4ohm RMS 2ohm RMS Mono RMS Bridged Max Dimension W”xH”xD” Bass Knob
QX2-360 2 85x2 100x2 200 360 7.25x2.3x11 No
QX2-480 2 100x2 125x2 250 480 9x2.3x11 No
QX2-620 2 150x2 180x2 360 620 11.25x2.3x11 No
QX2-980 2 220x2 280x2 560 980 13x2.3x11 Yes
QX2-1440 2 300x2 360x2 720 1440 18.7x2.3x11 Yes
QX2-1920 2 370x2 440x2 880 1920 20.7x2.3x11 Yes
QX2-2400 2 450x2 540x2 1080 2400 23x2.3x11 Yes
QX4-720 4 85x4 100x4 200x2 720 11.25x2.3x11 No
QX4-960 4 100x4 125x4 250x2 960 13x2.3x11 No
• Full Mosfet Power Supply
• PWM Circuitry
• Full Selectable Crossover Hi/Full/Low
• Three Way Protection Circuit
• 2 Ohm Stable Stereo
• Tri-Mode Capable
• Variable Low Pass 40Hz-250Hz
• Variable Hi Pass 40Hz-250Hz
• Variable 18 dB Bass Boost
• Frequency Response: 10Hz to 30KHz
• S/N Ratio: 98 dB
• THD: 0.02%
• System Distress Indicator
• 4 Gauge Power/Ground Connection
• Platinum Plated RCA Connectors
• Line Output
• High/Low Level Inputs w/ Floating Ground
• Chrome End Caps
Model Ch 4 Ohm Rms 2 Ohm Rms 1 Ohm Rms Max Dimensions (LxWxH) Bass Knob
QX1-2400D 1 900 1400 1800 2400 15” x 11.25” x 2.25” Yes
QX1-3000D 1 1100 1800 2300 3000 16.8” x 11.25” x 2.25” Yes

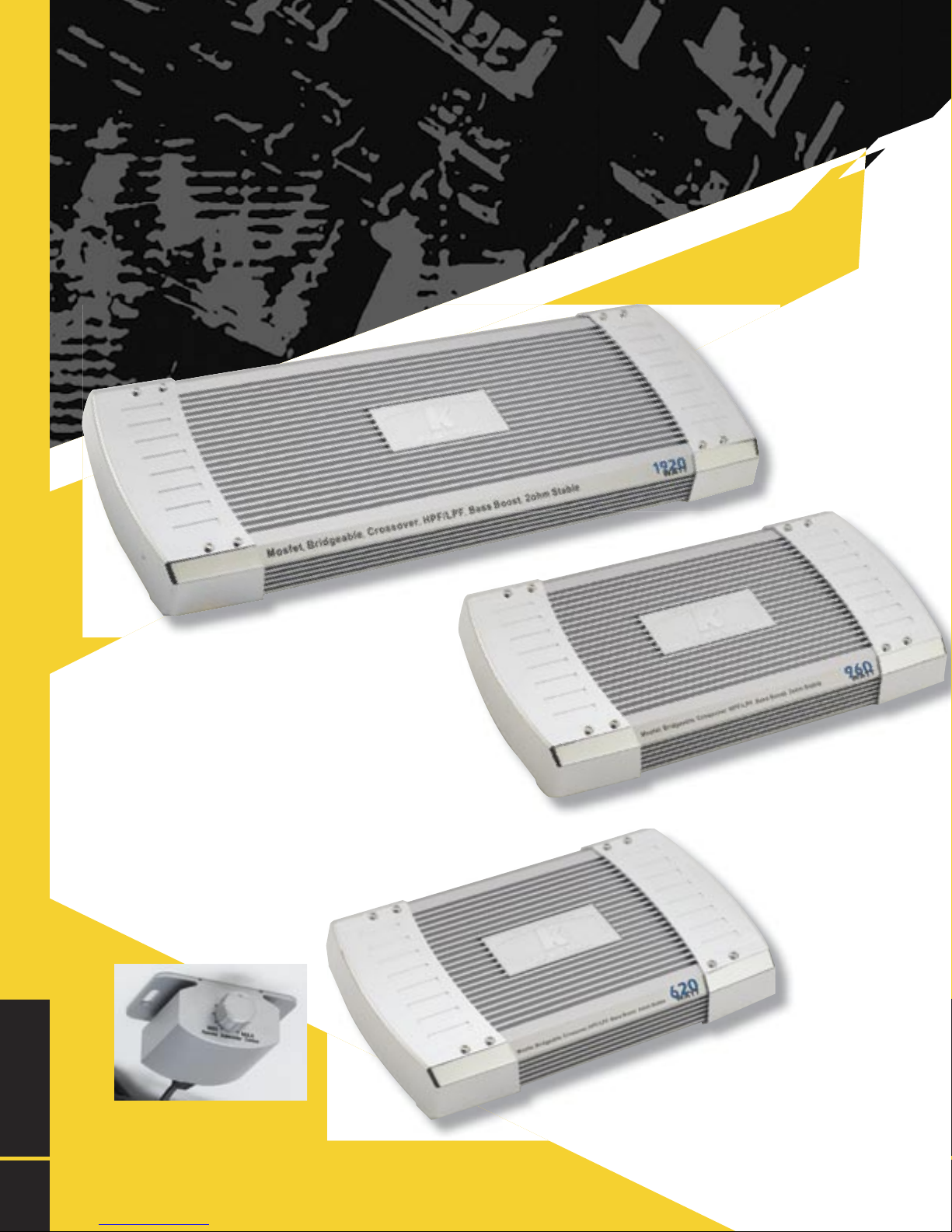

Kole Audio QX Series amplifiers are elegantly appointed with chrome endcaps, but
functionality has not been overlooked, as evidenced by the abundance of thermal dispelling
aluminum and air circulating channels on both sides of the heat sink. All this, along with
our proprietary power supply design for extreme bass reproduction, keeps the air moving
and the mirrors vibrating in your vehicle
NEW
8
SUBWOOFERS
KMXSERIES

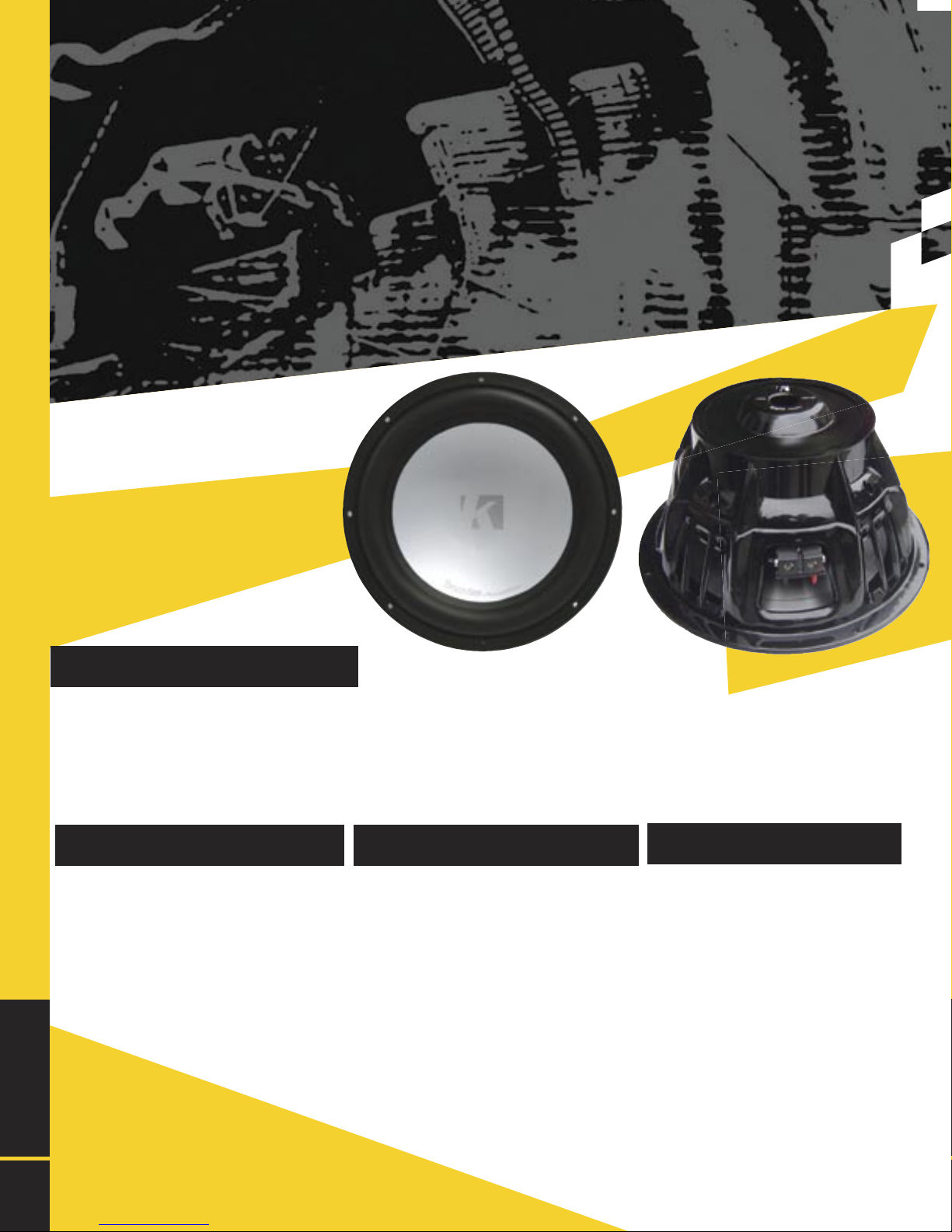

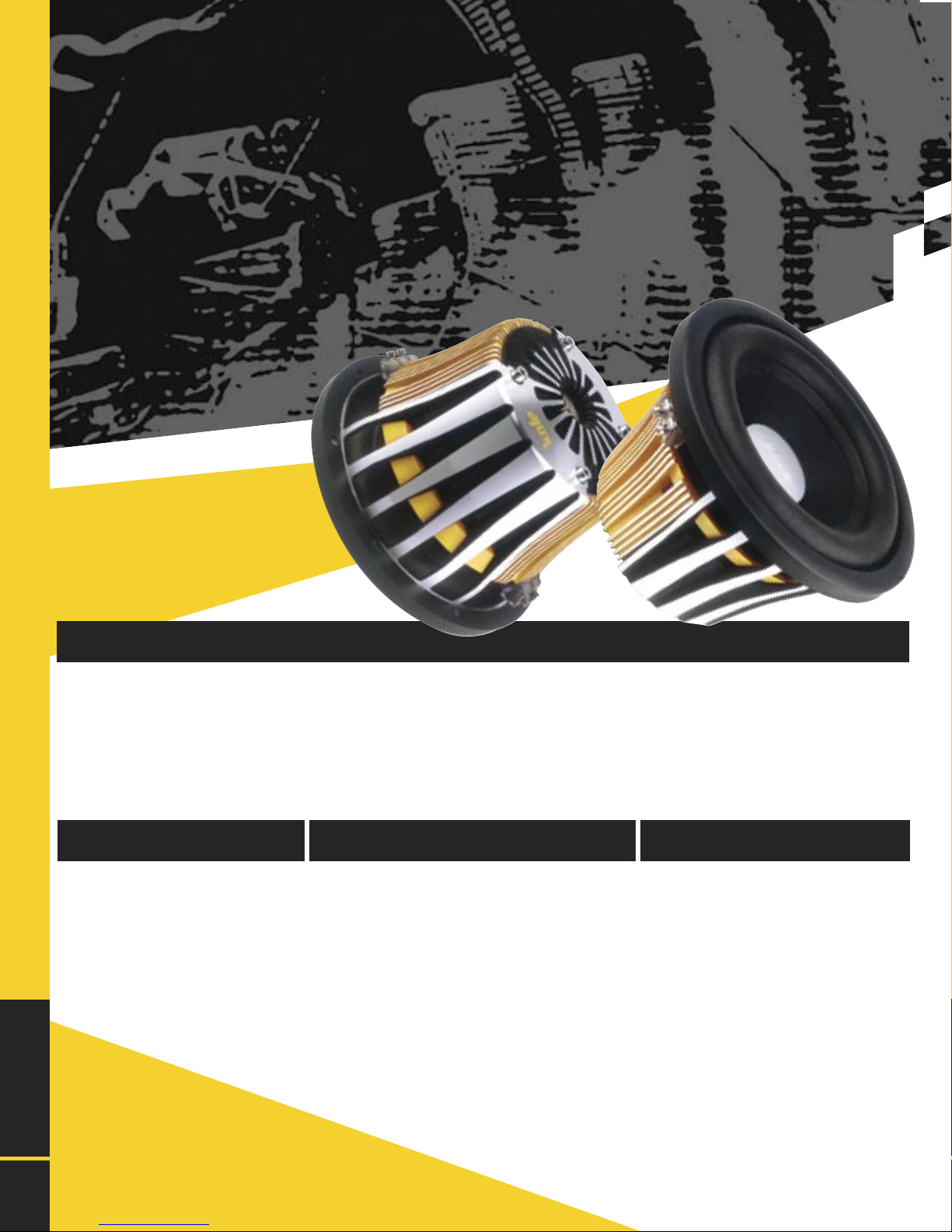

What's cool? The Kole Audio KMX subwoofers. A revolutionary design in a direct-coupled
aluminum dust cap increases thermal transfer from the voice coil by 50%. At the same
time, the newly designed dust cap lowers the resonant frequency of the subwoofer,
thereby extending the low-end. Our acoustical engineers
achieved their goal in making these
woofers handle 56% more power
over conventional designs
without sacrificing
sensitivity.
Common Features:
KMX-15
• 2000 Watts MAX Power
• 1000 Watts RMS Power
• 270oz. Magnet
• 4-inch 18 AWG Voice Coil
• Fs: 29.6 Hz
• Vas: 1.79 Ft3
• Qms: 4.685
• Qes: 0.484
• Qts: 0.439
• Xmax: 0.748"
• SPL: 92 dB
• Recommended Enclosure: 3.0 Ft3 Ported
• Port Size: 4" x 11.25"
• # of Ports: 2
• Mounting Depth: 8.5
KMX-12
• 1600 Watts MAX Power
• 800 Watts RMS Power
• 270oz. Magnet
• 3-inch 18 AWG Voice Coil
• Fs: 27.39 Hz
• Vas: 1.45 Ft3
• Qms: 5.13
• Qes: 0.418
• Qts: 0.3867
• Xmax: 0.473"
• SPL: 90 dB
• Recommended Enclosure: 2.4 Ft3 Ported
• Port Size: 4" x 8.75"
• # of Ports: 1
• Mounting Depth: 6.75”
KMX-10
• 1400 Watts MAX Power
• 700 Watts RMS Power
• 170oz. Magnet
• 3-inch 18 AWG Voice Coil
• Fs: 35.2 Hz
• Vas: 0.48 Ft3
• Qms: 5.27
• Qes: 0.479
• Qts: 0.439
• Xmax: 0.473"
• SPL: 89 dB
• Recommended Enclosure: 1.75 Ft3 Ported
• Port Size: 4" x 11"
• # of Ports: 1
• Mounting Depth: 6.25”
• 2-Piece Die Cast Aluminum Basket
• Non-Pressed Paper Cone with Aluminum Dust Cap
• Large Roll Treated Foam Surround
• Woven "Through-the-Spider" Tinsel Leads
• Dual CONEX Spiders
• Dual 2-Ohm BASV/Kapton Hybrid Voice Coil
• 1-Piece Rubber Gasket
• Black/Yellow Wrinkle Coat with Diamond Cut Finish
• Heavy Duty Connectors
9
WWW.KOLEAUDIO.COM

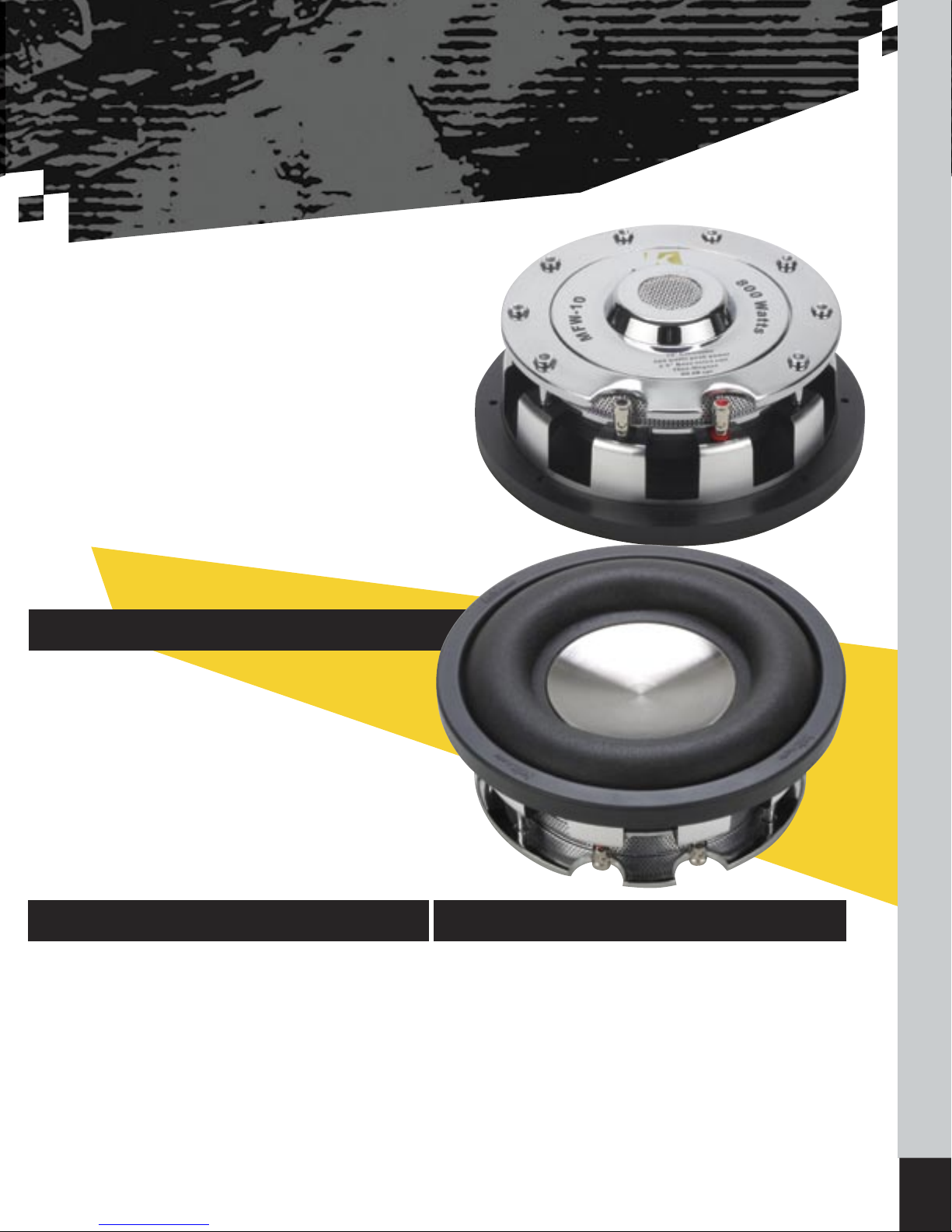

SUBWOOFERS MFW SERIES
The MFW Series of subwoofers are designed
especially for those who want big sound in a
little space. The flat, compact construction
of the MFW's means less volume
displacement by the speaker itself, allowing
these speakers to operate in spaces as small
as 1.0 cubic feet, with a flat response down
to around 35 Hz, and delivering tremendous
punch from a sealed enclosure. It doesn't
get any better than this.
Common Features:
• Cast Aluminum Flat Basket
• Titanium/Aluminum Cone
• Large Roll Treated Foam Surround
• Single 4-Ohm ASV Voice Coil
• Woven Flat Tinsel Lead
• Dual Black Poly/Cotton Spider
• 1-Piece Rubber Gasket
• Chrome Spring Load Terminals
• Diamond Cut Basket
• XL Chrome Front & Back Plates
MFW-10
• 800 Watts MAX Power
• 400 Watts RMS Power
• 160oz. Magnet
• 2.5-inch Voice Coil
• Fs: 31.6 Hz
• Vas: 0.962 Ft3
• Qts: 0.550
• Xmax: 0.354"
• SPL: 89 dB
• Recommended Enclosure:1.0 Ft3 Sealed
• Mounting Depth: 4"
MFW-12
• 1000 Watts MAX Power
• 500 Watts RMS Power
• 200oz. Magnet
• 2.5-inch Voice Coil
• Fs: 30.45 Hz
• Vas: 1.567 Ft3
• Qts: 0.517
• Xmax: 0.354"
• SPL: 91dB
• Recommended Enclosure:1.2 Ft3 Sealed
• Mounting Depth: 4"
SUBWOOFERS
10
SUBWOOFERS
KW2SERIES
Need some serious BASS, you want the edge in looks compared to your competition? And
you’re on a budget…look no further, the KW2 series woofers bring you everything in
a complete woofer to show and tell. Check out the sleek basket and massive motor
structure, all encased by a
smooth black contemporary
color finish. Does your
competition look that
good??
Common Features:
KW2-15M
• 1300 watts power handling
• 550 watts RMS
• 110 oz. Magnet
• 2” BASV Aluminum Voice Coil
• Mounting Depth: 7.25”
KW2-12M
• 1200 watts power handling
• 500 watts RMS
• 100 oz. Magnet
• 2” BASV Aluminum Voice Coil
• Mounting Depth: 6.25”
KW2-10M
• 1100 watts power handling
• 450 watts RMS
• 100 oz. Magnet
• 2” Aluminum Voice Coil
• Mounting Depth: 5.875”
• Propriotery Stamped Steel Basket
• PP Injected Large Dust/Cone
• Large Rubber Surround
• Integrated Tinsel Leads
• Black CONEX Linear Spider
• Dual 4 ohm High Temperature Voice Coil
• ABS Plastic Gasket
• Descrete Mount Terminal
