Koldfront KAC40BL Manuel utilisateur

Evaporative Air Cooler

Owner’s Manual

For more information on other great EdgeStar products on the web, go to http://www.edgestar.com

KAC40BL

Important Safety Information

Improper handling can cause serious damage to the appliance and/or to the

user. Please read the following safety information.

Electrical products should not be disposed of with household waste.

Please contact your local recycling center for more information on how

to recycle electronic waste.

Electrical Safety

This product is designed for indoor use only.

Keep the housing and control panel dry; do not spray water directly on

the control panel.

Do not touch the power plug with hands.

Do not pull the unit by the cord.

Always turn the unit off and unplug it from the outlet when cleaning.

Unplug the unit if it is not going to be used for a long period of time.

Do not operate the unit with a damaged power plug or a loose socket.

If the power cord is damaged, it must be replaced by the manufacturer,

a service agent, or a qualified technician.

Read the rating label on the product for power requirements.

Use only the correct power supply with appropriate amperage.

This appliance is for use only on 110-115-120V, 60Hz electrical circuits.

Do not remove any part of the casing unless instructed by an

authorized technician.

If the unit is tipped over while filled with water, immediately unplug the

unit. Allow the unit to dry for 24 hours before operating it to minimize

the risk of damaging the electronics.

General Safety

This evaporative air cooler is not intended to be used by children.

Children should be supervised to ensure that they do not play with the

controls or drop any objects into the air outlets or vents.

Do not place objects or let any person sit on top of the unit.

Only use the unit in the upright position on a flat, level surface.

Route the power cord carefully to avoid a tripping hazard.

This unit is intended for domestic use only. Do not use the portable air

cooler for industrial or commercial use. Any other use may invalidate

the warranty.

Do not use flammable liquids or gases around the unit.

Keep all fingers and other foreign objects clear of the internal fan at all

times.

KoldFront Evaporative Air Cooler ii

Table of Contents

IMPORTANT SAFETY INFORMATION.................................................................I

INTRODUCTION ...................................................................................................1

PARTS IDENTIFICATION.....................................................................................2

FRONT VIEW........................................................................................................2

BACK VIEW..........................................................................................................2

ADDING WATER AND USING THE ICE PACKS ................................................3

OPERATING INSTRUCTIONS..............................................................................4

CONTROL PANEL OPERATION...............................................................................4

POWER ...............................................................................................................4

COOL ..................................................................................................................4

SWING.................................................................................................................4

TIMER .................................................................................................................4

FAN SPEED BUTTONS ..........................................................................................4

LOUVER CONTROL ...............................................................................................4

DRAINING THE UNIT............................................................................................5

CLEANING AND MAINTENANCE........................................................................5

CLEANING THE UNIT .............................................................................................5

CLEANING THE WATER TANK .................................................................................5

PREPARATION FOR STORAGE ...............................................................................5

PRE-FILTER AND EVAPORATIVE WICK MAINTENANCE.............................................6

TROUBLESHOOTING ..........................................................................................7

SPECIFICATIONS.................................................................................................8

EDGESTAR LIMITED WARRANTY .....................................................................9

This owner’s manual is provided for reference use only. Specifications may

change without prior notice. Refer to the product label on the back of your

product for the latest technical information.

Introduction

Thank you for purchasing this KoldFront evaporative air cooler by EdgeStar. We

are glad you chose us. We believe that your purchase of this product opens a

relationship between you and EdgeStar. We will provide the customer support

needed to nurture that relationship.

This manual contains important information regarding the proper installation,

usage and maintenance of your evaporative air cooler. Following this manual will

ensure that your product will work at its peak performance and efficiency.

Please save the original product packaging in case you need to safely transport

your evaporative air cooler.

For Your Records:

Please write down the model number and serial number

below for future reference. Both numbers are located on the

ratings label on the back of your unit and are needed to

obtain warranty service. You may also want to staple your

receipt to this manual as it is the proof of your purchase, and

is also needed for service under your warranty.

Model Number:

Serial Number:

Date of Purchase:

To better serve you, please do the following before contacting customer service:

If you received a damaged product, immediately contact the dealer that

sold you the product.

Read and follow this instruction manual carefully to help you install, use

and maintain your evaporative air cooler.

Read the troubleshooting section of this manual as it will help you

diagnose and solve common issues.

Visit us on the web at http://www.edgestar.com to register your

product, download product guides, additional troubleshooting resources

and up-to-date information.

If you need warranty service, our friendly customer service

representatives are available via email at service@edgestar.com or by

telephone at 1 (866) 319-5473.

KoldFront Evaporative Air Cooler 2

Parts Identification

Front View

Back View

Power Plug

Lock

Ice Pack

Water Tank

Pre-filter

Caster

Water level

Indicator

Air Outlet

Handle

Control Panel

Evaporative

Wick (behind

pre-filter)

Note: The unit is designed

to blow air mostly from the

left side.

Note: The unit is designed

to blow air mostly from the

left side.

Horizontal Louver

Vertical Louver

Adding Water and Using the Ice Packs

You can add water and ice packs to your evaporative air cooler to lower

the temperature of the air being blown through the front air vent. Adding

ice packs to the water tank will make the air flow temperature colder.

To add water to the unit follow the steps below:

1. Unplug the power plug from the outlet.

2. Turn the lock knob to the left to unlock the water tank.

3. Slide the water tank out. The water pump will swing up.

4. Pour water into the tank.

5. Carefully slide the water tank back in. There may be a slight

resistance when inserting the water tank. The water pump will

swing down and be submerged into the water.

6. Turn the lock to prevent the water tank from sliding out.

7. Plug the power plug to the power outlet.

An ice pack can help lower the water temperature in the water

tank to allow colder air to blow out from the unit.

To use the ice pack:

1. Place the ice pack in your freezer.

2. After the ice pack is frozen, open the water tank and place it

inside the water tank.

Note: Do not overfill the

water tank. The water level

should be kept below the

“MAX” indicator line.

KoldFront Evaporative Air Cooler 4

Operating Instructions

After connecting the air cooler’s power plug to an outlet, the unit will

be ready to be operated.

Control Panel Operation

To power the unit on, switch the Timer Dial to the “ON” position.

Press on the LOW, MED, or HI buttons to set the fan speed.

To turn the unit off, press the OFF button or turn the dial to the

“OFF” position.

The Cool button is used to turn the water pump on or off. The unit

pumps water from its water tank over the evaporative wick. As air is

drawn past this water, the endothermic effects of evaporation result

in cooling.

Caution: Never run the unit in cool mode if the water tank is

empty. This may cause damage to your water pump.

The Swing button is used to turn the oscillation function on or off.

The louvers will automatically direct airflow from left to right when

the Swing button is pressed.

The timer can be used to turn the unit off automatically. The timer

is adjustable up to 2 hours. To use the timer, simply turn the dial to

the 30, 60, 90 or 120 marks. The unit will run for the amount of time

that was set and then it will shut off.

Press the LOW, MED, or HI buttons to adjust the fan speed.

Louver Control

Press the SWING button to start the vertical louvers moving from

side to side. To stop the louvers, press the SWING button again.

You can change the air direction up or down by manually adjusting

the horizontal louvers.

Notes: Do not allow the air intake to be near walls or curtains,

otherwise the wind and cooling effect may be reduced because of

blocked air flow. Do not expose the unit to direct sunlight.

Power

Cool

Swing

Timer

Fan Speed Buttons

Draining the unit

Follow the steps below to drain the unit:

1. Unlock the water tank.

2. Remove the water tank and drain the water.

3. Dry the water tank with a soft cloth.

4. Reinsert the water tank.

5. Lock the water tank.

Cleaning and Maintenance

Clean the air cooler, pre-filter and water tank regularly to maximize

performance and efficiency, and prolong the unit’s life. Be sure to

always unplug the air cooler from the power outlet before cleaning.

Use a soft dry cloth to wipe the body clean. If necessary, use

lukewarm water to dampen a cloth to clean the unit. Use a soft

bristle brush and vacuum cleaner to clean between the air vents.

Never use abrasive chemicals, volatile substances, gasoline,

detergents, chemically treated cloths, or other cleaning solvents

that may damage the exterior.

Never spray water directly on the unit.

Depending on environmental conditions, the water tank may require

cleaning as frequent as every 2 weeks up to every 2 months. If the

tank becomes dirty, develops mildew, or acquires hard water

deposits, unplug the unit, remove the water tank and carefully clean

the inside of the tank with a soft cloth and a mild soap and water

solution. Rinse out the solution and drain the water as best as you

can.

You may also rinse the water tank with a solution of 2 tablespoons

vinegar in ½ gallon of water.

If you are not going to be using the unit for an extended period of

time, follow the instructions below before storing your unit:

1) Drain all the water from the unit’s water tank. Operate the unit in

fan mode for a few hours to thoroughly dry any moisture left on the

inside of unit.

2) Power off the unit and unplug it.

3) Clean the unit, pre-filter and water tank.

4) Carefully wind the power cord.

Cleaning the unit

Cleaning the water tank

Preparation for Storage

KoldFront Evaporative Air Cooler 6

Pre-filter and Evaporative Wick Maintenance

It is necessary to clean the pre-filter and evaporative wick periodically.

Depending on the environment, the pre-filter and evaporative wick may

need to be cleaned on a weekly or biweekly basis. Note: If the pre-filter is

exceptionally dirty, it will restrict the air flow the unit will be able to project.

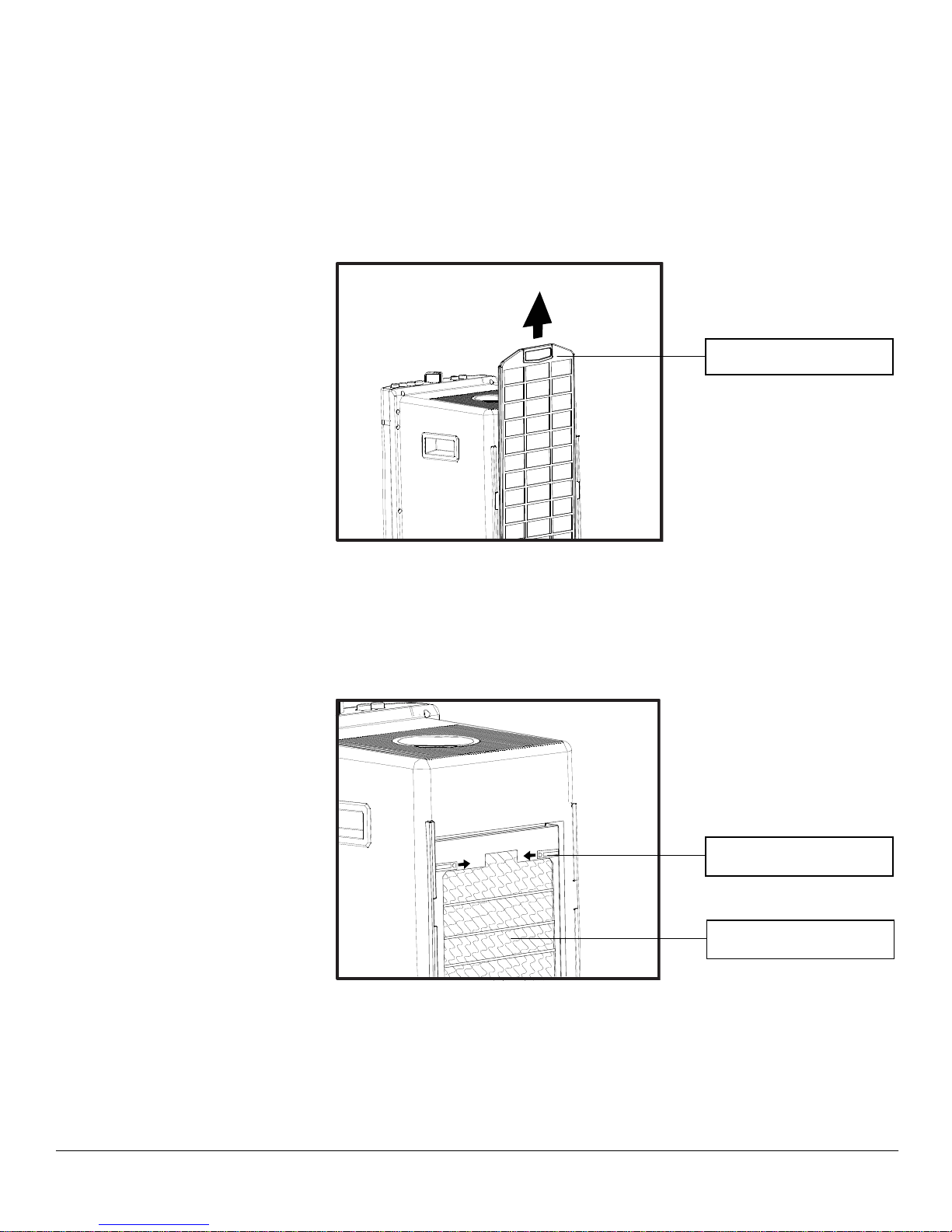

Follow the steps below to remove and clean the pre-filter and evaporative

wick.

1. Slide the pre-filter straight up.

Use a vacuum cleaner with a brush attachment or tap the pre-filter lightly

to remove loose dust and dirt, then rinse thoroughly under lukewarm

running water (below 104°F). You may use a mild soap and water

solution if needed. Allow the pre-filter to air dry completely before

reinstalling.

2. After removing the pre-filter, remove the evaporative wick by pressing

the locking tabs inward towards the center of the unit. Gently pull the wick

out to remove it. Wash the evaporative wick with running water only.

Depending on environmental conditions and amount of use, you may

need to replace the evaporative wick after every season of use.

Caution: Do not use pressure washers to clean the wick.

Pre-filter

Locking Tabs

Evaporative Wick

Troubleshooting

Follow the troubleshooting guide below to resolve common issues.

Issue Possible Cause Solution

My air cooler is not

functioning at all Unit is not receiving power Make sure the unit is

plugged in

Insufficient power Move the unit to another

outlet. Check your circuit

breaker. (Refer to the

rating label on the back of

the unit to determine the

Amperage draw)

Control panel is

disconnected Contact customer service

My air cooler is making a

loud noise The unit is not level Make sure the unit is on a

level surface

A foreign object has

jammed the fan Unplug the unit and

remove the object from

the fan

The floor below the unit is

uneven Move the unit to a level

surface

My air cooler is making a

constant ticking noise The timer is enabled Allow the timer up to 2

hours timer to reset

My air cooler is leaking Cracked water tank Contact the retailer as this

may be shipping related

My air cooler is “spitting

water” The unit is in a high

humidity environment and

is not able to evaporate all

the water into the air

Lower the fan speed, or

turn off the water pump

My air cooler does not

lower the temperature of

the room

The unit is intended for

personal use, not to cool

an entire room

For room size cooling you

would require an air

conditioner

Table des matières

Autres manuels Koldfront Climatiseur

Koldfront

Koldfront WTC8001W Manuel utilisateur

Koldfront

Koldfront CAC8000W Manuel utilisateur

Koldfront

Koldfront PACI14020CGY Manuel utilisateur

Koldfront

Koldfront WTC12000W Manuel utilisateur

Koldfront

Koldfront WAC8001W Manuel utilisateur

Koldfront

Koldfront WTC12001W Manuel utilisateur

Koldfront

Koldfront WAC10002WCO Manuel utilisateur

Koldfront

Koldfront PAC9000W Manuel utilisateur

Koldfront

Koldfront PAC705 Manuel utilisateur

Koldfront

Koldfront WAC8001W Manuel utilisateur

Koldfront

Koldfront WAC8002WCO Manuel utilisateur

Koldfront

Koldfront PAC802W Manuel utilisateur

Koldfront

Koldfront WAC8001W Manuel utilisateur

Koldfront

Koldfront WAC8001W Manuel utilisateur

Koldfront

Koldfront WAC6002WCO Manuel utilisateur

Koldfront

Koldfront WAC12002WCO Manuel utilisateur

Koldfront

Koldfront PACI14020HGY Manuel utilisateur

Koldfront

Koldfront WTC10002WCO115V Manuel utilisateur

Koldfront

Koldfront CAC10000W Manuel utilisateur

Koldfront

Koldfront AP14003W Manuel utilisateur

Koldfront

Koldfront WAC25001W Manuel utilisateur

Koldfront

Koldfront PACI12020CSV Manuel utilisateur

Koldfront

Koldfront WTC8002WCO Manuel utilisateur

Koldfront

Koldfront PAC8000S Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
