CAUTIONS AND WARNINGS

Children, elders or those with disabilities from their body, sensitivity or mental

disabilities or lacking of common sense should not use or get close to this

product unless under close tutelage. Children are not allowed to use or touch

this product. Do not leave children alone in a room with such product.

:DUQLQJ Risk of electric shock, fire or personal injury. This product

must be installed safely. Connect only to dedicated 220V~, 50Hz, 10A

circuit protected by Ground-Fault Circuit-Interrupters (GFCI’s) or

Earth-Leakage Circuit-Breakers (ELCB’s).

:DUQLQJ Risk of electric shock or product damage. Do not immerse

the product into water.

,PSRUWDQWRisk of product damage. Do not install at a place where it may be

splashed by water.

,PSRUWDQWRisk of product damage. Do not install the product at a place

with excessive humidity, where moisture may condense at the surface of the

product. Please maintain that the usage envi-ronment is under adequate

ventilation, so as to prevent damage to electronic components. 

,PSRUWDQWRisk of product damage or property loss. Water leakage may

happen if the water pipe connector is pulled or pushed with excessive force.

,PSRUWDQWRisk of product damage. The product may be damaged if the

nozzle is applied with excessive force.

,PSRUWDQWRisk of product damage. The part of the pipe where water may be

frozen should be protected by thermal insulation. Any water left in the product

may be frozen during the winter season. Please keep the product in room

temperature before reinstallation or usage. 

,PSRUWDQWRisk of product damage. The power shall not be connected before

the work is finished. Otherwise it may lead to product failure. 

$WWHQWLRQThe thermal protector may be out of order during storage or

transportation in warm climate which can lead to product failure. Please

ensure the product cools to room temperature before reinstallation or usage.

When an

electrical product is used, especially when children are near, the

following basic safety precautions shall be abided by:

'DQJHU5HGXFHULVNRIHOHFWULFVKRFN

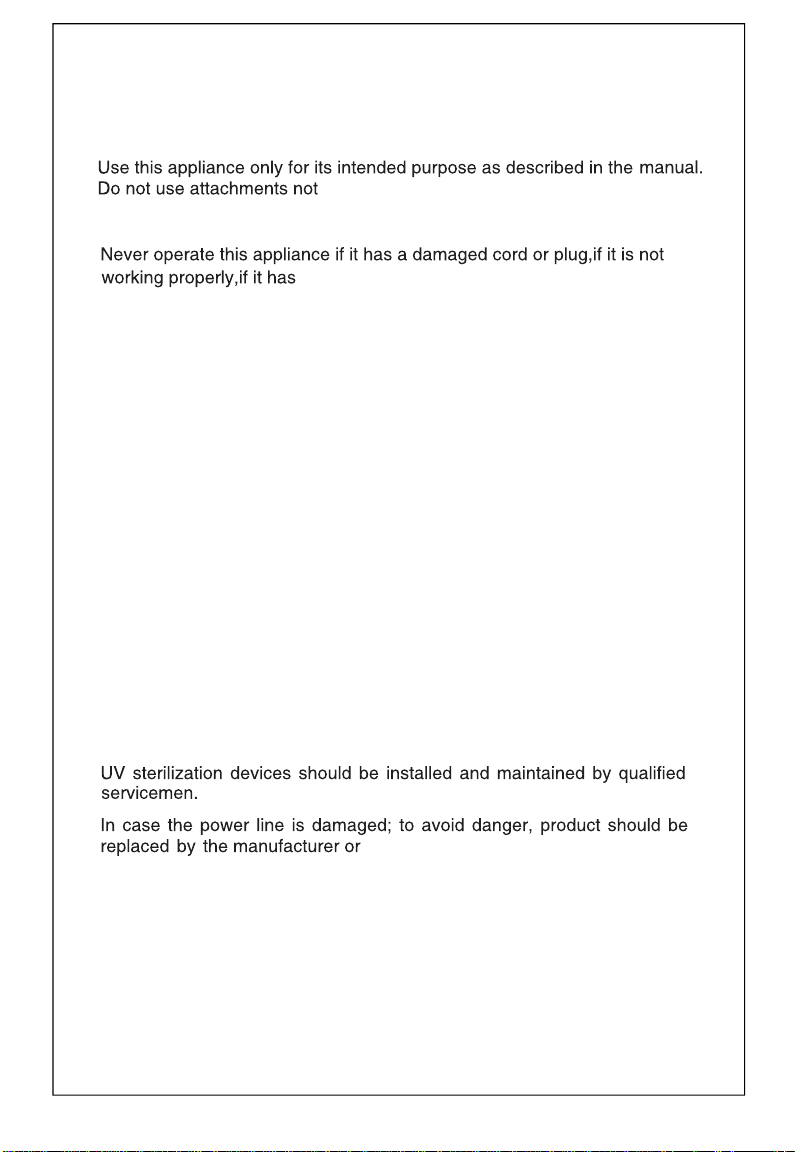

□Do not place or store this appliance where it can fall or be pulled into a bath

or sink.

Do not place in or drop into water or other liquid.

Do not reach for a product that has fallen into water. Unplug immediately.

:$51,1*7RUHGXFHWKHULVNRIORZJUDGHEXUQVHOHFWULFVKRFNILUHRU

LQMXU\WRSHUVRQV

□

1223525-T01-M

Kohler Co.

CAUTIONS AND WARNINGS (cont.)

□

recommended by Kohler Co. such as T-valve etc.

Do not lean on cover when use this appliance to prevent product from damage.

□

For those children and the elderly who are unable to adjust the

temperature, they should ask for help to adjust seat temp, water temp and

wind temp of toilet cover to proper gears.

□

been dropped into water.

Install this product properly by following the installation procedure.

This product shall be repaired by professionals only. The warranty will

become invalid if you try to repair this product by yourself.

When install the product in the room, a stop valve shall be installed in a close

proximity. For emergency circumstances, the water inlet valve shall be stopped

without using any tools; otherwise unexpected failure may cause the loss to

the customer.

Keep power line far from heated surface.

Do not drop or insert any substance to pipeline or the opening.

Do not use this product outdoor or in a place where a particle mist spray

device is used,neither at a place of provisions.

The installation should be subject to the instructions before the power is

connected.

Water should not be poured into the power plug.

Exposed skin should not make contact with heating seat for too long a time

to prevent low temperature burning.

□

the professionals from its maintenance

department or similar departments, to avoid the occurrence of danger.

Please use the water supply hose accompanying with new machine. The old

hose assembly shall not be used again.

When customer cut power supply off, if reactivation of power supply is

required, please wait until the end of “beep……” indication, and then turn on

power supply again.

Kohler Co.

1223525-T01-M

MPa

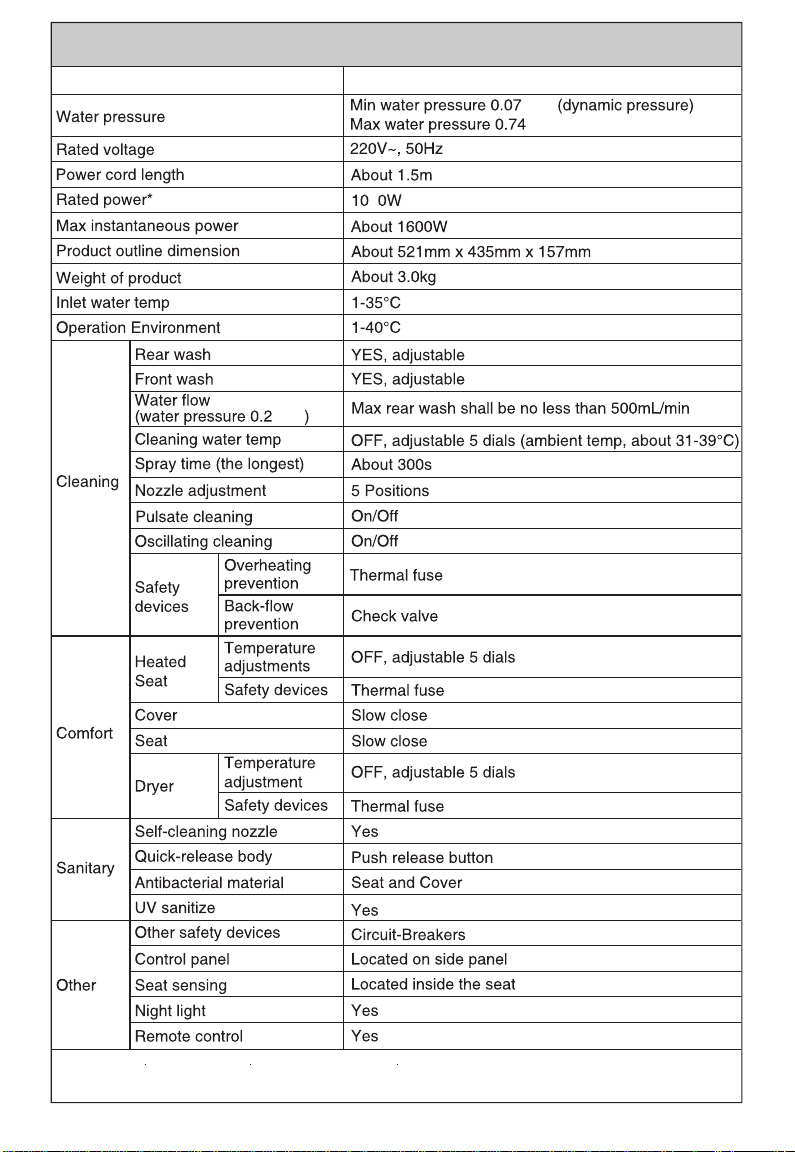

Specifications

Water efficiency grade*Level II

*The description of water efficiency label marked on Bidet: water efficiency label represents a compliance mark of the water

efficiency grade etc. performance of Bidet.

*Power value testing condition: dynamic pressure 0.2MPa, inlet water temp 15°C.

1223525-T01-M

Kohler Co.

front ཇᗻކ⋫

rear 㞔䚼ކ⋫

wand ஋ఈ⿏ࡼ

dryer ᱪ亢

stop ذℶ

seat temp ೜⏽

water temp ∈⏽

pulsate 㛝ކ

oscillate ⿏ࡼ

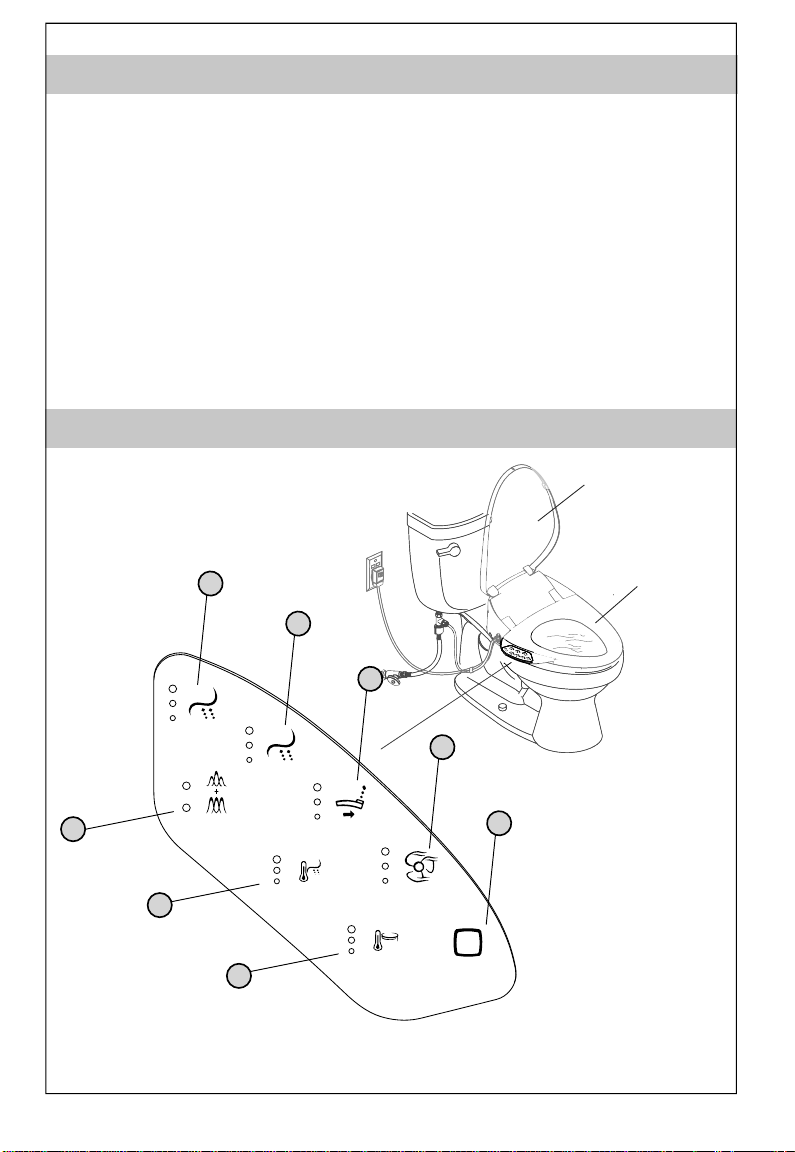

Keypad and Panel Diagram

Cover (antibacterial*)

Seat (antibacterial*)

Thank You For Choosing Kohler Company

Thank you for choosing a Kohler product. Kohler craftsmanship offers you

a rare combination of proven performance and graceful sophistication that will

satisfy you for years to come. The dependability and beauty of your Kohler

product will surpass your highest expectations. We are very proud of our products

here at Kohler and we know you will be too.

Please take a few minutes to study this Homeowners Guide. Pay special attention

to the care and cleaning instructions.

All information in this manual is based upon the latest product information

available at the time of publication. At Kohler, we constantly strive to improve the

quality of our products. We reserve the right to make changes in product

characteristics, packaging or availability at any time without notice.

*Antibacterial: the seat and cover contains long term inorganic anti-bacteria material which will inhibit bacteria growth on

surface, this does not represent the mildew and other incidental effects. The antibacterial rate is more than 90%. (Perform

test in accordance with GB21551.2-2010 requirements. Testing lab: China household electrical appliances testing institute;

electromechanical products testing technology center of Shanghai Entry-Exit inspection and quarantine bureau.)

Kohler Co.

1223525-T01-M

When flushing or heater is activated, the flushing or heater features

can be halted by pressing the STOP button. When the user is seated,

the deodorizer feature is activated automatically. Only when

deodorizer feature is activated can it be deactivated by pressing the

STOP button. After the deodorizer feature is deactivated, it will no

longer be activated before being reseated.

Operation

㞔䚼ކ⋫

஋ఈ⿏ࡼ

ᱪ亢

A - Stop

Press and hold the STOP button for two seconds, the night light will

be turned on or off. When it is turned off (with a long tone), the night

light is deactivated; while it is turned on (with a short tone), the night

light will be controlled automatically by the environment light (if the

environment is dark, the light will be turned on, otherwise it will be

turned off).

The indicator will display the current heater temperature, and the

temperature of warm air can be changed first from low to high and

then from high to low, stage by stage cyclically by pressing the

HEATER button continuously. This feature will stop automatically after

running continuously for 4 minute.

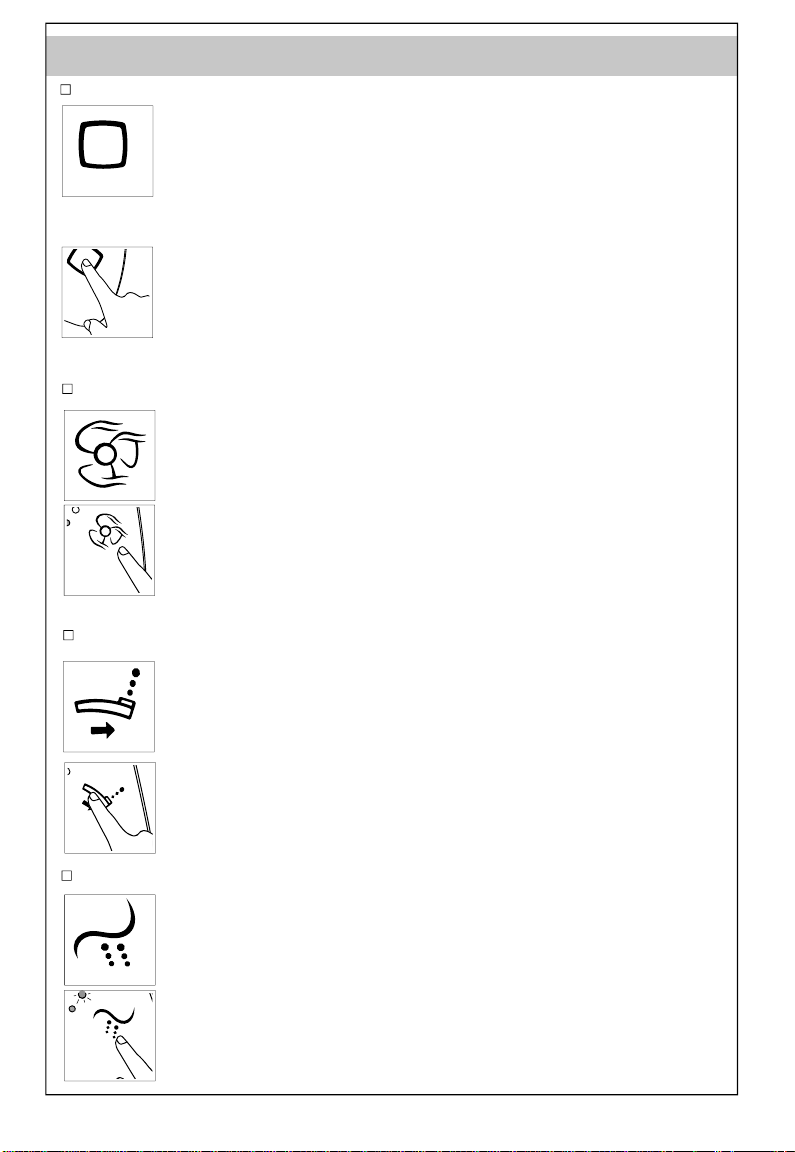

In the flush state, the bidet wand can be controlled by pressing the

BIDET WAND button, and the distance of bidet wand can be changed

first from short to long and then from long to short cyclically by

continuously pressing the BIDET WAND button.

In the case when nobody is seated, press and hold the BIDET WAND

button for over 2 seconds, the bidet wand will extend. Press and hold

the BIDET WAND button for over 2 seconds again, the bidet wand

will retract. If there is no action on the button for 2 minute, the bidet

wand will retract automatically.

Press REAR WASH button to activate rear wash and the current

flushing intensity will be shown.

In the rear wash state, the flushing intensity can be changed first from

low to high and then from high to low, stage by stage cyclically by

continuously pressing the REAR WASH button. It will stop

automatically after 5 minutes of continuous flushing.

When being seated, the heater feature will be activated by pressing

the HEATER button. If the wash feature is activated, it will be halted

immediately.

๑ᆩݛ݆

C - Bidet Wand Position

D - Rear

B - dryer

1223525-T01-M

Kohler Co.

㞔䚼ކ⋫

ᱪ亢

ذℶ

೜⏽

㞔䚼ކ⋫

ذℶ

஋ఈ⿏ࡼ

ᱪ亢

ذℶ

೜⏽

∈⏽

Press FRONT WASH button to activate front wash (female exclusive

use) and the current flushing intensity will be shown. In the front wash

state, the flushing intensity can be changed first from low to high and

then from high to low stage by stage cyclically by continuously

pressing the FRONT WASH button. It will stop automatically after 300

seconds of continuous flushing.

E - Front

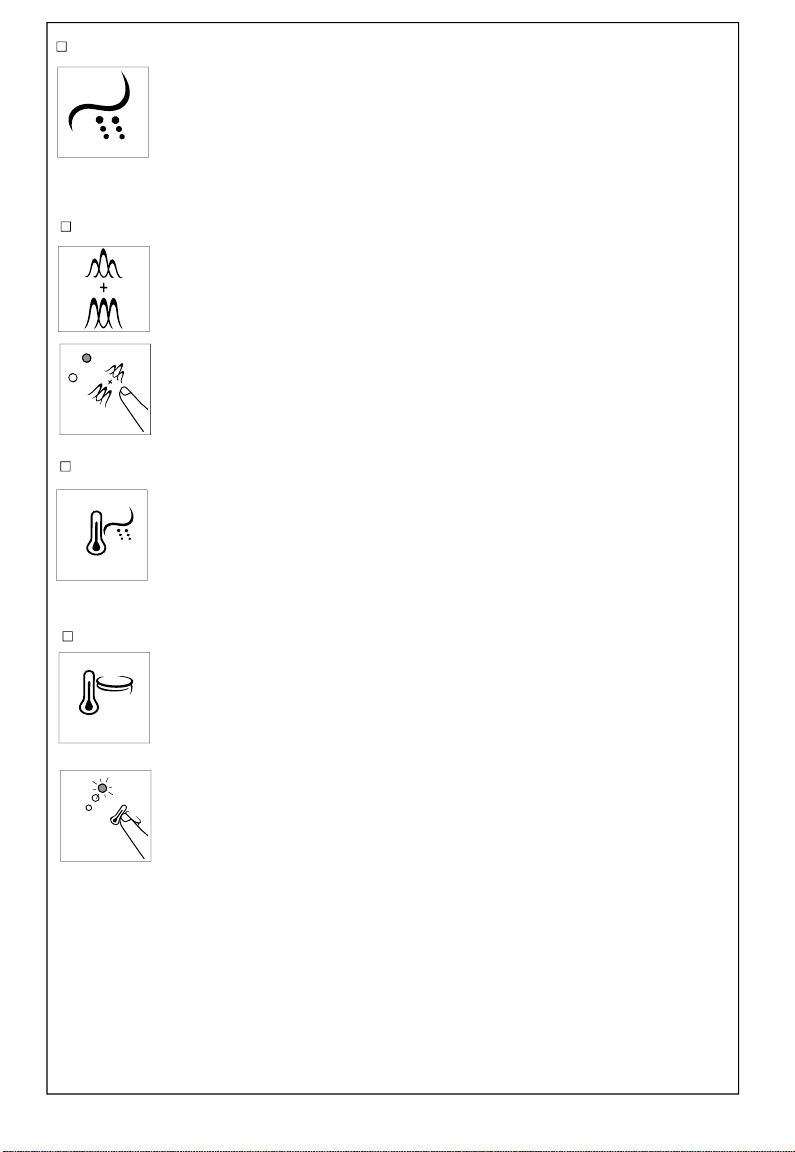

In the flush state, press this button to activate pulsating flush.

F -

Pulsate+Oscillate

The feature will be changed cyclically from pulsate, oscillate,

pulsate/oscillate, pulsate/oscillate off (return to front or rear flush), and

the corresponding small lamp will be lit. If the pulsate/oscillate flush is

The temperature of flushing water can be changed first from low to high

and then from high to low, stage by stage, and back to off again,

cyclically by pressing the WATER TEMPERATURE button. The

indicators will be lit up to show the parameter of corresponding water

temperature. If it is turned off, the indicator will not light.

G - Water temperature

The temperature of the ring can be changed first from low to high and

then from high to low stage by stage, and back to off again, cyclically

by pressing the RING TEMPERATURE button. The indicators will be lit

up to show the parameter of corresponding ring temperature. If it is

turned off, the indicator will not light.

H - Seat temperature

Press and hold the RING TEMPERATURE button for 2 seconds, the

energy-saving feature will be turned on (with a short tone) or turn off

(with a long tone). The ring temperature light flashing indicates that the

energy-saving feature is turned on; while the ring temperature light stop

flashing indicates that the energy-saving feature is turned off, or while

being seated, the cistern and seat heaters will be turned off.

One week after the activation, the ring performs an automatic detection

in user’s habitual routine. Starting from the second week, the ring

automatically gets itself into Power Save mode when it is less used,

depending on the detected user routine of the first week.

During the third week, the ring bases its judgment on the data collected

during the previous week to decide when it enters into Power Save

mode. It works the same for the following weeks.

turned off (return to front or rear flush) the indicator light will not light.

The Bidet is equipped with Wide Oscillate function. If you would like to

use Wide Oscillate function, please hold pulsate/oscillate key about

2s to activate rear wash and pulsate flush.

Kohler Co.

1223525-T01-M

஋ఈ⿏ࡼ

ᱪ亢

ذℶ

೜⏽

∈⏽

I - Installation instructions

஋ఈ⿏ࡼ

ᱪ亢

ذℶ

∈⏽

Low-mid

small indicator

lights up and

medium

indicator flashes

Mid

small and

medium indica-

tors light up

simultaneously

Mid-high

small and

medium indica-

tors light up; large

indicator flashes

High

small, medium

and large

indicators light up

simultaneously

Low

small

indicator

lights up

J - Sanitize

Auto UV sterilization function will be activated and start sterilizing nozzle when

unseated for a long time. No sterilization function shall be activated after this

process in another 24hrs.

*UV sterilization (refers to the ultraviolet sterilization generated by UV lamp): During UV working cycle, the bacteria on

nozzle surface will be eliminated by irradiation. The antibacterial rate is more than 99%. (Measured after one UV working

cycle, it was measured within 16mm×8mm irradiation area. Perform test in accordance with GB /T 23131 requirements,

UV radiation zone was shown in the diagram, UV working cycle activation mode refers to users guide. Testing lab: China

household electrical appliances testing institute.)

UV radiation range Bidet nozzle

1223525-T01-M

Kohler Co.

Remote Control User Guide

A - "Power" icon

!!!Click this button to switch on.

The icons on the third row flash when the remote control is not properly matched with the seat. The

flashing stops when the seat is available for service.

I - "Seat Temp." icon

Press this icon to adjust the seat temperature among the 5 gears available or turn off the seat warming

function.

Long press the icon to enter / exit energy-saving mode.

B - “Front” wash icon

Press this icon to start front wash function, which will stop after 5 minutes or when the “Stop” icon is

pressed.

Short press this icon to stop front wash, rear wash, dryer deodorization and manual cleaning nozzle

function. Long press this icon to turn off.

C - “Stop” icon

D - “Rear” wash icon

Press this icon to start rear wash function, which will stop after 5 minutes or when the “Stop” icon is

pressed.

E - “Oscillate” icon

Press this icon to start oscillate spray function when front / rear wash is on. Press the icon again to stop

this function.

F - “Pulsate” icon

Press this icon to start pulsate spray function when front / rear wash is on. Press the icon again to stop

this function.

G - "Preset" icons

Save or restore previous saved settings. Users are allowed to save 2 settings in total.

H - "Wand" icon

Press this icon to adjust wand's position when front / rear wash is on.

In the case when nobody is seated, Long press this icon to start manual nozzle cleaning function, and long

press this button again and press “Stop” icon to stop the function.

J - "Deodorizer" icon

Press this icon to start deodorizer function. To stop the function, press the "Stop" icon.

Kohler Co.

1223525-T01-M

flashes when the battery is low. When that happens, place the remote control

back onto the charging port to charge.

Matching

Note: The matching operation can only be done under unseated condition.

The Preset Function

Note: Please charge immediately when the low voltage alarm is on.

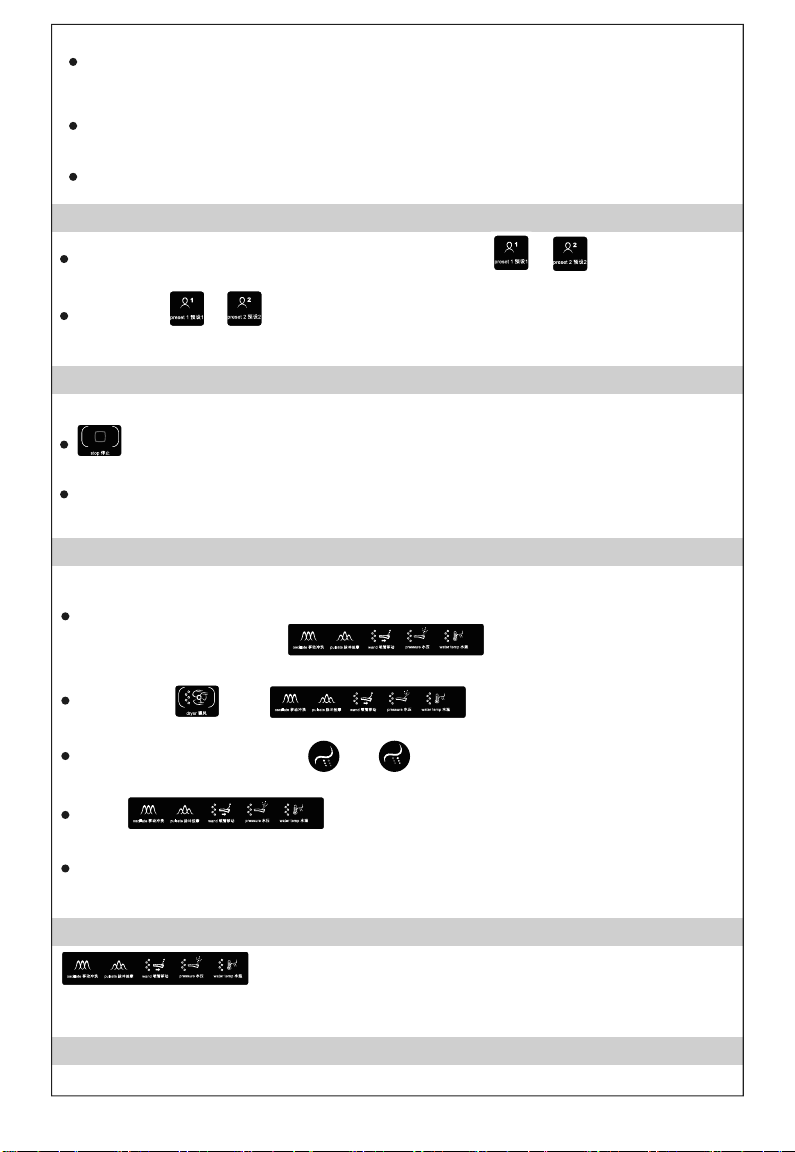

If the seat cover is normally powered, press the power button at the top of the

remote control to start up. flash for a long time when the

remote control is not properly connected to the corresponding seat.

Long press , until flash quickly, and then start the

operation.

At the same time, long press and on the side panel until hearing a short

beep.

When on the remote control stop flashing, the remote

control and the seat are successfully matched

Remote control which has been matched needs to be disconnected before another

matching operation.

In front, rear and dryer function is not enabled, press or to restore to

previous saved settings. Each gear’s indicator light lasts for 5 seconds.

Long press or to save the current settings. Each gear’s indicator light lasts

for 5 seconds.

Low Voltage Alarm

The red light on the charging port flashes when its own battery is low. When that

happens, replace the batteries in the port.

M - “Pressure” icon

Press this icon to adjust water spray intensity when front / rear wash is on.

L - “Water Temp.” icon

Press this icon to adjust water temperature when front / rear wash is on.

K - “Dryer” icon

When being seated, press this icon to start or adjust dryer function, which will stop after 4 minutes or

when the “Stop” icon is pressed.

Initialize each word

Long press the "Stop" icon to force shut down the device.

Connections Between the Remote Control and the Seat

flash when the remote is disconnected from the seat. If the

devices are reconnected , the icons will stop flashing and resume previous

state.

1223525-T01-M

Kohler Co.

Autres manuels pour C3-230

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kohler Toilettes

Kohler

Kohler K-8688X Instructions de montage

Kohler

Kohler K-4026-0 Manuel utilisateur

Kohler

Kohler K-5401TW-2-0 Manuel utilisateur

Kohler

Kohler K-8423A-0 Instructions de montage

Kohler

Kohler Inodoro K-3517 Instructions de montage

Kohler

Kohler K-24097X Instructions de montage

Kohler

Kohler K-6191X Instructions de montage

Kohler

Kohler K-17629MY Instructions de montage

Kohler

Kohler ESCALE K-32771T-NS Manuel utilisateur

Kohler

Kohler K-5401KR Manuel utilisateur

Kohler

Kohler K-20797T-S Manuel utilisateur

Kohler

Kohler K-6419 Manuel utilisateur

Kohler

Kohler FAMILY CARE S-TRAP K-23191T-NS Manuel utilisateur

Kohler

Kohler REVE K-24766T-S Manuel utilisateur

Kohler

Kohler K-3422 Manuel utilisateur

Kohler

Kohler S-TRAP K-3983T Manuel utilisateur

Kohler

Kohler PATIO URINAL Manuel utilisateur

Kohler

Kohler K-1843 Instructions de montage

Kohler

Kohler K-3488 Instructions de montage

Kohler

Kohler VIA K-20629T-BW Manuel utilisateur

Kohler

Kohler Hyten K-25875 Manuel utilisateur

Kohler

Kohler C3-050 Manuel utilisateur

Kohler

Kohler INNATE K-8340KR-2EX-0 Manuel utilisateur

Kohler

Kohler CABERNET WATER-GUARD K-3401 Manuel utilisateur

Manuels Toilettes populaires d'autres marques

Toto

Toto Washlet TCF4911 Series Manuel utilisateur

Grohe

Grohe Sensia ARENA Manuel utilisateur

Geberit

Geberit AQUACLEAN MERA CLASSIC Manuel utilisateur

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Manuel utilisateur

American Standard

American Standard CONCEPT Cube TF-2704 Manuel utilisateur

BIOLAN

BIOLAN ECO Manuel de la liste des pièces

Thetford

Thetford C260 Series Manuel utilisateur

KELISS

KELISS T162A Series Manuel utilisateur

BIOLAN

BIOLAN GARDEN TOILET Manuel de la liste des pièces

washloo

washloo Prestige Manuel utilisateur

JABSCO

JABSCO 37010 Series Manuel utilisateur

Drive

Drive TSE 150 Manuel utilisateur

Olympia

Olympia EPOQUE 69209 Mode d’emploi

GSi

GSi TRACCIA 691711 Manuel utilisateur

DENCK

DENCK PURE-D Manuel utilisateur

Silent Venus

Silent Venus SVP600 Guide de maintenance et de service

InBe

InBe IB/04.06050 Manuel utilisateur

Swiss Madison

Swiss Madison Carré SM-1T264 Manuel utilisateur
