1273668-AN2-A 1

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves

the right to make changes in product characteristics, packaging, or availability at any time without notice.

Please leave these instructions for the consumer. They contain important information.

NOTES:

1. Observe local plumbing codes.

2. An inline water filter must be used with this product.

3. The highest working pressure for handshower is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure reducer

is needed. The highest water and environment temperature is 60°C. Please keep handshower, showerhead and

the shower arm away from heater, or it may become damaged and cause injury to the user.

4. All installations should comply with the relevant requirements of AS/NZS 3500 and AS/NZS 6400.

1273668-AN2-A 4

INSTALLATION INSTRUCTIONS

76881T-E Slide Shower-Geometric

76882T-E Slide Shower-Organic

RENEW

76881T-E Slide Shower-Geometric

76882T-E Slide Shower-Organic

RENEW

ROUGH-IN DIMENSIONS

SERVICE PARTS

**Color code must be specified when ordering.

1500

560~660

700~800

1248781**

76882T-E:1236561**

23096

1208176**

76881T-E:1236560**

1195838**

1081607

1269272**

1061576

1208178

1219396**

1208177**

51 59

G1/2˝

Only for 76881T-E

Only for 76882T-E

1194751**

1128483

Ø110

G1/2˝

249

243

252 260

1240266

1030624

1208178

1061576

23096

1273668-AN2-A 2

1273668-AN2-A 3

CLEANING INSTRUCTIONS

All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft

cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely

affect the finish and are not recommended for cleaning.

Do not use abrasive cleaners or solvents on Kohler faucets and fittings.

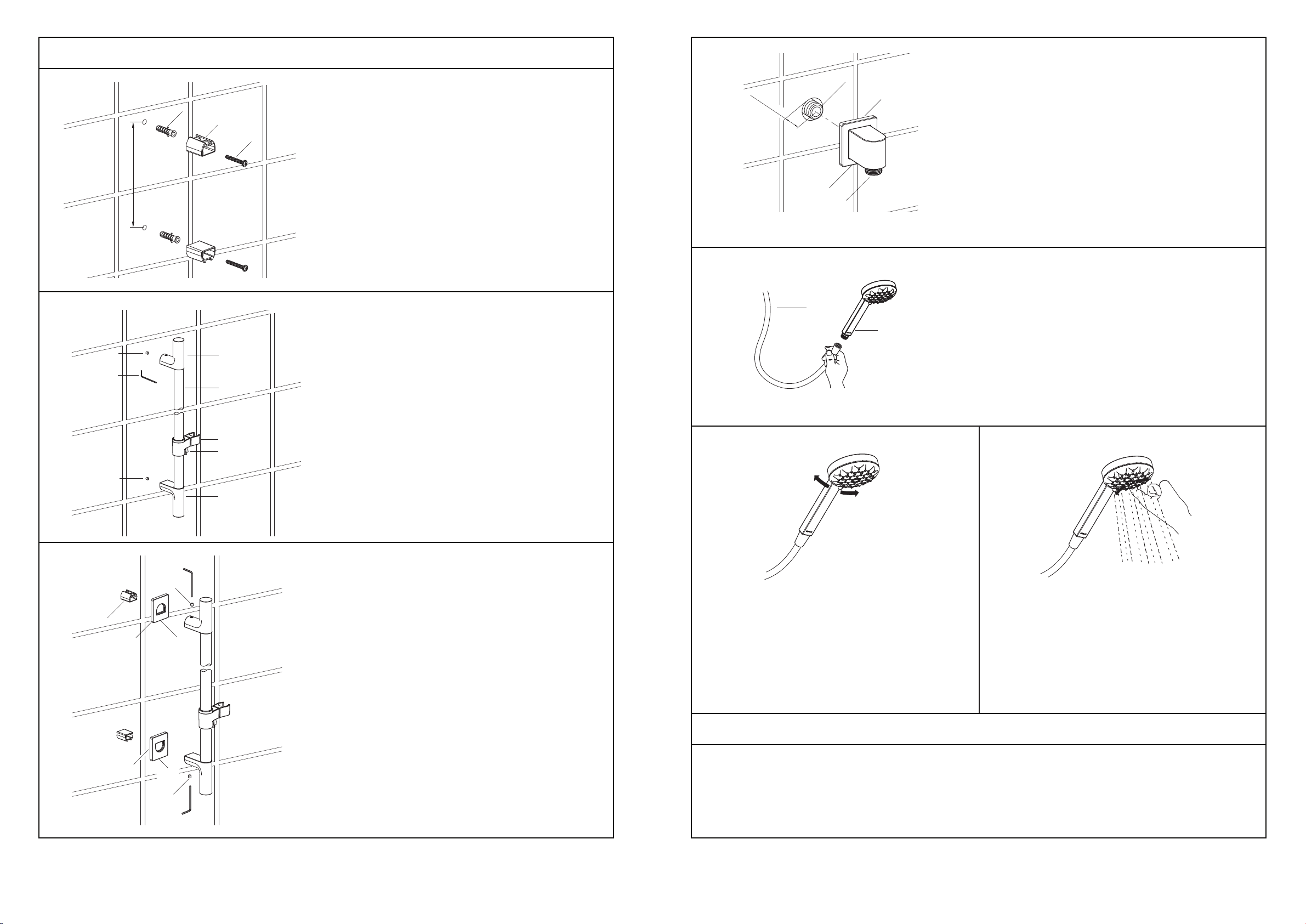

INSTALLATION

How to Install the Handshower and Hose

Flush both water supplies for about one minute before

the handshower(18) is installed. Attach the

handshower to shower hose(17). NOTE: Don’t over

tighten.

Connect another end of shower hose to the outlet(14)

of the connection.

Hang the handshower in the bracket(4).

How to Install the Slide Bar

Decide on a suitable position for the slide bar avoiding

buried cables and pipes in the wall.

Drill two holes at the proper height on the finished wall

according to the rough-in dimensions and should

match the anchors(1).

Put anchors into the holes. Install the upper and under

base(2) with screws(3) in the wall.

Place the bar(5) into the under slide bar body(6).

Install the screw(7), tighten them by hex wrench(8).

Slide the handshower holder(4) onto the bar. The

height of handshower holder can be adjusted by

pressing the pinch cock(9) and sliding up and down.

Adjust it to the proper position.

Tighten the screw(7) to secure upper slide bar

body(10) by hex wrench according to the rough-in

dimensions. Make sure the directions of the upper and

under slide bar body are consistent.

How to Operate the Handshower

Rotate the knob of the handshower to change the water

flow.

How to Maintain the Handshower

Any debris or mineral build-up may cause the flow

stream to become distorted or reduce the flow rate. To

remove the debris or mineral build-up, run water

through the handshower, firmly press or rub your finger

back and forth across the rubber nozzles.

560~660

How to Install the Connection Kit

Before installation, installer must provide G1/2″ supply

fitting(13). Ensure it extend 12~20mm beyond the

finished wall.

Apply tape or thread sealant to G1/2″ threads of the

supply fitting. Apply a ring of plumber putty or other

sealants around the underside of the connection

kit(16). Install the connection kit onto the supply fitting.

Adjust the connection kit and make sure the outlet(14)

and drain notch(15) of the escutcheon downwards.

Remove any excess putty.

①

②

12~20mm

Slide the bracket escutcheons(11) onto the bases(2),

confirm the drain notch of the escutcheon is pointed

down. Install the whole slide bar onto the bases.

Tighten the screws(12) by hex wrench to secure the

slide bar.

Drain notch

③

Drain

notch
