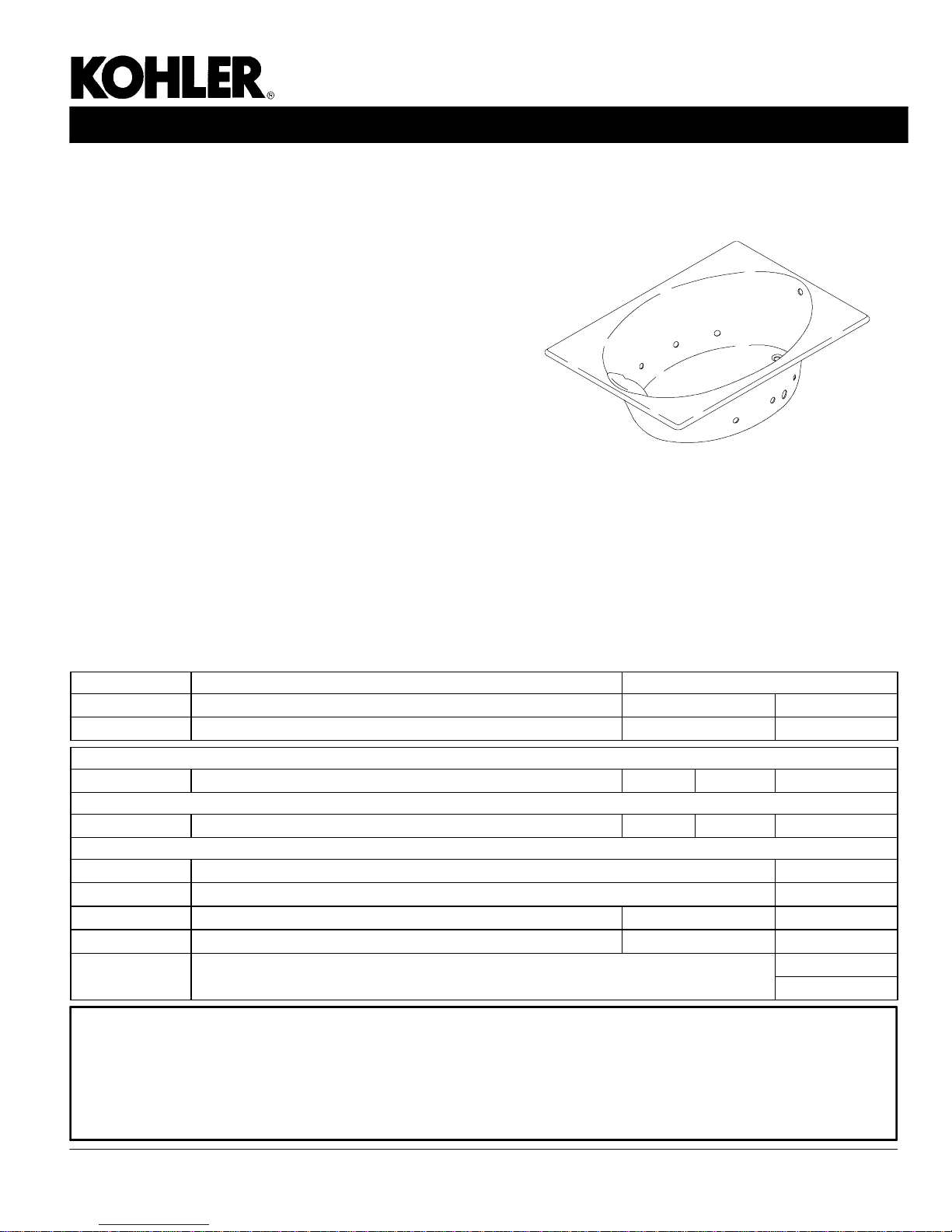

PRISTINE

BATH WHIRLPOOL

FEATURES

•60” (152.4cm) x 42” (106.7cm) x 20--3/8” (51.8cm)

•Cast iron with Safeguardslip--resistant finish

•K--772--N1 -- 2 hp variable speed pump with 1.5 kW

heater, back--lit user control, and pulsating neckjets

pillow

•K--772--H2 -- 1.5 hp variable speed pump with 1.5 kW

heater, and back--lit user control

•6 Flexjets

•UL Listed

•LESS ALL TRIM

CODES/STANDARDS APPLICABLE

Specified model meets or exceeds the following:

•ASME/ANSI A112.19.1M

•ASME/ANSI A112.19.7M

•IAPMO/UPC

•Underwriters Laboratories (UL)

K-772-H2, K-772-N1

COLORS/FINISHES

•0White

•Other Refer to Price Book for additional colors

Accessories:

•CP Polished Chrome

•PB Polished Brass

•Other Refer to Price Book for additional finishes

•NA None Applicable

SPECIFIED MODEL:

Model Description Colors/Finishes

K-772-H2 Bath whirlpool V0White VOther______

K-772-N1 Bath whirlpool with neckjets and pillow (shown) V0White VOther______

Required Accessories

K-9696 Jet trim kit VCP VPB VOther______

Recommended Accessories

K-7161-AF Drain VCP VPB VOther______

Optional Accessories

K-583 Undermount installation kit (template and installation instructions) VNA

K-1179 Vinyl tiling-in bead (use when wall material contacts any top surface of bath) VNA

K-1491 Pillow V0White VOther______

K-1601 Footstop V0White VOther______

K-1703 Remote control (for K-772-H2) OR VNA

K-1705 Remote control (for K-772-N1) VNA

PRODUCT SPECIFICATION:

We reserve the right to make revisions without notice in the design of fixtures or in

packaging unless this right has specifically been waived at the time the order is accepted. Page1of2

1019471-4-A

The bath whirlpool shall be 60” (152.4cm) in length, 42” (106.7cm) in width, and 20-3/8” (51.8cm) in height. Bath whirlpool

shall be made of cast iron with Safeguardfinish. K-772-N1 bath whirlpool shall have 6 Flexjets, 2 hp variable speed pump,

1.5 kW heater, back-lit user control, and pulsating neckjets with pillow. K-772-H2 bath whirlpool shall have 6 Flexjets, 1.5

hp variable speed pump, 1.5 kW heater, and back-lit user control. Bath whirlpool shall be UL listed. Bath whirlpool shall

be less all trim. Bath whirlpool shall be Kohler Model K-772-_______-_______.

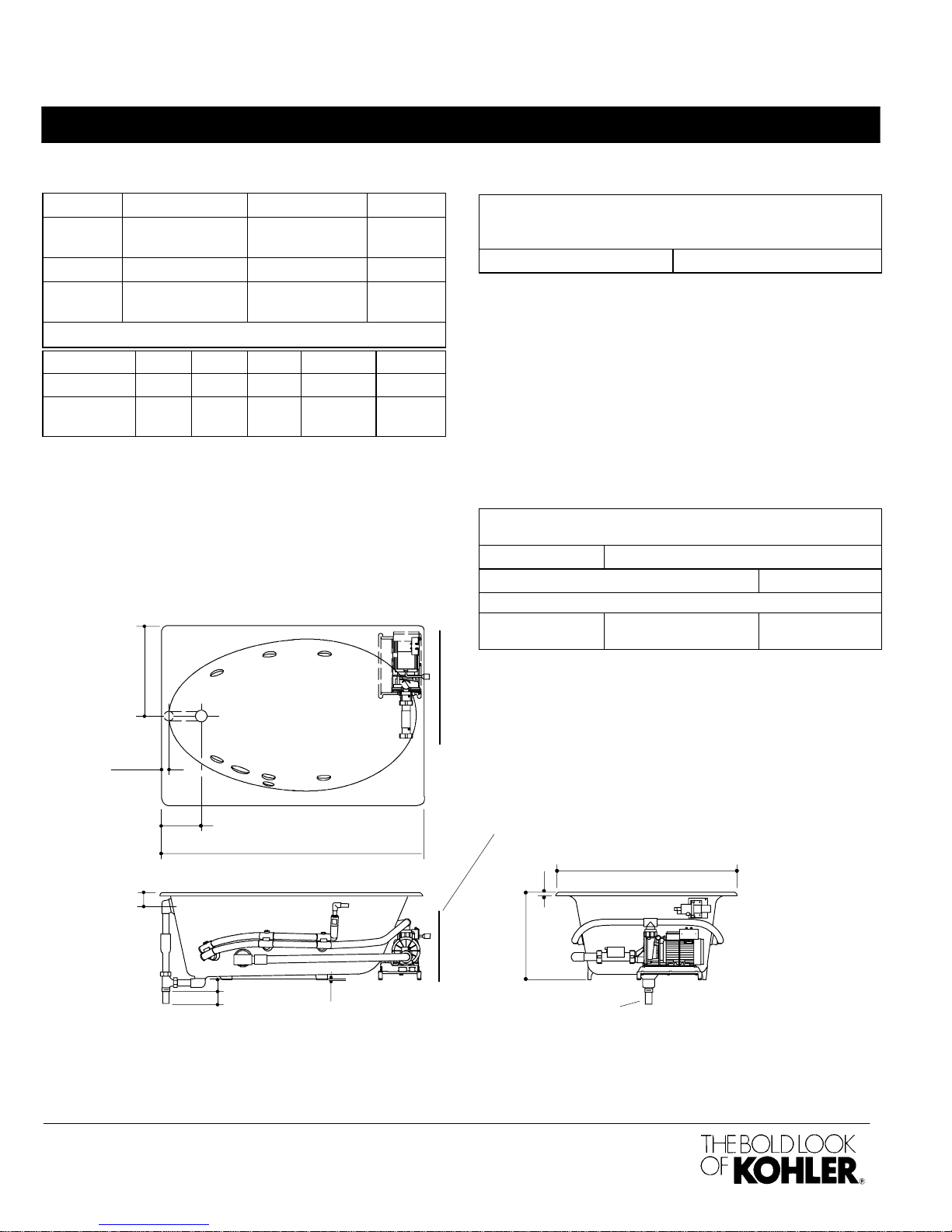

PRISTINE

PUMP/CONTROL ACCESS

1-1/2” O.D.

42” (106.7cm)

21”

(53.3cm)

3/4”

(1.9cm)

20-3/8”

(51.8cm)

1/4” (6mm)

3-1/4”

(8.3cm)

60” (152.4cm)

8-7/8” (22.5cm)

1-7/8”

(4.8cm)

2-7/8” (7.3cm)

3” (7.6cm)

PRODUCT INFORMATION

Fixture*: basin area top area weight

Bathing

well 42” (106.7cm) x

26” (66cm) 54” (137.2cm) x

32” (81.3cm) 460 lbs.

(208.7kg)

water depth capacity

overflow 15” (38.1cm) 70 gal. (265L)

* Approximate measurements for comparison only.

Product Pump Heater Voltage Frequency Amperage

Neckjets 2HP 1.5 kW 240 V 50/60 Hz 15 A

w/o

Neckjets 1.5 HP 1.5 kW 240 V 50/60 Hz 11 A

REQUIRED ELECTRICAL SERVICE

Dedicated circuit required, protected with Class A

Ground-Fault Circuit-Interrupter (GFCI) or

Earth-Leakage Circuit-Breaker (ELCB):

Pump/control 220/240 V, 20 A, 50/60 Hz

INSTALLATION NOTES

Install this product according to the installation guide.

Floor support under whirlpool must provide for a minimum

of 1500 lbs. (680.4kg)

Hot water supply should be 70% of capacity or greater.

Installations will vary.

No change in measurements if connected with drain

illustrated. (K-7161-AF or K-7161M-AF)

Drop-in cut-out 58-1/2” (148.6cm) x 40-1/2” (102.9cm)

Cut-out for undermount K-583 template

Minimum access panel:

Pump/control 34” (86.4cm) W x

15” (38.1cm) H required

K-772-H2, K-772-N1 PristineBath Whirlpool

Page2of2

1019471-4-A

PRODUCT DIAGRAM
