Kohler K-99695 Instructions de montage
Installation and Care Guide
System Controller
K-99695
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page ″Français-1″
Español, página ″Español-1″
Save These Instructions
Conserver ces instructions
Guarde estas instrucciones
1218131-2-A
IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: When using electrical products, basic
precautions should always be followed, including the
following:
WARNING: Risk of electric shock. Connect only to a circuit
protected by a Ground-Fault Circuit-Interrupter (GFCI)*.
Grounding is required. The unit should be installed and
grounded by a qualified service representative.
WARNING: Risk of electric shock. A qualified electrician
should route all electrical wiring.
WARNING: Risk of electric shock. Disconnect power before
servicing.
WARNING: Risk of injury or property damage. Please read
all instructions thoroughly before beginning installation.
NOTICE: Follow all plumbing, electrical, and building codes.
NOTICE: Provide generous, unrestricted service access to the
controller. Provide access for servicing. This access must be located
immediately next to the controller. Refer to the roughing-in
information.
*Outside North America, this device may be known as a Residual
Current Device (RCD).
Before Operating the System For the First Time:
Download and install the latest software for connected components.
This may take an hour or more to complete based on system
configuration and internet connection speed. Do not disconnect the
power from the controller during software download and
installation.
FCC and IC Compliance
This device complies with Part 15 of the FCC Rules and Industry
Canada license-exempt RSS standards(s). Operation is subject to the
following two conditions:
1218131-2-A 2 Kohler Co.
FCC and IC Compliance (cont.)
1. This device may not cause harmful interference, and 2. This device
must accept any interference received, including interference that may
cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/television technician
for help.
Modifications: Any modifications made to this device that are not
approved by Kohler Co. may void the authority granted to the user by
the FCC to operate this equipment.
Specifications
Ambient Temperature Max 104°F (40°C)
Maximum Relative Humidity 90% non-condensing
Electrical Service 100-240 VAC, 50-60 Hz, 0.6-0.4 A
Ethernet Cable Length 25’ (7.6 m)
Kohler Co. 3 1218131-2-A
Tools and Materials
Before You Begin
IMPORTANT! To access the controller Web pages for system setup,
the controller and a computer or tablet must be connected to the
same router.
NOTE: Internet access is required for downloading the latest
software for system components.
Read these instructions and determine all components and
installation locations before beginning installation. For shower
configuration options, refer to the guide found on the product
page at www.us.kohler.com.
The controller comes equipped with rubber feet for placement on
a shelf or countertop.
The controller can be mounted vertically or horizontally and is
designed to fit within a 2x4 stud cavity.
If mounting within a stud cavity, an access panel must be
provided for servicing. The cavity must be free of insulation.
A qualified electrician should install a 15 A 120 V GFCI electrical
outlet, within the stud framing, in close proximity to the
controller.
If possible, install the electrical outlet prior to installing the
controller.
An Ethernet cable is provided to connect the controller to a
router. If the router is not within 25’ (7.6 m) of the controller,
obtain a longer Ethernet cable or add an extension cable.
This product complies with UL, CSA, FCC, and IC.
Plus:
• Router
• Internet Service
• 1" Hole Saw (Optional)
Computer or Tablet
1218131-2-A 4 Kohler Co.
1. Preparation
NOTE: The controller powers the interface(s) and controls system
components such as digital mixing valve(s).
Your system can be set up to use three interfaces. One interface,
installed inside the shower, is required.
Determine the locations of all components, including shower
accessories. For pre-programmed shower configurations, refer to
the guide found on the product page at www.us.kohler.com.
Refer to the installation guides packed with each product for
specific installation needs.
Before Operating the System For the First Time:
Download and install the latest software for connected components.
This may take an hour or more to complete based on system
configuration and internet connection speed. Do not disconnect the
power from the controller during software download and
installation.
Internet
Service
Router Computer
or Tablet
Shower AccessoriesWater Inlets Interfaces
Controller
25' (7.6 m) Ethernet Cable
Power Supply
72" (1.8 m) Cord 48"
(1219 mm)
Cord
Digital
Valve
Digital Valve
Kohler Co. 5 1218131-2-A
2. Install the Controller
CAUTION: Risk of product damage. The controller is rated to
operate in temperatures up to 104°F (40°C). Do not install near heat
sources (such as radiators or under whirlpool surrounds) or in any
location where the temperature may exceed 104°F (40°C).
NOTE: The controller comes equipped with rubber feet for
placement on a shelf, or it can be installed to a vertical surface using
the mounting holes.
The controller is designed to fit within a 2x4 stud cavity. The
cavity must be free of insulation.

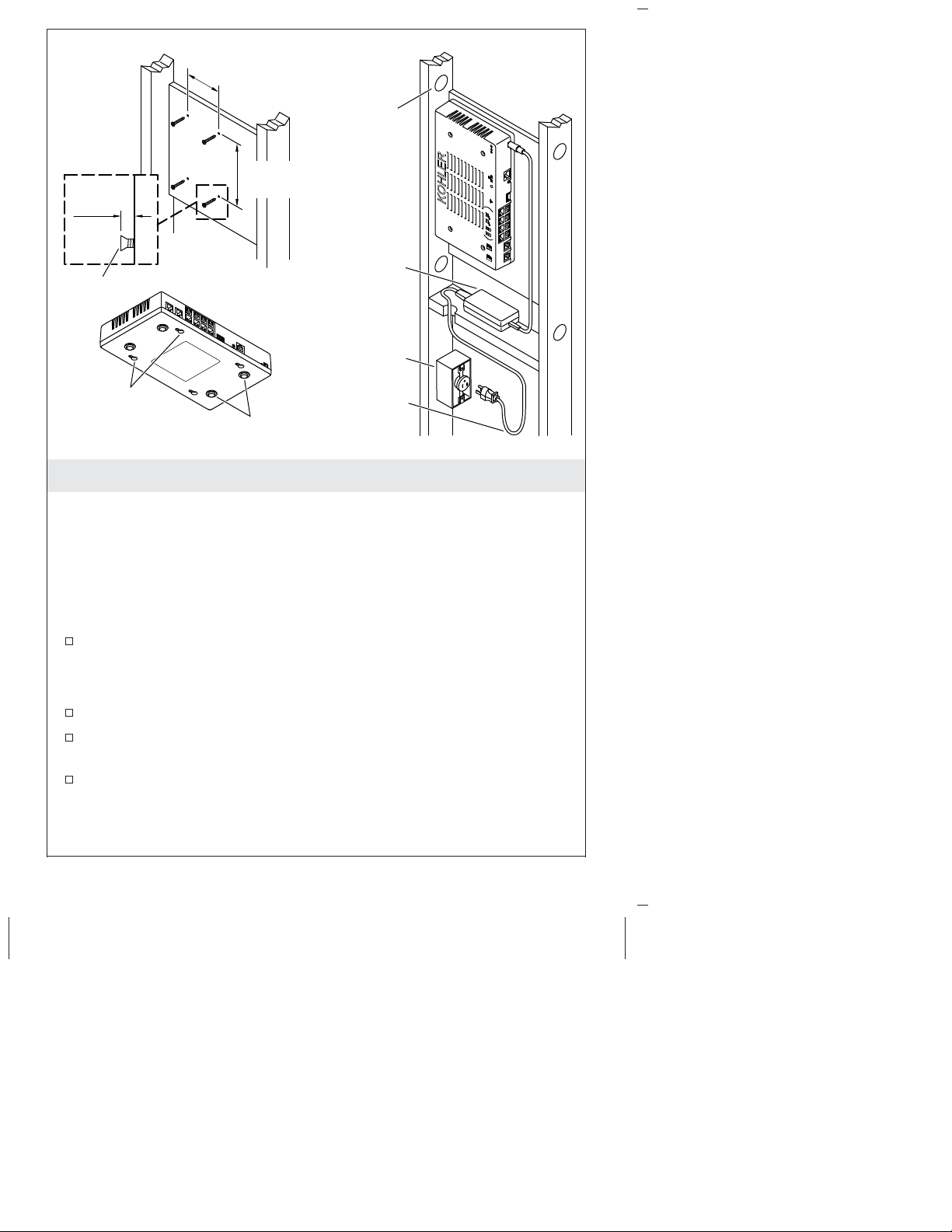

Installation In a Stud Cavity
Install a vertical surface between the studs.
Install four drywall screws according to the dimensions above.
The screws should protrude 5/16″(8 mm).
Install a 120 V GFCI electrical outlet within the stud framing, in
close proximity to the controller.
Power
Supply
Drill 1"
(25 mm)
holes.
Outlet
Drip Loop
Feet
Mounting
Holes
4" (102 mm)
5-1/8"
(130 mm)
Screw
5/16"
(8 mm)
1218131-2-A 6 Kohler Co.
Install the Controller (cont.)
NOTE: The power supply should be placed on a horizontal surface.
Do not secure the power supply to any surface.
Install a horizontal board to accommodate the power supply.
Ensure the cord can be routed to the electrical outlet without
being pinched.
Using a hole saw, drill 1″(25 mm) holes through the studs at the
top and bottom of the wall cavity to allow proper air flow.
Hook the controller onto the protruding screws.
Route the power supply from the controller to the electrical
outlet.
Kohler Co. 7 1218131-2-A
3. Connect the Components
IMPORTANT! Make drip loops in all cables.
IMPORTANT! Disconnect the power from the controller before
connecting the cables.
If not already installed, install any digital interfaces, digital
valves, and optional components for your system configuration.
Route all component cables to the controller location.
Gently press each connection into the proper port until it fully
clicks in place.
Connect the power supply to the controller. Verify that the digital
interface(s) illuminate.
Before Operating the System For the First Time:
Download and install the latest software for connected components.
This may take an hour or more to complete based on system
configuration and internet connection speed. Do not disconnect the
power from the controller during software download and
installation.
Refer to the ″Download/Install Software″section for download
instructions.
Digital Mixing Valve(s)
Ethernet
Wi-Fi (Future Expansion)
Status LED
Digital Interface(s) and
Optional Components
Power Cord
1218131-2-A 8 Kohler Co.
4. Download/Install Software
NOTICE: Software download and installation may take an hour or
more to complete based on system configuration and internet
connection speed. Do not disconnect the power from the controller
during software download and installation.
NOTE: Internet service is required to receive the latest updates for
system components. The components must be connected to the
controller prior to software download.
Disconnect the power from the controller.
Make sure all system components are connected to the controller.
Attach the ferrite (provided) to the Ethernet cable, close to the
end that will be connected to the controller.
Connect the Ethernet cable from the controller to a router with
active internet service.
Reconnect the power supply to the controller. The controller will
communicate with the router to receive an IP address.
Upon receiving an IP address, the controller will check for
software updates for any connected components, and will
automatically download and install the software. Do not
disconnect the power from the controller during software
download and installation.
Power Cord
To
Router
Ethernet
Cable
Ferrite
Kohler Co. 9 1218131-2-A
5. Obtain the IP Address
NOTE: System setup must be completed through the controller Web
pages. The Web IP address is obtained from the interface.
From the [home] menu on the interface, touch the [settings] icon.
Go to [system], then to [about].
A pop-up screen will display current software information.
Copy the IP address from the screen.
NOTE: To access the Web pages, a computer or tablet must be
connected to the same router as the controller.
On a computer or tablet connected to the same router as the
controller, open a browser and enter the IP address into the
search field.
The controller Web page should appear in the browser, providing
access to configure system settings.
Controller
Hardware: v0.0.0.0
Firmware: v0.0.0.0
IP: 0.0.0.0
MAC: 00:146F:0E:34:4A
User Interface 1
OS: v0.0.0.0
Graphics: v0.0.0.0
Language: v0.0.0.0
TouchPanel: v0.0.0
about
settings
system about
ok
1218131-2-A 10 Kohler Co.
Table des matières
Langues :
Autres manuels Kohler Contrôleurs
Kohler
Kohler APM402 Mode d’emploi
Kohler
Kohler rada outlook Manuel utilisateur
Kohler
Kohler Dongle 23777T Manuel utilisateur
Kohler
Kohler 6EKOD Manuel utilisateur
Kohler
Kohler K-1647 Manuel utilisateur
Kohler
Kohler Power Systems GM49279-KP1 Manuel utilisateur
Kohler
Kohler APM303 Manuel utilisateur
Kohler
Kohler Decision-Maker 3500 Manuel utilisateur
Kohler
Kohler GM35950 Manuel d'utilisation et d'entretien
Kohler
Kohler 8.5RES Manuel utilisateur
Kohler
Kohler Decision-Makerr MPAC 1500 Manuel utilisateur
Kohler
Kohler GM17071-KP1 Manuel utilisateur
Kohler
Kohler APM802 Manuel utilisateur
Kohler
Kohler Modbus MPAC 1000 Mode d’emploi
Kohler
Kohler Curtis F Series Manuel utilisateur
Kohler
Kohler Decision-Makerr MPAC 1500 Manuel utilisateur
Kohler
Kohler Decision-Maker 3000 Mode d’emploi
Kohler
Kohler K-1647 Instructions de montage
Kohler
Kohler K-9384 Instructions de montage
Kohler
Kohler K-1663 Manuel utilisateur
