Kogan MX9 Manuel utilisateur

MX9 CORDLESS STICK

VACUUM CLEANER

KAVACSTM09X

Safety & warnings 3

Components 6

Overview 7

Assembly 9

Operation 11

Cleaning & care 14

Specifications 18

Troubleshooting 19

Read all instructions in this guide before using this product. Retain this guide for future

reference. Do not skip, substitute or modify any steps or procedures in this guide, as doing

so could result in personal injury or product damage.

To reduce potential fire risks, electric shock or injury, always observe the basic safety

prevention measures during use, including but not limited to the following:

Power safety

•Ensure that the power supply voltage matches the voltage marked on the charger.

•Do not store the charger by wrapping the charger cord around the charger.

•The charger cord must be kept away from hot surfaces or sharp objects.

•The charger cord cannot be replaced. If the charger cord shows any signs of damage,

cease use immediately and contact help.Kogan.com for support.

•Do not touch the charger or the appliance with wet hands.

•When cleaning and maintaining the machine, ensure that the appliance has been

disconnected from the power supply.

•Always hold by the power plug when connecting and disconnecting to avoid damaging

the cord.

•Never immerse any part of the plug or vacuum cleaner in water or other liquids.

•Never leave while the vacuum cleaner is working.

Battery safety

•Only use the original battery supplied by Kogan.com. Do not use any other model or

capacity of the battery.

•Do not burn or expose the battery for to high temperatures.

•Only use the original battery. Replacing with a difference battery may cause safety

risks.

•Do not disassemble, expose to impact, squeeze or place the battery into the fire.

•If the battery has any malfunction or abnormality, cease use immediately and contact

help.Kogan.com for support.

•Do not short circuit the metal contacts on the battery. Doing so may cause the battery

to overheat and lead to personal injury.

SAFETY & WARNINGS

During use

•This product is not intended for use by persons (including children over 10 years old) with

reduced physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the product in

a safe way by the person responsible for their safety and understand the hazards

involved.

•Children over 10 years old must only use this appliance under the supervision of their

guardians.

•Do not allow children under 10 years old to operate or play with this appliance.

•During operation or when performing maintenance, children under 10 years old should

be kept away from the appliance.

•Do not use this appliance outdoors or in humid areas or grasp it with wet hands.

•If the machine becomes physically damaged, is placed outdoors or falls into water,

cease use immediately and contact help.Kogan.com for support.

•To avoid blockages, don’t place large objects into the suction nozzle of the vacuum

cleaner. Keep the suction nozzle away from lint, hair and other objects that may cause

a blockage and frequently clean the appliance.

•To avoid injury, keep your hair, clothes, fingers and other body parts away from the

suction nozzle and movable parts.

•Avoid sucking in any burning or smoking garbage, such as cigarette ends, matches,

soot and other objects.

•Do not use the vacuum cleaner to clean flammable substances or liquids, such as

gasoline or places where there may be gasoline, kerosene, paint, alcohol, detergent,

etc.

•Keep this appliance away from hot surfaces or sources of heat.

•Do not use the vacuum cleaner before installing the filter.

•Turn off the machine before connecting or replacing any accessories.

•Keep the vacuum cleaner indoors and use it in dry rooms only.

•Do not use it for other purposes unless otherwise specified in this user guide.

•Do not use the vacuum cleaner as a toy. Children nearby must be supervised.

•Be careful when cleaning stairs.

•Only use accessories included with this product and recommended by Kogan.com.

•This vacuum cleaner is not suitable for cleaning water or other liquids. Do not vacuum

water or wet debris.

•Do not use on concrete pavement, asphalt pavement and other rough surfaces.

•The vacuum cleaner is designed for household use only. Do not use it in factories or

commercial environments.

•Do not vacuum construction waste or heavy metal dust.

•Pay close attention when pets are near the vacuum cleaner.

•Do not leave the power on when the vacuum is unattended.

•Disconnect the charger when not in use, after full charging or before maintenance.

•If the power cord is damaged, cease use immediately and contact help.Kogan.com for

support.

Cleaning & Maintenance

•To ensure the correct operation of the vacuum, the filter and dust cup will need to be

emptied and cleaned regularly.

•To ensure optimal performance of the vacuum, follow the “Cleaning and Care”

instructions outlined in this user guide.

•To prevent personal injury and avoid irreparable damage, do not modify this product in

any way.

•Only use replacement parts or spare parts provided by Kogan.com.

WARNING:

•Do not use water, solvents or polishing agents to clean the surface

of the appliance. Clean with a dry cloth.

•Do not to submerge the vacuum cleaner in water or use a machine

to clean it.

Vacuum body Wall bracket

Extension tube Electric brush

2-in-1 bristle brush Crevice tool

Battery Charger

COMPONENTS

OVERVIEW

Outlet filter cover

Control panel

Dust cup lock

Dust cup

Dust cup release button

Extension rod lock

Extension tube

Brush release button

Roller brush

Charging indicator

Trigger

Battery

Battery release

button

Charging input

Control Panel

Brush blockage indicator

Air-duct blockage indicator

ECO Speed indicator

High Speed indicator

Battery level indicator

Automatic mode

Suction control

1. Align the roller brush to the extension tube and push it gently. It will connect with

an audible click.

2. Align the extension tube with the vacuum cleaner body and push it gently. It will

connect with an audible click.

3. The roller brush and other brush heads can be connected directly to the vacuum

cleaner body when a more compact unit is desired (for example, cleaning a car

interior).

4. Slide the battery along the guide slot towards the rear of the vacuum main body

until it locks firmly in place.

ASSEMBLY

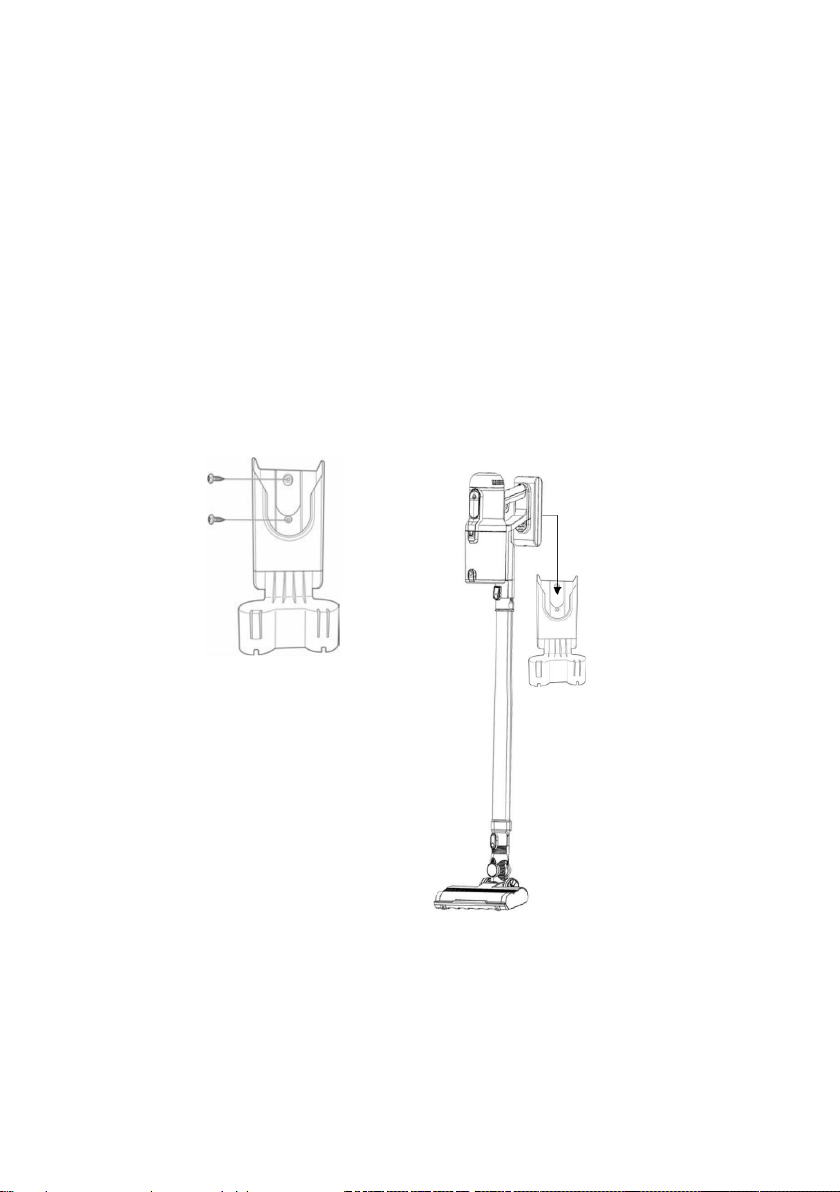

Wall Bracket

1. Select a location that is easily accessible and has enough room for the vacuum to

be mounted vertically. Ensure that the mounting location is close to an electrical

outlet so that you can plug in the vacuum charger.

2. Using the wall bracket as a template, mark the location of the holes that will need

to be drilled.

3. Attach the wall bracket to your chosen location:

oIf mounting into a wall stud, use screws to attach the wall bracket to the wall.

oIf mounting into plaster or masonry, wall anchors will need to be used for

added support.

Note: Screws and wall anchors not supplied.

4. Once the wall bracket is securely attached to the wall, you can hang the vacuum

cleaner on it.
