KALED19XXXYA

USER MANUAL

Contents

-2-

SAFETY AND WARNINGS.............................................................2-4

BASE STAND .........................................5

INSTALLATION.............................................................................6-9

REMOTE CONTROL.................................................................10-11

OPERATION.............................................................................12-17

TROUBLE SHOOTING................................................................... 18

TECHNICAL SPECIFICATIONS.......................................................19

ASSEMBLY INSTRUCTION

WALL MOUNTING INSTALLATION GUIDELINES...............................5

-3-

SAFETY AND WARNINGS

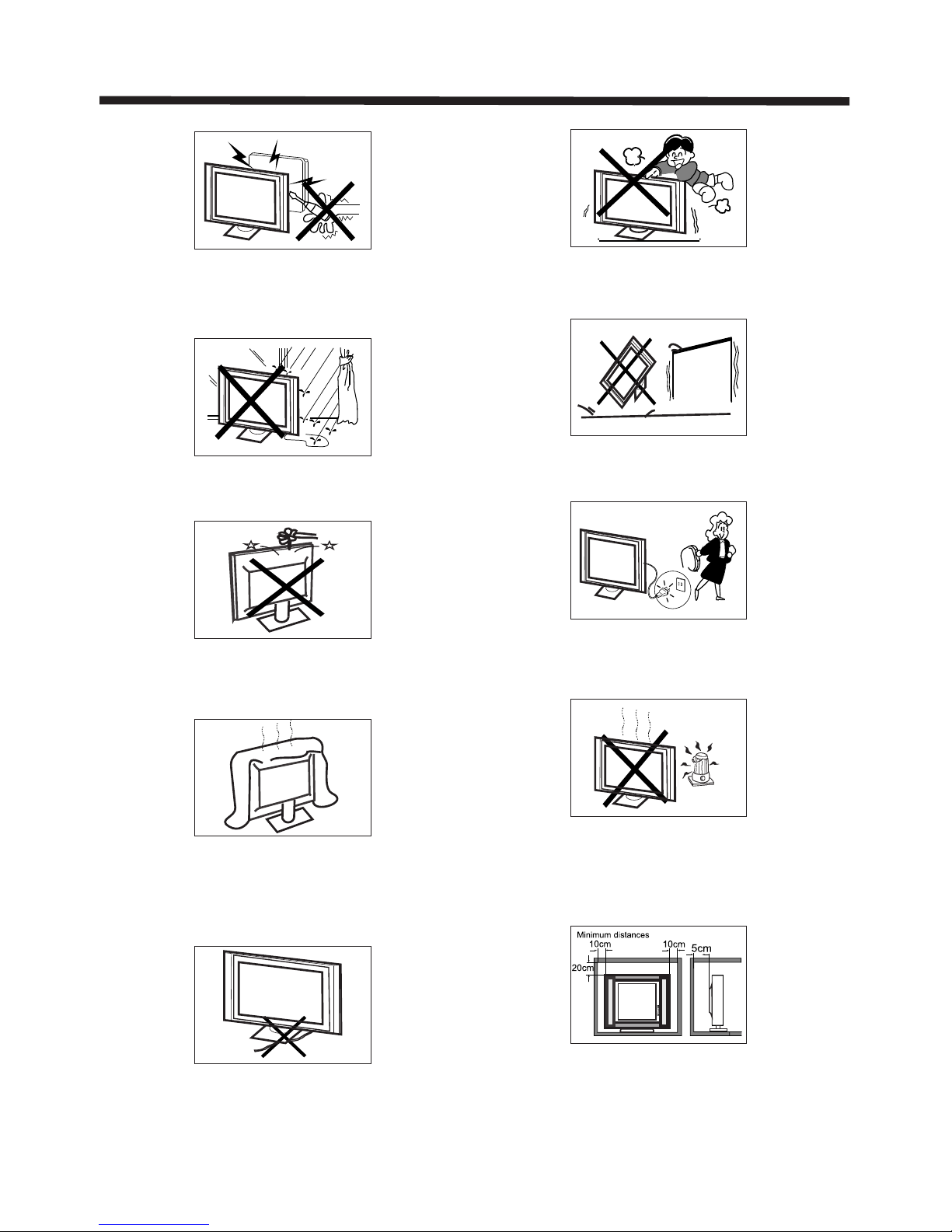

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are

no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or

moisture.

Do not expose the Adaptor and product to water (dripping or splashing) and no objects

filled with liquids, such as vases, should be placed on the unit.

Keep the product away from direct sunlight and heat source such as radiators or stoves.

Do not block the ventilation openings. Slots and openings on the unit are provided for

ventilation. The openings should never be blocked by placing your product on a cushion,

sofa or other similar surface.

Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall,

resulting in possible damage or injury.

Never place heavy or sharp objects on the panel or frame.

Only use the AC adapter included with product. Using any other adapter will void your

warranty.

Unplug the power from the outlet when the unit is not in use.

Attention should be drawn to the environmental aspects of battery disposal.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to

excessive heat such as sunshine, fire or the like.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing

loss.

WARNING: Only use attachments/accessories specified provided by the manufacturer.

The AC adapter is used as a disconnect device method, therefore the plug should remain

readily available.

-4-

High voltages are used in the operation of this

television. Do not remove the cabinet back from

your set.

Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not

expose the television receiver to rain or moisture.

Do not drop or push objects into the television

cabinet slots or openings. Never spill any kind

of liquid on the television receiver.

Do not block the ventilation holes in the back

cover.

Adequate ventilation is essential to prevent

failure of electrical components.

Do not trap the power supply cord under the

television stand.

Never stand on, lean on, or suddenly push the

television or its stand. You should pay special

attention to children. Serious injury may result if it

falls.

Do not place your television on an unstable cart,

stand, shelf or table. Serious injury to an individual,

and damage to the television may result if it falls.

When the television receiver is not used for an

extended period of time, it is advisable to

disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight

and other sources of heat. Do not stand the television

receiver directly on other products which give off heat,

e.g. video cassette players and audio amplifiers. Do not

place naked flame sources, such as lighted candles on

the television.

If the television is to be built into a compartment or similar

enclosure, the minimum distances must be maintained. Heat

build-up can reduce the service life of your television, and

can also be dangerous.

Dim: 515*32 0mm(不包括底座）

SAFETY AND WARNINGS

-5-

INSTALLATION

Base Stand Assembly Instruction

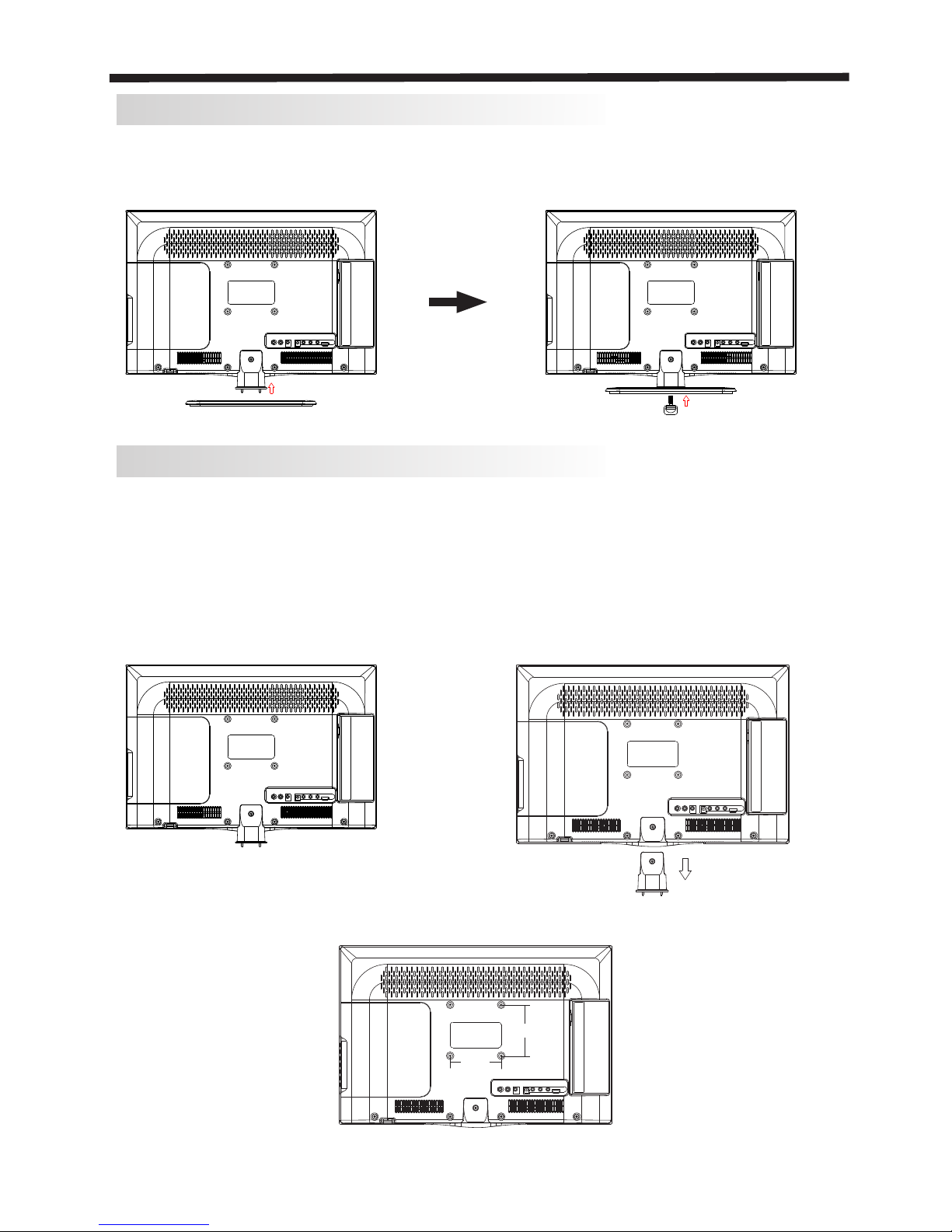

1. Place the TV with the display side down

on a flat surface.Use a cloth to protect your screen.

Locate the bottom at the stand.

2. Fix the bottom via turning the screw

tightly on the stand.

WALL MOUNTING INSTALLATION GUIDELINES

For wall mounting with the optional bracket, please read the following instructions and the bracket

instructions. Make sure qualified service personnel perform the operation.

KOGAN bears no responsibility for improper mounting that results in accident or injury.

This television can be wall mounted as follows:

1.Place the LED LCD Television onto a solid surface. Please place some soft material over the

front of the screen to protect it from any damage.

2.Remove the screws from the lower part of the television, where the base joins to the

TV, and take away the stand (put the stand somewhere safe for future use).

3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the

four VESA standard holes on the back of the television.

100 mm

100 mm

INSTALLATION

-6-

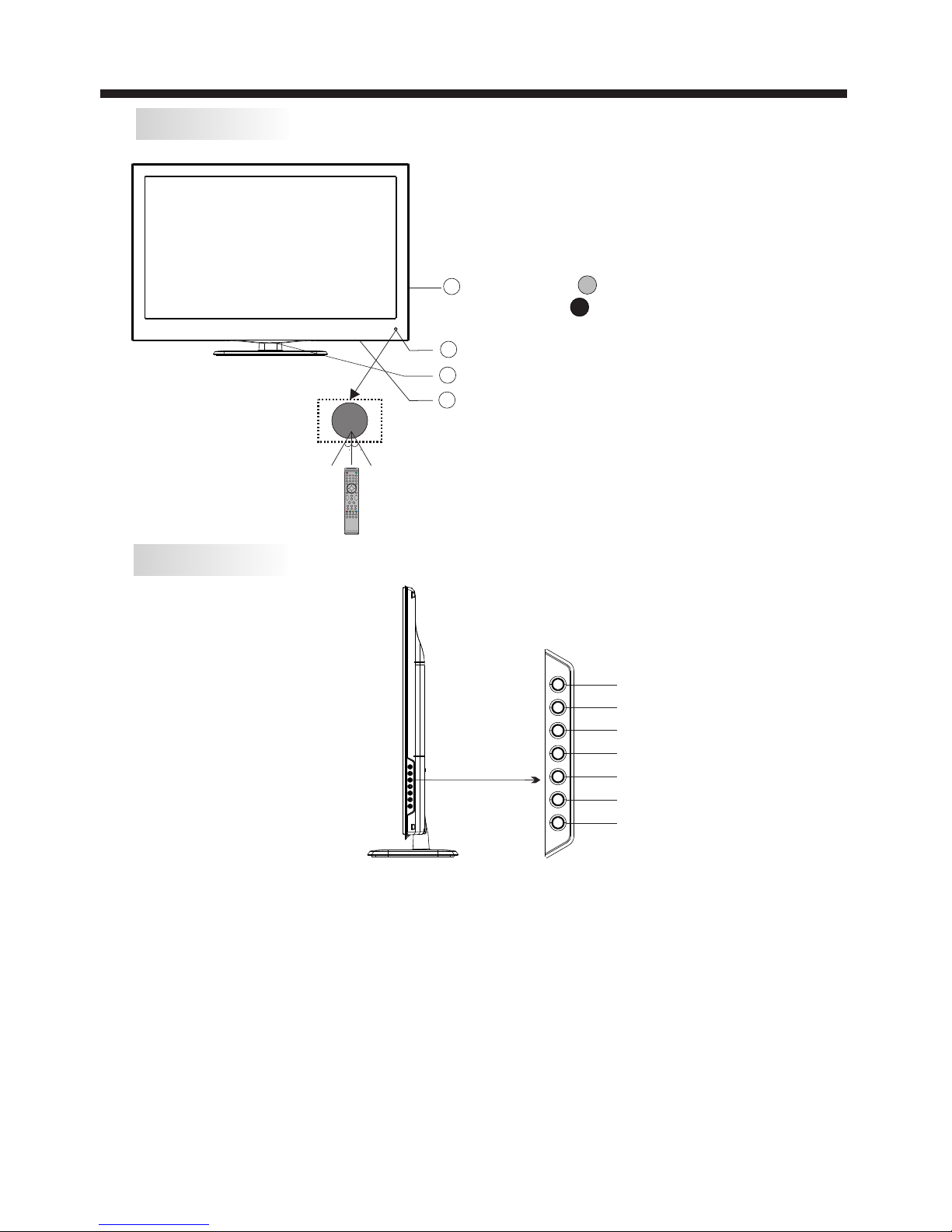

Front panel

KEYBOARD

1．SOURCE：

Displays the input source Menu.

2．MENU：

Displays the main MENU.

3．CH+/CH-

In TV mode, press "CH+" or "CH-" to change the channel up or down.

In MENU mode, press "CH+" or "CH-" to select items.

4．VOL+/VOL-

Adjusts the sound level.

In MENU mode, press "VOL+" or "VOL-" to adjust the item that you have selected.

5. STANDBY

Once the TV's main power switch has been activated, press this button to turn the

unit ON from STANDBY mode.

Press it again to return the set back to STANDBY.

30 3 0

1: Remote control sensor.

2: Indicator LED:

BLUE = POWER ON.

RED = Stand-by.

3: Key board (on side of TV).

4. Main Power Switch(on bottom

rear of TV)

SOURCE

MENU

CH+

CH-

VOL+

VOL-

STANDBY

3

1

2

4

NOTE: The main power switch

will be turned off upon delivery.

Please turn on prior to initial use.

-7-

INSTALLATION

STEPS:

PC

Be sure both the TV and computer are

set to Power off.

1.Connect VGA and audio cable.

2.Connect the power cord.

3.Power on the TV, switch to PC mode.

4.Power on the PC.

This sequence is very important.

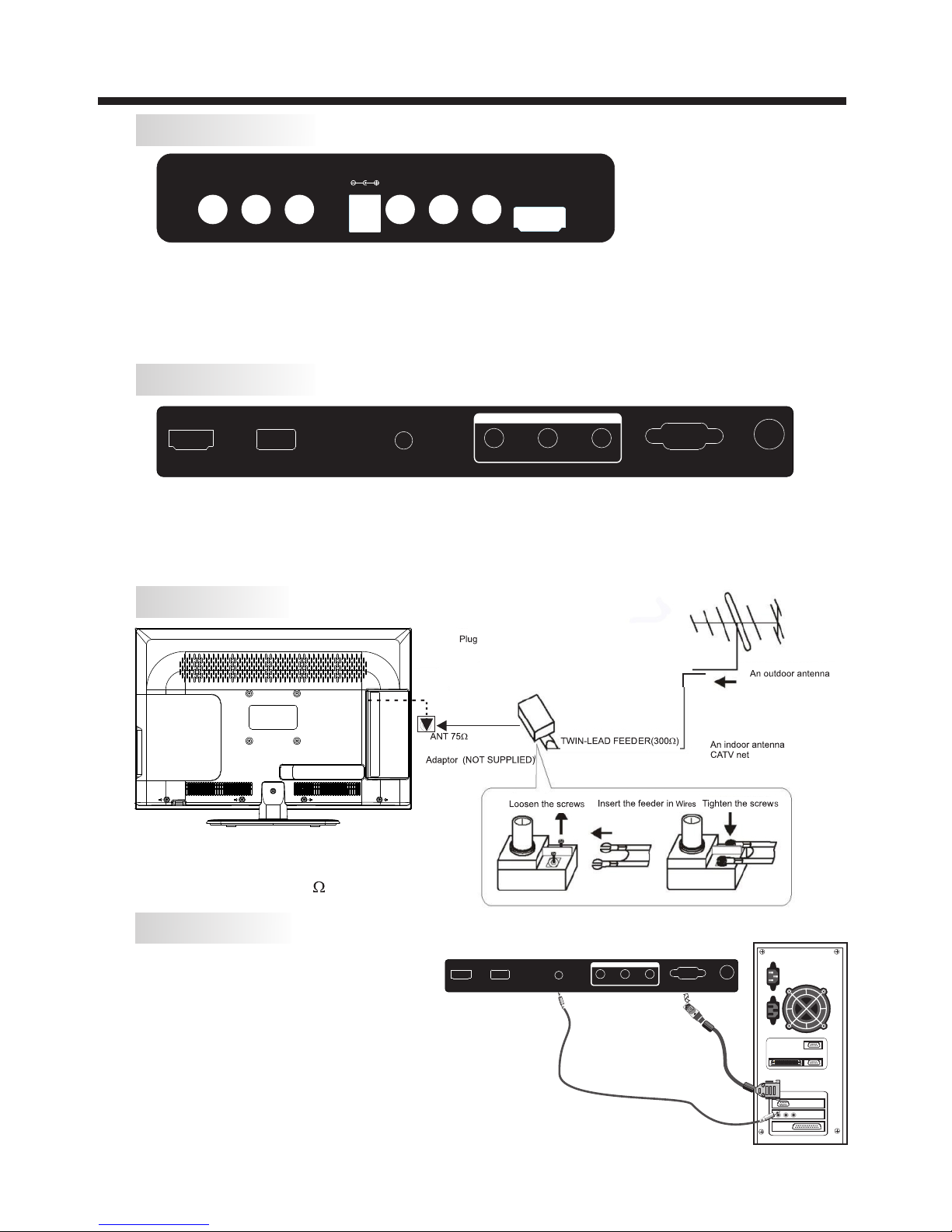

ANTENNA

Note:

Aerial connections: IEC(female).

Input impedance: 75 unbalanced.

REAR AV Connections

All the terminals are(from left to right):

, Audio input, Power socket, YPbPr (component video) input,

HDMI2 input.

Note: 1. AV and YPbPr share one audio channel.

2. When the HDMI2 port receives a DVI signal, the audio signal is received from the

YPbPr/AV Audio channel.

AV composite video input

REAR AV Connections(SIDE)

All the terminals are(from left to right):

HDMI1 input, USB, PC Audio input, (composite video and audio) VGA input,

Note: When HDMI1 receives a DVI signal, the audio signal is received from the PC

Audio channel.

AV output ,

Antenna socket.

USB PC AUDIO VGA RF

HDMI1 AV LR

AV OUTPUT

USB PC AUDIO VGA R F

HDMI1 AV LR

AV OUT PUT

AV L R Y Pb Pr

HDMI2

POWER

-8-

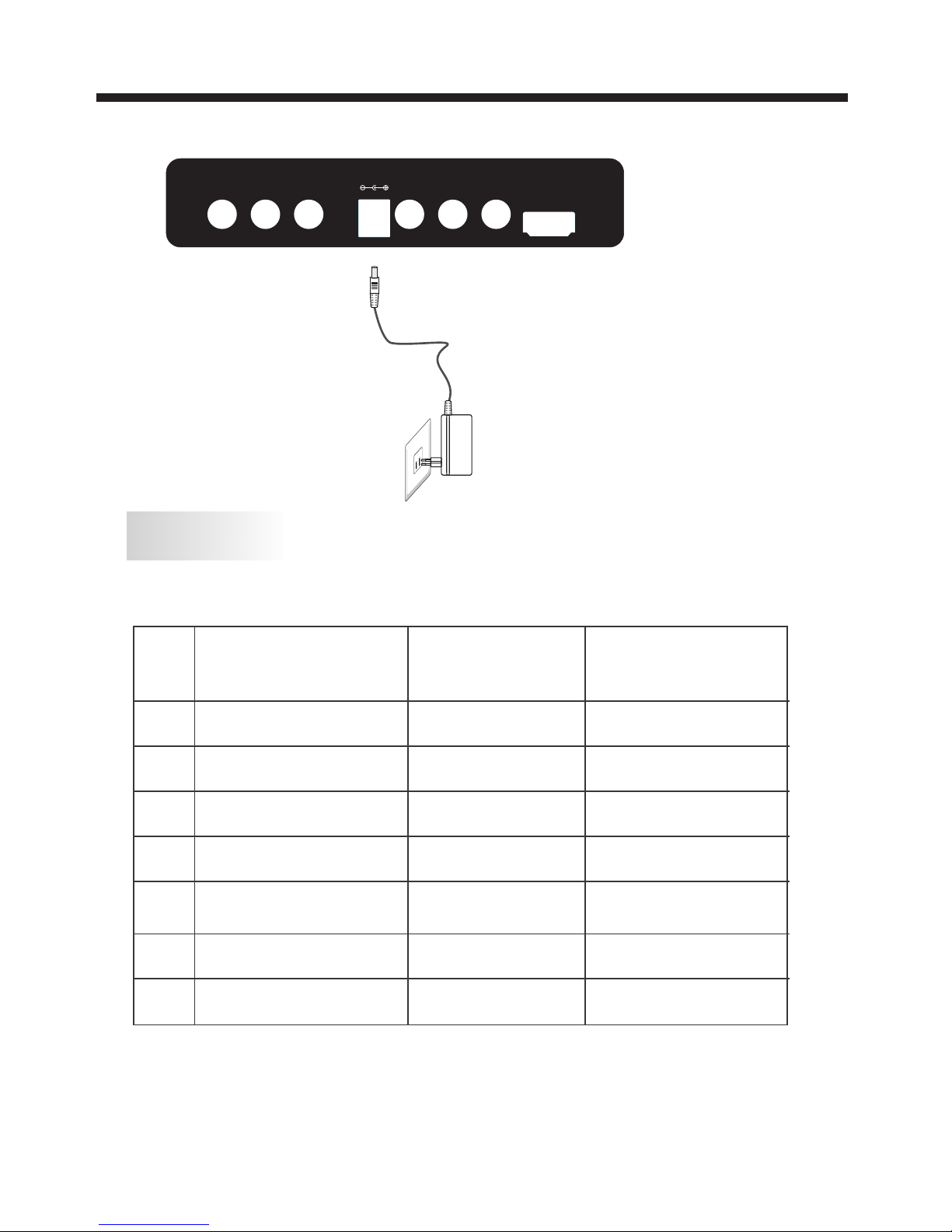

PRESET MODE

PC

INSTALLATION

1

2

3

4

5

6

7

720*400

640*480

800*600

800*600

800*600

1024*768

1024*768

70

60

56

60

72

60

70

31.47

31.47

35.156

37.88

48.08

48.36

56.48

RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

AV L R Y Pb Pr

HDMI2

POWER

-9-

INSTALLATION

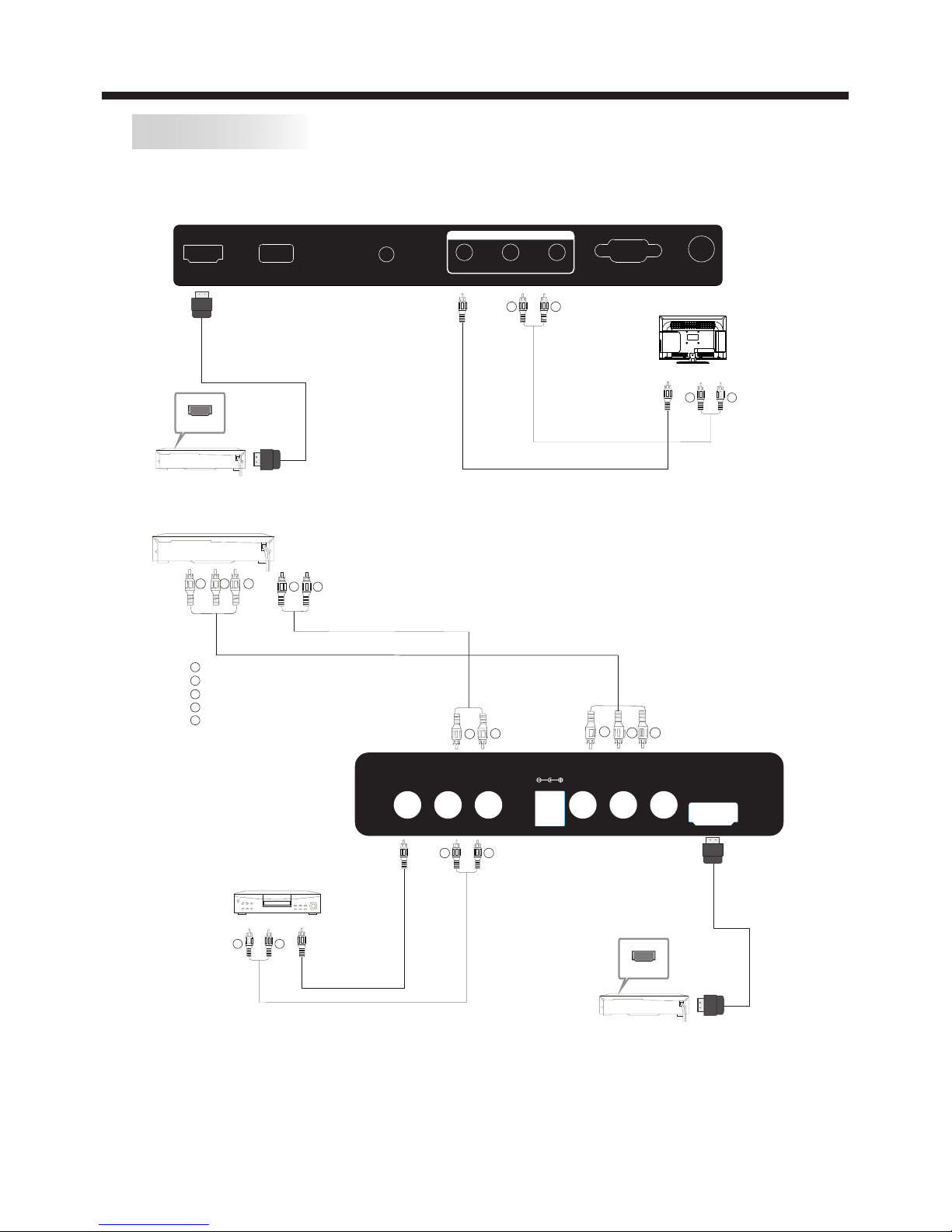

You can use the input terminals on TV set rear as follows.

AV EQUIPMENT

Yellow (video)

White(audio L)

Red(audio R or Pr)

Y

W

R

W R

GBR

Blue(Pb)

Green(Y)

B

G

VIDEO EQUIPMENT with YPbPr (component) output

WR

GBR

WR

W R

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video

game or stereo system, etc.....

YPbPr can support these video formats: 480i,576i,480p,576p,720p,1080i.(component video)

HD MI

TO AUDIO OUTPUTS

VIDEO EQUIPMENT with Composite output

TO VIDEO

OUTPUTS

HD MI

W

R

W R

TO AUDIO INPUTS

VIDEO EQUIPMENT

TO VIDEO

INPUTS

USB PC AUDIO VGA RF

HDMI1 AV LR

AV OUTPUT

AV L R Y Pb Pr

HDMI2

POWER

-10-

REMOTE CONTROLREMOTE CONTROL

REMOTE CONTROL

Picture 1:

Picture 2:

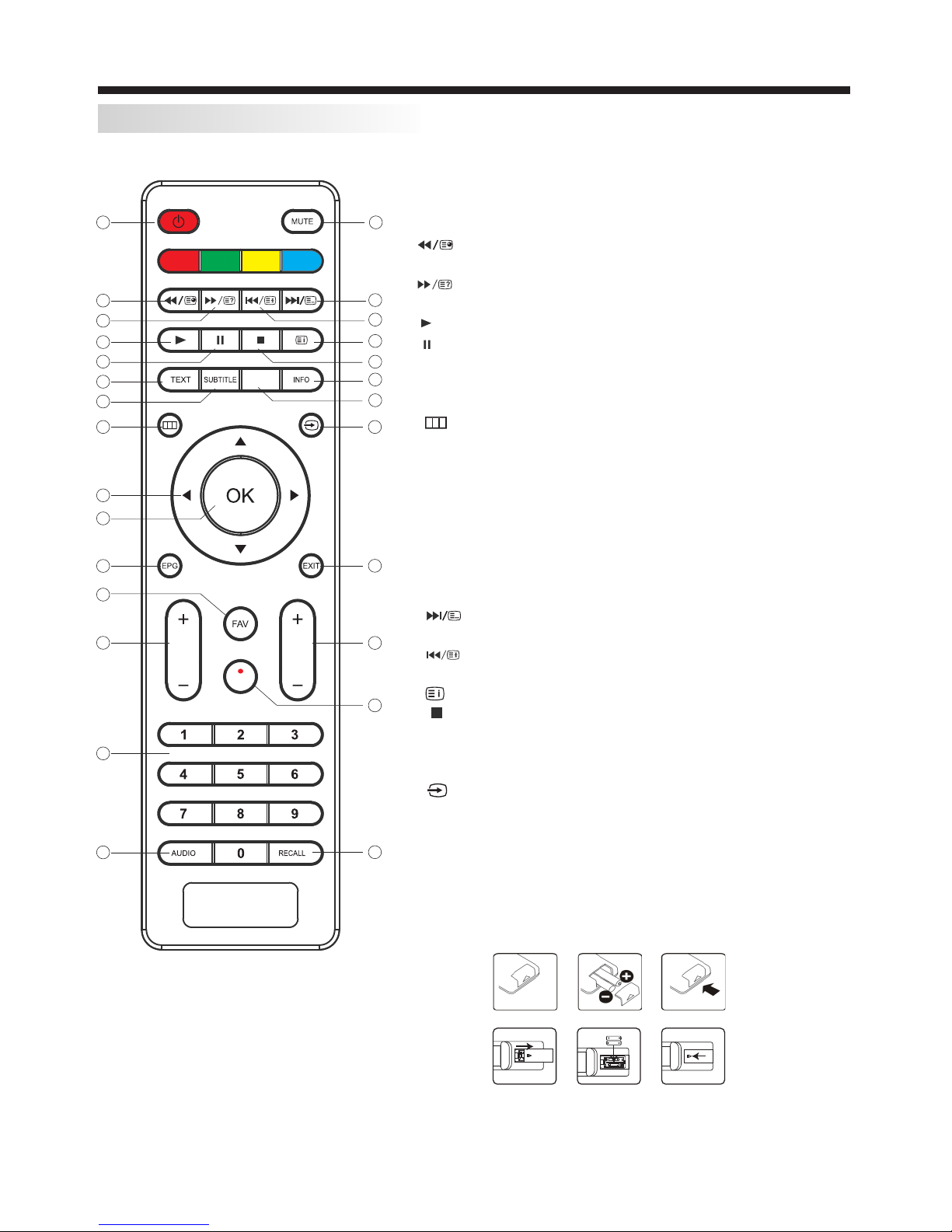

1:POWER:To set the TV to standby or power on.

2: :In USB mode, used as reverse key, in teletext

mode used as subpage key.

3: : In USB mode, used as forword key, in teletext

mode used as reveal key.

4: :

5: :

6:TEXT:To enter or TELETEXT.

7: SUBTITLE: To turn on subtitles press the subtitle button

in DTV mode.

: : Displays the main on-screen menu.

:

:OK

11:EPG: To display information about the program being viewed

and what's on next in DTV mode.

12:FAV: To access your favourite channels list in TV or DTV mode.

13:VOL+/- : To adjust sound level.

14:NUMERIC KEY: For direct access to channels.

15:AUDIO: To select the available audio language of TV programs .

16:MUTE: To disable or enable the sound output.

: : In USB mode, used as next key, in teletext mode used as

list key.

18: : In USB mode, used as previous key, in teletext mode used

as hold key.

19: :In teletext mode used as index.

20: : Press to stop play in USB mode.

21:INFO: To display the program information of the show you

are watching, press the info button.

22:FREEZE: Press to freeze the picture you are watching.

23: : Press to display and select the available video sources.

EXIT: To return to the previous menu or exit menu.

25:CH+/CH-: To access the next or previous channels.

26:REC:

27:RECALL: DTV Mode: RECALL:Jumps to last channel viewed.

Press in USB Mode to begin or continue playback.

Press in USB Playback Mode to pause playback.

8

9

10

17

24:

Press to record the TV program you are watching in

DTV Mode.

CURSOR: To move within the menu.

: Confirms selection.

1

2

3

4

5

6

7

8

9

10

11

13

12

14

15

16

17

18

19

20

21

22

23

24

25

26

27

VOL CH

REC

FREEZE
