Thank you for buying our IP camera.
This product is designed and equipped for network video surveillance.
We have adopted high performance chips to ensure high quality media
processing that includes video and audio collection, compression, and
transmission. Standard MJPEG compression format ensures clear video
streaming performance and enables users to view feeds via IE browser, centre
management software and client software.
The cameras are suitable for small, medium and large enterprises as well as
franchise stores, factories, and home usage. These systems are easy to install
and operate and are perfect for anywhere remote network video transmission is
needed.
Before you begin installation, please check to make sure all products accessories
are included in the package.
Product Components and Features:
Table of CONTENTS
IP camera
Bracket（optional）
Power adapter
Warranty card
CD
1 PC
1 PC
1 PC
1 PC
1 PC
1. General Introduction ................................................................................
1.1. Product Specifications ..........................................................................
1.2. Applications ...........................................................................................
1.3. System Requirements ..........................................................................
2. Interface & Installation .............................................................................
2.1. Interface ...............................................................................................
2.2. Installation .............................................................................................
2.2.1. Installation in LAN ..............................................................................
2.2.2. PPPoE Installation .............................................................................
2.2.3. IP Camera & PC connection ..............................................................
3. IE Browse to IP Camera...........................................................................
3.1. Use Search tool Software......................................................................
2
3
3
3
4
4
5
5
6
6
7
7
1
IP cameras are a new generation product that combine analog and IP video
technology. IP cameras can compress and encrypt video and audio signals then
send it to remote terminals through the internet with its built-in processor and web
server. With an IP address, users can use the standard Internet Explorer browser
to view the camera real-time, monitor targets, manage and store video and audio,
as well as control PTZ through the network.
As a new generation of products in the security family, IP cameras share the
same function as analog cameras such as auto white balance, auto shutter
speed, AGC, auto backlight compensation etc. On the other hand, IP cameras
also support remote access through the internet, and support multi-user viewing
functions. Some IP cameras are even able to extend to both analog and digital
signals.
The core of F series IP cameras is 32Bit RSIC with standard MJPEG compression
format, CMOS image sensors, auto white balance and backlight balance, Internet
Explorer compatibility, smart phone accessibility, and centralized monitor interface
management. In general, these cameras host a variety of functions that can serve
a number of users depending on their usage requirements and conditions.
Table of CONTENTS

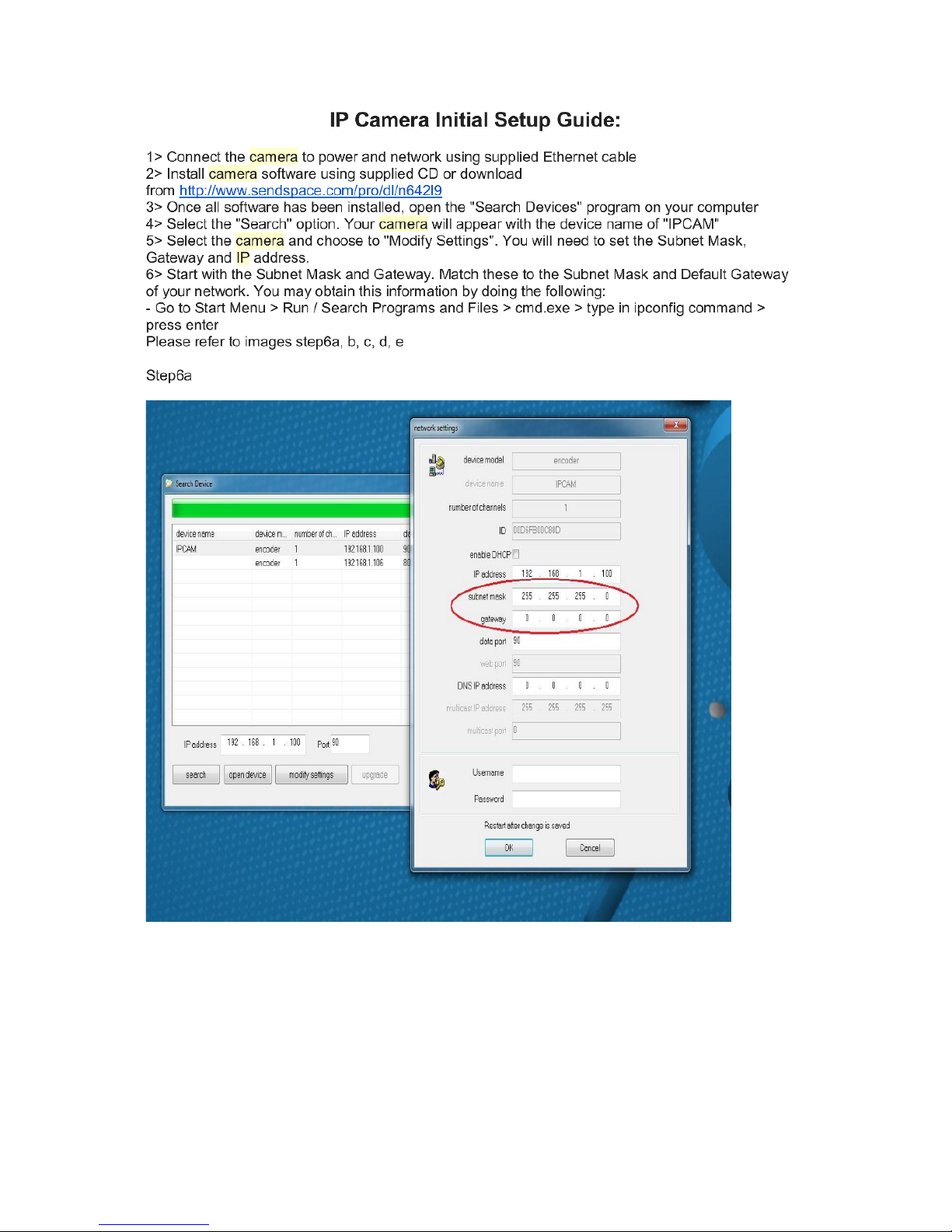

3.1.1. Configure Network Parameter .............................................................
3.2. Logging and Active X Installation.............................................................
3.3. Main Operation Interface.........................................................................
3.4. Manager Operation ................................................................................
3.4.1. Multi-Device Settings...........................................................................
3.4.2. Basic Network Settings........................................................................
3.4.3. Wireless Settings.................................................................................
3.4.4. ADSL Settings......................................................................................
3.4.5. DDNS Settings....................................................................................
3.4.6. E-mail and FTP Services Settings.......................................................
3.4.7. Alarm Services Settings .....................................................................
3.4.8. Reset/Firmware Upgrade Settings......................................................
3.4.9. Restore Factory Settings ...................................................................
3.4.10. Reboot Equipment Settings...............................................................
3.4.11 FREE iPhone App to Control the IP Camera.....................................
4. Others .......................................................................................................
4.1. Port Forwarding Settings in Router.........................................................
4.2 Warranty .................................................................................................
9
10
12
13
14
15
15
16
16
17
18
18
19
19
19
20
20
21
2
*Adopt high performance with strong functional media processors- 32Bit RSIC
*CMOS image sensor
*Uses high quality MJPEG compression to transmit video over low bandwidth
internet speeds
*Maximum support of 15 users viewing at the same time, no limit for users if using
Forwarder Server function;
*Built in Web Server: makes it easy for users to view real time monitoring and
access setting administration through the use of standard internet browser
(Internet Explorer);
*Support WIFI: 802. 11b/g wireless networking
*Support remote system update;
*Support DDNS analysis, support LAN & Internet (ADSL, Cable Modem)
*Support variety of network protocol: TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS,
DNS Client, SNTP, BOOTP, DHCP, FTP, SNMP, WIFI/802. 11b/g
*Parts of modes products support one/two way audio talk-back;
*Support motion detection alarm function (set area & sensitivity);
*Support image snap
*Abnormal automatic recovery function, if network interruption can auto-connect
*Set alarm period for dynamic alarm function
1.1. Product Specifications
This series of products is ideal for big department stores, supermarkets, factories,
workshops, and home use.
1.2. Applications
Minimum Hardware Configuration
CPU: Pentium 1.6 GHz
Memory: 256MB
Audio Card: needs audio monitor, two way talk-back is essential
1.3. System Requirements
3
Hard Disk: no less than 40G if it needs video image
Operation System: 32 bit simple/English Windows 2000/XP/2003/Vista & 64 bit
simple Chinese/English Windows 2003/XP/Vista Software Applications
-IE 5.0 or above
-DirectX8.0 or above version
-TCP/IP network protocol
Here is an example of the non-extended line IP camera.
2. Interface & Installation
*Non-extended line IP Camera Tailgate
2.1. Interface
*Non-extended line IP Camera icon
4
Power Supply Light: constant on after power up
Network Light: constant blink after power up data transmission
Ethernet interface: RJ-45 interface
I/O interface: 1 router alarm input, accept 3, 4 two terminals (input terminal
grounding, low level effective trigger); 1 router TTL control input, connect 1, 2 two
terminals (1.2 terminals short connections).
Power input interface: connect direct current 5V Power
*Extension line interface definition icon:
Power: direct current 12V.
GPIO alarm interface: accept external connection linkage alarm (for example:
door magnet, infrared)
Reset Line: two short circuit reset lines, equipment restores to factory settings.
Backup: follow-up product extend interface.
IP camera has the ability to process images and transmit via an internet
connection. It offers DDNS function for static IP, dynamic IP, and PPPoE dialing
users. IP camera can connect to router network through LAN or wireless
connection.
2.2. Installation
This is the most popular method of access as long as there is a router with
internet capabilities nearby. Connect router directly to IP camera, the camera will
then connect to internet as a normal PC, as shown:
2.2.1. LAN Installation
5
