Koehler K93500 Mode d’emploi
Pin On Disc Friction & Wear Test Rig
Page 1
K93500 / K93590
Pin On Disc Machine
Operation and Instruction Manual
REV A
Koehler Instrument Company, Inc.
1595 Sycamore Avenue • Bohemia, New York 11716-1796 • USA
Toll Free: 1-800-878-9070 (US only) • Tel: +1 631 589 3800 • Fax: +1 631 589 3815
http://www.koehlerinstrument.com • e-mail: [email protected]
Petroleum Testing & Analysis Instrumentation • Custom Design & Manufacturing
Pin On Disc Friction & Wear Test Rig
Page 2
Pin On Disc Friction & Wear Test Rig
Page 3
CONTENTS
1. PART I GENERAL INFORMATION
2. PART II DESCRIPTION
3. PART III INSTALLATION
4. PART IV OPERATION
5. PART V MAINTENANCE
6. PART VI CALIBRATION
7. PART VII CIRCUIT DIAGRAM
8. PART VIII BROUGHT OUT ITEMS LIST
9. PART IX TROUBLE SHOOTING
10. PART X SOFTWARE INSTALLATION GUIDE
Pin On Disc Friction & Wear Test Rig
Page 4
PART I
GENERAL INFORMATION
WARRANTY
The equipment is under warranty for a period of 12 months from the date of supply
against manufacturing defects only. The damages occur due to improper use, power
fluctuation etc., are not covered under this warranty.
When the consignment reaches to your place, please check the items as per the list
provided along with the machine. If any parts are missing or any damages found please
inform us through mail or call immediately.
Pin On Disc Friction & Wear Test Rig
Page 5
SAFETY PRECAUTIONS
The Pin on Disc Friction & Wear Test Rig is an electro-mechanical Device. Please
follow the instructions carefully.
Personnel injury may be resulted by improper operation.
The equipment may be damage by improper operation.
Only our service engineer installs and services the equipment.
Please ensure proper earthing.
Voltage between Earth and Neutral should be less than ±5 Volts.
Do not attempt at wire circuitry while power is ON.
Do not attempt to examine the components and signals when the equipment is ON.
Do not attempt to disassemble or modify internal circuitry or wiring.
Pin On Disc Friction & Wear Test Rig
Page 6
PART II
DESCRIPTION
The Pin on Disc Friction & Wear Test Rig is intended for determination of tribological
properties of different materials.
(i) Ascertain the validity of law’s of friction
(ii) Wear characteristics of the given specimen
(iii) Determination of wear constant
(iv) Understand the effect of parameters
This is a study versatile machine, which facilitates study of friction and wear
characteristics in sliding contacts under desired conditions. Sliding occurs between the
stationary pin and a rotation disc. Normal load, rotational speed and wear track diameter
can be varying to suit the test conditions. Frictional force and wear (displacement) are
monitored through electronic sensors and recorded to PC.
The major parts of the wear and friction monitor are mechanical assembly, Base plate,
Guide Base, AC Motor, AC Drive and spindle assembly, loading arrangement with 1:1
leverage ratio with a pulley, loading pan with dead weights, wear disc holder, scale to set
the track radius, LVDT for displacement, and load cell for frictional force.
Fig.,No.,01
Base Plate
Guide Base
Sensors
Wear Disc EN 31
Mtrl,58-60HRC
Pin On Disc Friction & Wear Test Rig
Page 7
Fig.,No.,02
Fig.,No.,03
Spindle
AC Motor
AC Drive
Environmental
Chamber
Lubricating
Re circulating
Chamber
Step down
transformer
230V to 110V
Pin On Disc Friction & Wear Test Rig
Page 8
Fig.,No.,04
Load up to 20 Kg can be applied on the specimen through loading lever arrangement,
which consists of loading pan and dead weights.
Dead Weights
Loading Pan
Loading Lever
Pin On Disc Friction & Wear Test Rig
Page 9

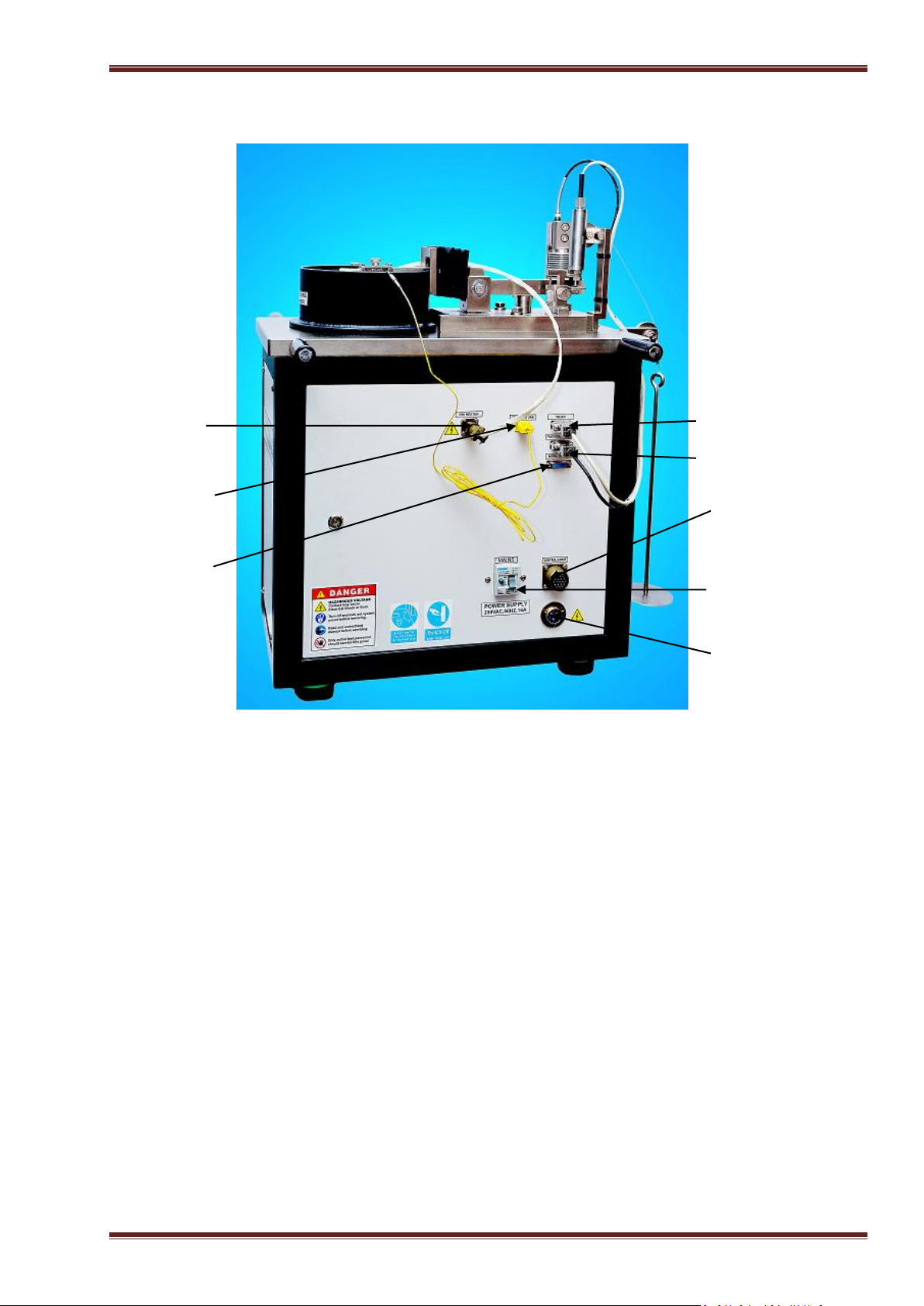

Fig.,No.,05
It also consists Power “ON” RCCB, 3 Pin Main power input harting connector, 19 Pin MS
connector, 9 Pin ‘D’ Type connectors for load cell & LVDT and 15 Pin ‘D’ Type signal
output connector, 2 Pin ‘K’ Type Thermocouple Connector, 2 Pin allied connector for
Heater
Resistance Control
Circuit Breaker (RCCB)
19 Pin M.S.Connector
5 Pin Main Power Input
Connector
9 Pin ‘D’ Type
Connector for LVDT
9 Pin ‘D’ Type Connector
for Load cell
2 Pin allied connector
for heater
2 Pin ‘K’ Type
Thermocouple
connector
15 Pin ‘D’ Type Signal
Output Connector
Pin On Disc Friction & Wear Test Rig
Page 10
Technical specifications of PIN ON DISC FRICTION & WEAR TEST RIG:
1. Normal Load Range - Up to 200N
2. Frictional Force Range - Up to 200N with a resolution of 1
N with tare facility
3. Wear Measurement Range - ± 2mm with tare facility
4. Sliding Speed - 0.26 to 12 m/s
5. Disc Speed - 50 to 2000 rpm
5. Preset Timer Range - Up to 99hrs:59min
6. Wear Disc Diameter - 165mm, Thk-8mm (EN 31 disc 58-60
HRC)
7. Wear Disc Track Radius - 10mm to 70mm
8. Specimen Pin Diameter/Diagonal - 3mm to 12mm
9. Pin Length - 25mm to 30mm
10. Data Acquisition System - Up to 8 channels with National
Instruments USB DAQ Card
11. Pin Heating System - Up to 2500C
12. Lubricating Re-circulating System
13. Specimen Holders - Ball, Square & Rectangular
14. Environmental Chamber with view port for inert gases and steam
15. Wear Disc
