Koblenz PV-500 K Manuel utilisateur

1/8 September

/ 2006

WET / DRY VACUUM CLEANER

MODELS:

PV-500 K

WD-600 K

WD-800 K

WD-900 K

KOBLENZ ELECTRICA S.A. DE C.V.

E-mail: thorne_scsm@koblenz-electric.com

September-06

LP-WDK-200609

SERVICE MANUAL

PARTS LIST

SERVICE

2/8 September

/ 2006

INDEX

PAGE

I.-

OPERATING SYSTEM 3

II.-

REPLACEMENT PROCEDURES 3

III.-

TROUBLE SHOOTING CHART 4

IV.-

WIRING DIAGRAM 5

V.-

VACUUM CLEANER ASSEMBLY 6

VI.-

VACUUM CLEANER PARTS LIST 7

3/8 September

/ 2006

I.- OPERATING SYSTEM

The vacuum cleaner can work from 105 to 135 V.

The current must be of 3 to 4 Amps.

There should be no abnormal noise or vibration, the carbon brushes spark should be small and uniform, and the commutator

must have dark brown strip and uniform.

II.-REPLACEMENT PROCEDURES

1.- TO REPLACE MOTOR (9)

1.1.- Pull release tab outward, at the same time pull cover up.

1.2.- Remove the four screws (10).

1.3.- Remove the cover (6).

1.4.- Disconnect the line cord.

1.5.- Remove the motor assembly (9).

1.6.- Replace the motor (9) reconnect and reassemble.

NOTE: Do not attempt to the repair motor send for service.

2.- TO REPLACE THE ON-OFF SWITCH (1)

2.1.- Follow steps 1.1 and 1.3.

2.2.- Disconnect the two leads from the switch (1).

Remove the three screws (7) the screw (9) and remove the cover top (3) replace the on-off switch reconnect and reassemble.

3.- TO REPLACE THE LINE CORD

3.1.- Follow steps 1.1 and 1.3.

3.2.- Remove and replace the new line cord and reassemble as initially placed

4.- TO REPLACE THE FLOAT (15)

4.1.- Follow steps 1.1

4.2.- Remove the cage (15).

4.3.- Remove and replace the float (14)

4/8 September

/ 2006

III.- TROUBLE SHOOTING CHART

1.- MOTOR DOES NOT RUN

CAUSE SOLUTION

Not firmly plugged Check attachment plug

Bad on-off switch Replace Switch

Line cord open Replace cord

Motor Open Replace motor

2.- LOW SUCTION

CAUSE SOLUTION

Tank full Empty tank

Hose or wand closed Clean obstruction

Motor slow Check carbon brushes

Filler is dirty Replace filler

WHEN ORDERING ,DO NOT FORGET TO SPECIFY :

 PART NUMBER

 DESCRIPTION

 MODEL NUMBER

NOTE: Drawing numbers are for identification purposes only.

5/8 September

/ 2006

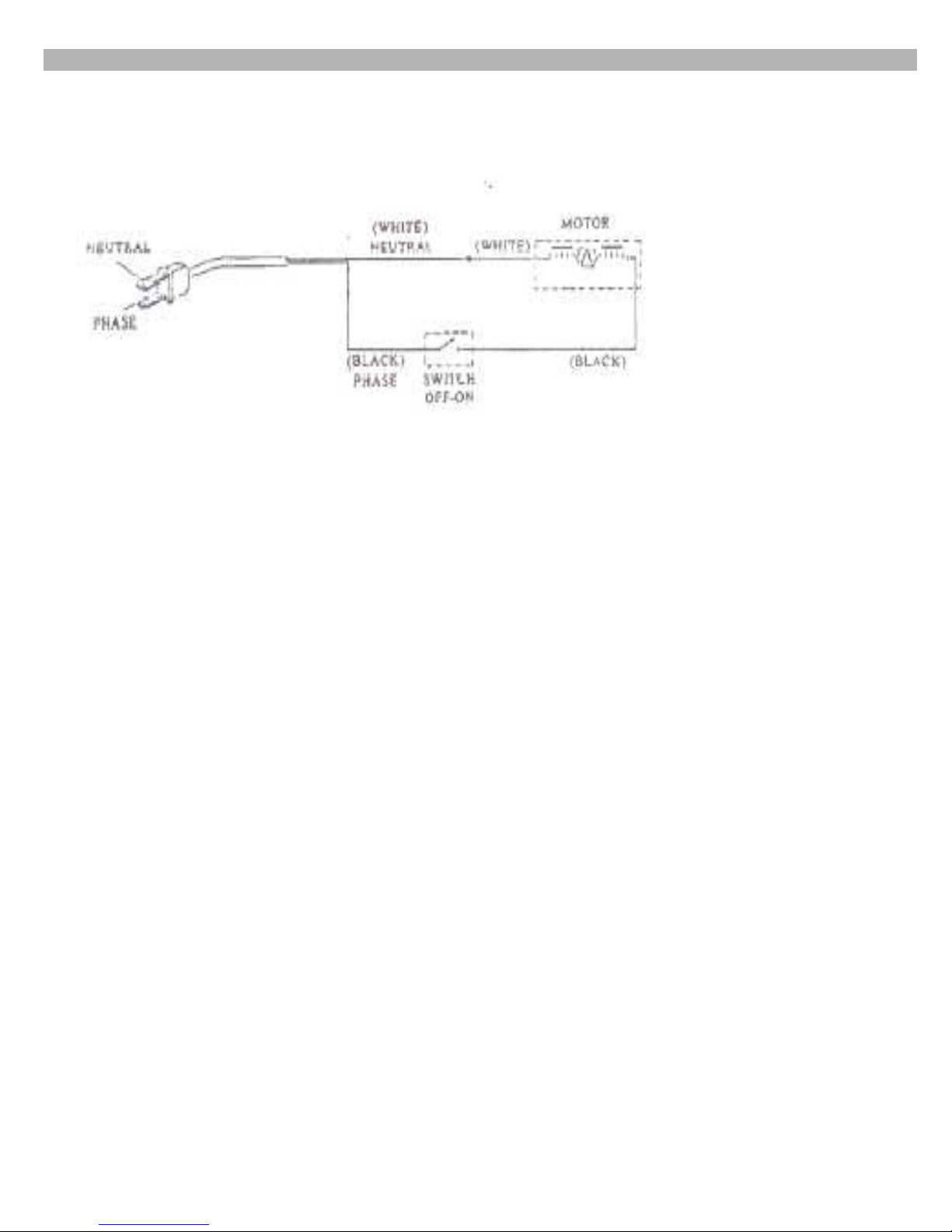

IV.- WIRING DIAGRAM

6/8 September

/ 2006

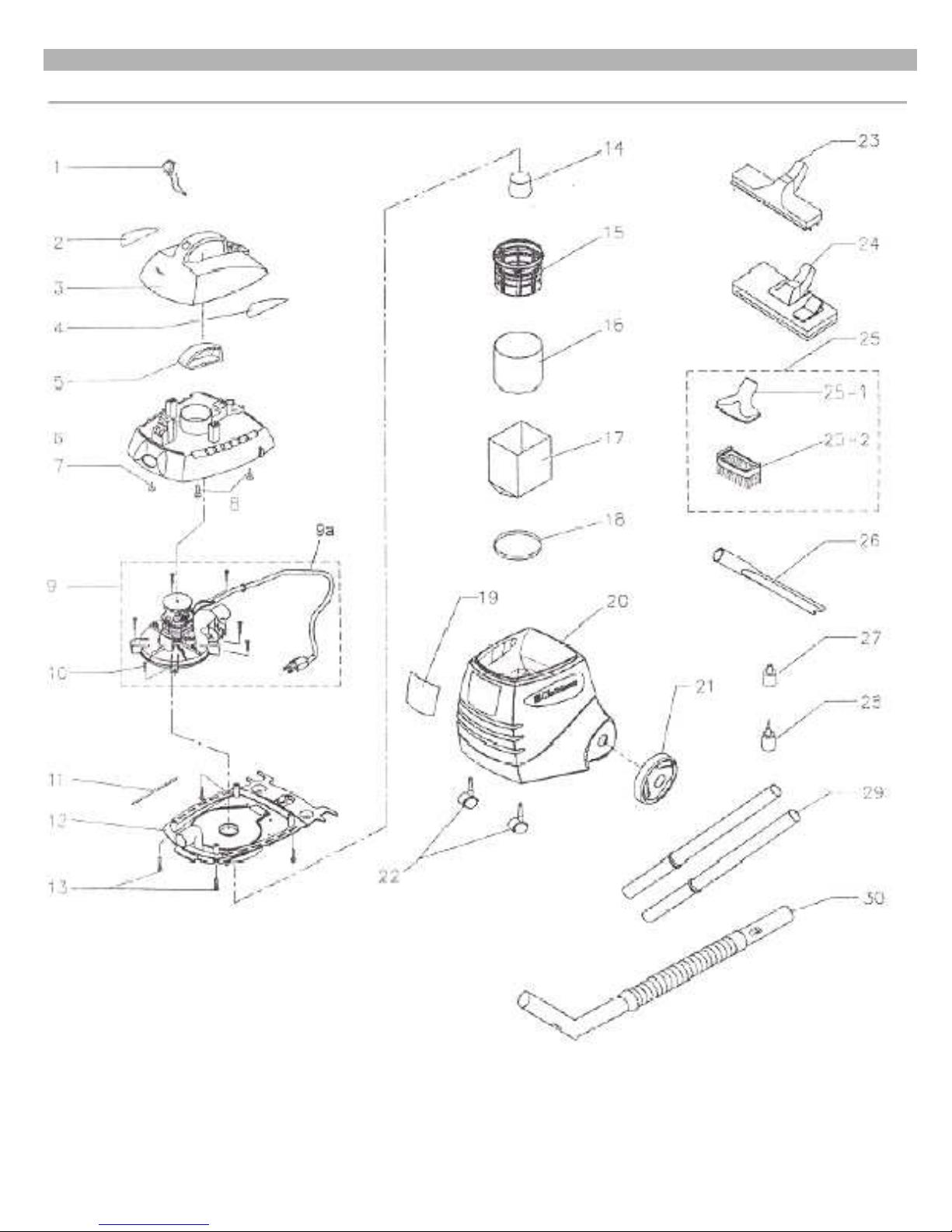

V.- VACUUM CLEANER ASSEMBLY

7/8 September

/ 2006

VI.-VACUUM CLEANER PARTS LIST

No. PART. No. DESCRIPTION PV-500 K WD 600K WD 800K WD 900K

1 11-0184-9 SWITCH ON-OFF ASSEMBLY 1 1 1 1

3 13-2231-02-8 COVER BLUE 1

3 13-2231-03-6 COVER GRAPHITE 1

3 13-2231-01-0 COVER BLACK 1

3 13-2231-04-4 COVER GRAPHITE C7 1

5 13-2246-02-6 COVER HAN OLE BLUE 1

5 13-2246-0 COVER HANDLE GRAPHITE 1

5 13-2246-01-8 COVER HAN OLE BLACK 1

6 13-2253-02-2 COVER LOWER BLUE 1

6 13-2250-03-6 COVER LOWER GRAPHITE 1 1

6 13-2253-01-4 COVER LOWER BLACK 1

7 01-0063-6 SCREW # 6 x 1/2 3 3 3 3

8 01-0266-5 SCREW # 4 x 3/8 1 1 1 1

9 00-3872-9 MOTOR ASSEMBLY 1 1 1 1

9a 28-0909-3 LINE CORD 1 1 1 1

10 01-0293-9 SCREW 6 6 6 6

11 12-0819-8 SEAL LID 1 1 1 1

12 13-2260-01-9 LID BLUE 1

12 13-2261-9 LID GRAPHITE 1 1

12 13-2260-1 LID BLACK 1

13 01-0074-3 SCREW # 8 x 3/4 4 4 4 4

14 13-3079-4 FLOAT 1 1 1 1

15 13-1991-2 CAGE 1 1 1 1

16 12-0696-0 FOAM FILTER 1 1 1 1

17 08-1924-3 PAPER FILTER 2 2 2 2

18 45-0544-2 RETAINER FILTER 1 1 1 1

19 17-4551-2 LABEL PV-500K 1

19 17-4550-4 LABEL WD-600K 1

19 17-4513-2 LABEL WD-800K 1

19 17-4512-4 LABEL WD-900K 1

20 46-3080-2 TANK ASSEMBLY PV-500K 1

20 46-3131-3 TANK ASSEMBLY WD-600K 1

20 46-3048-9 TANK ASSEMBLY WD-800K 1

20 46-3050-5 TANK ASSEMBLY WD-900K 1

21 13-1796-5 REAR WHEEL 6" 2 2

22 27-0264-5 TURNING WHEEL 2 4 4 2

23 46-2755-0 FLOOR TOOL W/SQUEEGEE ASSEMBLY 1 1 1

24 45-0602-8 FLOOR TOOL COMBINATION ASSEMBLY 1

25 46-2849-01-9 UPHOLSTERY TOOL GREY 1

20-1 13-2287-4 PICK UP TOOL BLACK 1 1 1

27 13-2628-01-7 INFLATOR NOZZLES GREY 1

28 13-2829-01-5 INFLATOR NOZZLES GREY 1

29 13-2295-7 EXTENSION WANDS BLACK 2 2 2

29 13-2293-01-0 EXTENSION WANDS GREY 2

30 45-0606-9 HOSE ASSEMBLY 67" 1

30 45-0548-3 HOSE ASSEMBLY 67" 1 1 1

31 18-0946-6 PACKING CASE PV-500K 1

32 18-0945-8 PACKING CASE WD-600K 1

33 18-0919-3 PACKING CASE WD-800K 1

34 18-0918-5 PACKING CASE WD-900K 1 1 1 1

8/8 September

/ 2006

FACTORY AUTHORIZED SERVICE

Thorne Electric Company

610 Lanark Suite 205

San Antonio TX ,78218

Tel (210) 590-1226

Fax (210) 590-1258

1-800-548-5741

FACTORY

Koblenz Electrica ,S.A. de C.V.

Av. . Ciencia No 28 Cuautitlán Izcalli

Edo. de México ,C.P. 54730

Tel : 5864-0300

Web site : http://www.koblenz.electric.com

KOBLENZ ELECTRICA S.A. DE C.V.

E-mail: servicio@koblenz-electric.com

SERVICE
